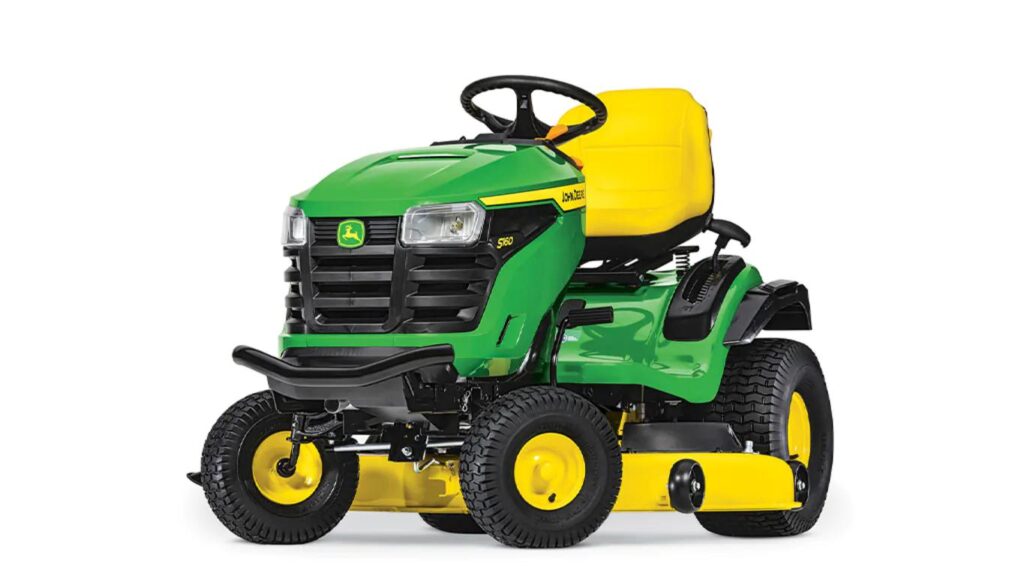

John Deere S160 Lawn Tractor

100 Series

Print this page Email this page

24 hp (17.9 kW)* V-Twin Extended Life Series (ELS) Engine
48-in. Edge™ Mower Deck
Electric PTO, Hydrostatic Transmission w/side-by-side pedals
Easy Change™ 30-Second Oil Change System
Adjustable lumbar seat and standard front bumper
Easy to read fuel gauge with low light visibility
2 year/120 hour bumper-to-bumper warranty

Request Quote

Specifications
Features

Optional equipment - Spreader	Tow-behind only, 125-175 lb 57.7-80 kg
Electrical system - Headlights	Two standard, incandescent
Engine - Power	24 hp 17.9 kW
Key Specs - Engine manufacturer/model	44U877 (M44)
Optional equipment - Sprayer	Tow-behind, 15 U.S. gal. 56.8 L Mounted, 15 U.S. gal. Tow-behind only, 25 U.S. gal. 94.6 L
Engine - Manufacturer/model	44U877 (M44)
Dimensions - Wheelbase	48.9 in. 124.2 cm
Key Specs - Transaxle type	TLT200 hydrostatic, two-wheel drive
Chassis - Primer/paint	E-coat/powder
Lift system - Mower cut height	13 positions, 1-4 in. 2.5-10.2 cm
Buyer's notes - Notes	Molded-in color material reduces sound, will not rust or dent Durable primer and powder paint finish Large, 14-in. (36-cm) steering wheel for more comfortable operation John Deere Easy Change 30-second oil change system
Additional information - Date collected	24-Jul-2020
Transaxle - Oil filter	Yes, not serviceable
Optional equipment - Weather protection	Weather enclosure
Chassis - Rear tires	20x10-8
Optional equipment - Tow-behind tools	16
Mower attachability - Rear draft arms	Two spring clips
Electrical system - Backup lights	No
Lift system - Type	Spring-assisted hand-grip lever
Chassis - Equipment mounting	CargO Mount™ system
Mower deck - Mower wheels	Four
Lift system - Hydraulic outlets	No
Seat - Type	One piece with lumbar adjustment
Chassis - Front axle	Cast-iron front axle, powdered-metal front wheel bushings
Chassis - Receiver hitch	No
Chassis - Cup holder	Yes
Steering - Steering wheel	Deluxe, diameter - 14 in. 35.6 cm
Mower deck - Mower wheel adjustment	One bolt
Mower deck - Mower level adjustment	Easy-level deck
Dimensions - Overall length	74.9 in. 190 cm
Engine - Oil change	John Deere Easy Change 30-second oil change system
Fuel system - Fuel tank capacity	2.4 U.S. gal. 9.1 L
Transaxle - Oil cooler	Fins and fan on transaxle
Electrical system - Engine starter	Bendix type
Key Specs - U.S. warranty	2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Electrical system - Taillights or reflector	Reflectors
Chassis - Fender deck material	Stamped steel
Chassis - Front tires	15x6-6
Chassis - Storage	Storage tray with cover
Safety - Backup protection	Reverse Implement Option (RIO)
Engine - Air cleaner	Cartridge with prefilter
Electrical system - 12-V outlet	No
Transaxle - Brakes	Internal wet disk
Optional equipment - Front blade	46 in. 116.8 cm
Mower attachability - Drive system	Single belt
Seat - Armrests	No
Dimensions - Weight	Mower, no fuel, 481 lb 218 kg
Optional equipment - Mulching system	Mulch cover
Engine - Displacement	44.2 cu in. 724 cc
Dimensions - Width with mower	60.8 in. 154 cm
Chassis - Hood material	Molded-in color material reduces sound, will not rust or dent
Optional equipment - Bucket holder	Yes, single bucket
Lift system - Preset cut height	No
Mower attachability - Type	Slide under tractor
Buyer's notes - Warranty	2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Steering - Turning radius	18 in. 45.7 cm
Transaxle - Forward speed	0-5.5 mph 0-8.9 km/h
Mower deck - Type	Side discharge
Seat - Seat back height	15 in. 38 cm
Chassis - Spindle bushings	No
Optional equipment - Front bumper	Included
Mower deck - Mower deck material	Steel, 12 gauge 0.105 in. 2.7 mm
Dimensions - Height	45.3 in. 115 cm
Dimensions - Width with mower (deflector raised for storage)	51.7 in. 131.3 cm
Electrical system - Charging system	Regulated, 14 amp
Optional equipment - Grass striping	Lawn striping kit
Safety - Meets ANSI standard	Yes
Engine - Cooling method	Air
Mower deck - Cutting width	Edge™ mower deck, 48 in. 122 cm
Mower deck - Mower wash port	Yes
Chassis - Weight bracket	Optional rear
Engine - Governor	Mechanical
Chassis - Floor mats	Yes, with debris removing channels
Safety - Meets OPEI standard	Yes
Additional information - Manufacturing location	Greeneville, Tennessee, USA
Chassis - Service interval decal	Yes
Steering - Uncut circle radius	20 in. 50.8 cm
Key Specs - Lift system type	Spring-assisted hand-grip lever
Transaxle - Control	Side-by-side pedals
Chassis - Frame	Full-length welded steel
Electrical system - Battery	12 V 300 CCA
Key Specs - Rear tires	20x10-8
Key Specs - Oil change	John Deere Easy Change™ 30-second oil change system
Key Specs - Transaxle control	Side-by-side pedals
Steering - Four-wheel steer	Not available on this model
Safety - Safety video	Yes
Transaxle - Reverse speed	0-3.2 mph 0-5.2 km/h
Fuel system - Fuel delivery	Pulse pump and carburetor
Electrical system - Hourmeter	Yes
Fuel system - Fuel gauge	Easy-read on dash
Transaxle - Differential lock	No
Transaxle - Cruise control	Standard
Optional equipment - Snow blower	Two-stage, 44 in. 111.8 cm
Optional equipment - Rear bagger	2-bag, 6.5 bu 229 L
Fuel system - Fuel tank location	Rear
Engine - Cylinders	V-twin - extended life series (ELS)
Mower deck - Construction	Stamped steel deck shell
Engine - Type	Overhead valve, full-pressure lube, oil filter
Transaxle - Type	Hydrostatic, 2-wheel drive
Seat - Seat suspension	Tilt, two coil springs
Mower attachability - Front draft arms	One spring clip
Key Specs - Cutting width	Edge™ mower deck, 48 in. 122 cm
Electrical system - Rear work lights	No
Lift system - Cut height increments	0.25 in. 0.64 cm
Mower attachability - Mower wheels rotate	No
Steering - Type	Sector and pinion with single drag link and tie rod
Fuel system - Type	Gasoline
Fuel system - Fuel fill opening	Center, 1.75 in. 4.45 cm
Steering - Tilt steering wheel	No
Optional equipment - Sun canopy	Sun canopy
Chassis - Fender handles/grips	Handgrips
Seat - Fore-aft adjustment	While seated, 5.5 in. 14 cm
Mower deck - Mower drive system	Electric power take-off (PTO) clutch
Engine - Choke/speed control	Single lever with spring-return on choke
Key Specs - Engine power	24 hp 17.9 kW

Featured List

Drive System: 2-wheel drive
Transmission: Two Pedal Hydrostatic
Warranty: 2 year/120 hour<sup>1</sup>
Engine: 24 hp*
Deck: 48-in Edge™ Cuttting System

Featured Content

S160 Tractor with 48-in. (122-cm) Edge cutting system

48-in. (122-cm) Edge cutting system

The Edge cutting system has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give superior mowing performance, convenience, and reliability:

- The deep deck design lifts grass for a clean, even cut.

- The smooth underside has no nooks and crannies, preventing grass buildup and evenly dispersing grass clippings.

- The rolled outer edge of the deck provides extra strength and protection.

- Dual-stage E-coat and powder paint coatings provide extra protection from rust.

- Flexible discharge chute minimizes property and mower deck damage.

The 48-in. (122-cm) Edge Mower Deck is a three-spindle design with heavy-duty characteristics:

- The 12-gauge, 0.105-in. (2.7-mm) steel deck provides years of dependable mowing.

- Included three-in-one blades work well for side-discharge, mulching, or bagging.

- The blade-to-spindle design provides a unique mounting system for the mower blade that gives extra safety and convenience.

- Four mower deck wheels are standard equipment for a smooth mowing job in rolling terrain.

- No tools are required to switch from mulching to side discharge to rear bagging.

- A mulching cover is an optional attachment that can be installed without the use of tools.

- High-performance mulching blades are available to enhance mulching performance.

Mower wash port

Mower wash port with hose connector

A wash port is provided to make cleaning the underside of the mower deck easy:

- A hose connector is included with mower deck.

StarLock™ blade design

StarLock blade design

The StarLock blade design keeps the blade bolt at the correct torque for easy removal.

Optional blades for difficult mulching or bagging conditions are available.

Optional bagger

6.5-bu (229-L) hopper and chute on an S140

A cut-and-throw, 6.5-bu (229-L) bagger is sold separately and comes with bagging blades. Special bagging blades are not required but they can enhance performance.

The bagger kit provides an efficient means of collecting grass clippings and leaves. It can be set up without tools in minutes and has easy-to-empty bags.

Solid one-piece frame

The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.66-mm) steel:

- Full-length, robotically welded frame design has high-strength steel rails for added strength and long life.

- One-piece, steel fender deck is bolted to the frame.

Cast-iron front axle will not bend

Front axle and wheel spindle

The front axle is constructed of solid cast iron that will not bend:

- Automotive-like steering system with sector and pinion steering gears and single drag link with a tie rod provides a very strong, low-effort, and tight-turning system.

- Three grease fittings, on both steering spindles and center pivot, allow for regular lubrication to help maintain easy steering and minimize wear.

- Large, 0.75-in. (1.9-cm) diameter wheel spindles provide excellent durability.

Front bumper protects the tractor

Front bumper

The front bumper is included on the S130, S140, S160, S170, and S180. It is available as an optional attachment for the S100, S110, and S120.

- Additional front-end protection

- Attractive, bold style

CargO Mount™ system makes installation of rear bagger and other attachments easy

Rear CargO Mount points

Front CargO Mount points at the top of the dashboard

Rear bagger is mounted with CargO Mount points

The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.

Two-pedal speed/direction controls

Forward speed control pedal in use

A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:

- Automotive-type accelerator controls ensure easy operation.

- Operator can change direction without lifting foot off the platform.

- Large pedal surface gives superior operator comfort.

Hydrostatic transmission

Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:

- Tuff Torq TLT200 – S100, S110, S120, S130, S140, and S160

- Tuff Torq K46 – S170 and S180

24-hp (17.9-kW) engine

This full-featured engine is engineered to deliver world-class endurance and power. A step above the competition, it is designed to be more dependable and longer lasting, saving time and money over the long run.

Built to exceed demanding needs by incorporating premium features and innovative designs:

- Overhead valve (OHV) design for cooler operation and longer valve life

- Contains an advanced debris management system that directs cooling air through the rotating screen to the air cleaner compartment, where large debris is pre-filtered through ejector slots
  - - Keeps unfiltered air out of the engine through a large, dual-sealed, premium oval-shaped cartridge-style filter
  - - Ensures maximum protection for extended engine life with the premium air cleaner, a pleated paper filter with a foam precleaner
  - - Captures fine particles for maximum protection and extended maintenance

- Provides maximum protection with full-pressure lubrication system
  - - Pumps oil by a mechanical gerotor-style pump to all critical engine components

- A premium bearing package for improved durability; includes a super-finished crank pin bearing with a 50 percent smoother surface to increase load capacity by 35 percent
  - - Uses a premium DU Teflon®-coated bearing
  - - Helps resist wear and increases durability through self-lubricating bronze bearing

- Wear-resistant, chrome-plated valve stems for long-life valves
  - - 44 percent smoother for longer life

- Cast-iron cylinder liners for longer life

- Dependable float-feed type carburetor with integral fuel pump

- High-capacity fuel filter for dependable operation

- John Deere Easy Change™ 30-second oil change system makes changing the engine oil easy, quick, and clean

- Maintenance-free electronic ignition for quick, dependable starts

- Platinum spark plugs for extended life

Teflon is a trademark of The Chemours Company.

24-hp (17.9-kW) ELS engine

A 24-hp (17.9-kW) V-twin extended-life series (ELS) engine provides plenty of power and torque to handle tough mowing, mulching, and bagging:

- Includes ELS engine features for enhanced performance and longer life

- V-twin cylinder design for greater torque, lower vibration, and improved sound quality

- Electronic ignition for fast starts

- Spring-return feature to ensure the operator will not mistakenly leave the throttle lever in the choke position

- Cast-iron cylinder liners for longer engine life

- Overhead valves for excellent power and fuel economy

- Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
  - - More effective when operating the tractor on an incline

Fuel tank

Fuel filler opening

- The capacity is 2.4 U.S. gal. (9.1 L).

- The fuel filler opening is conveniently located under the seat.
  - - Filling the tank without spilling is easy.
  - - A tethered fuel tank cap is more convenient.
  - - The sealed fuel cap helps keep vapors inside the tank.

MowerPlus app screen

MowerPlus app maintenance screen

Keep a John Deere lawn tractor running its best and know how it mows with the John Deere MowerPlus app. Simply scan the lawn tractor’s barcode to get custom information. The app helps determine the best time to mow, communicates expert pre-mow tips, offers maintenance reminders, and provides walk-through guides.

Look for the MowerPlus app on the iOS® or Android™ system app stores.

The app supports residential lawn equipment such as 100 Series, 200 Series, X300, X500, X700, Z200 through Z600, and many similarly sized older products. It does not presently support tractor models numbered 1000 and larger, such as 1025R.

NOTE: Some product image variation may exist.

MowerPlus connectors also available (sold separately)

MowerPlus hour meter connector

MowerPlus deluxe smart connector, with a phone

The John Deere MowerPlus connectors wirelessly link a lawn tractor to the MowerPlus app on a mobile device.

	Deluxe smart connector	Hour meter connector
Compatible with lawn tractors	S120, S130, S160, S170, and S180 Model year 2021 and later S240 (SN 880,001- )	S100, S110, S140, S220
Communicates engine usage to track maintenance intervals	X	X
Communicates fuel level and battery health	X
Compatible with MowerPlus app for iOS® operating system	X	X
Compatible with MowerPlus app for Android™ operating system	X

iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc. Android is a trademark of Google LLC.

Operator station is designed for comfort (S160 shown)

Comfortable operator station, left side (S170 shown)

The operator station is designed for operator comfort and easy operation:

- Controls are positioned where they are easy to reach and use to control the tractor.

- The steering wheel is positioned and angled to give the operator plenty of room and steering comfort.

- The seat is positioned to provide the most comfortable operator position.

Steering wheel and dash

Wide footrest with debris channels

Controls are easy to see and use:

- A deluxe, 14-in. (35.6-cm) steering wheel provides greater operator comfort and control.

- Ignition switch is on the dash for starting ease.

Wide footrest areas with non-slip, anti-vibration rubber floor mats are provided for operator comfort:

- The wide footrest makes it easy to step over the mower deck while entering or exiting the seat.

- Debris removing channels help keep the footrest area clean and dry.

Comfortable lumbar seat

Lumbar seat adjustment knob

Easy-to-adjust seat

Operator comfort is enhanced with a 15-in. (38-cm) high-back, two-piece seat with an open back:

- Especially helpful when operating the tractor for extended periods of time

- Easily adjusted forward or rearward while in the seat

- Seat travel of 5.5 in. (14 cm) and 10 different positions to adjust for operator height

Seat springs give a smoother ride

Seat tilted forward

Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.

The seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.

Beverage holder

Storage compartment with cover

A beverage holder and storage compartment, located on the right fender, are conveniently located and easy to use.

Handgrip and reflector on fender flare

Fender flares cover the tires more completely and add style to the tractor. Handgrips give extra comfort for the operator, especially when operating on hillsides. Reflectors make the tractor more visible.

Snow blower, weather enclosure, weights, and chains on a 100 Series Tractor

Front blade, weather enclosure, and chains on a 100 Series Tractor

An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.

Equipment available for snow removal includes:

- 44-in. (112-cm) Snow Blower

- 46-in. (117-cm) Front Blade

- Tire chains or TerraGrip traction belts

- Weather enclosure

- Weights

S130 Tractor

Steering wheel and controls on S130

Instruments and controls

The contoured dash has clean, attractive styling:

- Controls are color-coded and labeled for easy identification.

- Controls are logically placed and easy to reach.

- The hour meter makes it easy to tell when oil changes and other maintenance should be performed.

- Functional design of the controls provides good appearance and a comfortable feel.

Easy-read fuel gauge shows fuel level on the dashboard

Easy-read fuel gauge

Convenient fuel filler opening

The easy-read fuel gauge shows how much fuel is in the tank and can be seen on the dashboard:

- Easy to check fuel level

- Convenient location

- Visible in cloudy or dusk conditions (is not backlit)

- Does not slosh from bumps

- The MowerPlus™ smartphone app can read and remember the fuel level (optional MowerPlus deluxe smart connector required)

- The hour meter is also visible on the fuel gauge display

Side-by-side transmission control pedals

Two-pedal speed/direction controls

Side-by-side foot pedals

Side-by-side foot pedals control the speed and direction of travel:

- Automotive-type accelerator controls ensure easy operation.

- Operator can change direction without lifting foot off the platform.

- Large pedal surface gives superior operator comfort.

Cruise control (S120, S130, S160, S170, and S180)

Cruise control lever

Cruise control is available on the S120, S130, S160, S170, and the S180:

- To engage, lift the cruise lever and hold until the foot is removed from the forward pedal.

- The cruise control can be released by pushing on the brake pedal or the forward pedal.

Mower deck height adjustment

Mower deck height adjustment lever

A spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height:

- Increments of 1/4 in. (0.64 cm) allow fine-tuning the cut height.

- Cut height is adjustable from 1 to 4 in. (2.5 to 10.2 cm).

- The lift handle is shaped for easy use and is out of the way of entering or exiting operators.

Parking brake control

Brake/parking brake pedal

Parking brake lever

The parking brake control is conveniently located on the tractor pedestal for easy access. It holds the brake pedal securely in the locked position.

Electric power take-off (PTO) clutch is easy and convenient

Electric PTO engagement switch

The heavy-duty electric PTO clutch is operated with a convenient dash-mounted switch.

Reverse implement option (RIO)

RIO switch

Using RIO

CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:

- Carefully check the area around the machine.

- Disengage the mower before backing up.

NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.

1. Stop forward travel.

1. Look behind the machine to be sure there are no bystanders.

1. Push and hold in the RIO switch while depressing the reverse pedal slightly.

NOTE: If the engine and mower or other attachment stops while repositioning the machine, return the attachment engagement lever/switch to the off position. Start the engine and engage mower or other attachment. Begin again with step 2.

1. Release the RIO switch and reposition the machine as the machine begins to move rearward.

1. Resume forward travel. The mower or other attachment should continue operating.

1. Repeat procedure to position the machine again.

John Deere Easy Change 30-second oil change system

The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as twisting on a new oil-filled filter. Oil does not need to be drained from the engine.

The John Deere Easy Change filter is an additional engine oil reservoir. Changing the filter removes the captured contaminants and replaces about 0.8 qt (0.76 L) of engine oil.

The functionality does not stop with ease of use. The Easy Change oil system has several meaningful benefits over the traditional oil filter system of the 100 Series:

- A synthetic filter material is used for more predictable filtering and longer life.

- Filtering capacity is greater than with a standard oil filter.
  - - More filter surface area
  - - More oil flow capacity

- The system has 40 percent more oil volume.

- The oil and engine run cooler.

- The oil filter valve closes whenever the engine stops, so filtered particles are captured and cannot drain back into the engine.

- The risk of spilling during oil service is greatly reduced.

- Waste oil (and new oil production) is reduced by over 1,000,000 lb (453,592.4 kg) per tractor production year.

- This system is not a compromise to just make oil changes easier—these engines pass the same John Deere expectations and rigorous testing as always.

Partly due to these improvements, it is not necessary to remove and dispose of all the oil in the engine during service.

Everyone who uses the John Deere Easy Change system saves time and avoids the mess of a traditional oil change. In the past, many 100 Series Lawn Tractor owners rarely or never got around to changing their engine oil. With the 30-second oil change, even people who previously would not consider changing the oil themselves can easily do it. The Easy Change system is a no-mess, no-fuss solution the competition cannot match.

Installation instructions are in the Operator’s Manual and in the John Deere Easy Change service part box.

Please recycle. Many local government recycling programs, authorized retailers, auto-service centers, and auto-parts stores will puncture and recycle used oil filters and oil.

An exclusive 2-year or 120-hour single-source, bumper-to-bumper warranty* is included for all John Deere 100 Series Tractors.

- The warranty is hassle free, with John Deere handling the service and paperwork.

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

One-piece hood is easy to open

Service interval decal located under hood

The one-piece hood opens easily to permit checking and servicing the engine:

- Important service points are located within easy reach.

- A service-interval decal is provided inside the tractor hood for convenience when servicing the tractor.

John Deere Easy Change™ 30-second oil change system

Seat tilted up for easy access to fuel-fill opening

The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as removing the old oil-filled filter and twisting on a new oil-filled filter.

The seat tilts up and out of the way to make adding fuel easy.

Hood will not rust or dent and includes quality headlights

One-piece hood opens for service access

Quality headlights for good visibility

- Molded-in color material reduces sound and will not rust or dent.

- Same quality hood material as on larger John Deere tractors provides good resilience and UV resistance for an extended time.

- Openings on the side let in plenty of cooling air while keeping the sound level low.

- Two headlights provide good lighting for nighttime operation.
