John Deere XUV835M Honor Edition Crossover Utility Vehicle
Full-Size Crossover
- Three person cockpit with half doors
- Power steering with sport steering wheel
- Cargo box power lift, brush guard and black alloy wheels
- Up to 4,000-lb towing capacity
| Drivetrain - Final drive | Park, high, low, neutral, reverse transaxle |
|---|---|
| Engine - Displacement | 812 cc |
| Dimensions / Capacities - Width | 1618 mm 63.7 in. |
| Key Specs - Towing capacity | Up to 1814 kg 4000 lb |
| Dimensions / Capacities - Tread centers | Front: 1341 mm 52.8 in. Rear: 1259 mm 49.6 in. |
| Drivetrain - Traction assist | Limited slip front differential, Positive locking, switch actuated rear differential lock |
| Dimensions / Capacities - Towing capacity | Up to 1814 kg 4000 lb |
| Drivetrain - Transmission | Continuously Variable Transmission (CVT) with clutch enclosure |
| Drivetrain - Descent control | Yes |
| Key Specs - Cargo box capacity (weight) | 454 kg 1000 lb |
| Features - Instrumentation | Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light) |
| Key Specs - Fuel capacity | 42.4 L 11.2 U.S. gal. |
| Brakes - Type | Front/rear hydraulic disc with twin piston front calipers |
| Dimensions / Capacities - Fuel capacity | 42.4 L 11.2 U.S. gal. |
| Tires / Wheels - Front | 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels 27x9-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
| Features - Power steering | Yes |
| Suspension - Front | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel |
| Dimensions / Capacities - Payload capacity | 677 kg 1493 lb |
| Engine - Power | 40.3 kW 54 hp |
| Engine - Cooling system | Liquid |
| Suspension - Rear | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
| Key Specs - Final drive | Park, high, low, neutral, reverse transaxle |
| Dimensions / Capacities - Weight | With fuel and fluids: 868 kg 1913 lb |
| Dimensions / Capacities - Cargo box capacity (weight) | 454 kg 1000 lb |
| Key Specs - Rear suspension | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
| Features - Battery / Alternator / Power port | Battery: 12 V 480 CCA Alternator: 85 amp DC outlet: 12 V |
| Dimensions / Capacities - Wheelbase | 2146 mm 84.5 in. |
| Engine - Type | 4-cycle gas, electronic fuel injection (EFI) |
| Dimensions / Capacities - Height | 1987 mm 78.2 in. |
| Dimensions / Capacities - Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
| Drivetrain - Four wheel drive | Dash switch actuated four-wheel drive system |
| Dimensions / Capacities - Length | 3228 mm 127 in. |
| Brakes - Park brake | Park in-transmission, Optional factory-installed secondary foot operated with hand release |
| Additional information - Date collected | 8-Jun-22 |
| Features - Color | Desert sand |
| Key Specs - Four wheel drive | Dash switch actuated four-wheel drive system |
| Additional information - Country of Manufacture | U.S. |
| Features - Seating | Black vinyl 40/60 split three-passenger bench |
| Features - Storage | Total: 97.8 L 25.8 gal. Four cup holders: 1.3 L 0.3 gal. Center tray: 1.2 L 0.3 gal. Three dash bins: 5.0 L 1.3 gal. Storage pocket: 1.4 L 0.4 gal. Glove box: 3.8 L 1.0 gal. Under seat: 55.3 L 14.6 gal. Optional under hood: 30.0 L 7.9 gal. |
| Key Specs - Front suspension | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel |
| Dimensions / Capacities - Ground clearance | 284 mm 11.2 in. |
| Key Specs - Engine power | 40.3 kW 54 hp |
| Tires / Wheels - Rear | 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels 27x11-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
| Key Specs - Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
| Dimensions / Capacities - Hitch | Standard receiver: 5.1 cm 2 in. |
Featured List
- Towing Capacity: up to 4,000 lb
- HP / Power Source: 54 hp* Gasoline
Featured Content
When you hop into the seat of a full-size Gator™ Utility Vehicle, you will notice there’s seating for you, plus two.
Three-passenger seating with room to spare
40/60 split three-passenger bench seat
Operator platform
The adjustable operator’s seat and tilt steering lets drivers of all sizes get comfortable, and the passenger grab handles help everyone feel secure. The low step height and generous opening between seat base and fender is even designed to accommodate bulky work boots.
Roof, windshield, rear panel, door, and heater options
XUV835M with optional half doors, roof, windshield, and rear panel
XUV865M with optional cab doors with roll down windows, roof, windshield, and rear panel
Roof, windshield, rear panel, and half doors attachments keep you dry, shaded, and out of the dust. Cab doors with roll down windows and heater attachments keep you warm all winter.
The full-size Gator™ XUV can haul 454 kg (1000 lb), so load it up with confidence. You can also make fewer trips with 1814 kg (4000 lb) of towing capacity and a standard 51-mm (2-in.) receiver hitch.
Built-tough cargo box
Cargo box (shown with spray-in liner and optional taillight protectors)
Cargo box converted to flatbed
The cargo box resists dents, scratches, and rust because it is made from a tough composite material. You will have no problem securing loads with integrated tie bars and 14 tie-down points. You can also convert the cargo box to a flatbed when you need to haul big and bulky loads.
The cargo box measures 1143 mm (45 in.) long, 1320 mm (52 in.) wide, and 305 mm (12 in.) deep.
One-handed tailgate
Tailgate handle
Since your hands are always full, the tailgate can be opened and closed with one hand. You can also lower the tailgate to carry longer items or remove it for easy cleanout.
Power lift
Deluxe cargo box unloading rocks
To save your back, the optional cargo box power lift empties heavy loads with the push of a button.
Large fuel tank fill opening
Full-size Gator™ XUVs have a large 42.8-L (11.3-gal.) fuel tank so you go further between fill ups. A 76-mm (3-in.) diameter fill opening reduce spills.
Instrument display, shift lever, and switches (shown on XUV835R Signature Edition)
When you sit behind the wheel of a full-size Gator™ Utility Vehicle, you will be reminded of your favorite pick-up truck. There are controls at your fingertips, an easy-to-read instrument panel, and outlets to recharge your phone.
Shift from park and into gear with a throw of a single lever. Power steering on M- and R- trim vehicles is smooth and responsive.
When the going gets tough, you can instantly engage four-wheel drive and rear differential lock with switches. Even at night, the backlit switches are easy to see. If a front wheel starts to slip, the front differential automatically locks to pull you through.

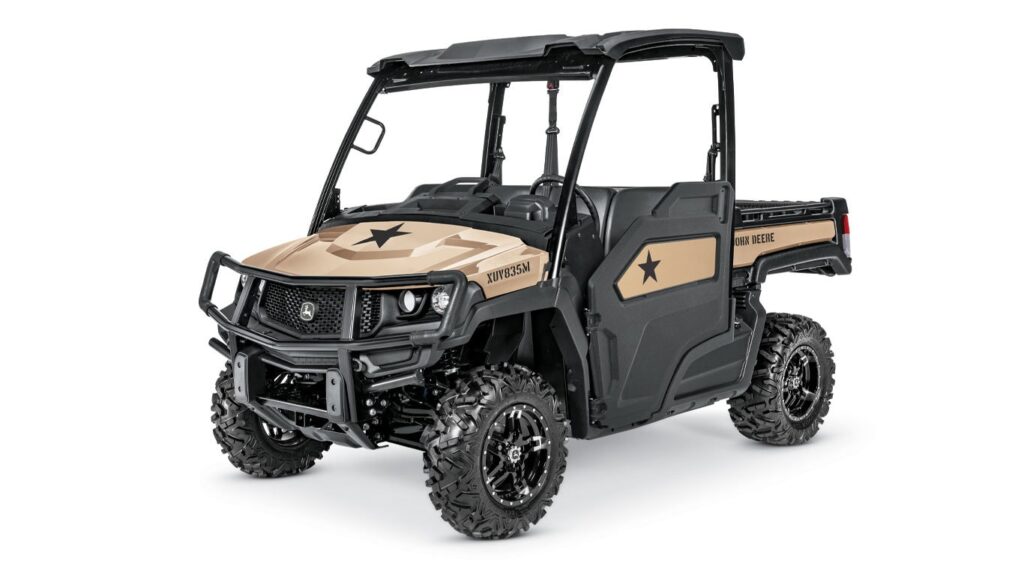

XUV835M Honor Edition Open Station
XUV835M Honor Edition HVAC Cab
XUV835M Honor Edition HVAC Cab
The Honor Edition Gator™ Utility Vehicles pay tribute to the military, veterans, and the communities that support them. Honor Edition models feature desert sand exterior panels, military inspired graphics, and several feature upgrades.
In conjunction with the launch of the Honor Edition, John Deere is making a charitable contribution to The SAVE Farm to provide support to military veterans. The SAVE Farm provides farming, ranching, and agribusiness training and healing programs for service members, veterans, and their families. Visit The SAVE Farm’s website for more information.
IMPORTANT: When you click this link, you will be leaving the Deere site. You will be directed to a non-Deere site. Such linked websites are not under the control of Deere. To the full extent permitted under applicable law, Deere is not responsible for the contents of any linked site or any link contained in a linked site. The inclusion of any link does not imply endorsement by Deere of the site, and Deere shall have no responsibility for information which is referenced by or linked to this site.
The Honor Edition is available on the XUV835M in an open-station configuration and an HVAC (heating, ventilation, and air conditioning) cab configuration. These special edition vehicles are only available for model year 2022.
The Honor Edition models include:
- Desert sand exterior color panels
- Military inspired model number, brand, and decorative graphics
- Black alloy wheels with Maxxis® Bighorn® 2.0 extreme terrain radial or Predator Heavy-Duty all-terrain radial tires
- Black vinyl 40/60 split-bench seat
- Sport steering wheel
- Half doors (open station)
- Black roof
- Stone headliner (HVAC cab)
- Stone A- and B-post covers (HVAC cab)
- Brush guard
- Deluxe cargo box with spray in liner, brake lights, and taillights
- Cargo box power lift
- Single-beam LED headlights
Honor Edition operator station shown on HVAC cab model
Maxxis and Bighorn are trademarks of Cheng Shin Rubber Ind. Co., Ltd.
Full-size Gator™ XUVs are built to work hard and go the extra mile.
Heavy-duty frame
Underside view of XUV865M
Underside view of XUV825M S4
The hefty frame is designed to stand-up to all the bumps and bends of the trail, and the standard front skid plate protects key components from damage.
Constant velocity boot protection
Constant velocity boot protection
Constant velocity joints are enclosed to keep water and dirt out. A protector shield protects the boot from trail debris.
Automotive-grade panels and optional protection packages
TrueTimber® KANATI camo XUV865R with optional Premium Protection Package
The hood and side panels are made of automotive-grade materials that resist scratches and dents, and the cargo box is made of tough composite material that resists dents and rust. Optional protection packages look tough and provide even more protection.
TrueTimber® is a trademark of True Timber Outdoors Holding Company, LLC.
Green and yellow XUV835R Signature Edition with included Ultimate Protection Package
Olive and black XUV865M with cab and optional brush guard
TrueTimber® KANATI camo XUV865R with optional Premium Protection Package
Desert sand, XUV835M Honor Edition with included brush guard
You will get noticed with the distinctive styling of full-size Gator™ XUVs. Available in four colors, with various protection packages, and more than 100 attachments, you can create a custom look that will turn heads.
TrueTimber is a trademark of True Timber Outdoors Holding Company, LLC.
You will feel confident and comfortable, even on tough terrain, with a full-size Gator™ Utility Vehicle. You will feel stable with a low center of gravity and a wide stance. Engine braking and four-wheel hydraulic disc brakes keep you in control on steep descents, even when fully loaded. The power steering on M- and R-Trim vehicles, is smooth and responsive.
Standard four-wheel drive with front and rear differential locks
Dash mounted four-wheel drive and rear differential lock switches
With standard four-wheel drive and differential lock, both instantly available with the flip of a switch, you can get where you are going.
Dual A-arm front and rear independent suspension
Rear suspension and ground clearance
The independent suspension provides a smooth ride as 203 mm (8 in.) of front suspension travel and 229 mm (9 in.) of rear suspension travel cushions bumps and glides over ruts. And clearing rocks and roots is no problem with 284 mm (11.2 inches) of ground clearance.
Tires for any terrain
Terra Hawk all-terrain tire
Maxxis® Bighorn® 2.0 extreme terrain radial tire
Predator Heavy-Duty all-terrain radial tire
Full-Size Gator Utility Vehicles are available with three tire options:
- Terra Hawk all-terrain tires
- Tread pattern and wide footprint provide excellent traction with minimal impact on terrain
- Maxxis Bighorn 2.0 extreme terrain radial tires
- Radial construction provides shock absorption, allowing for a smoother ride
- Non-directional tread pattern provides predictable cornering and claws up roots and rocks
- Predator Heavy-Duty all-terrain radial tire
- Radial construction provides shock absorption, allowing for a smoother ride
- Flat profile increases footprint area, reducing ground pressure
- 8-ply rating delivers up to three times the life of Bighorn tires
Maxxis® Bighorn® is registered trademark of Cheng Shin Rubber Ind. Co., Ltd.
812-cc (49.6-cu in.) gasoline engine and drivetrain
The XUV835 and XUV825M S4 Gator™ Utility Vehicles are powered by an electronic fuel injection (EFI) gasoline engine with liquid-cooled, dual-overhead cams. This engine is designed to provide maximum power and fuel efficiency to muscle through tough jobs.
It also has plenty of torque in low range, and fast speeds in high range. The enclosed drivetrain automatically adjusts for fast acceleration, along with powerful hauling and hill-climbing capabilities.
One-row full-size Gator XUVs come packed with places to store tools, gear, and beverages.
Cup holders
Four cup holders and center tray (shown on XUV835E)
Cab door cup holder and pocket
The dash has four cup holders, and cab vehicles have a cup holder in each door.
Dash and under-seat storage
Under seat storage (shown on XUV835E)
Glove box, storage pocket, and two dash bins (shown on XUV835M cab)
The vehicles also feature an enclosed glove box, center tray, dash storage pocket and under-seat storage. Depending on the configuration, vehicles may have up to three additional dash bins and under-hood storage.
