John Deere 60 P-Tier

John Deere 60 P-Tier

John Deere 60 P-Tier

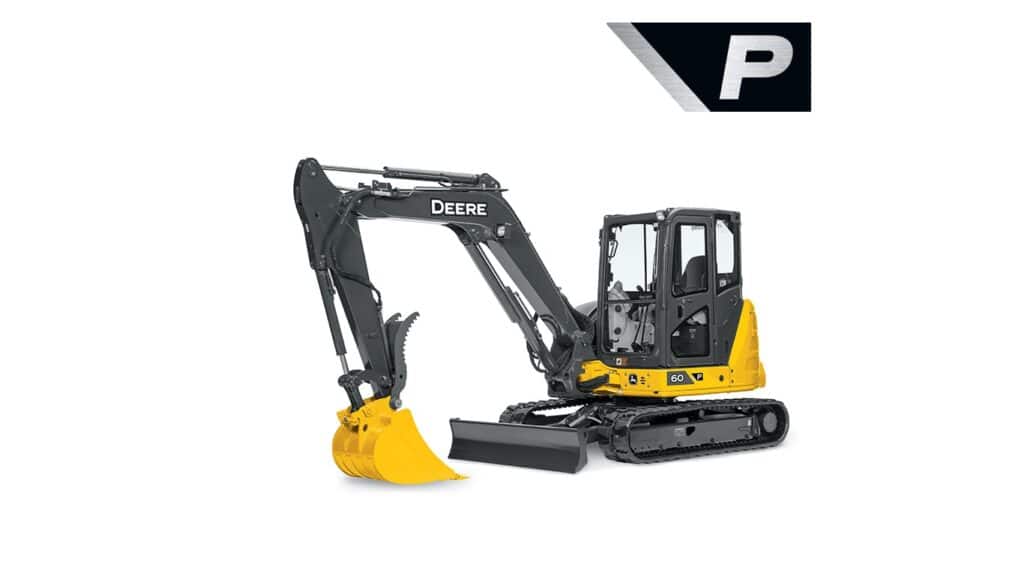

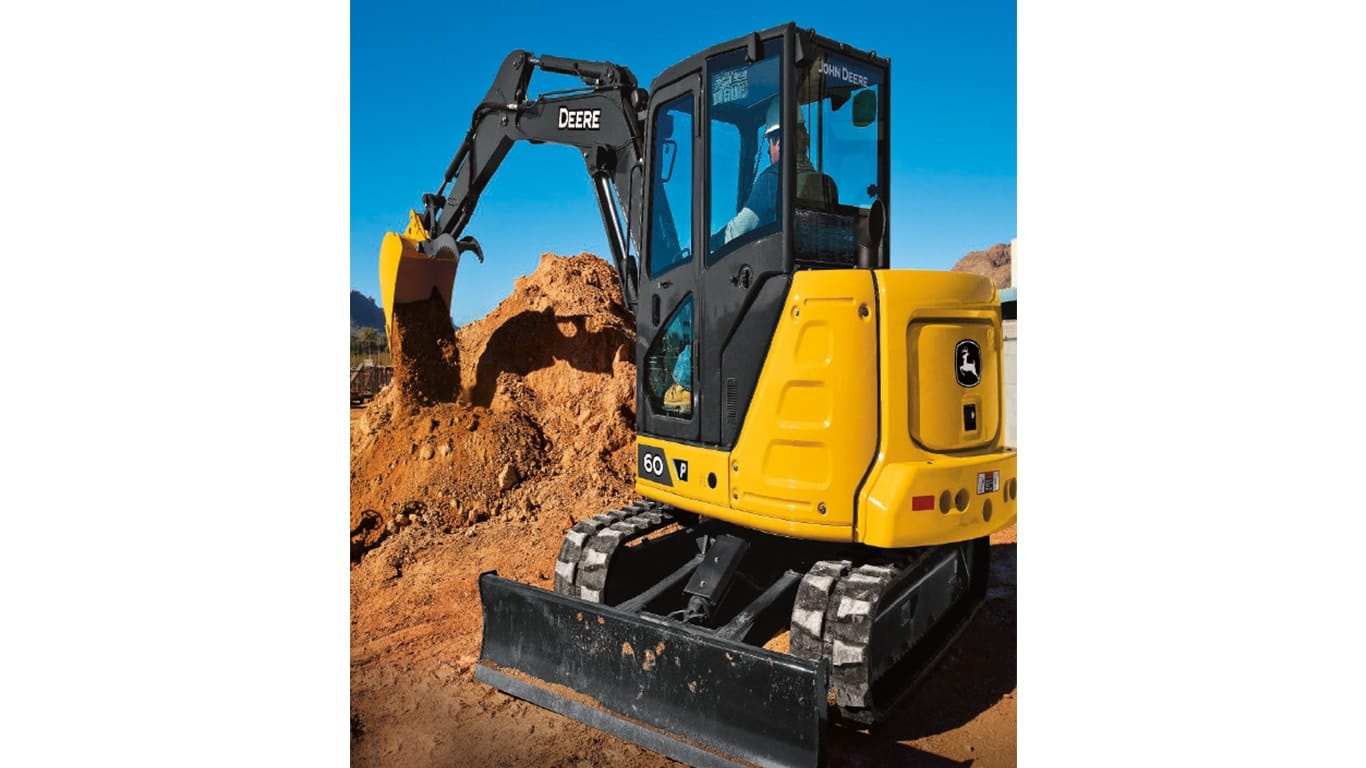

60 P-Tier Compact Excavator

John Deere
Compact Excavators

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Net Power: 39.6 kW (53 hp)
Max Digging Depth: 3.77 m (12 ft. 4 in.)
Operating Weight: 6180 kg (13,620 lb.)

Max Digging Reach 6.23 m (20 ft. 5 in.)
Max Digging Depth 3.77 m (12 ft. 4 in.)
Operating Weight 6,180 kg (13,620 lb.)
Net Power 39.6 kW (53 hp)

Features
Specifications

+ Expand All
- Close All

Select a category to view specifications (or view all).

CAPACITIES

Hydraulic Tank, ltr (gallons (US))	80 (21.1)
Fuel Tank, ltr (gallons (US))	120 (31.7)

DIMENSIONS

Digging Reach - Mono Boom, mm (ft/in)	6230 (20 ft 5 in)
Dump Height - Mono Boom, mm (ft/in)	4170 (13 ft 8 in)
Tailswing Radius, mm (ft/in)	1300 (4 ft 3 in)
Dig Height - Mono Boom, mm (ft/in)	5960 (19 ft 7 in)
Width over fixed tracks, mm (ft/in)	2000 (6 ft 7 in)
Transport Length Mono Boom, mm (ft/in)	5760 (18 ft 11 in)
Overall Undercarriage Length, mm (ft/in)	2500 (8 ft 2 in)
Transport Height - Maximum, mm (ft/in)	2540 (8 ft 4 in)
Dozer Blade Width, mm (ft/in)	2000 (6 ft 7 in)
Dozer Blade Height, mm (inches)	420 (17)
Ground Clearance, mm (inches)	325 (13)
Overall Undercarriage Width, mm (ft/in)	2000 (6 ft 7 in)
Dig Depth - Mono Boom, mm (ft/in)	3770 (12 ft 4 in)
Track Length On Ground, mm (ft/in)	1990 (6 ft 6 in)

DRIVELINE

Engine Manufacturer	Yanmar
Number Of Track Rollers - Each Side	4
Track Shoe Width, mm (inches)	400 (16)
Number Of Cylinders	4
Engine Output - Net, kW (hp)	39.6 (53)
Rated speed, rpm	2000
Number Of Carrier Rollers - Each Side	1
Displacement, ltr (Inches³)	3.32 (203)

PERFORMANCE

Swing Speed, rpm	9.5
Total Flow, lt/min (gallons (US) / min)	144 (38)
Ground Bearing Pressure, kPa (PSI)	35 (5.1)
Bucket Breakout, kN (lbf)	41.1 (9240)
Arm Tearout, kN (lbf)	31.1 (6990)
Travel Speed - High, kph (mph)	4.8 (3)

WEIGHTS

Operating Weight, kg (lbs)

6180 (13620)
