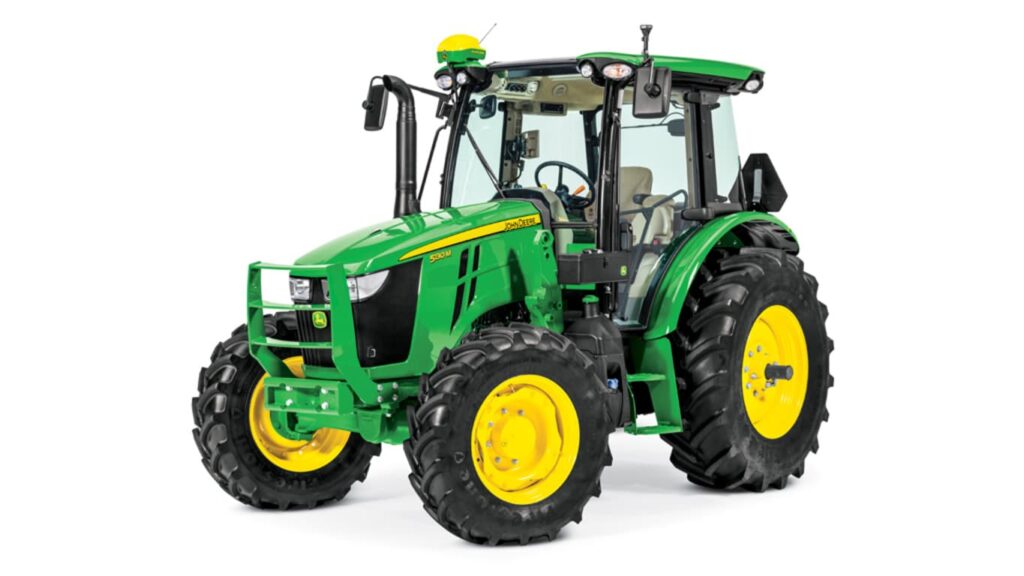

John Deere 5130M Utility Tractor
5 Family Utility Tractors
- PowrQuad™ PLUS or Powr8™ transmission options
- Choose climate-controlled cab or open station
- Hitch lift capacity starting at 6,975 lb (3,164 kg) and optional up to 7,868 lb (3,569 kg)
| Dimensions - Approximate shipping weight, Open;Cab | 4175 kg 9185 lb |
|---|---|
| Hydraulic system - Type | Open center |
| Miscellaneous - AutoTrac ready | Optional |
| Rear power take-off (PTO) - Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1645 rpm 1000 at 2100 rpm |
| Rear hitch - Rear axle differential lock | Electrohydraulic |
| Key Specs - Hydraulic pump rated output | 97 L/min 25.6 gpm |
| Front hitch - Standard lift capacity | 1931 kg 4257 lb |
| Front hitch - Category | Category 2 |
| Key Specs - Transmission type | Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R Powr8™ 32F/16R with creeper |
| Rear power take-off (PTO) - Type | Independent, 34.9 mm (1.375 in) Standard: 540/540 Economy (6 spline) Optional: 540/540E (6 spline) and 1000 rpm (21 spline) reversible shaft |
| Dimensions - Overall length | OOS: 4081 mm 160 in. Cab: 4089 mm 161 in. |
| Engine specifications - Engine family | NJDXL04.5317 |
| Transmission - Creeper | Powr8™ 32F/16R with creeper |
| Hydraulic system - Number of rear selective control valves (SCVs) | Standard: Two Optional: Three |
| Electrical system - Type of bulb in beacon (Halogen, Zenon, LED) | Optional: LED |
| Engine performance - Power boost | At 1900 rpm: 4 percent |
| Electrical system - Working lights | Standard: Halogen Optional: LED |
| Engine specifications - Cylinders liners | Wet sleeved |
| Rear axle - Differential controls | Electrohydraulic |
| Rear hitch - Maximum lift capacity behind lift points | Standard: 3164 kg 6975 lb Optional: 3569 kg 7868 lb |
| Rear hitch - Remote control valves available | Standard: Two Optional: Three |
| Tires - Turning radius with brakes | MFWD: 3.85 m 12.6 ft |
| Engine specifications - After treatment type | DOC/SCR |
| Front hitch - Front power take-off (PTO) | 1000 rpm (21 spline) 34.9 mm (1.375 in.) |
| Engine performance - Rated power | At 2200 rpm: 95.8 kW 130 hp |
| Front axle - Type | Mechanical Front Wheel Drive (MFWD) |
| Key Specs - Rear hitch category (SAE designation) | Category 2; convertible to 1 |
| Hydraulic system - Number of mid selective control valves (SCVs) | Standard: Two Optional: Up to Three |
| Tires - Turning radius without brakes | MFWD: 4.0 m 13.1 ft |
| Engine performance - Maximum engine power | 99.9 kW 133.9 hp |
| Engine specifications - Aspiration | Turbocharged/air-to-air aftercooled |
| Engine specifications - Rated speed | 2200 rpm |
| Tires - Rear | MFWD: 18.4R30 (460/85R30) R1W Radial |
| Key Specs - Maximum engine power | 99.9 kW 133.9 hp |
| Rear axle - Final drive type | Inboard planetary |
| Capacities - Fuel tank | 165.4 L 43.7 U.S. gal. |
| Rear hitch - Hitch category (SAE designation) | Category 2; convertible to 1 |
| Key Specs - Rated PTO power (hp SAE) | At 2100 rpm: 84.5 kW 115 hp |
| Engine specifications - Engine type | 4045HLV82 |
| Electrical system - Type of bulb in headlight (Halogen, Zenon, LED) | Standard: Halogen Optional: LED |
| Key Specs - Rated engine power | At 2200 rpm: 95.8 kW 130 hp |
| Capacities - Diesel exhaust fluid (DEF) tank | 12.0 L 3.17 U.S. gal. |
| Precision AG - Guidance | Optional: AutoTrac™ with AutoTrac Basic |
| Engine performance - PTO torque rise | At 1600 rpm: 30 percent |
| Tires - Wheel tread range | MFWD: front: 1299-1997 mm 51.1-78.6 in. rear: 1350-2286 mm 53.1-90 in. |
| Engine specifications - Displacement | 4 cylinder: 4.5 L 276 cu in. |
| Electrical system - Battery options | 12 V |
| Engine performance - Engine peak torque | At 1600 rpm: 541 Nm 399 lb-ft |
| Hydraulic system - Joystick SCV control | Mechanical |
| Key Specs - Engine displacement | 4 cylinder: 4.5 L 276 cu in. |
| Operator station - Instructional seat | Optional |
| Transmission - Clutch; wet/dry | Wet |
| Operator station - Display | Digital Dash Display with three liquid crystal displays (LCDs) |
| Front hitch - PTO speed | 1000 at 2200 rpm |
| Hydraulic system - Pump rated output | 97 L/min 25.6 gpm |
| Dimensions - Wheelbase | 2350 mm 92.5 in. |
| Miscellaneous - Country of manufacture | Pune, India |
| Rear axle - Brakes, type and control | Hydraulic wet disc |
| Drawbar - Maximum vertical load | Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg 2646 lb |
| Operator station - Seat | Standard: Mechanical suspension Optional: air ride or premium air ride |
| Operator station - dB(A) rating | 78 dBA |
| Transmission - Reverser | Left hand, electrohydraulic |
| Rear hitch - Sensing type | Lower link |
| Engine performance - Rated PTO power (hp SAE) | At 2100 rpm: 84.5 kW 115 hp |
| Key Specs - Engine description | John Deere PowerTech™ 4045 EWL |
| Rear power take-off (PTO) - PTO actuation | Electrohydraulic |
| Key Specs - Base machine weight | 3964 kg (8,740 lb) |
| Drawbar - Drawbar category | Category 2 |
| Engine specifications - Description | John Deere PowerTech™ 4045 EWL |
| Operator station - Radio | Optional |
| Rear hitch - Hitch draft control load sense type | Electrohydraulic |
| Hydraulic system - Available flow at a single rear SCV | 73 L/min 19.3 gpm |
| Engine specifications - Emission level | Final Tier 4 |
| Rear axle - Type | Standard: Flange Optional: Rack-and-pinion (Bar) |
| Miscellaneous - ISOBUS ready | Optional |
| Weight - Base machine weight | 3964 kg (8,740 lb) |
| Transmission - Type | Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R Powr8™ 32F/16R with creeper |
| Electrical system - Alternator size | Cab: 120 amp ISOBUS/GreenStar™ Ready: 200 amp |
| Additional information - Date collected | 6-Jan-2023 |
Featured List
- Rated Flow:
25.6 gpm (96.9 l/m)
- PTO HP: 115 hp (84.5 kW) @2100 rpm
- 2WD or MFWD:
MFWD
- Engine HP: 128 hp (95 kW)
- PTO Speed: 540 at 2100 rpm540E at 1645 rpm1000 at 2100 rpm
- Cab or Open Station:
Cab Only
Featured Content
Power bulge and torque curve
Overview
When the tractor is under load, power bulge and torque rise work together to get through the tough spots without having to downshift.
As rpm drops, the only way to maintain or increase horsepower is to provide additional torque. Whether bailing wet hay or lifting a heavy load, the additional power allows the tractor to continue performing the job without stopping. The rated economy power take-off (EPTO) speed occurs near the peak torque rise providing power when operator need it in PTO applications.
Benefits
-
- Increased productivity in demanding conditions with more power when operator need it
-
- More lugging ability for quicker power recovery
-
- Additional torque provides force to remain horsepower as engine rpm drops below rated speed
Additional Details
Horsepower and torque are mathematically related.
5M 4-Cylinder tractors provide 4% power bulge while 5E 4-Cylinder tractors provide 2% power bulge. Note: There is no power bulge on 3-Cylinder tractors (5E 3-Cylinder or 5075M).
5E 4-Cylinder Power and Torque Curves
5E power curve summary
5E torque curve summary
5M Power and Torque Curves
5M power curve summary
5M torque curve summary
5M Tractor 3-point hitch
Overview
Heavy-duty 3-point hitch provides lift capacity and adjustability for implement versatility with Category 2 implements or adaptable to Category 1. Precisely raise and lower heavy implements such as planters, sprayers, and field cultivators, using the rockshaft control lever. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.
Benefits
-
- Convenience hooking up implements with telescoping draft links, adjustable sway bars, and interchangeable hitch balls with the choice of either mechanical or electrohydraulic controls.
-
- Consistency when lowering hitch with depth stop on both mechanical and electrohydraulic hitch controls – each time the position control lever is pushed forward, it stops where the depth stop has been positioned. Useful when preparing a seedbed.
-
- Compatible with implements needed to perform multiple jobs. Increased lift capacity is available with optional larger cylinders. See Specifications for lift capacity by model.
-
- Convenience when leveling implements with right lift link being able to adjust without tools – lift links can be adjusted for lateral float to allow implements with gauge wheels or skids to follow the ground contour
Additional details
Mechanical or electrohydraulic hitch control operation
Raise and lower rear implements with precision with either the mechanical or electrohydraulic (EH) hitch control. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.
The mechanical hitch control is paired with the tractors equipped with a PowrReverser™ transmission while the EH hitch control is paired with units equipped with a PowrQuad™ PLUS or Powr8™ transmission. Both control types enable the operator to adjust the speed at which an implement can be lowered by adjusting the rockshaft rate of drop. In addition to this feature, the EH hitch control adds repeatable movements by enabling the operator to set both an upper and lower limit.
The adjustable depth stop (found on both control types) provides consistency when lowering the hitch. Each time the position control lever is pushed forward, it stops where the depth stop has been positioned. This feature is a value to anyone who desires a consistent, level ground, like when preparing a seedbed.
The center link can be set in one of three positions to accurately set the implement position and draft sensing. The right lift link is adjustable without tools for added convenience when leveling implements.
Optional larger cylinders:
| Transmission | Cylinder diameter | Lift capacity at 610-mm (24-in) behind lift point |
| PowrReverser™ transmission models | Two 65-mm (2.56-in.) cylinders |
See specifications for lift capacity. |
| PowrReverser models with optional high-capacity hitch | One 65-mm (2.56-in.) cylinder One 75-mm (2.95-in.) cylinder |
|
| PowrQuad PLUS or Powr8 transmission models | Two 75-mm (2.95-in.) cylinders | |
| PowrQuad PLUS or Powr8 models with optional high-capacity hitch | Two 80-mm (3.15-in.) cylinders |
Rear fender hitch controls
5M rear fender hitch controls
Operators do not need to carry a tool to adjust the rear hitch. Operators can also raise and lower the 3-point hitch from outside of the tractor with the conveniently located rear fender hitch controls.
Rear quick hitch
Rear quick hitch
Sideview of quick hitch shown on 5M
An updated three-point quick hitch is offered on the 5M Tractors.
-
- This updated design is a break from the existing welded quick hitch as the frame is cast.
-
- The curved design eliminates the potential for contact with the rear fender and extensions.
-
- The quick hitch is available as a field kit option.
Sway bars
5M Tractor sway bars
Adjustable sway bars and telescoping draft links can be easily adjusted to adapt to a wide variety of implements. The right lift link also adjusts without tools for added convenience when leveling implements.
PowerTech™ PWL FT4 technology
Overview
All John Deere engines are designed and engineered specifically for agricultural applications. The engine powering 5 Series tractors is EPA certified Tier Level 4.
Benefits
-
- Efficient and cost-effective operation
-
- Allows for greater productivity and ease of operation
-
- Responsive power reducing the need to downshift the transmission
Additional details
The U.S. EPA and Environment Canada requires all off-road diesel engines with 18.6 kW (25 hp) or more to meet stringent FT4 emissions regulations.
PowerTech EWL/EWR/EWX/PWL/PWS/PSS/PVS engine identification
NOTE: find a tractor’s 3 character engine identification by referencing the ‘engine description’ in specifications.
| EWL
|
Aftertreatment
|
| Turbocharger
|
|
| Technology
|
Several defining features on 5 Series tractors maximize the performance and reliability of the emissions package. A completely shielded DOC/DPF/SCR not only protects essential components from damage, it also keeps out dirt and debris. The well-packaged and tightly organized circulation system means there is more room to work around the tractor.
Key components of the emissions system
Shielded for protection
Diesel oxidation catalyst (DOC), diesel particulate filter (DPF), and cooled exhaust gas recirculation (EGR)
Deere has chosen to utilize an exhaust filter (DOC) and/or diesel particulate filter (DPF) to reduce particulate material so the engine can operate at a level which produces less nitrogen oxide (NOx). With less NOx created, it requires less DEF to treat or no DEF for 3-cylinder models. The result is improved total fluid economy (diesel and DEF). Some applications also reduce NOx using cooled exhaust gas recirculation (EGR) that allows a controlled amount of exhaust gas to be returned to the engine leading to lower combustion temperature for a cleaner, more efficient exhaust.
The engine is programmed to aggressively respond to changes in power needs, which can temporarily increase particulate matter. Since the exhaust filter removes particulate matter instead of the engine, the engine is left free to do what it is designed to do – deliver all of the power, torque, plus transient response needed at the exact moment needed.
Diesel exhaust fluid (DEF)
DEF is an ISO 22241 standard aqueous urea solution consisting of 32.5 percent urea and has a freezing point of -11° C (12° F). A DEF tank keeps the operator in the field longer even when the temperatures drop below freezing. The DEF tank header is integrated with a temperature sensor and plumbed engine coolant lines are used to promote thawing and prevent freezing in the tank during operation.
DEF tank
Mounted near the DEF tank, the engine control unit (ECU)-controlled supply module draws DEF from the storage tank and provides a pressurized flow to the dosing module. When the ignition key is off, the supply module pump will reverse direction to return any accumulated fluid back to the tank. The supply module is also fitted with a replaceable filter to prevent contaminants from entering the dosing lines. Both the supply module and dosing lines are electrically heated and controlled by the ECU to determine when diesel exhaust fluid dosing can begin.
Selective catalytic reduction (SCR)
SCR is the final step in the process of reducing engine exhaust emissions to meet FT4 regulations. This process allows for the flow of engine exhaust dosed with DEF to pass from the SCR, reducing the presence of NOx converting it from NH3 to N2 (nitrogen gas) and H20 (water). The SCR canister is a welded, stainless assembly which requires no service. It also serves as a thermal insulator and provides additional noise reduction.
For more information regarding EPA regulations and the technology behind John Deere Integrated Emissions Control systems, please visit the following link: http://www.deere.com/wps/dcom/en_US/campaigns/ag_turf/emissions/final_tier_4.page or https://www.deere.ca/en/engines-and-drivetrain/final-tier-4/
Integrated declutch and gear buttons on single transmission control lever
Overview
A more productive transmission in a mid-spec utility tractor is found with PowrQuad PLUS and Powr8 transmissions which builds on the clutchless hydraulic shifting between forward and reverse of the PowrReverser™ transmissions with simple push-button gear shifting.
Benefits
-
- Ergonomically placed transmission control lever allows the operator to change gears and ranges using one lever
-
- Improved efficiencies by reducing steps to change gears by 35 percent
-
- Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
-
- Ideal for loader work and any applications that require frequent directional changes in tight spaces
-
- Eliminates wear on the clutch by automating gear shifts at the push of a button
Additional details
The PowrQuad™ transmission can be ordered with three different options to meet producer needs: PowrQuad™ PLUS 16F/16R, Powr8™ 32F/16R or the Powr8™ 32F/16R with creeper found on standard 5Ms.
PowrQuad/Powr8 transmissions include:
-
- Wet clutch
-
- Ergonomically mounted transmission lever controlling both gear and range changes
-
- Declutch button on the range lever for range shifting optionally without use of foot clutch
-
- Left-hand reverser for seamless directional changes
-
- Constant-mesh, helical-cut gears
-
- Pressure-lubricated top shaft
-
- Positive park pawl
-
- Three-speed PTO
-
- Neutral start switch
Integrated declutch and gear buttons on transmission control lever
Ranges on the transmission control can be selected by moving the controller in an H pattern. The lever selects ranges A, B, C, or D. Ranges are fully synchronized. That means when upshifting, operators can move between any range A-D without stopping the tractor.
Two buttons allow operators to gear up (rabbit) or gear down (turtle) within a range. A PowrQuad has 4 gear speeds per range while a Powr8 has 8 per forward range which is precisely how they got their names.
Mowing with AutoTrac™
Manage in-field efficiency and reduce operator fatigue by engaging AutoTrac on your 5M tractor. AutoTrac provides operators with a hands-free guidance solution with accuracy on a variety of field conditions.
Enable the following benefits by equipping your 5M Tractors with AutoTrac Ready, a 4240 Universal Display and a StarFire™ receiver:
-
- Simple and user friendly
-
- Reduces operator fatigue and error
-
- Saves time by eliminating implement overlap
-
- Optimizes machine efficiency
-
- Increase data driven decisions by documenting jobs
Potential jobs to use with AutoTrac:
-
- Cutting hay
-
- Over seeding
-
- Cultivation
-
- Disking
-
- Spraying
-
- Mowing
-
- Planting
-
- Fertilizer applications
-
- Pulling in irrigation pipe
-
- Cutting ditches
-
- Transplanting
-
- Harvesting
Learn more about the benefits of 4240 universal display.
Learn more about the benefits of a Starfire 6000 receiver.
Additional flexibility with bar axle on 5M adds to rear axle offerings
Overview
Whether fitting down a row spacing, straddling a windrow, or a wide stance for stability mowing on hills – there is a 5M configuration to meet operator’s needs. The rack-and-pinion (better known as ‘bar’) axle joins the existing flange axle offerings of the 5M adding nearly 25.4 cm (10 in.) of tread width on rear axles and brings additional options such as cast wheels that unlock the compatibility for duals. This increased flexibility all comes in the same versatile 5M tractor.
Benefits
-
- 134.874 cm (53.1 in.) to 205.486 cm (80.9 in.) wheel tread range on flange axle configurations
-
- Up to 228.6 cm (90 in.) wheel tread range on bar axle configuration
-
- Find the fit with fixed flange axle or fine-tune with adjustable bar axle offerings
-
- Increased ballast options with cast wheel offerings for bar axles
-
- Increase flotation with duals compatible with cast wheels on bar axles
Both the bar and flange axles are proven designs used on tractors for years, but this is the first time that bar axles have been brought to the 5-Series lineup.
Bar axle shown with steel wheelt
Flange axle with steel wheel
Consult the operator’s manual for specific wheel spacing configurations by tire offering.
5M Tractor Premium Cab with panorama roof
Overview
Experience ultimate operator experience in comfort and convenience by upgrading to the Premium Cab on 5M tractors. Upgrading to the Premium Cab unlocks a fixed panorama roof ideal for loader work.
Benefits
-
- Improve upward visibility by 80 percent vs standard cab for easier bale stacking, pallet stacking, and dumping loads into walled trailers with the panorama roof
-
- Additional storage space with the rear floor mat behind the seat
-
- Excellent visibility to rear operations with the rearview mirror
-
- Shield the operator from the sun with an easy-to-use front sunshade
| Features | Standard Cab | Premium Panorama Roof Cab |
| Deluxe isolated cab with flat floor | X | X |
| Tilt and telescopic steering column | X | X |
| Convenience power outlet | X | X |
| Air conditioning and heater | X | X |
| Speedometer | X | X |
| Beverage Holder | X | X |
| Sun visor for front window | X | X |
| Two-speed front windshield wiper and washer | X | X |
| Two front/two rear roof-mounted worklights | X | X |
| Two front/two rear roof-mounted warning lights | X | X |
| Two fender-mounted taillights | X | X |
| 120Amp Alternator | X | X |
| Convenience power outlet | X | X |
| Monitor mounting bosses (two Sets) | X | X |
| Swing-out rear window with two removable rear plugs for monitor | X | X |
| Right-hand console light | X | X |
| Radio preparation (with speakers, wiring) | X | X |
| Rear window grab handle | X | X |
| Bluetooth® ready | X | X |
| Requires option code 3025 (Deluxe cornerpost exhaust). | X | X |
| Fixed panorama roof with shade | – | X |
| Radio (Bluetooth® and Satellite Capable) | – | X |
| Rear window wiper | Option | X |
| Radio antenna | – | X |
| Requires option code 4030 (ElectroHydraulic (EH) rear hitch) | – | X |
| Requires option code 6040 (MFWD) | – | X |
Bluetooth is a trademark of Bluetooth SIG, Inc.
Tractor weight package
Overview
Keep implements in the ground with more down force that comes from a heavy tractor. The compactness of the 5M Series regarding wheelbase, weight, and total height tractor makes this tractor suited for a variety of different applications and is the perfect choice for all types of farms.
Benefits
-
- Improved traction and performance in the field
-
- Ability to power through tough jobs with heavy and durable cast steel
-
- Better stability when performing loader work
-
- Transport full bucket loads faster and lift bales higher with a stronger and more stable base
Additional details
See specifications for machine weight.
