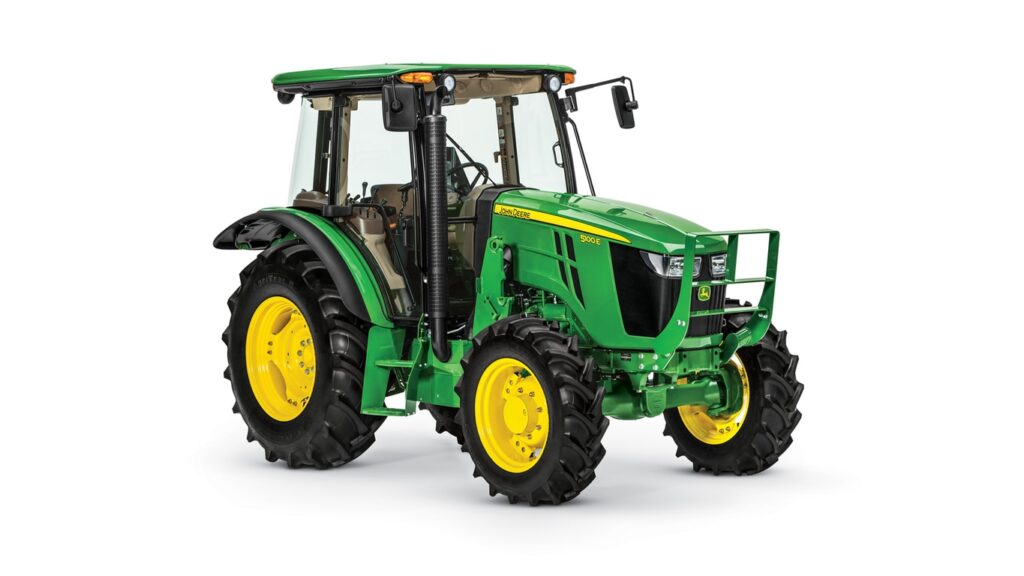

5100E Utility Tractor
- John Deere
- 5 Family Utility Tractors 5E Series Utility Tractors
Find Your Nearest Location
Key Features & Specs
- John Deere PowerTech™ Diesel Engine with FT4 emissions compliance
- Standard 12F/12R PowrReverser™ Transmission and MFWD only
- Standard cab or open operator station available
- 1000 RPM PTO dealer-installed option available
- Cab or Open Station Both
- Economy PTO YesStandard
- PTO Speed 540 at 2400 rpm540E at 1716 rpm1000 at 2400 rpm
- PTO HP 85 (63.4 kW) @2400 rpm
- Engine HP 100 HP (74 kW) @2400 rpm
- 2WD or MFWD MFWD
- + Expand All
- - Close All
-
Cooling package design and serviceability
Every utility tractor producer wants to maximize uptime and appreciates enhanced performance. The cooling package on the Final Tier 4 (FT4) 4-cylinder 5E Tractors allows for easier access to and serviceability of certain critical components. This improvement to serviceability will save time and also enhance tractor performance.
The cooling package features a first-pass screen to catch larger debris, a slide-out condenser (only on cab tractors) a charge air cooler that tilts forward, and a hydraulic oil cooler that slides out halfway to both sides of the tractor.The engine is equipped with an electronically controlled fan drive, which means that it only runs as fast as the needs of the tractor demand at that time. This is a fuel-saving device which improves hydraulic cooling and reduces the noise level for the operator. It also positively impacts total fluid efficiency.
-
Environmental Protection Agency (EPA) Final Tier 4 (FT4) compliant engines with maximum fluid efficiency
Overview
All John Deere engines are designed and engineered specifically for agricultural applications. The engine powering 5 Series tractors is EPA certified Tier Level 4.
Benefits
- Efficient and cost-effective operation
- Allows for greater productivity and ease of operation
- Responsive power reducing the need to downshift the transmission
Additional details
The U.S. EPA and Environment Canada requires all off-road diesel engines with 18.6 kW (25 hp) or more to meet stringent FT4 emissions regulations.
PowerTech EWL/PSS/PVS engine identification
EWL Aftertreatment
- S - Exhaust filter and SCR
- L - DOC and SCR
Turbocharger
- V - Variable geometry turbocharger (VGT)
- S - Series turbochargers
- W - Wastegate turbocharger
Technology
- P - PowerTech Plus
- E - PowerTech E
Several defining features on 5 Series tractors maximize the performance and reliability of the emissions package. A completely shielded DOC/SCR not only protects essential components from damage but it also keeps out dirt and debris. The well-packaged and tightly organized circulation system means there is more room to work around the tractor.
Key components of the emissions system
Diesel oxidation catalyst (DOC)
Deere has chosen to utilize an exhaust filter (DOC) to reduce particulate material so the engine can operate at a level which produces less nitrogen oxide (NOx). With less NOx created, it requires less DEF to treat. The result is improved total fluid economy (diesel and DEF).
The engine is programmed to aggressively respond to changes in power needs, which can temporarily increase particulate matter. Since the exhaust filter removes particulate matter instead of the engine, the engine is left free to do what it is designed to do – deliver all of the power, torque, plus transient response needed at the exact moment needed.Diesel exhaust fluid (DEF)
DEF is an ISO 22241 standard aqueous urea solution consisting of 32.5 percent urea and has a freezing point of -11° C (12° F). A DEF tank keeps the operator in the field longer even when the temperatures drop below freezing. The DEF tank header is integrated with a temperature sensor and plumbed engine coolant lines are used to promote thawing and prevent freezing in the tank during operation.
Mounted near the DEF tank, the engine control unit (ECU)-controlled supply module draws DEF from the storage tank and provides a pressurized flow to the dosing module. When the ignition key is off, the supply module pump will reverse direction to return any accumulated fluid back to the tank. The supply module is also fitted with a replaceable filter to prevent contaminants from entering the dosing lines. Both the supply module and dosing lines are electrically heated and controlled by the ECU to determine when diesel exhaust fluid dosing can begin.
For more information regarding EPA regulations and the technology behind John Deere Integrated Emissions Control systems, please visit the following link: http://www.deere.com/wps/dcom/en_US/campaigns/ag_turf/emissions/final_tier_4.page
or
www.deere.ca/en/engines-and-drivetrain/final-tier-4-stage-iv/
-
More speed selection variety - PowrReverser™ Hi-Lo 24F/12R transmission
Overview
Ample speeds and ease of operation for demanding applications with the 24F/12R PowrReverser, providing 24 forward speeds and 12 reverse speeds. This transmission comes standard with a dual speed 540/540 Economy power take-off (PTO), and it is ideal for applications requiring frequent directional changes, such as loader work and PTO work like rotary cutting and baling hay.
Benefits
- Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
- Frees the right-hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left-hand
- The control is located on the left side of the instrument console and selects forward, reverse, and neutral positions
- Ideal for rear blading and any applications that require frequent directional changes in tight spaces
- Clutch-less hydraulic shifting between forward and reverse
- Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)
Additional details
The hi/lo selector buttons are located on the gear shift lever for each forward gear and are represented by a rabbit and a turtle, respectively.
The forward lever selects one of four gears. All are synchronized for on-the-go shifting with the use of the clutch. The rear lever selects one of three ranges: A, B, or C.24F/12R transmission includes:
- Hydraulic wet clutches (forward and reverse)
- Maximize durability and outlast the life of any dry clutch
- When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs
- Platform-mounted shift levers (four gears, three ranges)
- Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
- The gearshift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two
- Left-hand reverser
- Constant-mesh helical-cut gears
- Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
- Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
- Pressure-lubricated top shaft
- Positive park pawl
- Neutral start switch
The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.
A neutral start switch requires the directional lever be in the neutral position to start the engine.The speed of directional changes can be adjusted to the operator's preference or application demands with an optional field installed infinitely variable control kit.
See the PTO functional area for more information on E-PTO.
-
Power bulge and torque reserve pull through the tough spots
Overview
When the tractor is under load, power bulge and torque rise work together to get through the tough spots without having to downshift.
As rpm drops, the only way to maintain or increase horsepower is to provide additional torque. Whether bailing wet hay or lifting a heavy load, the additional power allows the tractor to continue performing the job without stopping. The rated economy power take-off (EPTO) speed occurs near the peak torque rise providing power when you need it in PTO applications.
Benefits
- Increased productivity in demanding conditions with more power when you need it
- More lugging ability for quicker power recovery
- Additional torque provides force to remain horsepower as engine rpm drops below rated speed
Additional Details
Horsepower and torque are mathematically related.
5M 4-Cylinder tractors provide 4% power bulge while 5E 4-Cylinder tractors provide 2% power bulge.
5E 4-Cylinder power and torque curves
5M Power and torque curves
4-cylinder 5E torque curve summary
-
Automotive-style light-emitting diode (LED) instrument cluster
Overview
Operators can view information in a crisp, vibrant, and useful array on the tractor instrument cluster.
Benefits
- Clear and bright indicators, warning lights, and gauges
- Provides operators with crucial onboard diagnostics through the roll-mode function
- Visibility of engine hours, ground speed, Hi-Lo indicator, forward, neutral, and reverse all at the same time
- Light-out indicator for trailer light, turn light, and hazard light bulbs
- Clearly presented PTO target bars to indicate the correct PTO speeds when operating the PTO
Additional details
There are daytime and nighttime modes which are based on the position of the light switch. The mode adjusts the backlight levels of the display for optimum visibility.
-
Effective in demanding applications - PowrReverser™ 12F/12R transmission
Overview
Ample speeds and ease of operation for demanding applications with the 12F/12R PowrReverser. This transmission comes standard with a dual speed 540/540 economy power take-off (E-PTO) is ideal for applications requiring frequent directional changes such as loader work.
Benefits
- Effortlessly switch directions with a small finger motion using the clutch-less electrohydraulic fingertip directional lever
- Frees the right-hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left-hand
- The control is located on the left side of the steering column and selects forward, reverse, and neutral positions
- Ideal for rear blading and any applications that require frequent directional changes in tight spaces
- Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)
Additional detail
NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine.
12F/12R transmission includes:
- Hydraulic wet clutches (forward and reverse)
- Maximize durability and outlast the life of any dry clutch
- When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs
- Platform-mounted shift levers (four gears, three ranges)
- Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
- The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two
- Left-hand reverser
- Constant-mesh helical-cut gears
- Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
- Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
- Pressure-lubricated top shaft
- Positive park pawl: provides positive park and eliminates the need for a hand brake
- Neutral start switch
The forward lever selects one of four gears. The operator must depress the clutch while shifting. The rear lever selects one of three ranges: A, B, or C.
The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.
The speed of directional changes can be adjusted to the operator's preference or application demands with the field-installed infinitely-variable control kit.
See the PTO functional area for more information on E-PTO. - Effortlessly switch directions with a small finger motion using the clutch-less electrohydraulic fingertip directional lever
Capacities
Fuel tank | Open: 94.6 L 25 U.S. gal. Cab: 114 L/min 30 U.S. gal. |
Diesel exhaust fluid (DEF) tank | 12.0 L 3.17 U.S. gal. |
Dimensions
Overall length | 4042 mm 159.13 in. |
Wheelbase | 2350 mm 92.5 in. |
Approximate shipping weight, Open;Cab | Open: 3300 kg 7275 lb Cab: 3700 kg 8150 lb |
Drawbar
Drawbar category | Category 2 |
Maximum vertical load | Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg |
Electrical system
Working lights | Halogen |
Type of bulb in beacon (Halogen, Zenon, LED) | Kit: Halogen |
Alternator size | OOS: 90 amp Cab: 120 amp |
Type of bulb in headlight (Halogen, Zenon, LED) | Halogen |
Battery options | 12 V |
Engine performance
Engine peak torque | At 1700 rpm: 384 Nm 283 lb-ft |
Power boost | At 2200 rpm: 2 percent |
Rated PTO power (hp SAE) | At 2400 rpm: 63.4 kW 85 hp |
Maximum engine power | 76.0 kW 102 hp |
Rated power | At 2400 rpm: 74.6 kW 100 hp |
Engine specifications
Cylinders liners | Wet sleeved |
Rated speed | 2400 rpm |
Emission level | Final Tier 4 |
Displacement | 4 cylinders: 4.5 L 276 cu in. |
Description | John Deere PowerTech 4045 PWL |
Aspiration | Turbocharged and Aftercooled |
Engine family | NJDXL04.5315 |
Engine type | 4045HLV76 |
After treatment type | DOC/SCR |
Front axle
Type | Mechanical Front Wheel Drive (MFWD) |
Hydraulic system
Type | Open center |
Number of rear selective control valves (SCVs) | Standard: Two Optional: Three |
Pump rated output | 85.1 L/min 22.5 gpm |
Joystick SCV control | Mechanical |
Number of mid selective control valves (SCVs) | Standard: Zero Optional: Up to Three |
Available flow at a single rear SCV | 60.1 L/min 15.9 gpm |
Key Specs
Rear hitch category (SAE designation) | Category 2 |
Engine displacement | 4 cylinders: 4.5 L 276 cu in. |
Rated engine power | At 2400 rpm: 74.6 kW 100 hp |
Rated PTO power (hp SAE) | At 2400 rpm: 63.4 kW 85 hp |
Base machine weight | -- |
Transmission type | Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ Hi-Lo 24F/12R |
Maximum engine power | 76.0 kW 102 hp |
Hydraulic pump rated output | 85.1 L/min 22.5 gpm |
Engine description | John Deere PowerTech™ 4045 PWL |
Miscellaneous
Country of manufacture | Saltillo, Mexico |
AutoTrac ready | No |
ISOBUS ready | No |
Operator station
dB(A) rating | 78 dBA |
Instructional seat | Kit available for Cab |
Rollover protective structure, OOS | Rigid - foldable - telescopic Foldable, two-post Platform - flat/straddle Straddle Gearshift location - console/floor Floor |
Display | Automotive-style light-emitting diode (LED) instrument cluster |
Seat | Standard: Mechanical Optional for Cab: Air Ride |
Rear axle
Differential controls | Mechanical (pedal) |
Brakes, type and control | Hydraulic wet disc |
Type | Flange |
Final drive type | Inboard planetary |
Rear hitch
Hitch draft control load sense type | Mechanical |
Sensing type | Top link |
Remote control valves available | Standard: Two Optional: Three |
Maximum lift capacity behind lift points | Standard: 1457 kg 3213 lb |
Hitch category (SAE designation) | Category 2; convertible to 1 |
Rear power take-off (PTO)
PTO actuation | Electrohydraulic |
Engine rpm (at rated PTO speeds) | 540 at 2400 rpm 540E at 1716 rpm 1000 at 2400 rpm |
Type | Standard: 540/540E Optional: 540/1000 |
Tires
Rear | MFWD: 18.4-30 R1 Bias |
Turning radius with brakes | MFWD: 3.54 m 11.6 ft |
Wheel tread range | MFWD: front: 1340-1904 mm 52.8-75.0 in. |
Turning radius without brakes | MFWD: 4.36 m 14.3 ft |
Transmission
Reverser | Yes |
Clutch; wet/dry | Wet |
Creeper | Not available |
Type | Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ Hi-Lo 24F/12R |
Weight
Base machine weight | -- |
Additional information
Date collected | 6-Jan-2023 |
4.22
Poor wiring design on 4 Wheel drive
My plug comes out almost every time I use machine. Pulls loose from grass and other debris under machine.
Dasem
- From: South Carolina
- Usage Frequency: Yearly
- Level of Experience: Intermediate
Cattle farm operation
I purchase my 5100E new in 2014, we operate a cattle operation in Va. it used to cut, rake and bale hay and un-roll bales during the winter. Also used for snow removal, bush hogging and other general items on the farm. This tractor works great for everyone we do, with our operation getting bigger, we just purchase a new 6120M for bigger equipment we are purchasing, but have decide to keep our 5100E as it has been maint free.
BigRed63
- From: Appomattox, VA 24522, USA
- Usage Frequency: Daily
- Level of Experience: Intermediate
poor tractor
pto problems jd fixed ok loader valve problem not fixed fuel problem not fixed oil light problem not fixed ac problem fixed 4th new jd i wish i had something else no help from salesman
breed549
- From: Marietta, OK 73448, USA
- Usage Frequency: Daily
- Level of Experience: Expert
Great tractor for a small farm.
The efficiency of this tractor was just what I was looking for. Cab was set up great, easy visibility all the way around. Never had a problem with the power of it, it was always there when I needed it. Started great in the cold, easy maintenance.
Smallfarmer1979
- From: Canada
- Usage Frequency: Weekly
- Level of Experience: Intermediate
great machine,will keep buying deere from now on
I use this machine for roadside grass cutting commercially and commercial snowplowing and blowing in Canada average 500hrs to 800 hrs per year as of right now , I have had no serious issues with it, had a loose wire which would not let it start once but john deere fixed that on site same day, love the power reverser and the wet clutch my last tractor(not john deere) blew a clutch yearly due to it being a dry clutch doing the kind of work I do, its great on fuel with the 540 e option when doing roadside grass cutting saved 25% on fuel from the previous year using other tractor doing same job same milage same hours, my tractor has the cab with air ride seat and corner exhaust and the air ride seat is a must have if in the seat for in my case 10 to 12 hrs at a time
jamieM
- From: Ontario, Canada
- Usage Frequency: Weekly
- Level of Experience: Intermediate
Good tractor for the money
I use my 5100E to pull 15ft rotary cutter. I ordered 3SCV's, wouldn't have one without it. I also had duals put on for hillside mowing. This tractor is great. I use to mow with my 6140R, the 5100 is much better suited. Also great tractor for snow removal. I find it being my tractor of choice. The cab is quiet, cool in summer, warm in winter. I did also get the right door kit. I recommend.
Lovetomow
- From: Bruceville, IN 47516, USA
- Usage Frequency: Weekly
- Level of Experience: Intermediate
Work horse
Great tractor have no regrets at all, John Deere was awesome about purchasing finance , our farm is lucky to have such a a great machine, 2019 had some good changes to it with better front view also the controls were set up better for all day use. The 520m loader works great for me I added a tooth bar and there's plenty of power
GRANDPEE63
- From: Union county fl
- Usage Frequency: Daily
- Level of Experience: Expert
Amazing tractor
I love this tractor!!! It helps me do everything I need to do, and more!!! I would highly recommend this tractor!!! Great job John Deere
Deeredude
- From: Iowa, USA
- Usage Frequency: Weekly
- Level of Experience: Expert
Great Tractor at 100HP for Small Farm Operations
This Tractor for the price really gets everything done you need seamlessly -- Cutting, raking, baling hay, as well as, shredding. The quick hitch was a good buy. Just enough power to handle small/medium sized operations.
Alphonse
- From: Evergreen, LA
- Usage Frequency: Weekly
- Level of Experience: Expert
