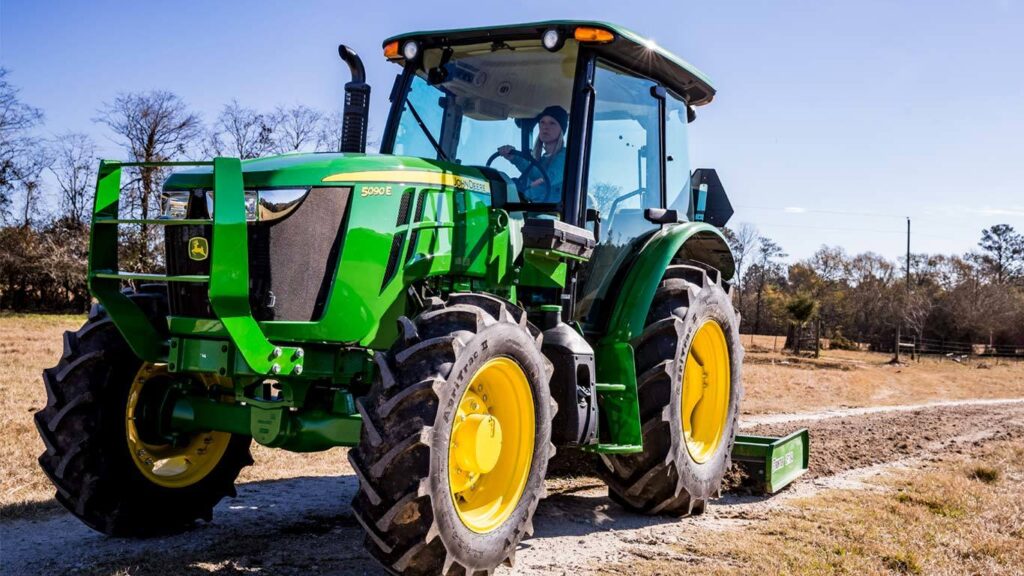

John Deere 5090E Utility Tractor

5 Family Utility Tractors

  • John Deere PowerTech™ Diesel Engine with FT4 emissions compliance
  • Standard 12F/12R PowrReverser™ Transmission and MFWD only
  • Standard cab or open operator station available
  • 1000 RPM PTO field-installed option available
Transmission - Clutch; wet/dryWet
Transmission - CreeperNot available
Rear hitch - Sensing typeTop link
Engine specifications - Cylinders linersWet sleeved
Hydraulic system - TypeOpen center
Rear axle - Brakes, type and controlHydraulic wet disc
Rear hitch - Hitch draft control load sense typeMechanical
Transmission - ReverserYes
Rear axle - Differential controlsMechanical (pedal)
Operator station - dB(A) rating78 dBA
Rear power take-off (PTO) - PTO actuationElectrohydraulic
Key Specs - Rear hitch category (SAE designation)Category 2
Engine specifications - After treatment typeDOC/SCR
Dimensions - Wheelbase2350 mm
92.5 in.
Key Specs - Transmission typeStandard: PowrReverser™ 12F/12R
Optional: PowrReverser™ Hi-Lo 24F/12R
Engine specifications - Rated speed2400 rpm
Rear axle - TypeFlange
Operator station - Rollover protective structure, OOSRigid - foldable - telescopic
Foldable, two-post
Platform - flat/straddle
Straddle
Gearshift location - console/floor
Floor
Engine specifications - Engine familyNJDXL04.5315
Key Specs - Engine displacement4 cylinders: 4.5 L
276 cu in.
Operator station - SeatStandard: Mechanical
Optional for Cab: Air Ride
Engine performance - Rated PTO power (hp SAE)At 2400 rpm: 56.0 kW
75 hp
Hydraulic system - Number of mid selective control valves (SCVs)Standard: Zero
Optional: Up to Three
Engine specifications - DescriptionJohn Deere PowerTech 4045 PWL
Tires - Turning radius without brakesMFWD: 4.36 m
14.3 ft
Engine specifications - Displacement4 cylinders: 4.5 L
276 cu in.
Engine specifications - AspirationTurbocharged and Aftercooled
Rear hitch - Remote control valves availableStandard: Two
Optional: Three
Transmission - TypeStandard: PowrReverser™ 12F/12R
Optional: PowrReverser™ Hi-Lo 24F/12R
Rear axle - Final drive typeInboard planetary
Electrical system - Type of bulb in headlight (Halogen, Zenon, LED)Halogen
Additional information - Date collected6-Jan-2023
Rear power take-off (PTO) - Engine rpm (at rated PTO speeds)540 at 2400 rpm
540E at 1716 rpm
1000 at 2400 rpm
Rear power take-off (PTO) - TypeStandard: 540/540E
Optional: 540/1000
Electrical system - Type of bulb in beacon (Halogen, Zenon, LED)Kit: Halogen
Operator station - Instructional seatKit available for Cab
Key Specs - Base machine weightOOS: 3200 kg (7,055 lb)
Cab: 3600 kg (7,937 lb)
Miscellaneous - Country of manufactureSaltillo, Mexico
Miscellaneous - AutoTrac readyNo
Hydraulic system - Pump rated output85.1 L/min
22.5 gpm
Engine specifications - Engine type4045HLV76
Hydraulic system - Number of rear selective control valves (SCVs)Standard: Two
Optional: Three
Dimensions - Overall length4042 mm
159.13 in.
Key Specs - Rated PTO power (hp SAE)At 2400 rpm: 56.0 kW
75 hp
Engine performance - Power boostAt 2200 rpm: 2 percent
Rear hitch - Maximum lift capacity behind lift pointsStandard: 1457 kg
3213 lb
Electrical system - Working lightsHalogen
Engine performance - Maximum engine power68.6 kW
92 hp
Electrical system - Alternator sizeOOS: 90 amp
Cab: 120 amp
Front axle - TypeMechanical Front Wheel Drive (MFWD)
Engine specifications - Emission levelFinal Tier 4
Key Specs - Rated engine powerAt 2400 rpm: 67.1 kW
90 hp
Capacities - Fuel tankOOS: 94.6 L
25 U.S. gal.
Cab: 114 L/min
30 U.S. gal.
Weight - Base machine weightOOS: 3200 kg (7,055 lb)
Cab: 3600 kg (7,937 lb)
Key Specs - Hydraulic pump rated output85.1 L/min
22.5 gpm
Tires - RearMFWD: 18.4-30 R1 Bias
Key Specs - Maximum engine power68.6 kW
92 hp
Drawbar - Maximum vertical loadRoad/field use (250-mm extended): 1450 kg
3197 lb
Field use (350-mm extended): 1200 kg
2646 lb
Field use (400-mm extended): 1200 kg
Electrical system - Battery options12 V
Tires - Wheel tread rangeMFWD: front: 1340-1904 mm
52.8-75.0 in.
Rear hitch - Hitch category (SAE designation)Category 2; convertible to 1
Key Specs - Engine descriptionJohn Deere PowerTech™ 4045 PWL
Engine performance - Engine peak torqueAt 1600 rpm: 347 Nm
255 lb-ft
Drawbar - Drawbar categoryCategory 2
Miscellaneous - ISOBUS readyNo
Hydraulic system - Joystick SCV controlMechanical
Capacities - Diesel exhaust fluid (DEF) tank12.0 L
3.17 U.S. gal.
Dimensions - Approximate shipping weight, Open;CabOOS: 3300 kg
7275 lb
Cab: 3700 kg
8150 lb
Hydraulic system - Available flow at a single rear SCV60.1 L/min
15.9 gpm
Engine performance - Rated powerAt 2400 rpm: 67.1 kW
90 hp
Tires - Turning radius with brakesMFWD: 3.54 m
11.6 ft
Operator station - DisplayAutomotive-style light-emitting diode (LED) instrument cluster
  • Cab or Open Station: Both
  • Engine HP: 90 HP (67 kW) @2400 rpm
  • Economy PTO: YesStandard
  • PTO Speed: 540 at 2400 rpm540E at 1716 rpm1000 at 2400 rpm
  • PTO HP: 75 (52.2 kW) @2400 rpm
  • 2WD or MFWD: MFWD

Power bulge and torque curve

Power bulge and torque curve

Overview

When the tractor is under load, power bulge and torque rise work together to get through the tough spots without having to downshift.

As rpm drops, the only way to maintain or increase horsepower is to provide additional torque. Whether bailing wet hay or lifting a heavy load, the additional power allows the tractor to continue performing the job without stopping. The rated economy power take-off (EPTO) speed occurs near the peak torque rise providing power when you need it in PTO applications.

Benefits

    • Increased productivity in demanding conditions with more power when you need it

    • More lugging ability for quicker power recovery

    • Additional torque provides force to remain horsepower as engine rpm drops below rated speed

Additional Details

Horsepower and torque are mathematically related.

#

5M 4-Cylinder tractors provide 4% power bulge while 5E 4-Cylinder tractors provide 2% power bulge.

5E 4-Cylinder power and torque curves

5E power curve summary

5E power curve summary

5E torque curve summary

5E torque curve summary

5M Power and torque curves

5M power curve summary

5M power curve summary

5M torque curve summary

5M torque curve summary

4-cylinder 5E torque curve summary

Instrument cluster

Instrument cluster

Power take-off (PTO) target bars

Power take-off (PTO) target bars

Overview

Operators can view information in a crisp, vibrant, and useful array on the tractor instrument cluster.

Benefits

    • Clear and bright indicators, warning lights, and gauges

    • Provides operators with crucial onboard diagnostics through the roll-mode function

    • Visibility of engine hours, ground speed, Hi-Lo indicator, forward, neutral, and reverse all at the same time

    • Light-out indicator for trailer light, turn light, and hazard light bulbs

    • Clearly presented PTO target bars to indicate the correct PTO speeds when operating the PTO

Additional details

There are daytime and nighttime modes which are based on the position of the light switch. The mode adjusts the backlight levels of the display for optimum visibility.

Gear shift lever with hi-lo buttons

Gear shift lever with hi-lo buttons

Overview

Ample speeds and ease of operation for demanding applications with the 24F/12R PowrReverser, providing 24 forward speeds and 12 reverse speeds. This transmission comes standard with a dual speed 540/540 Economy power take-off (PTO), and it is ideal for applications requiring frequent directional changes, such as loader work and PTO work like rotary cutting and baling hay.

Benefits

    • Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever

    • Frees the right-hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left-hand

    • The control is located on the left side of the instrument console and selects forward, reverse, and neutral positions

    • Ideal for rear blading and any applications that require frequent directional changes in tight spaces

    • Clutch-less hydraulic shifting between forward and reverse

    • Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)

Additional details

The hi/lo selector buttons are located on the gear shift lever for each forward gear and are represented by a rabbit and a turtle, respectively.

The forward lever selects one of four gears. All are synchronized for on-the-go shifting with the use of the clutch. The rear lever selects one of three ranges: A, B, or C.

24F/12R transmission includes:

    • Hydraulic wet clutches (forward and reverse)
        • Maximize durability and outlast the life of any dry clutch

        • When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs

    • Platform-mounted shift levers (four gears, three ranges)
        • Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience

        • The gearshift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two

    • Left-hand reverser

    • Constant-mesh helical-cut gears
        • Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability

        • Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating

    • Pressure-lubricated top shaft

    • Positive park pawl

    • Neutral start switch

The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.

A neutral start switch requires the directional lever be in the neutral position to start the engine.

The speed of directional changes can be adjusted to the operator’s preference or application demands with an optional field installed infinitely variable control kit.

See the PTO functional area for more information on E-PTO.

PowerTech™ PWL FT4 technology

PowerTech™ PWL FT4 technology

Overview

All John Deere engines are designed and engineered specifically for agricultural applications. The engine powering 5 Series tractors is EPA certified Tier Level 4.

Benefits

    • Efficient and cost-effective operation

    • Allows for greater productivity and ease of operation

    • Responsive power reducing the need to downshift the transmission

Additional details

The U.S. EPA and Environment Canada requires all off-road diesel engines with 18.6 kW (25 hp) or more to meet stringent FT4 emissions regulations.

PowerTech EWL/PSS/PVS engine identification

EWL

Aftertreatment

    • S – Exhaust filter and SCR

    • L – DOC and SCR

Turbocharger

    • V – Variable geometry turbocharger (VGT)

    • S – Series turbochargers

    • W – Wastegate turbocharger

Technology

    • P – PowerTech Plus

    • E – PowerTech E

Several defining features on 5 Series tractors maximize the performance and reliability of the emissions package. A completely shielded DOC/SCR not only protects essential components from damage but it also keeps out dirt and debris. The well-packaged and tightly organized circulation system means there is more room to work around the tractor.

Key components of the emissions system

Shielded for protection

Shielded for protection

Diesel oxidation catalyst (DOC)

Deere has chosen to utilize an exhaust filter (DOC) to reduce particulate material so the engine can operate at a level which produces less nitrogen oxide (NOx). With less NOx created, it requires less DEF to treat. The result is improved total fluid economy (diesel and DEF).

The engine is programmed to aggressively respond to changes in power needs, which can temporarily increase particulate matter. Since the exhaust filter removes particulate matter instead of the engine, the engine is left free to do what it is designed to do – deliver all of the power, torque, plus transient response needed at the exact moment needed.

Diesel exhaust fluid (DEF)

DEF is an ISO 22241 standard aqueous urea solution consisting of 32.5 percent urea and has a freezing point of -11° C (12° F). A DEF tank keeps the operator in the field longer even when the temperatures drop below freezing. The DEF tank header is integrated with a temperature sensor and plumbed engine coolant lines are used to promote thawing and prevent freezing in the tank during operation.

DEF tank

DEF tank

Mounted near the DEF tank, the engine control unit (ECU)-controlled supply module draws DEF from the storage tank and provides a pressurized flow to the dosing module. When the ignition key is off, the supply module pump will reverse direction to return any accumulated fluid back to the tank. The supply module is also fitted with a replaceable filter to prevent contaminants from entering the dosing lines. Both the supply module and dosing lines are electrically heated and controlled by the ECU to determine when diesel exhaust fluid dosing can begin.

Shielded for protection

Shielded for protection

For more information regarding EPA regulations and the technology behind John Deere Integrated Emissions Control systems, please visit the following link: http://www.deere.com/wps/dcom/en_US/campaigns/ag_turf/emissions/final_tier_4.page

or

www.deere.ca/en/engines-and-drivetrain/final-tier-4-stage-iv/

Every utility tractor producer wants to maximize uptime and appreciates enhanced performance. The cooling package on the Final Tier 4 (FT4) 4-cylinder 5E Tractors allows for easier access to and serviceability of certain critical components. This improvement to serviceability will save time and also enhance tractor performance.

The cooling package features a first-pass screen to catch larger debris, a slide-out condenser (only on cab tractors) a charge air cooler that tilts forward, and a hydraulic oil cooler that slides out halfway to both sides of the tractor.

First pass screen

First pass screen

Slide out condenser on cabs

Slide out condenser on cabs

Charge air cooler tilted forward

Charge air cooler tilted forward

The engine is equipped with an electronically controlled fan drive, which means that it only runs as fast as the needs of the tractor demand at that time. This is a fuel-saving device which improves hydraulic cooling and reduces the noise level for the operator. It also positively impacts total fluid efficiency.

5075E doing loader work

5075E doing loader work

Orange gear and range shift levers

Orange gear and range shift levers

Overview

Ample speeds and ease of operation for demanding applications with the 12F/12R PowrReverser. This transmission comes standard with a dual speed 540/540 economy power take-off (E-PTO) is ideal for applications requiring frequent directional changes such as loader work.

Benefits

    • Effortlessly switch directions with a small finger motion using the clutch-less electrohydraulic fingertip directional lever
        • Frees the right-hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left-hand

        • The control is located on the left side of the steering column and selects forward, reverse, and neutral positions

    • Ideal for rear blading and any applications that require frequent directional changes in tight spaces

    • Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)

Additional detail

Electrohydraulic reverser lever

Electrohydraulic reverser lever

NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine.

12F/12R transmission includes:

    • Hydraulic wet clutches (forward and reverse)
        • Maximize durability and outlast the life of any dry clutch

        • When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs

    • Platform-mounted shift levers (four gears, three ranges)
        • Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience

        • The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two

    • Left-hand reverser

    • Constant-mesh helical-cut gears
        • Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability

        • Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating

    • Pressure-lubricated top shaft

    • Positive park pawl: provides positive park and eliminates the need for a hand brake

    • Neutral start switch

The forward lever selects one of four gears. The operator must depress the clutch while shifting. The rear lever selects one of three ranges: A, B, or C.

The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.

The speed of directional changes can be adjusted to the operator’s preference or application demands with the field-installed infinitely-variable control kit.

See the PTO functional area for more information on E-PTO.

On SiteParts & Service Support

Buying Papé equipment means gaining access to expert support tailored to your needs. Our dedicated team is here to ensure your fleet operates smoothly, minimizing downtime and maximizing productivity.

Papé Financing

Papé Machinery Agriculture & Turf offers flexible loans with competitive rates for new and used equipment. Visit our dealerships in WA, OR, CA, or ID to apply and get a loan offer today.

John Deere 5090E Utility Tractor

5 Family Utility Tractors

Equipment Specifications

Staying Connected

Stay up to date on the latest promotions and events at Papé!
