John Deere 8RX 340
  • + Expand All
  • - Close All
  • Maximize around-the-clock productivity with visibility packages
    Ultimate Visibility package at night (shown on 8R) Ultimate Visibility package at night (shown on 8R)

    Visibility is one of the most important attributes of the cab, but it is more than just lighting. In addition to lighting, John Deere visibility packages include mirrors, sunshades, wipers, and camera readiness. Some benefits of the visibility packages include:

    • Three package levels to fit your needs – Select, Premium, or Ultimate
    • Operate confidently with greater visibility
    • Ultimate Visibility package with more light-emitting diode (LED) output and full 360-degree illumination
    • Integrated camera capability



    Visibility packages Select Premium Ultimate
    Lighting 18 halogen work lights 18 LED work lights 22 LED work lights and eight LED convenience lights*
    Mirrors Mechanical Electric, heated Electric, heated, and telescoping
    Sunshades Front Front, right-hand side, and rear Front, right-hand side, and rear
    Wipers Front and rear Front, right-hand side, and rear Front, right-hand side, and rear
    Cameras Camera ready Camera ready Camera ready**

    *Convenience lights illuminate the corners of the cab for easier entry and exit
    **Starting with model year 2022, the Ultimate visibility package is camera ready.

  • Factory-installed liquid fertilizer capability with ExactRate™ tractor tanks
    ExactRate tractor tanks ExactRate tractor tanks

    The 8RX is the only tractor on the market that allows operators to carry fertilizer with factory-installed 3785.4-L (1000-gal.) ExactRate tractor tanks. Built-in wet seal solution pump (requires use of one SCV) easily transfers fluid from tractor to planter. Integrated valve compartment for simple tendering, front or rear fill options are available.



    • One dealer supports the system from tractor to planter
    • Simplified monitoring and control through Gen 4 CommandCenter™ display
    • Entry/egress, visibility, and overall machine width un-compromised with fully integrated tanks
    • Ground pressure reduced by 14 percent compared to third-party tanks on wheel tractors
    • Built-in transfer pump, rinse, and agitation for applications beyond planting

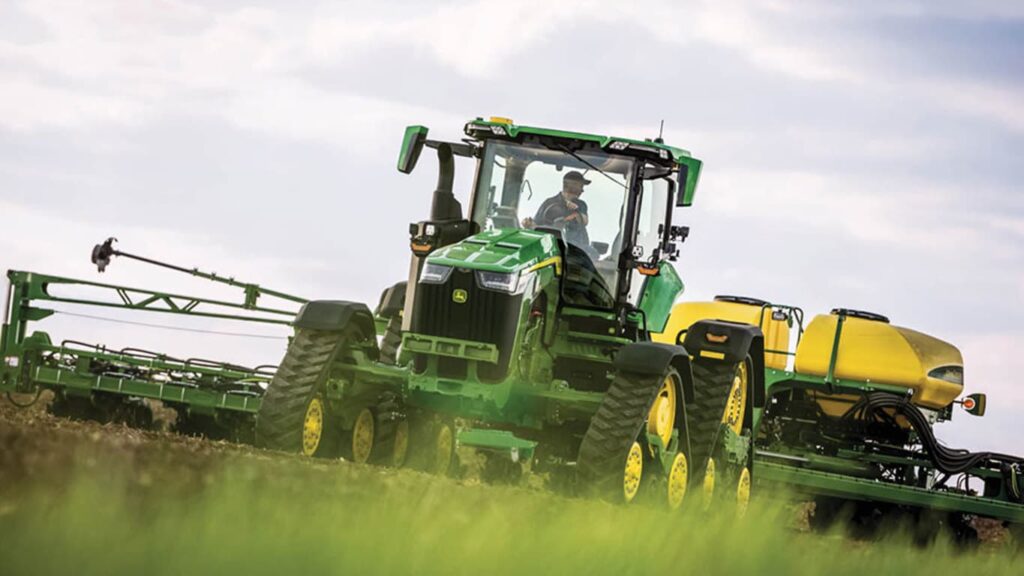

    8RX ExactRate tractor tanks and 24R30 planter 8RX ExactRate tractor tanks and 24R30 planter
  • Increase ride comfort during all seasons with 8RX suspension
    8RX Tractor with cab suspension and air seat 8RX Tractor with cab suspension and air seat

    8RX Tractors naturally offer excellent in-field ride due to the large footprint and independent movement of the undercarriage systems. A great ride is also enabled by the lack of power hop due to the track system. 8RX Tractors are equipped with a four-post cab suspension and air seat that is specifically designed for and only found on these models. This system reduces high-frequency vibrations typically associated with road transport and allows 8RX Tractors to strike an unmatched balance in ride quality in the field or on the road.

    • Four-post cab suspension with and air seat offers an exceptional ride for operators spending time on the road.
    • The cab suspension system specifically designed for 8RX Tractors is offered in base equipment.
    • 8RX Tractors naturally ride well in the field due to the independent track systems and a large footprint.
  • Match demanding applications with hydraulic options
    8RX and 8R Tractors in the field 8RX and 8R Tractors in the field

    All 8 Series Tractors come standard with an 85-cc (5.2-cu in.) hydraulic pump. This pump provides up to 227.1 L/min (60 gpm) hydraulic flow. A dual pump option featuring 85-cc and 35-cc (5.2-cu in. and 2.1-cu in.) displacement hydraulic pumps is available for all 8R and 8RX Tractors. The dual-pump system provides a hydraulic flow of 318 L/min (84 gpm), ideal for running at lower engine speeds. At the rear, up to six selective control valves (SCVs) are available with 1.9-cm (3/4-in.) options.

    • Single or dual pump options to fit specific producer applications
    • Up to 318 L/min (84 gpm) through the dual pump system on 8R and 8RX Tractors
    • Options from four to six factory-installed SCVs
    • For maximum flow, 1.9-cm (3/4-in.) SCV couplers are available factory and field installed



    A power beyond option is available on all models, and a high-capacity take-out oil reservoir (on 8R Tractors only) is also available for high-demand applications.

    8RX Tractor with power beyond 8RX Tractor with power beyond
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions
    Connected Support technology Connected Support technology

    When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

    John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

    With your permission, John Deere Connected Support:

    • Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
    • Saves time by remotely viewing in-cab displays, reducing trips to the machine
    • Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
    • Connects experts with the information needed to respond to downtime faster and prevent it altogether

    With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.

  • Increase productivity with John Deere integrated solutions
    Maximizing uptime using connectivity and technology Maximizing uptime using connectivity and technology

    Your needs and success are the focus of John Deere. John Deere makes it easy for you to benefit from having a connected tractor in your operation. All tractors come standard with JDLink™ telematics system and customers can turn on connectivity in the John Deere Operations Center™ application. With a StarFire™ 6000 Integrated Receiver* and Generation 4 CommandCenter™ Display, you can easily step right into advanced technology. If you’re an advanced tech user, you’ll enjoy the benefits of a highly intelligent machine connected to a full suite of solutions on the most open platform in the industry. Advantages of a connected machine include:

    • StarFire 6000 Integrated Receiver eliminates all setup, installation, and global positioning system (GPS) calibrations
    • AutoTrac™ assisted steering guides the machine with accuracy in a variety of field conditions
    • Automation is an option with some applications
    • John Deere Connected Support™ is a proactive service approach to improve service efficiency and reduce machine downtime
    • JDLink gives you access to information anytime, anywhere, to make data driven decisions with John Deere Operations Center and Documentation


    The technology and connectivity in John Deere tractors allow you to optimize productivity, increase uptime, and boost profits with machine information from any device, anywhere.

    StarFire 6000 Integrated Receiver AutoTrac JDLink

    Base equipment:

    • Generation 4 CommandCenter display
    • StarFire 6000 Integrated Receiver

    Optional equipment:

    • Generation 4 CommandCenter display plus extended monitor

    Base equipment:

    • AutoTrac activation
    • SF3 accuracy (+/- 3 cm [1.2 in.])
    • Data Sync

    Optional equipment:

    • AutoTrac RowSense™*
    • AutoTrac Turn Automation**
    • AutoTrac Implement Guidance*
    • Gen 4 Machine Sync

    Base equipment:

    • JDLink telematics system
    • Wireless Data Transfer
    • John Deere Connected Support service
    • Expert Alerts
    • Remote Display Access
    • Service ADVISOR™ Remote service tool

    *Available with Premium Activation 3.0
    **Available with Automation Activation 3.0

  • Comfort and convenience to fit the needs of any operator
    Ultimate Comfort and Convenience package (shown on 8R Tractor) Ultimate Comfort and Convenience package (shown on 8R Tractor)
    Comfort and Convenience packages

    When you reach a 40-hour week by Wednesday, you're logging some serious hours in the cab. Spend that time in the refreshed and refined John Deere cab, and experience a quiet, comfortable ride with unrivaled visibility and convenience.

    • Three package levels to fit your needs – Select, Premium, or Ultimate
    • CommandARM™ console that puts everything you need within reach
    • Plenty of storage
    • Work comfortably during long days in the field with an automotive-style seat
    • Keep electronics powered throughout the day with a variety of outlets



    Comfort and Convenience packages Select Premium Ultimate
    Seat
    • Cloth
    • Mechanical controls
    • Mechanical lumbar
    • 8-degree left-hand and 40-degree right-hand swivel
    • Cloth
    • Electronic controls
    • Pneumatic lumbar
    • 25-degrees left-hand and 40-degree right-hand swivel
    • Leather
    • Electronic controls
    • Pneumatic lumbar
    • 25-degree left-hand and 40-degree right-hand swivel
    • Heated/ventilated
    • Massage
    • Adjustable bolsters
    Infotainment
    • AM/FM/WX
    • Auxiliary and Bluetooth® wireless inputs
    • Four speakers
    • 16.5-cm (6.5-in.) touchscreen radio, XM® ready
    • Six speakers with subwoofer
    • 16.5-cm (6.5-in.) touchscreen radio, XM ready
    • Six speakers with subwoofer
    Business band ready X X X
    Four USB and one 12-V outlet X X X
    Dual tilt column X X X
    Footrests --- X X
    Refrigerator --- X X
    120-V/300-W three-prong outlet --- X X
    Carpeted floor mat --- --- X
    Leather-wrapped steering wheel --- --- X



    Bluetooth is a trademark of Bluetooth SIG, Inc. XM is a trademark of Sirius XM Radio Inc.

Capacities

Diesel exhaust fluid (DEF) tank 37.2 L
9.8 U.S. gal.
Crankcase oil volume 26.6 L
7 U.S. gal.
Cooling system 42.3 L
11.2 U.S. gal.
Fuel tank 924 L
244 U.S. gal.
Transmission-hydraulic system 1930-mm and 2032-mm (76-in. and 80-in.) tread: 250 L
661. U.S. gal.
2235-mm and 3048-mm (88-in. and 120-in.) tread: 260.6 L
68.8 U.S. gal.
