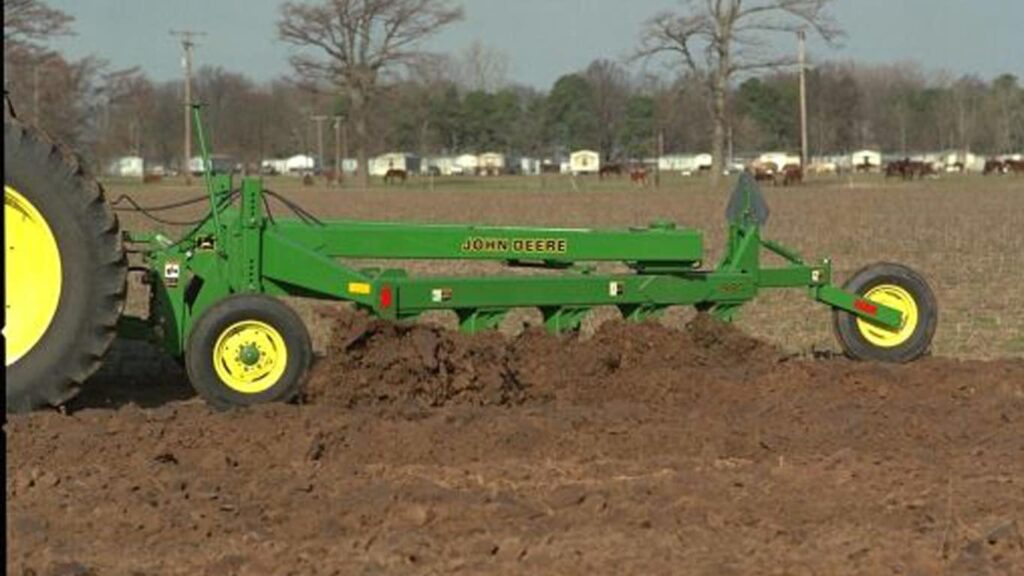

John Deere 995 Reversible Plow
Agriculture
- Moldboard frame pivots with the bottoms
- Plastic moldboard and steel shins
- Landsides with wedges
- Front gauge wheels
Featured List
- Working Depth: up to 14 in (356 mm)
- Required HP (PTO): 23 to 35 (16.4-26.1 kW)PTO HP/bottom
- Working Speed: 5 mph (8 km/h)
- Residue Conditions: medium/heavy
- Depth Control: gauge wheels
- # of bottoms: 5, 6, or 7
Featured Content
Integral on-land hitch
The integral hitch gives unexcelled maneuverability in turns and when parking in tight areas:
- Category 3/3N Quik-Coupler compatible
- Tractor rockshaft lever controls the raising and lowering of the plow
- Maximum plowing depth to 356 mm (14 in.)
- Provides ample clearance between the tractor tires and the plow
995 mainframe
The V-style mainframe of the 995 Moldboard Plow distributes weight for good penetration.
The mainframe is made of high-strength 178-mm x 102-mm (7-in. x 4-in.) tubing that is 8-mm (5/16-in.) thick to handle the stress of high-horsepower tractors working in tough ground conditions.
995 Moldboard Plow rear gauge wheels
Two front and one rear gauge wheels are standard equipment on the 995 Moldboard Plow:
- Equipped with 6.70-15 tires for good flotation
- Easy turnbuckle adjustment on rear gauge wheel
- Adjustable front gauge wheels limit the plowing depth to 356 mm (14 in.)
Moldboard frame
All 995 Moldboard Plows use only one set of bottoms.
The moldboards are reversed laterally by a hydraulic cylinder that is standard equipment. There are several advantages of this design over traditional two-way roll-over plows with two sets of bottoms:
- Requires less 3-point hitch capacity
- Requires less ballasting of the tractor front end
- Eliminates initial cost and service requirements for one complete set of standards and bottoms
Front gauge wheels
The front gauge wheels can be adjusted to limit the plowing depth to 356 mm (14 in.). They come equipped with 6.70-15 tires.
| No. of bottoms - Option 1 | 5 |
|---|---|
| Standards - Safety trip | Optional |
| No. of bottoms - Option 2 | 6 |
| Standards - Hydraulic | No |
| No. of bottoms - Option 4 | 8 |
| Bottoms - Option 2 | Plastic moldboard |
| Standards - Shearbolt | Standard |
| Hitch - Type | Category 3N or 3 |
| Standards - Spring reset | No |
| No. of bottoms - Option 3 | 7 |
| Key Specs - Option 4 | 3.7 m 12 ft |
| Weight (approximate) - Option 4 | 2,440 kg 5,368 lb |
| Key Specs - Option 2 | 6-bottom: 111.9-130.5 kW 150-175 hp |
| Weight (approximate) - Option 3 | 2,041 kg 4,500 lb |
| Total width of cut - Option 4 | 3.7 m 12 ft |
| Weight (approximate) - Option 2 | 1,860 kg 4,100 lb |
| Horsepower required - Option 2 | 6-bottom: 111.9-130.5 kW 150-175 hp |
| Horsepower required - Option 1 | 5-bottom: 96.9-123 kW 130-165 hp |
| Key Specs - Option 1 | 2.3 m 7.5 ft |
| Total width of cut - Option 3 | 3.2 m 10.5 ft |
| Key Specs - Option 4 | 8-bottom: 149.1-186.4 kW 200-250 hp |
| Clearances - Vertical | 81.3 cm 32 in. |
| Key Specs - Horsepower required - Option 1 | 5-bottom: 96.9-123 kW 130-165 hp |
| Key Specs - Option 3 | 3.2 m 10.5 ft |
| Key Specs - Option 3 | 7-bottom: 130.5-149.1 kW 175-200 hp |
| Horsepower required - Option 4 | 8-bottom: 149.1-186.4 kW 200-250 hp |
| Hitch - Steering | Integral, in-furrow No Integral, on-land Yes Semi-integral, on-land No Drawn, in-furrow No Drawn, on-land No Quick-coupler compatible Yes |
| Total width of cut - Option 1 | 2.3 m 7.5 ft |
| Horsepower required - Option 3 | 7-bottom: 130.5-149.1 kW 175-200 hp |
| Total width of cut - Option 2 | 2.7 m 9 ft |
| Weight (approximate) - Option 1 | 1,678 kg 3,700 lb |
| Key Specs - Option 2 | 2.7 m 9 ft |
| Key Specs - Plowing depth | 35.6 cm 14 in. |
| Hitch - Reversible | Type of reversing Hydraulic cylinder Yes |
| Frame - Option 1 | Thickness: 17.8x10.2x0.8 cm 7x4x0.313 in. |
| Bottoms - Option 1 | Plowing depth 35.6 cm 14 in. Steel moldboard |
