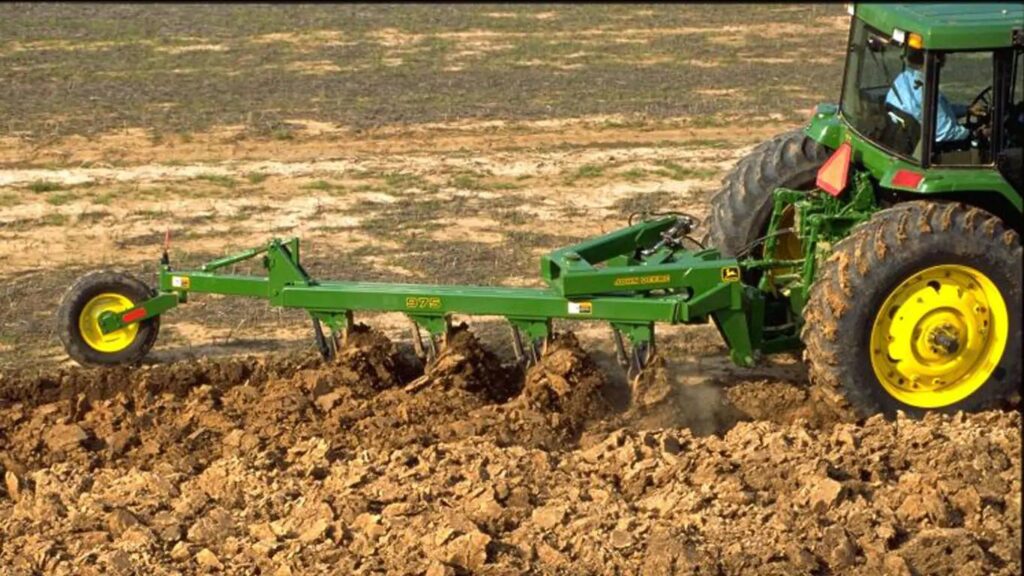

John Deere 975 Reversible Plow
Agriculture
- Moldboard frame pivots with the bottoms
- Safety-trip standards available to save time
- Plastic moldboard and steel shins
- Rear gauge wheel
| Total width of cut - Adjustment | Manual |
|---|---|
| Hitch - Type | Category 3N, 3, or 2 |
| No. of bottoms - Option 4 | 5 |
| No. of bottoms - Option 2 | 3 |
| Standards - Safety trip | Optional |
| Bottoms - Option 2 | Plastic moldboard |
| No. of bottoms - Option 1 | 2 |
| Standards - Spring reset | No |
| Standards - Shearbolt | Standard |
| Standards - Hydraulic | No |
| No. of bottoms - Option 3 | 4 |
| Weight (approximate) - Option 2 | 544 kg 1,200 lb |
| Bottoms - Option 1 | Plowing depth 35.6 cm 14 in. Steel moldboard |
| Clearances - Vertical | 81.3 cm 32 in. |
| Key Specs - Horsepower required - Option 1 | 2-bottom: 37.3-52.2 kW 50-70 hp |
| Horsepower required - Option 4 | 5-bottom: 96.9-123 kW 130-165 hp |
| Key Specs - Option 4 | 2.0 to 2.3 m 6.5 to 7.42 ft |
| Weight (approximate) - Option 1 | 408 kg 900 lb |
| Total width of cut - Option 3 | 1.6 to 1.8 m 5.25 to 6 ft |
| Horsepower required - Option 3 | 4-bottom: 70.8-104.4 kW 95-140 hp |
| Frame - Option 1 | Thickness for 2- or 3-bottom: 15.2x10.2x0.478 cm 6x4x0.188 in. |
| Horsepower required - Option 1 | 2-bottom: 37.3-52.2 kW 50-70 hp |
| Total width of cut - Option 1 | 0.63 to 0.91 m 2.67 to 3 ft |
| Total width of cut - Option 4 | 2.0 to 2.3 m 6.5 to 7.42 ft |
| Horsepower required - Option 2 | 3-bottom: 52.2-70.8 kW 70-95 hp |
| Key Specs - Option 3 | 1.6 to 1.8 m 5.25 to 6 ft |
| Key Specs - Plowing depth | 35.6 cm 14 in. |
| Total width of cut - Option 2 | 1.2 to 1.4 m 4 to 4.42 ft |
| Hitch - Steering | Integral, in-furrow Yes Integral, on-land No Semi-integral, on-land No Drawn, in-furrow No Drawn, on-land No Quick-coupler compatible Yes |
| Key Specs - Option 2 | 3-bottom: 52.2-70.8 kW 70-95 hp |
| Key Specs - Option 3 | 4-bottom: 70.8-104.4 kW 95-140 hp |
| Frame - Option 2 | Thickness for 4- or 5-bottom: 15.2x10.2x0.64 cm 6x4x0.25 in. |
| Hitch - Reversible | Type of reversing Hydraulic cylinder Yes |
| Weight (approximate) - Option 3 | 771 kg 1,700 lb |
| Weight (approximate) - Option 4 | 1,043 kg 2,300 lb |
| Key Specs - Option 1 | 0.63 to 0.91 m 2.67 to 3 ft |
| Key Specs - Option 4 | 5-bottom: 96.9-123 kW 130-165 hp |
| Key Specs - Option 2 | 1.2 to 1.4 m 4 to 4.42 ft |
Featured Content
Integral in-furrow hitch
Compatible with tractors equipped with Quik-Coupler, the integral hitch offers unexcelled maneuverability in turns and when parking in tight areas:
- Tractor rockshaft lever controls the raising and lowering of the plow
- Maximum plowing depth is 356 mm (14 in.)
975 mainframe
All 975 Moldboard Plows use only one set of bottoms.
The moldboards are reversed laterally by a hydraulic cylinder that is standard equipment. There are several advantages of this design over traditional two-way rollover plows with two sets of bottoms:
- Requires less 3-point hitch capacity
- Requires less ballasting of the tractor front end
- Eliminates initial cost and service requirements for one complete set of standards and bottoms
Reversing pin
The reversing pin is positioned at a 13.5-degree angle, instead of being straight up, for even plowing in both directions. The reversing pin does not require adjustments by the operator.
Adjustable width of cut
The width of cut on all 975 Moldboard Plows can be set at 406 mm or 457 mm (16 in. or 18 in.) by moving the standards to different bolt holes in order to:
- Match the tractor horsepower to the soil conditions
- Improve the residue-handling ability
- Improve productivity
- Maximize fuel efficiency
The underframe clearance is 813 mm (32 in.) to allow excellent material flow through the plow.
975 Moldboard Plow rear gauge wheel
All 975 Moldboard Plows come with a rear gauge wheel included in standard equipment. The rear gauge wheel provides the following features:
- Controls the plowing depth of the rear of the plow in rolling terrain
- Stabilizes rear of the plow in soft soils
- Adjustable through a full range of plowing depths
- Designed for easy turnbuckle adjustment
- Equipped with 6.70-15 tire to eliminate bulldozing in soft soils
The V-style mainframe is made of 152-mm x 102-mm (6-in. x 4-in.) welded tubular steel to handle the stress of tough plowing and reversing action as well as tight turns:
- 5-mm (3/16-in.) thick on three-bottom plows
- 8-mm (5/16-in.) thick on four- and five-bottom plows
