The rigid model uses a scissor-type landing adjustment to set the first bottom in relationship to the rear tractor tire for the different widths of cut:

• Design uses minimum space, gives a clean-style appearance, and has a full range of adjustment.
• Economical turnbuckle is used to make the adjustment.
• Operator-supplied 76-mm x 203-mm (3-in. x 8-in.) American Society of Agricultural Engineers (ASAE) tie-bolt hydraulic cylinder may be used in place of a turnbuckle for in-furrow applications.

The NU bottoms are set behind the mainframe to prevent the mainframe from becoming a pinch-point for residue. They are designed for light draft and high-speed plowing.

• Operators often find they can plow a gear higher than with competitive plows
• Greater productivity and fuel economy
• Speeds up to 10 km/h (6 mph)

Available in 400-mm (16-in.) and 450-mm (18-in.) sizes with an unpolished finish.

The maximum plowing depth are as follows:

* In some soil conditions at plowing depths in the 254-mm to 356-mm (10-in. to 14-in.) range, soil may boil over the moldboard, resulting in poorly defined furrows.

Shares for NU bottoms

Both the NU 400 and the NU 450 come standard with heavy-duty, full-cut shares.

Variety of shares

A variety of shares are available through Parts to match the plowing conditions:

The gumbo moldboard (A32211) is available for NU 400 bottom and is recommended for use in heavy soil (gumbo) conditions. It is similar to the NU 400 bottom except that it has less area at the wing tip.

• Moldboard will not be forced upward by soil movement as much as NU 400.
• Permits soil to push off easier for better scouring and lighter draft.

John Deere furnishes a replacement share for any John Deere plow share that breaks before the share reaches the following wear limits (labor not included; wear to be measured perpendicularly across the middle of the front bolt hole):

• 13-mm (1/2-in.) wear, 89 mm (3.5 in.) remaining.

Trashboards for NU bottoms

Trashboard

Plastic or steel trashboards can be added to NU bottoms to improve coverage in tall, heavy residue. Plastic trashboards are only recommended for non-abrasive soils where scouring is a problem with steel trashboards.

Safety-trip standards provide an economical means for protection—suited for areas without rocks:

• No backing to reset, just raise
• Shim-adjustable trip force
• 2727-kg (6000-lb) nominal trip force (set at the factory)
• Smooth surfaces for good residue flow
• Few moving parts equals high reliability

Shear-bolt coulters

Economical design of the shear-bolt coulters is suited for areas without rocks:

• Few moving parts
• Good depth adjustment range
• Good lateral adjustment range

Depth stops are used for easy adjustment of depth

Land wheels help to stabilize the plow in both the working and transport positions. They also control the depth of plowing and work in conjunction with raising and lowering the plow.

Land wheels on rigid plows are tied to the Adjust-O-Cut bar for automatic setting for each width of cut.

A single wheel is standard on the six-bottom model; dual wheels are standard on the seven- and eight-bottom models and optional on the six-bottom model (recommended in softer soils).

• Provides good trailing characteristics in transport.

Adjustable-force cushion coulters are suited for rocky or normal field conditions:

• Excellent rosette depth adjustment range
• Good lateral adjustment range
• Separate down-force adjustment
• Overload protection to prevent damage

Frame clearance for residue

Excellent fore-aft and vertical clearance between standards (arrows above) allows the soil and residue to freely flow through the plow:

• Both rigid and flex plows are designed to handle tall and heavy residue levels.

Clearance

Land wheels on flex plows have four adjustment positions (arrow) to allow setting the assembly for 406-mm, 457-mm, or 508-mm (16-in., 18-in., or 20-in.) widths of cut or transport:

• Depth stops are used for easy adjustment of the depth.

Dual, staggered Walk-Over wheels are standard on flex plows:

• Allow the plow to trail like a cart
• Distribute weight evenly between both wheels
• Minimize bulldozing in soft soil
• Allow better residue flow
• Walk over obstacles and across dead furrows

The double-pivot design of the spring-reset standard uses tension spring force to return the standard to the working position.

• For heavier-duty applications
• Positive reset
• Non-adjustable trip force; factory set at 2727-kg (6000-lb) nominal
• Floats over buried rock
• Unhooks from ledge rock

The operator can change the plow's width of cut to match the tractor horsepower and soil conditions.

• Narrow in tough soil
• Wider in lighter soil

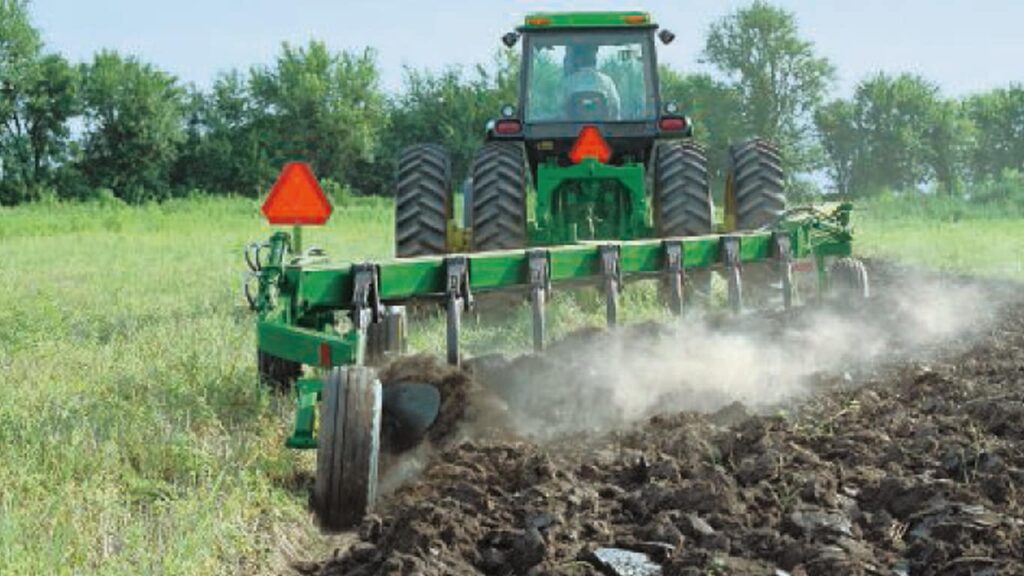

3710 Rigid Plow

The rigid plow has a width-of-cut range of 356 mm to 559 mm (14 in. to 22 in.) on land and 508 mm to 559 mm (20 in. to 22 in.) in furrow.

• Economical manual adjustment (turnbuckle is standard equipment)
• Convenient hydraulic cylinder adjustment is optional
• Pointer and decal allow returning to a predetermined width of cut

3710 Flex Plow

3710 Flex Plow

The flex plow has 356 mm to 559 mm (14 in. to 22 in.) of cut.

Adjustments are made by adjusting two turnbuckles (arrows) to a predetermined length specified in the operator's manual.
