John Deere 2430
  • + Expand All
  • - Close All
  • Walk-Over wheels help provide consistent working depth
    Walk-Over wheels
    Walk-Over wheels

    Walk-Over wheels provide a consistent working depth in uneven ground for level seedbeds and complete weed control.



    The staggered wheel design provides extra room for residue flow, obstacles, and transport stability.

  • Proven frame construction
    3.4-m (11.17-ft) four-bar frame
    3.4-m (11.17-ft) four-bar frame

    Operators are requiring faster field working speeds, larger implements, and tractors because of a dramatic increase in farm size. The market is asking for and receiving tractors with more torque, more weight, and more horsepower.



    Accommodating 600 engine horsepower tractors requires more from implement frame and hitch components, including thicker frame tubes, additional diagonal bracing, and frame gussets.



    The frame is constructed of continuous 102-mm x 102-mm (4-in. x 4-in.) cross members inserted through 51-mm x 152-mm (2-in. x 6-in.), 76-mm x 152-mm (3-in. x 6-in.), and 102-mm x 152-mm (4-in. x 6-in.) fore-aft members. The mainframe boasts a structure made up of 102-mm x 152-mm (4-in. x 6-in.) fore-aft tubes.



    The large frame member sizes, joint welds, and wheel module placement adds to the structural integrity, providing a stable front-to-rear and side-to-side operation.

    Frame construction offers:
    • Consistent operating depth
    • Level operation
    • Restricts frame dip
  • Variety of models and sizes available

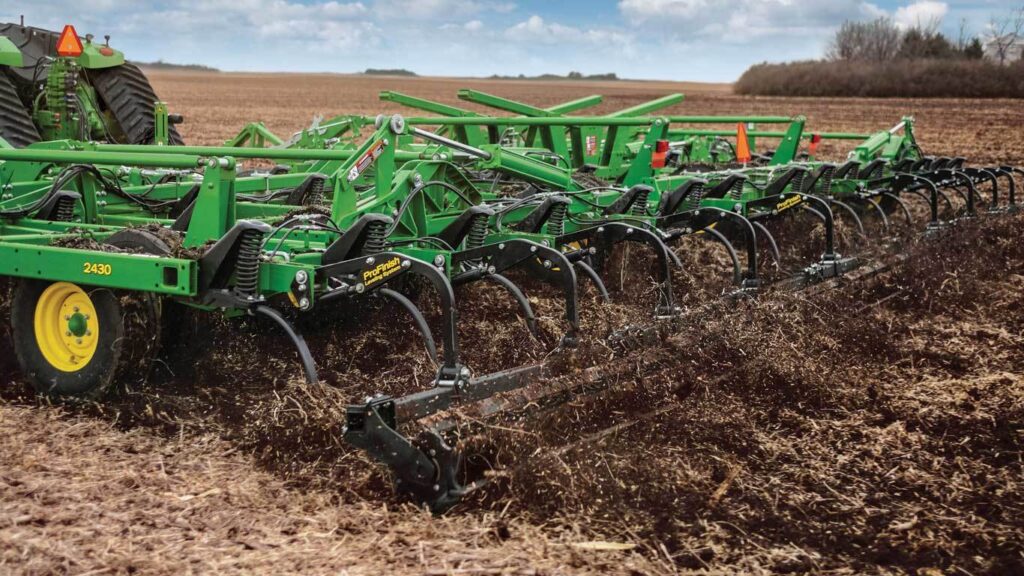

    2430 Chisel Plow
    2430 Chisel Plow
    2430 Chisel Plow
    2430 Chisel Plow

    The 2430 Chisel Plow is available in rigid and rigid fold, three-section folding, and five-section folding frame models.



    Models

    Type of fold

    Standards

    Rigid

    Non-fold or horizontal fold

    TruPosition™ or
    Tru-Depth

    Flexible

    Three-section
    over-center fold

    TruPosition or
    Tru-Depth

    Flexible

    Five-section
    over-center fold

    TruPosition



    Rigid configurations

    Working widths Centerframe size Transport width
    3.35 m to 4.47 m (11 ft to 14 ft, 8 in.) 3.66 m (12 ft) non-folding 3.35 m to 4.9 m (11 ft to 16 ft)
    4.3 m to 5.4 m (14 ft to 17 ft, 8 in.) 4.6 m (15 ft) non-folding
    5.3 m to 6.4 m (17.5 ft to 21 ft) 3.66 m (12 ft) folding



    Three-section configurations
    Working widths Centerframe size Transport width
    6.4 m to 7.5 m (21 ft to 24 ft, 7 in.) 3.05 m (10 ft) 4.8 m (15.75 ft)
    7.6 m to 8.7 m (25 ft to 28 ft, 8 in.)
    7.04 m to 7.8 m (23 ft, 1 in. to 25.75 ft) 3.66 m (12 ft) 5.5 m (17.92 ft)
    8.2 m to 9.3 m (27 ft to 30 ft, 8 in.)
    9.2 m to 10.3 m (30 ft, 4 in. to 33 ft, 8 in.)
    10.7 m to 11.35 m (35 ft to 37.25 ft)
    9.14 m to 9.9 m (30 ft to 32 ft, 5 in.) 4.6 m (15 ft)  6.375 m (20.92 ft)
    10.4 m to 11.6 m (34 ft, 2 in. to 38 ft, 2 in.)
    12.2 m to 12.9 m (40 ft to 42.25 ft)



    Five-section configurations
    Working widths Centerframe size Transport width
    13.4 m to 14.2 m (44 ft to 46 ft, 8 in.) 3.66 m (12 ft) 5.3 m (17.33 ft)
    14.2 m to 15.2 m (46.75 ft to 50 ft)
    15.85 m to 16.7 m (52 ft to 54 ft, 8 in.)
    14.3 m to 15.2 m (46 ft, 11 in. to 49 ft, 10 in.) 4.6 m (15 ft) 6.1 m (20 ft)
    16.8 m to 17.6 m (55 ft to 57 ft, 10 in.)
    18.3 m to 19.2 m (60 ft, 2 in. to 63 ft)


     NOTE: Tru-Depth standards are available through 10 m (33 ft) only.

  • Excellent residue-handling capability
    2430 Chisel Plow
    2430 Chisel Plow

    The 2430 Chisel Plow has excellent residue-handling capability in primary tillage at all residue levels.

    Typical percentages of residue cover remaining from the 2430 are listed in the following table. The percentages do not consider variables such as the condition of the residue, speed, and soil type.



    For machines with 305-mm (12-in.) spacing:



    Starting
    residue
    cover
    (percent)

    Remaining non-fragile*
    residue cover
    (percent)


    Remaining fragile**
    residue cover
    (percent)


    406-mm (16-in.) sweeps

    51-mm x 356-mm (2-in. x 14-in.) chisel point

    102-mm x 368-mm (4-in. x 14.5-in.) shovel

    406-mm (16-in.) sweeps

    51-mm x 356-mm (2-in. x 14-in.) chisel point

    51-mm x 356-mm (2-in. x 14-in.) chisel point

    406-mm (16-in.) sweeps

    51-mm x 356-mm (2-in. x 14-in.) chisel point

    100

    80

    70

    100

    80

    70

    100

    80

    70

    90

    72

    65

    90

    72

    65

    90

    72

    65

    80

    65

    56

    80

    65

    56

    80

    65

    56

    70

    55

    50

    70

    55

    50

    70

    55

    50

    60

    50

    42

    60

    50

    42

    60

    50

    42

    50

    40

    35

    50

    40

    35

    50

    40

    35

    40

    32

    28

    40

    32

    28

    40

    32

    28



    *Non-fragile residue includes crops like corn, sorghum, wheat than 1585.8 L [45 bu]).

    **Fragile residue includes crops like soybeans, edible beans, peas, wheat (under 1585.8 L [45 bu]), sunflower, peanuts, and cotton.

    For machines with 406-mm (16-in.) spacing:



    Starting
    residue
    cover
    (percent)

    Remaining non-fragile*
    residue cover
    (percent)


    Remaining fragile**
    residue cover
    (percent)


    457-mm (18-in.) sweeps

    51-mm x 356-mm (2-in. x 14-in.) chisel point

    102-mm x 368-mm (4-in. x 14.5-in.) shovel

    76-mm x 610-mm (3-in. x 24-in.) shovel

    457-mm (18-in.) sweeps

    51-mm x 356-mm (2-in. x 14-in.) chisel point

    102-mm x 368-mm (4-in. x 14.5-in.) shovel

    76-mm x 610-mm (3-in. x 24-in.) shovel

    100

    83

    73

    63

    63

    55

    50

    45

    45

    90

    75

    68

    58

    58

    50

    45

    40

    40

    80

    68

    59

    53

    53

    45

    40

    35

    35

    70

    58

    53

    45

    45

    38

    35

    30

    30

    60

    53

    45

    38

    38

    33

    30

    27

    27

    50

    43

    38

    33

    33

    27

    25

    22

    22

    40

    35

    31

    28

    28

    22

    20

    18

    18



    *Non-fragile residue includes crops like corn, sorghum, and wheat (more than 45 bu).

    **Fragile residue includes crops like soybeans, edible beans, peas, wheat (under 45 bu), sunflower, peanuts, and cotton.

  • Finishing components

    The 2430 offers different rear attachment options to meet the unique agronomic needs of each producer. Producers have a choice of two rear attachments on the 2430 Chisel Plow.

    #
    Knife-edge hydraulic rolling basket with internal basket scraper
    Knife-edge rolling basket for the 2430 Chisel Plow
    Knife-edge rolling basket for the 2430 Chisel Plow
    Internal basket scraper
    Internal basket scraper
    Close-up of internal basket scraper
    Close-up of internal basket scraper

    The knife-edge rolling basket for the 2430 Chisel Plow is made of hardened steel and handles rock strikes and adverse conditions well. The ease of down pressure adjustability allows the tool to adapt to changing field conditions. The internal basket scraper allows for a uniform field finish in wet conditions because baskets do not need to be raised out of the ground to avoid plugging; they can remain in the ground 100 percent of the time.



    The John Deere 2430 Chisel Plow offers an active hydraulic rolling basket that gives the operator wide-ranging adjustability for a variety of conditions. The drawbars and rolling basket on the rear harrow are built with strength in mind for the demanding fall conditions. The system was designed to have the ability to run the rolling baskets in three different positions to finish and level the soil:

    • Raised: allows the operator to raise the rolling baskets in harsh, muddy conditions
    • Float: allows the operator to float the rolling baskets to lightly fluff soil
    • Apply down pressure: allows the operator to adjust the basket pressure to provide consistent contact with the ground, provides a firm seedbed, and shatters root balls

    The hydraulic rolling basket is offered with the knife-edge basket, which is the best for heavier, wet soil.

    240 Coil-Tine Chisel Plow Harrow
    240 Coil-Tine Chisel Plow Harrow
    240 Coil-Tine Chisel Plow Harrow

    The 240 Coil-Tine Chisel Plow Harrow is designed specifically for the 2430 Chisel Plows. Harrow performance has grown increasingly important over the last few years as soil profile finish and residue-handling capability are on the top of the list for producers. Both attributes are standouts on this heavy harrow.

  • Radial tires
    Radial tires on the chisel plow
    Radial tires on the chisel plow

    Radial tires reduce compaction points while operating in the field and minimize downtime caused by tire failures both in the field and during transportation. Radial mainframe tires now come in base equipment and can be an option on the wings. With a wider tire plate and lower inflation pressure, radial tires have a larger contact area with the ground to help minimize compaction.

  • TruSet™ Tillage technology
    TruSet Tillage technology on the 2430 Chisel Plow
    TruSet Tillage technology on the 2430 Chisel Plow

    The 2430 Chisel Plow is designed for precise, accurate depth control. Precise depth control is very important for conservation of moisture, fertilizer placement, and soil management. Soil layers of differing soil type vary across farms and even across fields. The ability to adjust for these conditions is extremely important to producers today.



    TruSet and single-point depth control both come as standard equipment. Both provide accurate depth control to best utilize available tractor horsepower.



    With TruSet, these adjustments can be done on the move, increasing productivity and making the day go easier for operators. TruSet provides accurate and precise depth control using individual wheel sensors and electronic circuitry to perform tasks of leveling and depth measurements unprecedented in the industry until now. Accurate depth is displayed to the nearest 2.5 mm (1/10 in.).



    The floating hitch, frame strength of the Tube-Thru-Tube manufacturing, and the wheel package placement allow the 2430 to offer unmatched consistency of depth (front-to-back and side-to-side). Fuel can be saved, soil can be mixed and shattered, and accurate depth can be maintained. This represents true soil management for the producer.

    TruSet Side-to-Side

    TruSet Side-to-Side gives producers the same level of individual section control that was available with AccuDepth™ hydraulics. However, there are differences in how the two systems are hydraulically plumbed.



    The AccuDepth hydraulics required a correction valve on every frame section since the hydraulics were plumbed in parallel. The TruSet system is plumbed into a single-point (series) system.



    The series hydraulics give producers the option of controlling depth with just the single-point depth control valve or individually controlling each frame section with a correction valve mounted at the base of each depth control cylinder on the wings. The individual section control with TruSet Side-to-Side is an upgrade to the base TruSet Tillage system.



    TruSet Side-to-Side is controlled by five sensors compared to one sensor with the base TruSet Tillage system. With the five-sensor control, the implement can make depth control adjustments via sensor feedback on the wings.



    TruSet Side-to-Side eliminates the need to rephase the depth control cylinders after several rounds in the field. However, it does require another step when calibrating.

    Documentation and prescription

    With integrated TruSet Tillage technology, operators can incorporate documentation and prescription functionality into their tillage operations. The tillage documentation feature will give producers the ability to capture and analyze the pass for additional coverage of the crop production cycle. Prescription functionality provides producers the capability to ensure their tillage operations are executed correctly, optimizing their investment in preparing for the next crop.



    Operators can document data for the depth of their sweeps along with rolling basket down pressure. By creating an as-applied map based off of global positioning system (GPS) data for the job performed by each functional area on the implement, TruSet enables producers to document their tillage passes then later review and analyze the data for future agronomic decisions.



    Additionally, the Prescription Creator by Agrian® company, a connected partner tool through the John Deere Operations Center, enables producers to create prescriptions for each functional area. Data from previous yields, soil surveys, or freehand drawing tools can be used to create prescriptions that will command the implement to the desired depth and pressure settings for optimum agronomic results.

    Functionality by control option
      Single-point TruSet TruSet Side-to-Side
    One adjustment to change implement depth X X X
    Mechanical adjustment option X X X
    In-cab adjustment option --- X X
    In-cab individual section leveling --- --- X
    Tillage documentation and prescription --- X X



    Agrian is a trademark of Agrian, Inc.

  • Wide variety of ground-engaging tools available
    Shovels, chisels, and sweeps
    Shovels, chisels, and sweeps
    #

    A wide variety of tools such as sweeps, chisels, and twisted shovels are available for the operator to maintain surface residue and ground profile under varying weather and soil conditions.



    Click here to explore more about points, chisels, and sweeps.

Additional feature

Opton 1 Rear Attachment Options:
-Coil-tine Harrow
-Hydraulic Knife-edge Rolling Basket
