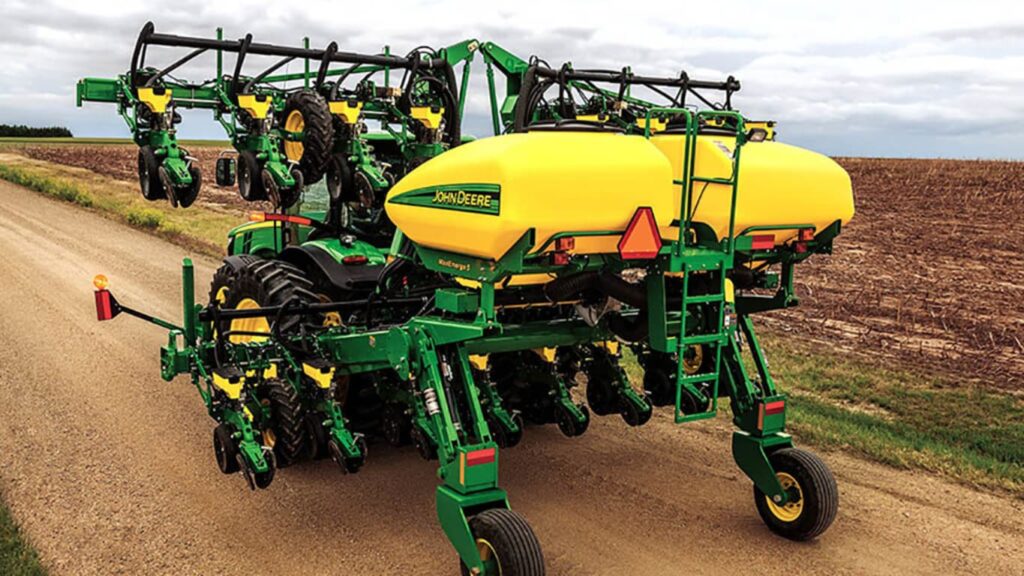

John Deere 1725 CCS Stack-Fold
  • + Expand All
  • - Close All
  • Central Commodity System (CCS™)
    1720 CCS with 3523.9 L (100 bu) of seed capacity
    1720 CCS with 3523.9 L (100 bu) of seed capacity
    #

    Central Commodity System (CCS) seed delivery adds productivity through increased seed capacity, bulk-fill capability, and easy, thorough cleanout. The two tanks have a combined capacity of 3523.9 L (100 bu) on the 1720 CCS Planters.



    The 1720 CCS Planters have been designed to allow for a convenient central filling location and easy cleanout. The rear entry ladder provides access to the filling platform between the tanks.



    For those who work into the night, a fill light package is standard on machines equipped with CCS.



    If the seed-carrying vehicle requires hydraulic power to run the unloading system, the auxiliary hydraulic coupler option can be ordered. These couplers are located at the bottom of the staircase and can be coupled under pressure. The system has a separate system filter that ensures the planter's hydraulic system remains free of contaminates.



    The following crops can be planted with CCS: corn, sweet corn, popcorn, cotton, sunflowers, soybeans, and sorghum (milo).

    1720 CCS fan and seed delivery hoses
    1720 CCS fan and seed delivery hoses
    #

    CCS is about reducing the time spent filling the planter with seed while maximizing the time spent planting. CCS for planters is a form of seed handling and delivery. The row-units perform the final task of seed metering and placement.



    The CCS seed delivery process relies on a hydraulically driven fan to move seed from the CCS tanks to the row-units. A flow control valve and gauge, located near the tank, allows for the proper tank pressure setting based on seed type.



    Air from the fan pressurizes the CCS tanks and delivers seed to the seed hoppers. Air flow enters the seed tanks through a nozzle in the manifold which pressurizes the tank. The air then picks up seed and moves out the other end of the nozzle into the seed delivery hoses. These hoses route the seed toward the hopper. A small amount of seed is traveling in the delivery hoses only when needed.



    The hopper fills with seed until the delivery hose (discharge elbow) is covered. Once the opening is restricted, seed flow through the hose stops. Air flowing to the row-unit travels into the hopper and out through a vent. As the seed is picked up by the meter and planted, the seed pool shrinks until the end of the delivery hose is uncovered. At that time, the air flow and seed delivery resume, and the seed pool in the hopper is replenished.

    CCS seed cleanout

    Seed cleanout could not be easier with a CCS planter. Whether there are 12 or 48 rows, the CCS system and Pro-Series XP™ row-units make quick work of this chore. When the operator is finished planting, any remaining seed can simply be removed via access doors at the bottom of the CCS tank.



    Because seed is only traveling through the CCS delivery hoses when required by the meter, there is not much left to clean.



    Next, CCS seed delivery hoses are purged with air from the CCS fan, and the excess seed is pushed to the individual meters.



    Lastly, the vacuum meter door is opened, and seed is removed with the supplied catch pan.

    Small-seed CCS components
    Manifold nozzle and nozzle with cover installed
    Manifold nozzle and nozzle with cover installed
    Small-seed elbow installed in mini-hopper
    Small-seed elbow installed in mini-hopper

    CCS seed delivery system increases planting productivity across the seven approved crops listed above. While highly effective when delivering seed from the CCS tanks to the vacuum meters, small or light seeds (sorghum and small cotton) will require two additional components to aid in proper seed delivery.

    Manifold nozzle covers (clips) should be installed to ensure seed is adequately picked up into the air stream for delivery to the row-unit. Mini-hopper discharge elbows should also be changed from the standard elbow (holes) to the small seed elbow (slotted openings) when planting sorghum (milo) and small cotton.

  • Achieve accuracy with curve compensation
    Curve compensation with planters
    Curve compensation with planters

    Terraces or waterways are two of many field obstacles that make planting on a curve challenging. When planters utilize drive shafts, they are not able to control each individual row-unit; as a result, planting on a curve presents an issue of maintaining 100 percent population. Since the inside rows are moving slower than the outside rows, the inside rows will be overpopulated while the outside rows are underpopulated.



    With ExactEmerge™ planters and equipped MaxEmerge™ 5e planters, the curve compensation feature allows each row to receive an individual signal based on the speed at which the row-unit is moving, maintaining the correct population across the width of the planter. Without curve compensation, there could be as much as a 24 percent drop in population accuracy, which is equivalent to 8,600 seeds per acre when planting at 36,000 seeds per acre. Curve compensation measures acceleration within the main planter controller and utilizes speed inputs to ensure each row has the desired population accuracy.

  • Pneumatic downforce system

    Pneumatic downforce provides convenient, simple adjustment of downforce for the whole planter from one location. The amount of downforce applied is infinitely adjustable from 0 kg to 181.4 kg (0 lb to 400 lb). Pneumatic downforce provides more consistent downforce throughout the range of row-unit travel than mechanical spring downforce systems.

    Several pneumatic downforce system improvements have been implemented, including:

    • 9.5-mm (3/8-in.) air delivery line instead of the 6.4-mm (1/4-in.) line used on model year 2010 and older planters.
    • Air compressor assembly increased duty cycle. With this compressor, it provides a 47 percent increase in maximum air flow delivery compared to the prior air compressor.
    • Pneumatic air bags with 9.5-mm (3/8-in.) air line inlets that have greater durability.

    Such improvements to the pneumatic downforce system enable faster and more precise control of row-unit downforce while planting.

    System features
    Pneumatic downforce spring
    Pneumatic downforce spring
    #

    Each row-unit has a single, rubber air bag located between the parallel arms. The air bags are hooked in parallel so that air can be added or released from all rows at once from one location.

    Pneumatic downforce systems are available as base equipment on all 1700 Series and DB Planters. The individual pneumatic downforce air bag assemblies, air compressor units, and 9.5-mm (3/8-in.) delivery lines are also available as an attachment for field conversion.

    Pneumatic downforce compressor and gauge
    Pneumatic downforce compressor and gauge
    #

    An improved compressor is used to charge the pneumatic system. This compressor can be located on the planter frame or in the tractor cab if desired. A gauge at the compressor indicates the amount of downforce being applied.



    From the factory, integral planter models with pneumatic downforce will have an improved air compressor assembly with an in-cab mounting bracket, except the 1725 16Row and 1725 Central Commodity System (CCS™) Twin-Row Planters which will have the air compressor assembly mounted on the planter frame. For drawn planter models, the 1755, 1765, 1765NT, 1775 Front-Fold, and 1785 Drawn Planters will have the air compressor assembly installed either on the outer hitch or wing frame members when the pneumatic downforce system is installed.

  • SeedStar™ 4HP monitoring system – see speed meet accuracy in real time

    Have you wanted to view more than one planter chart at once? SeedStar 4HP gives you multiple views and configurations in one simple overview page to fit your preferences. You can complete the simplified setup from the Work Setup page instead of having multiple applications to open.



    SeedStar 4HP is designed to optimize the in-cab monitoring experience exclusively on the Gen 4 4600 CommandCenter™ display or 4640 Universal Display for growers with ExactEmerge™ planters and MaxEmerge™ 5e planters. With SeedStar 4HP, operators will easily see key planter information with customizable run pages, zoom functionality, and simultaneous graph and performance measurements. SeedStar 4HP is included in base on all model year 2018 ExactEmerge and MaxEmerge 5e planters.



    Features overview:

    • View multiple planters' at-a-glance bar charts simultaneously
    • Three default planter run pages show key planter functions in easy-to-view layouts
    • Highly configurable run pages allow SeedStar modules to be customizable
    • Zoom feature allows quick row-by-row detailed information
    • View dual bar graphs to see multiple planter details at one time
    • SeedStar application to make adjustments to planter functions
    • Simplified setup through the work set-up page
    • Advanced rates allow up to six different rates across 48 rows
    • The SeedStar 4HP monitoring system requires the Gen 4 4600 CommandCenter or 4640 Universal Display. These displays allow the operator to benefit from the updated interface, enhanced processing speeds, and easy setup (learn more here).



    SeedStar 3 HP conversion to SeedStar 4HP with mobile row-unit runoff aftermarket for field conversion kits



    Growers who are currently running model year 2017 planters, model year 2017 and newer performance upgrade kits, or model year 2017 and newer custom-built planters with the SeedStar 3 HP monitoring system can upgrade to the SeedStar 4HP monitoring system with mobile row-unit runoff. The attachment part, AA100382, is software only. The Gen 4 display software version will need to be 19-1 or newer and will require planter apps. Follow the mobile runoff ordering and software push guide below for ordering and installation. Retrofitted planters and custom-built planters will also require the John Deere Connect Mobile kit, 0048PC, from the Precision Ag Technology Price Pages and wiring harness AA83662 to enable the mobile row-unit runoff feature. Please reference Parts Advisor and DTAC Solution 105181 for model-specific mounting brackets. SeedStar 4HP requires the Gen 4 4600 CommandCenter v2 display or 4640 Universal Display.

    Default planter run pages
    Planter summary default run page
    Planter summary default run page
    Planter overview default run page
    Planter overview default run page
    Planter details default run page
    Planter details default run page

    Three default run pages show key planter functions in different views to give fast and easy access to important planter information.

    Custom run pages
    Customizable run pages
    Customizable run pages

    There are customizable run pages that allow the operator to build pages that fit their operation with different modules, like the example shown above.

    Zoom functionality
    Zoom feature showing a group of rows
    Zoom feature showing a group of rows
    Zoom feature showing a single row
    Zoom feature showing a single row

    The zoom feature allows the operator to touch a section or row of the planter and get detailed information quickly.

    Dual bar graphs
    Dual bar graph showing singulation and population simultaneously
    Dual bar graph showing singulation and population simultaneously

    Dual bar graphs allow operators to view multiple planter details at one time.

    SeedStar application page
    SeedStar application run page
    SeedStar application run page

    In the SeedStar application, many adjustments can be made, including manually activating section control. SeedStar 4HP allows up to 48 individual row sections. There are several setup features such as crop, seed disk, number of rows being planted, population alarms, and limits. Seed rates can be modified, electric power generation (EPG) can be turned on or off, vacuum can be adjusted, and the fill and purge functions can be used from the SeedStar application. Frame control, as well as diagnostics and calibrations, can be accessed at the bottom of the screen.

    Settings Manager in SeedStar 4HP
    Access Settings Manager on the Work Setup screen
    Access Settings Manager on the Work Setup screen
    Settings Manager screen
    Settings Manager screen

    Reduce set-up time between changing crops or field conditions by recalling saved settings used previously with Settings Manager, included with every SeedStar 4HP system. This feature allows saving and recalling planter and tractor settings for optimum performance in different conditions.



    Settings Manager can be used to save all the adjustment and inputs associated to a particular crop or condition. An example would be to store all population rates, downforce pressure, row cleaner adjustments, and closing wheel settings for planting corn and storing a separate, unique set of adjustments for soybeans. In addition, Settings Manager stores tractor settings such as selective control valve (SCV) flow and detents, infinitely variable transmission (IVT™) settings, eco modes, and more.

    Custom rates in SeedStar 4HP
    Variety set-up page
    Variety set-up page
    Rate set-up page
    Rate set-up page
    Group rate set-up page
    Group rate set-up page

    Custom rates allow for individual row population control and row-by-row documentation where up to six different rates can be assigned across an up to 48-row planter. This allows growers interested in planting seed corn with ExactEmerge or MaxEmerge 5e the capability to assign specific populations to male and female rows for planting. This feature can also be used to create tram lines or other applications where custom rates by row are needed.



    NOTE: Individual rates are tied to varieties, so each individual rate needs a unique variety name.

    NOTE: Advanced rates are not compatible with prescriptions or they cannot be run at the same time.

    Additional information

    For additional information on feature functionality on the Gen 4 Display, visit the links below:

    YouTube is a trademark of Google LLC.

    Compatibility
      SeedStar 4HP compatibility
    Planters

    All models ordered with ExactEmerge or MaxEmerge 5e row-units

    NOTE: Performance upgrade kits are equipped with SeedStar 3HP only but can be upgraded by purchasing part number AA100382.

    Displays

    Gen 4 4600 CommandCenter equipped with Version 2 Processor or 4640 Universal Display

    Dual-display mode is compatible with mid model year 2019 planter software.

    John Deere Active Implement Guidance™ Compatible with SeedStar 4HP on Gen 4 displays with VT mode and required activations and subscriptions
    AutoTrac™ Implement Guidance SeedStar 4HP is compatible with ATTA and ATIG; not compatible with >48 row electric drive planters.
    AutoTrac Turn Automation SeedStar 4HP is compatible with ATTA and ATIG; not compatible with >48 row electric drive planters.
  • Advance with MaxEmerge™ 5 advantages

    MaxEmerge 5 bundles the best of MaxEmerge XP and Pro-Series™ XP row-units to give you a unique planter solution. With more options and configurations, you’ll get difference-making versatility that easily adapts to your ag management plan.



    It starts with optimal seed population that drives yield potential. An improved double eliminated helps achieve your desired population with a ride range of crop sizes. Improved side-hill performance of up to ¼ degree ensures you receive the full value of each seed when planting on terraces or rolling terrain. The vacuum air source from the Central Commodity System (CCS™) tank in the meter provides a debris-free environment for increased meter efficiency.

    MaxEmerge 5 with 56-L (1.6-bu) hopper plus insecticide
    MaxEmerge 5 with 56-L (1.6-bu) hopper plus insecticide
    MaxEmerge 5 with mini-hopper on CCS™ machines only
    MaxEmerge 5 with mini-hopper on CCS™ machines only

    The MaxEmerge family of row-units have never seen a more versatile and efficient design until the MaxEmerge 5. The 5-family row-units improve productivity, increase uptime and lower the cost of ownership like never before.



    The MaxEmerge 5 row-unit was designed for improved performance and serviceability.

    Easily access the meter
    Easily access the meter

    Serviceability and changing crops have always been a focus of downtime and potential seed loss. The MaxEmerge 5 meter (shown on the right) is accessible without having to remove the box. The design allows large hoppers to be cleaned out the same as mini-hoppers, simply by opening the meter dome and catching the seed as it falls out.

    MaxEmerge 5 vacuum seed meter
    MaxEmerge 5 vacuum seed meter

    The vacuum meter system gently pulls and holds individual seeds to the holes of the seed disk for population control and spacing accuracy, equaling better crop stands and profit. Vacuum seed meters can plant a wide variety of crops and seed types by simply changing seed disks and adjusting vacuum level. Vacuum seed meters are available for planters with MaxEmerge 5 row-units.



    Additional features of the vacuum seed meter include:

    • One moving component (the seed metering disk) for minimum maintenance requirements
    • Meter located at each row-unit for accurate seed delivery
    • Good hopper seed flow characteristics for longer operating time per hopper fill
    • Low airflow in meter so seed treatments are not removed
    MaxEmerge 5 seed pool
    MaxEmerge 5 seed pool

    The MaxEmerge 5 meter shape has also been redesigned for better seed flow. The mini-hopper design allows the planter to successfully operate on side hills up to 14 degrees.

    Vacuum meter hub and latching handle
    MaxEmerge 5 vacuum meter with disk
    MaxEmerge 5 vacuum meter with disk

    Both the MaxEmerge 5 vacuum meters are equipped with a heavy-duty hub spring and disk latching handle. The spring ensures the seed disk stays properly positioned when operating flat-style seed disks and higher vacuum levels. Proper seed disk positioning means repeatable seed singulation, time after time. The disk-latching handle is designed for easy operation and effortless seed disk changeover. The hub is also machined to tight tolerances to further ensure alignment of metering components.

    Vacuum meter seed disks

    The ProMax 40 Flat Disk is a flat-disk planting solution field-proven to work since 1991.

    Flat-style and cell seed disks shown
    Flat-style and cell seed disks shown

    The unique cell disk design allows planting a variety of seed sizes without any additional parts or individual meter adjustments. Another advantage of cell-type seed disks is the lower vacuum requirement compared to flat-style seed disks. Lower vacuum levels mean less hydraulic demand from the tractor. Most planting conditions call for a flat disk, if you are limited in hydraulic capacity, cell disks are recommended.

    Operating characteristics of vacuum seed meter
    Operating speed with seed tube technology
    Operating speed with seed tube technology

    The vacuum seed meter can operate at faster planting speeds than mechanical meters. However, planting accuracy will be influenced by seedbed conditions and the operating characteristics of the seed meter. Rough seedbeds and fast planting speeds (above 8.9 km/h [5.5 mph]) typically deteriorate seed placement accuracies when using seed tube technology.



    The chart illustrates the effect operating speed has on population when using the vacuum meter. The operating band (color area) illustrates how the vacuum meter performs in relation to the desired population (indicated by horizontal line). The width of the band is due to various sizes and shapes of seeds and planting rate variations.



    When operating on slopes above 15 degrees, increased or decreased population may result. To minimize this effect, reduce speed and consider using a flat style seed disk with increased vacuum level.

    ProMax 40 Flat Disc
    ProMax 40 Flat Disc

    The design of the ProMax 40 Flat Disk position allows seed to be released from the optimum position above the seed tube. The flush-face seed tube allows the seed to drop uninterrupted through the tube.



    The ProMax 40 Flat Disk utilizes flat holes and a higher vacuum level to ensure every hole is populated with a seed. A double eliminator gently removes multiple seeds at each hole for precise population control. A knockout wheel makes certain that each hole is clear of any debris after the seed is released from the disk.

    Hopper shutoff
    Hopper shutoff
    #

    Also, to help with meter access of 56-L and 106-L (1.6-bu and 3-bu) hoppers the hopper shutoff feature was added. With the shutoff engaged, the meter cover can be opened without first having to remove all the seeds from the hopper. Lever down, the seed flow is on, lever horizontal and the seed flow is off.

    MaxEmerge 5 mini-hopper
    MaxEmerge 5 mini-hopper
    #

    There are significant changes to the MaxEmerge 5 mini-hopper. One update is the straight feed from the CCS hose to the mini-hopper to ensure a continuous free flow of seeds. This design change reduces the potential for plugging issues with larger seed size and the use of seed treatments. By drawing air from the CCS tank, the vacuum source is cleaner, preventing meter debris buildup.

    Rubber tire closing system
    Rubber tire closing system
    Cast wheel closing system
    Cast wheel closing system

    Rubber tire closing systems are used for most conventional, minimum-till, and no-till planting conditions. The spacing between the wheels is adjustable so the closing system can meet the needs of those who want to plant small seeds at shallow depths.



    The wheels can also be staggered fore and aft to enhance residue flow. Four levels of spring force are available and are easily set with the integrated T-handle adjustment. A lower force spring can be obtained from parts, if a lower amount of force is required.



    Additional closing wheel options include:

    • Cast closing wheels for tough-to-close conditions
    • Disk closing, for shallow planting depths
    • Closing wheel frame less wheels for growers desiring to use aftermarket closing wheels
    Double eliminator
    Flat seed disc and double eliminator
    Flat seed disc and double eliminator

    For difficult to singulate seeds, a flat seed disk and double eliminator is a viable alternative to traditional cell-type seed disks. By design, a flat seed disk requires higher levels of vacuum than a cell-type disk because there is no pocket or cell to hold the seed. The higher vacuum level will pull more than one seed to the holes in the seed disk. The double eliminator is set to cover a portion of the hole in the seed disk and is the mechanism to knock multiple seeds away as the disk rotates.



    Double eliminators are required with flat-type seed disks only and should not be used with cell-type seed disks. The knockout wheel is also recommended in conjunction with the double eliminator and flat seed disk to ensure seed is ejected from the disk.



    Flat and celled type seed metering disks are available to allow planting a wide variety of seed types.

    • Corn (field, popcorn, or sweet corn)
    • Soybeans
    • Cotton
    • Sorghum
    • Sugar beets
    • Sunflowers
    • Edible beans/peas
    • Peanuts
    • Melons, squash, cucumbers

    Mini-hopper row-units, which are used only with the CCS, are compatible only with crops that the CCS is approved to plant.

    • Corn
    • Popcorn
    • Sweet corn
    • Soybeans
    • Sunflowers
    • Sorghum
    • Cotton

    NOTE: Due to small seed size and low planting populations, sugar beets can be planted with mini-hopper style meters by adding hopper extensions and not using the CCS tank. These hopper extensions can also be used for planting test plots.


    Ductile iron-cast shank
    Ductile iron-cast shank

    Ductile iron casting is a unique high-tech process that produces a single-piece row-unit shank this enables alignment from the seed trench to the closing wheel.



    The row-unit head is also designed using the ductile iron-casting process. The row-unit head provides the mating joints between the row-unit parallel arms and the row-unit shank. It is also the upper attaching point for the seed meter and seed hopper.



    Ductile iron casting of the row-unit shank and head assembly provides a row-unit that is 25 percent stronger than other competitive welded row-units.

    Tru-Vee opener blade
    Tru-Vee opener blade

    One of the trademark capabilities of John Deere planters has always been the ability of the Tru-Vee openers to provide an ideal seed furrow.



    The thickness of the Tru-Vee opener blade is 3.5 mm (0.14 in.) this blade thickness will provide extended wear life.



    The MaxEmerge 5 row-unit also provides better Tru-Vee opener bearings for longer life. The double-row ball bearing provides up to three times the wear life as the single-row bearing.

    Depth adjustment T-handle
    Depth adjustment T-handle
    #

    John Deere planters provide consistent seed depth control in all field conditions. Depth control is a function of the Tru-Vee openers, the downforce system, and the gauge wheel assembly.



    The gauge wheel itself is made of durable nylon composition with a concave profile. This profile gently firms the sides of the seed furrow, ensuring a well-defined trench. The shape reduces rocks and residue being picked up and thrown onto the drive chains and row-units, and helps to prevent rooster tailing of soil.



    The bolt-through design utilizes an open bearing in the gauge wheel that allows an attaching bolt to pass through the wheel to the threaded hole in the gauge wheel arm. This simple bolt-through design provides for a positive attachment of the gauge wheel to the gauge wheel arm and allows quick removal of the gauge wheel for service.



    Adjustability of the row-unit is critical to good performance. More available downforce options than any row unit in the industry

    • Adjustable heavy-duty downforce, four settings, 0 kg (0 lb), 57 kg (125 lb), 113 kg (250 lb), and 181 kg (400 lb) of downforce
    • Pneumatic downforce, infinitely variable from 0 to 181 kg (0 to 400 lb) of downforce
    • Active pneumatic downforce adjusts automatically for changing ground conditions from 0 to 181 kg (0 to 400 lb) of downforce
  • Row cleaner options to meet residue management needs

    Crop yields have increased through the years along with the amount of residue left in the field after harvest. At the same time, tillage practices have changed, including different tillage operations which maintain large amounts of surface residue, and even no-till practices. Row cleaners are an essential tool in managing this increased amount of residue.



    John Deere seeding group offers a variety of row cleaner options to meet the needs of a producer's operation. Compatibility varies by model, row spacing, and other planter equipment.

    Screw-adjust, unit-mounted row cleaner
    Screw-adjust, unit-mounted row cleaner
    Screw-adjust, unit-mounted row cleaner

    The screw-adjust, unit-mounted row cleaner is mounted directly to the face plate of the row-unit, placing the ground engaging components just in front of the row-unit opener blades and depth gauge wheels. This close proximity allows the gauge wheels to control the depth of the row cleaner as well as the row-unit. This compact design also allows greater compatibility with fertilizer openers and other planter attachments.



    SharkTooth® wheels are standard equipment on the unit-mounted row cleaner. The swept-tooth design of the wheel provides a clear path for the row-unit openers while resisting residue buildup on the wheel. The screw adjustment knob is accessible through the top of the parallel arms, providing convenient access for adjustments. The row cleaner can be adjusted in 1.6-mm (1/16-in.) increments, providing plenty of flexibility to meet the needs of changing conditions.

    Floating row cleaner with unit-mounted coulter
    Floating row cleaner with unit-mounted coulter
    Floating row cleaner with unit-mounted coulter

    The floating row cleaner allows a row cleaner to be used in conjunction with a unit-mounted coulter. This combination is often desired in heavy residue loads and reduced tillage planting conditions. The row cleaner provides a clear path for the row-unit, while the unit-mounted coulter helps penetrate tough soil conditions.



    Accommodating the unit-mounted coulter means the residue wheels are farther forward from the row-unit face plate than in the case of the screw-adjust row cleaner. To maintain performance, this row cleaner has the capability to float above a defined minimum depth.



    Standard depth-gauging bands on the wheels allow the row cleaner wheels to float independently of the row-unit openers, allowing both to perform in varying terrain. The unit may also be set in a fixed position by simply pinning through the bracket if desired. This row cleaner also features SharkTooth wheels as standard equipment.



    The floating row cleaner and unit-mounted coulters are available on many planters as factory-installed equipment.

    NOTE: Screw-adjust row cleaners are not compatible with MaxEmerge™ 5e row-units with long parallel arms.



    NOTE: DB models have the option for either unit-mounted coulter, screw-adjust row cleaners, or pneumatic row cleaners (only compatible with MaxEmerge 5e or equipped ExactEmerge™ models). The DB60T is only available with a less row cleaner option.



    SharkTooth is a trademark of Yetter Manufacturing, Inc.

  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions
    Connected Support technology
    Connected Support technology

    When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

    John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

    With your permission, John Deere Connected Support:

    • Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
    • Saves time by remotely viewing in-cab displays, reducing trips to the machine
    • Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
    • Connects experts with the information needed to respond to downtime faster and prevent it altogether

    With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.

  • 1725 Central Commodity System (CCS™) Planter - integral stack folding
    Convenient stack-folding design combined with rigid or flexible frame
    1725 CCS 16Row30 Stack-Fold Planter with ExactEmerge™ row-unit
    1725 CCS 16Row30 Stack-Fold Planter with ExactEmerge™ row-unit
    #

    The 1725 stack-fold design provides narrow transport capability for these integral, large-frame planters. 1725 Stack-Fold Planters have the ability to operate in both rigid-frame and flex-frame configurations. The 1725 CCS utilizes a three-section frame that can flex up to 10 degrees up and 7 degrees down.



    The 1725 CCS Stack-Fold Integral Planter is available in the following configuration: 16Row30 and 12x2 T.

    1725 CCS lift-assist wheels
    1725 CCS lift-assist wheels
    #

    Heavy-duty lift-assist wheels are integrated into the 1725 CCS frame design. The CCS cradle is supported by the heavy-duty lift-assist wheels which reduce the amount of weight placed on the rear of the tractor. This design provides a balanced planter for maneuverability in the field and during transport. The 1725T CCS has larger 16.5L-16.1SL lift-assist wheel tires to provide additional floatation in a variety of soils.



    Hydraulic steering is available on the 1725T Planter to guide the planter when the tractor is in reverse. This is useful during headland turns to keep the lift-assist wheels from castering or spinning around while backing to the next pass.

    1725 CCS 16Row30 with ExactEmerge planter additional frame features
    Vacuum run through the frame provides multiple benefits
    Vacuum run through the frame provides multiple benefits

    The vacuum is run through the planter frame rather than the black conduit on top of the frame. This provides many benefits to operators. The frame is cleaner and provides improved visibility when seated in the cab. The frame vacuum lines give increased durability for optimal vacuum performance.

    Performance
    Hydraulic cylinder on 1725 CCS 16Row30 frame for wing downforce
    Hydraulic cylinder on 1725 CCS 16Row30 frame for wing downforce

    Wing downforce has been added to the 1725 CCS 16Row30 with ExactEmerge. When traveling above speeds of 8.05 km/h (5 mph), the wings become lighter, sacrificing ride quality and consistent depth. Hydraulic cylinders have been added that transfer weight from the centerframe to the outside wings to maintain consistent weight distribution and provide operators with their desired depth control.

    Uptime
    Hydraulic locking mechanism for in-cab wing locking
    Hydraulic locking mechanism for in-cab wing locking

    An automatic hydraulic wing locking feature is available on the 1725 CCS Planter. Once the operator engages the frame-fold selective control valve (SCV), the hydraulics release the locking mechanism and the planter starts folding. This reduces trips up and down the tractor and provides for a much quicker process in and out of the field.

    Active pneumatic downforce compressor and ExactEmerge alternator located in front of CCS tanks
    Active pneumatic downforce compressor and ExactEmerge alternator located in front of CCS tanks

    Active pneumatic downforce is offered in conjunction with the ExactEmerge option codes on the 1725 CCS 16Row30 model. This provides the proven solution for growers to maintain consistent depth even at speeds up to 16.1 km/h (10 mph). See the active pneumatic downforce page for more information.

  • Mobile row-unit runoff
    Row Runoff diagnostic test
    Row Runoff diagnostic test
    The test functions from a mobile device
    The test functions from a mobile device
    Determine optimum settings without being in the cab
    Determine optimum settings without being in the cab

    The first day of planting season can be as productive as the last with mobile row-unit runoff. The mobile row-unit runoff activation on the planter main controller (PMC) allows operators to make adjustments to maximize row-unit performance from a mobile device at the rear of the planter for both preseason and in-season use - all enabled through the EquipmentPlus app.



    Mobile row-unit runoff allows growers to perform test-stand functions from a mobile device connected to the planter.



    The row runoff test provides complete diagnostic checks both preseason and in season. With the row-unit runoff test, the operator can make adjustments from the mobile device, including vacuum pressure, to determine the optimum meter and vacuum settings. This app functionality will help avoid making trips to the cab while validating meter performance.



    During preseason planter inspections and set up, utilize the meter performance test to validate meter accuracy, similar to a test stand without leaving the farm. Test all systems on the planter, not just the meter, providing confidence that all planter systems are ready to plant. Reports are generated from the test providing information the operator can save and send for future reference.



    Before heading to the field, the operator will benefit from knowing the best row-unit and vacuum settings for each variety selected to plant that spring.



    Watch this video to see mobile row-unit runoff in action.



    Mobile row-unit runoff will work with any model year 2015 or newer ExactEmerge™ or MaxEmerge™ 5e equipped planter. Mobile row-unit runoff can be added with attachment AA93169.



    For model year 2018 and newer ExactEmerge planters, mobile row-unit runoff is included in base equipment. For model year 2020 and newer MaxEmerge 5e planters, mobile row-unit runoff is included in base equipment. For planters not equipped from the factory, mobile row-unit runoff can be added with attachment AA93169. A mobile row-unit runoff and Easy Fold package can be added with attachment AA97849 (only available with 1775NT and 1795 Planters with a 2-point hitch and model year 2019 and newer DB Planters with Gen 4 based frame folding).



    NOTE: Mobile runoff utilizes the EquipmentPlus app available on select iPad® tablets, iPhone® smartphones, and Android™ devices.



    Mobile row-unit runoff and Easy Fold aftermarket for field conversion kits



    The below software bundles include the functionality explained above for machines not ordered with the feature from the factory. Compatible machines include all the necessary sensors and harnesses needed to make the feature function. The attachment part is software only. Follow the mobile runoff ordering and software push guide below for ordering and installation.



    SeedStar™ 3 HP conversion to SeedStar 4HP

    Mobile runoff ordering and software push guide



    iPad and iPhone are trademarks of Apple Inc. Android is a trademark of Google LLC.

  • Easy Adjust row cleaners
    Coulter combo row cleaner
    Coulter combo row cleaner
    Easy Adjust row cleaner
    Easy Adjust row cleaner

    Easy Adjust row cleaner and coulter combo provides a pneumatic row tillage solution that is controlled from the seat of the tractor.



    Every decision to make an adjustment during spring planting reduces the acres planted per day and can increase or decrease profitability. An adjustment that can be overlooked is row cleaners due to planter size, difficulty to make the adjustment, and varying conditions across fields and time.

    GreenStar™ 3 2630 Display view for row cleaners compatible with SeedStar™ 3 HP
    GreenStar™ 3 2630 Display view for row cleaners compatible with SeedStar™ 3 HP
    4600 CommandCenter™ Display and 4640 Universal Display view for row cleaners compatible with SeedStar 4HP
    4600 CommandCenter™ Display and 4640 Universal Display view for row cleaners compatible with SeedStar 4HP

    With the Easy Adjust row cleaners on ExactEmerge™ planters, operators now have a pneumatic solution to make on-the-go adjustments that is controlled directly from the seat of the cab. They can be raised from the cab as needed with the push of a button for wet areas, waterways, or end rows. For growers using SeedStar 3 HP, the row cleaners are completely integrated into the John Deere GreenStar 3 2630 Display as well as the Gen 4 4600 CommandCenter display or 4640 Universal Display. For growers using SeedStar 4HP, a 4600 CommandCenter display or 4640 Universal Display is required.

    The Easy Adjust row cleaners have the capability to save three presets for varying ground engagement based on field conditions. The system is controlled in three sections: at each wing as well as the center (frame or wheel) track rows. The pneumatic lines use air from the active pneumatic downforce compressor, requiring no additional compressor to be installed on the planter. The Easy Adjust row cleaners utilize down and up force air bags. The adjustable air pressure setting for each bag allows the operator to set the ride of the row cleaner depending on the field conditions and the desired results. Making these on-the-go adjustments from tractor cab increases productivity and performance during planting.

    For Easy Adjust row cleaner performance upgrade kit options, see the ordering guide.

    The row cleaner-only option utilizes parallel linkage to provide the floating action growers require in their fields. Parallel linkage allows for the unit to float up and down in the situation of hills or hard objects. The cleaner and coulter combo does not have parallel linkage, however, the row cleaners have floating rings installed to help provide the same benefits.

    The row cleaners utilize the field-proven SharkTooth® design. Row cleaners play a major role in maximizing yield toward uniform emergence, reducing row-unit bounce, and maintaining proper depth. The Easy Adjust row cleaners provide growers with quick and stress-free solutions to customizing the planter in variable field conditions. They are available on most ExactEmerge and MaxEmerge 5e equipped planters.

    SharkTooth is a trademark of Yetter Manufacturing Incorporated.

  • Seed variable-rate drive provides the ultimate planting productivity

    Seed variable-rate drive provides the ultimate planting productivity by utilizing one, two, or three hydraulic motors (varies by model) to turn the seeding drive shaft. Hydraulic control of the seeding drive allows for on-the-go seeding rate changes right from the display mounted inside the tractor cab. Combine this seeding flexibility with the map-based planting option, and seeding rates adjust automatically based on the prescribed map.



    Variable-rate drive offers the following advantages over common, ground, or contact-tire drive systems:

    • Rate changes are almost instantaneous; no ramp up or ramp down of system as in some competitive systems
    • Permits the producer to match seed population based on different soil types or irrigation practices
    • John Deere design provides added operator safety by eliminating any possible drive creep found in some competitive variable-rate drive systems
    1755 equipped with variable-rate drive
    1755 equipped with variable-rate drive
    1765NT equipped with variable-rate drive
    1765NT equipped with variable-rate drive

    Single- or dual-motor systems for variable-rate drives are available for all John Deere planters except the 1785 Rigid Frame. Variable-rate drive is available as a factory-installed option for all applicable planter models.

    Single- or dual-motor systems are available as field-installed attachments for most planter models; however, a three-motor variable-rate drive field-installed attachment is not available.

    Seed variable-rate drive requires the SeedStar™ monitor and a radar input signal. Either tractor or planter radar may be used. Planter radar is ordered separately.



    NOTE: Peanut seed meter disks require the variable-drive transmission.

Dimensions

Transport height 16 Row: 4.3 m
14 ft
Transport width (without markers) 16 Row: 7.1 m
23.25 ft
