  • Mobile row-unit runoff
    Row Runoff diagnostic test
    Row Runoff diagnostic test
    The test functions from a mobile device
    The test functions from a mobile device
    Determine optimum settings without being in the cab
    Determine optimum settings without being in the cab

    The first day of planting season can be as productive as the last with mobile row-unit runoff. The mobile row-unit runoff activation on the planter main controller (PMC) allows operators to make adjustments to maximize row-unit performance from a mobile device at the rear of the planter for both preseason and in-season use - all enabled through the EquipmentPlus app.



    Mobile row-unit runoff allows growers to perform test-stand functions from a mobile device connected to the planter.



    The row runoff test provides complete diagnostic checks both preseason and in season. With the row-unit runoff test, the operator can make adjustments from the mobile device, including vacuum pressure, to determine the optimum meter and vacuum settings. This app functionality will help avoid making trips to the cab while validating meter performance.



    During preseason planter inspections and set up, utilize the meter performance test to validate meter accuracy, similar to a test stand without leaving the farm. Test all systems on the planter, not just the meter, providing confidence that all planter systems are ready to plant. Reports are generated from the test providing information the operator can save and send for future reference.



    Before heading to the field, the operator will benefit from knowing the best row-unit and vacuum settings for each variety selected to plant that spring.



    Watch this video to see mobile row-unit runoff in action.



    Mobile row-unit runoff will work with any model year 2015 or newer ExactEmerge™ or MaxEmerge™ 5e equipped planter. Mobile row-unit runoff can be added with attachment AA93169.



    For model year 2018 and newer ExactEmerge planters, mobile row-unit runoff is included in base equipment. For model year 2020 and newer MaxEmerge 5e planters, mobile row-unit runoff is included in base equipment. For planters not equipped from the factory, mobile row-unit runoff can be added with attachment AA93169. A mobile row-unit runoff and Easy Fold package can be added with attachment AA97849 (only available with 1775NT and 1795 Planters with a 2-point hitch and model year 2019 and newer DB Planters with Gen 4 based frame folding).



    NOTE: Mobile runoff utilizes the EquipmentPlus app available on select iPad® tablets, iPhone® smartphones, and Android™ devices.



    Mobile row-unit runoff and Easy Fold aftermarket for field conversion kits



    The below software bundles include the functionality explained above for machines not ordered with the feature from the factory. Compatible machines include all the necessary sensors and harnesses needed to make the feature function. The attachment part is software only. Follow the mobile runoff ordering and software push guide below for ordering and installation.



    SeedStar™ 3 HP conversion to SeedStar 4HP

    Mobile runoff ordering and software push guide



    iPad and iPhone are trademarks of Apple Inc. Android is a trademark of Google LLC.

  • SeedStar™ 4HP monitoring system – see speed meet accuracy in real time

    Have you wanted to view more than one planter chart at once? SeedStar 4HP gives you multiple views and configurations in one simple overview page to fit your preferences. You can complete the simplified setup from the Work Setup page instead of having multiple applications to open.



    SeedStar 4HP is designed to optimize the in-cab monitoring experience exclusively on the Gen 4 4600 CommandCenter™ display or 4640 Universal Display for growers with ExactEmerge™ planters and MaxEmerge™ 5e planters. With SeedStar 4HP, operators will easily see key planter information with customizable run pages, zoom functionality, and simultaneous graph and performance measurements. SeedStar 4HP is included in base on all model year 2018 ExactEmerge and MaxEmerge 5e planters.



    Features overview:

    • View multiple planters' at-a-glance bar charts simultaneously
    • Three default planter run pages show key planter functions in easy-to-view layouts
    • Highly configurable run pages allow SeedStar modules to be customizable
    • Zoom feature allows quick row-by-row detailed information
    • View dual bar graphs to see multiple planter details at one time
    • SeedStar application to make adjustments to planter functions
    • Simplified setup through the work set-up page
    • Advanced rates allow up to six different rates across 48 rows
    • The SeedStar 4HP monitoring system requires the Gen 4 4600 CommandCenter or 4640 Universal Display. These displays allow the operator to benefit from the updated interface, enhanced processing speeds, and easy setup (learn more here).



    SeedStar 3 HP conversion to SeedStar 4HP with mobile row-unit runoff aftermarket for field conversion kits



    Growers who are currently running model year 2017 planters, model year 2017 and newer performance upgrade kits, or model year 2017 and newer custom-built planters with the SeedStar 3 HP monitoring system can upgrade to the SeedStar 4HP monitoring system with mobile row-unit runoff. The attachment part, AA100382, is software only. The Gen 4 display software version will need to be 19-1 or newer and will require planter apps. Follow the mobile runoff ordering and software push guide below for ordering and installation. Retrofitted planters and custom-built planters will also require the John Deere Connect Mobile kit, 0048PC, from the Precision Ag Technology Price Pages and wiring harness AA83662 to enable the mobile row-unit runoff feature. Please reference Parts Advisor and DTAC Solution 105181 for model-specific mounting brackets. SeedStar 4HP requires the Gen 4 4600 CommandCenter v2 display or 4640 Universal Display.

    Default planter run pages
    Planter summary default run page
    Planter summary default run page
    Planter overview default run page
    Planter overview default run page
    Planter details default run page
    Planter details default run page

    Three default run pages show key planter functions in different views to give fast and easy access to important planter information.

    Custom run pages
    Customizable run pages
    Customizable run pages

    There are customizable run pages that allow the operator to build pages that fit their operation with different modules, like the example shown above.

    Zoom functionality
    Zoom feature showing a group of rows
    Zoom feature showing a group of rows
    Zoom feature showing a single row
    Zoom feature showing a single row

    The zoom feature allows the operator to touch a section or row of the planter and get detailed information quickly.

    Dual bar graphs
    Dual bar graph showing singulation and population simultaneously
    Dual bar graph showing singulation and population simultaneously

    Dual bar graphs allow operators to view multiple planter details at one time.

    SeedStar application page
    SeedStar application run page
    SeedStar application run page

    In the SeedStar application, many adjustments can be made, including manually activating section control. SeedStar 4HP allows up to 48 individual row sections. There are several setup features such as crop, seed disk, number of rows being planted, population alarms, and limits. Seed rates can be modified, electric power generation (EPG) can be turned on or off, vacuum can be adjusted, and the fill and purge functions can be used from the SeedStar application. Frame control, as well as diagnostics and calibrations, can be accessed at the bottom of the screen.

    Settings Manager in SeedStar 4HP
    Access Settings Manager on the Work Setup screen
    Access Settings Manager on the Work Setup screen
    Settings Manager screen
    Settings Manager screen

    Reduce set-up time between changing crops or field conditions by recalling saved settings used previously with Settings Manager, included with every SeedStar 4HP system. This feature allows saving and recalling planter and tractor settings for optimum performance in different conditions.



    Settings Manager can be used to save all the adjustment and inputs associated to a particular crop or condition. An example would be to store all population rates, downforce pressure, row cleaner adjustments, and closing wheel settings for planting corn and storing a separate, unique set of adjustments for soybeans. In addition, Settings Manager stores tractor settings such as selective control valve (SCV) flow and detents, infinitely variable transmission (IVT™) settings, eco modes, and more.

    Custom rates in SeedStar 4HP
    Variety set-up page
    Variety set-up page
    Rate set-up page
    Rate set-up page
    Group rate set-up page
    Group rate set-up page

    Custom rates allow for individual row population control and row-by-row documentation where up to six different rates can be assigned across an up to 48-row planter. This allows growers interested in planting seed corn with ExactEmerge or MaxEmerge 5e the capability to assign specific populations to male and female rows for planting. This feature can also be used to create tram lines or other applications where custom rates by row are needed.



    NOTE: Individual rates are tied to varieties, so each individual rate needs a unique variety name.

    NOTE: Advanced rates are not compatible with prescriptions or they cannot be run at the same time.

    Additional information

    For additional information on feature functionality on the Gen 4 Display, visit the links below:

    YouTube is a trademark of Google LLC.

    Compatibility
      SeedStar 4HP compatibility
    Planters

    All models ordered with ExactEmerge or MaxEmerge 5e row-units

    NOTE: Performance upgrade kits are equipped with SeedStar 3HP only but can be upgraded by purchasing part number AA100382.

    Displays

    Gen 4 4600 CommandCenter equipped with Version 2 Processor or 4640 Universal Display

    Dual-display mode is compatible with mid model year 2019 planter software.

    John Deere Active Implement Guidance™ Compatible with SeedStar 4HP on Gen 4 displays with VT mode and required activations and subscriptions
    AutoTrac™ Implement Guidance SeedStar 4HP is compatible with ATTA and ATIG; not compatible with >48 row electric drive planters.
    AutoTrac Turn Automation SeedStar 4HP is compatible with ATTA and ATIG; not compatible with >48 row electric drive planters.
  • Precise liquid fertilizer placement with ExactRate™ fertilizer system
    ExactRate pump assembly at rear of 12-row 1775NT
    ExactRate pump assembly at rear of 12-row 1775NT

    The ExactRate liquid fertilizer system is a factory-installed solution that provides you with accurate nutrient placement during planting. Previously, you would have to deal with the inconvenience of cumbersome aftermarket systems for a hydraulically driven variable-rate solution. With ExactRate, John Deere delivers a complete planting solution for liquid fertilizer users. You can choose between in-furrow or offset delivery methods. A high-rate option without openers is also offered from the factory. This system delivers:



    • Up to 20 percent more accurate nutrient placement in a turn compared to a non-turn compensating system
    • 1 to 12 percent (4.3 percent on average) reduction in inputs through row-by-row section control
    • Ability to run up to 16.1 km/h (10 mph)
    • Closed-loop speed and rate change compensation
    • Full integration into the 4600 CommandCenter™ and 4640 Universal Display
    ExactRate nozzle body
    ExactRate nozzle body

    The ExactRate liquid fertilizer system is designed to take full advantage of the capabilities of ExactEmerge™ and MaxEmerge™ 5e planters. This factory-installed liquid fertilizer system delivers the same value as your electric drive planter including working at speeds faster than the traditional 8.05 km/h (5 mph), turn compensation, and row-by-row section control, all while accurately compensating for varying rates and speed changes. Additional features include row-by-row flow detection, as-applied documentation, and variable-rate capabilities, providing operators full integration into the 4600 CommandCenter or 4640 Universal Display.



    Fertilizer flows from the tank to the pump, through a strainer and boom isolation valve, through a central flowmeter, and out to each nozzle body and row-unit for accurate delivery. The system is closed loop, meaning the pump and nozzle body duty cycle both adjust based on feedback received from the pressure sensor and central flowmeter. This design helps maintain an accurate application rate.



    NOTE: ExactRate is not recommended for products that require agitation to maintain suspension.

    Pump
    Pump assembly at rear of planter
    Pump assembly at rear of planter

    Instead of a tire-contact drive, a hydraulically driven centrifugal pump eliminates chain and sprocket adjustments to provide more speed flexibility over the entire rate range. This pump allows for a wide range of rate capabilities as well as strong durability. The wet seal design helps protect the pump if it is accidentally run dry for a short time.

    Strainer

    A strainer helps collect suspended particles and prevent them from causing blockages in the distribution system and nozzle bodies.

    Boom isolation valve

    The valve prevents the tank from draining out if there is a leak in the distribution system. If the pump is on, the valve opens to allow flow. When the pump is off, the valve closes.

    Central flowmeter and pump pressure sensor

    The central flowmeter and pump pressure sensor provide the rate control system feedback on flow and pressure to ensure an accurate application rate across the entire planter width. The flowmeter also supplies the as-applied rate data.

    Direct injection

    The ExactRate liquid fertilizer system does not have direct injection capabilities on the product being applied. If direct injection is needed on the secondary product, an additional rate controller is required.



    NOTE: ExactRate system and John Deere Rate Controller 2000 with Raven ICD Direct Injection system is supported. ExactRate system and GreenStar Rate Controller with Raven ISO Direct Injection system is not supported.

    Distribution system and nozzle body
    Distribution system and nozzle bodies routed on the wing of a 12-row 1775NT
    Distribution system and nozzle bodies routed on the wing of a 12-row 1775NT

    The 2.5-cm (1-in.) stainless-steel distribution lines not only reduce corrosion, but they also provide a clean integrated look.  The distribution system is pressure tested at the factory to reduce the risk of leaks.



    John Deere has leveraged ExactApply™ technology and capabilities from the sprayers to enable row-by-row section control and turn compensation that matches the high-performance planters. With ExactRate, there are no orifice changes for rate or speed adjustments, saving you time and effort while limiting exposure to product. Pulse-width modulation technology varies duty cycle (opening and closing of the valve) in the nozzle bodies in conjunction with flow and pressure measured from central flowmeter and pressure sensor controlling the system pump. The ExactRate liquid fertilizer system uses one nozzle body for two rows, limiting the number of parts and complexity on each machine. While you’re in the cab, you can keep an eye on each row with flow detection integrated into the Gen 4 display. The system warns you if it detects a variance in an individual row’s flow. A pressure sensor integrated into the nozzle body will detect a flow reduction or overapplication on the row.

    Keypad at rear of planter
    Keypad at rear of planter

    Just like on the sprayers, the keypad at the rear of the machine lets you conveniently perform a nozzle flow check to ensure product is coming out of each row before going to the field.

    Rate Controller

    The ExactRate liquid fertilizer system is compatible with the John Deere Rate Controller 2000 and GreenStar™ Rate Controller if a producer wants to apply a second product using a separate distribution system.

    ExactRate app on Gen 4

    Easily adjust target rate and speed without leaving your seat. With turn compensation, inner and outer rates are automatically adjusted to maintain consistent application across the full width of the planter. This ultimately reduces the risk of seed burn by over application (turn compensations require a global positioning system [GPS] receiver). Another helpful feature is row-by-row section control for reduced overlap on headlands and waterways. Gen 4 Documentation creates as-applied maps showing what product was applied where, providing accurate record-keeping.

  • Downforce system options
    Individual Row Hydraulic Downforce (IRHD)
    IRHD system
    IRHD system

    IRHD has been specifically designed to meet the needs of producers that are looking to adjust to the toughest field conditions and provide maximum yield potential from field to field, season after season. IRHD works as a closed-loop downforce system that reacts quickly on an individual row basis to changing soil conditions supporting increased ground contact, which can lead to improved seed depth consistency. When setting planter downforce margin, the system will apply the needed downforce by row to maintain ground contact. From the factory, the margin will be set at 45.4 kg (100 lb), changes may be required based on varying field conditions.

    The system allows operators to maintain gauge wheel ground contact leading to desired seed depth placement. IRHD can adjust five times per second and make adjustments of 45.4 kg (100 lb) in less than a second. The system has a total range of applied downforce from 22.7 kg (50 lb) to 204.1 kg (450 lb) and utilizes the power beyond circuit on the tractor. IRHD is 58 percent faster than the active pneumatic downforce solution. Fast reaction and increased ground contact can lead to improved emergence. With uniform emergence, some studies have shown a yield impact from 5 percent to 9 percent.

    IRHD is controlled through the display with SeedStar™ 3 HP or SeedStar 4HP. As shown below, operators can view ground contact or applied downforce using the toggle button.

    IRHD screen showing the ground contact graph through SeedStar 4HP
    IRHD screen showing the ground contact graph through SeedStar 4HP
    IRHD screen showing the applied downforce graph with SeedStar 4HP
    IRHD screen showing the applied downforce graph with SeedStar 4HP
    Hydraulically driven compressor
    Pneumatic valve
    Pneumatic valve

    The hydraulically driven air compressor can deliver up to eight times the air flow when compared to the electric compressor, allowing for more and faster downforce changes to be made. This more robust design features a 37.8-L (10-gal.) storage tank across all models with active downforce.


    At approximately 15.1 L/min (4 gpm), hydraulic demands are low and ties into the machine’s lift and Central Commodity System (CCS™) hydraulic circuit so it does not require any additional selective control valves (SCVs). The SeedStar XP, SeedStar 3 HP, and SeedStar 4 HP monitoring systems work with the compressor. SeedStar 3 HP and SeedStar 4 HP monitoring systems work with the compressor and valve assembly to regulate air to downforce springs, enabling the active control, pneumatic closing wheels, and pneumatic row cleaners.

    Row-unit downforce planter run page
    SeedStar XP downforce planter run page
    SeedStar XP downforce planter run page

    Active downforce control is integrated into SeedStar XP, SeedStar 3 HP, and SeedStar 4 HP monitoring systems.



    Margin is the amount of weight riding on the depth gauge wheels that ensures desired firming of the seedbed as set by the operator.



    Once a target margin has been defined, enter the value into the display and let active downforce do the rest. The system will actively adjust the air pressure in the air bags to maintain a constant margin across the planter. The changes in air pressure will change the amount of downforce placed on the row-unit, compensating and reacting for varying conditions through the field whether it is different tillage practices, soil types, or moisture.

    Downforce and margin example
    Downforce and margin example
    • A - Margin – amount of additional downforce applied to a row-unit above and beyond what is required for penetration to achieve planting depth. This additional weight will ride on the depth gauge wheels.
      • 54.4 kg (120 lb) + 36.3 kg (80 lb) = 90.7 kg (200 lb) – 68 kg (150 lb) = 22.7 kg (50 lb) of margin
    • B - Weight of row-unit - 54.4 kg (120 lb)
    • C - Downforce – force that is applied to the row-unit by the air bag circuit - 36.3 kg (80 lb)
    • D - Resistance from soil - 68 kg (150 lb)



    Margin video references:

    Understanding Margin

    Using Set Point downforce

    Using Active Pneumatic downforce

    SeedStar 4HP: Downforce

    Pneumatic downforce spring
    Pneumatic downforce spring

    Each row-unit has a single rubber air bag located between the parallel arms. The air bags are hooked in parallel so that air can be added or released from all rows at once from one location.



    The individual pneumatic downforce air bag assemblies, air compressor units, and 9.5-mm (3/8-in.) delivery lines are also available as an attachment for field conversion.

    Active downforce compressor assembly
    Active downforce compressor assembly

    A hydraulically driven compressor works with the SeedStar XP, SeedStar 3 HP, and SeedStar 4 systems to automate downforce control. Just set the row-unit target margin value and the active pneumatic downforce system works automatically. The system will make sure the planter maintains this value, achieving precise soil penetration, and consistent planting depth, without sidewall soil compaction. From the factory, the system is set at 45.4 kg (100 lb) target downforce margin but may be modified for varying field conditions. This frees the operator from constantly making manual downforce adjustments as conditions change.



    This system offers a split-rank control feature for 1795 and DB Split-Row Planters. On split-row planters, active downforce will control the front and rear rows independently. This compensates for differing downforce requirements between the ranks that can be caused by things like different tillage or insecticide attachments and will help maintain an accurate planting depth and consistent margin across all the rows.



    Active pneumatic downforce is available as factory installed or as an attachment for field conversion.

    Set point row-unit downforce
    Pneumatic downforce control in GreenStar 2 Display
    Pneumatic downforce control in GreenStar 2 Display
    Air compressor mounted on 1775NT outer hitch
    Air compressor mounted on 1775NT outer hitch

    On set point, the air compressor will be mounted on the outer hitch or frame assembly. Since the electric air compressor assembly is mounted on the outer hitch (as noted in the picture above) or frame, adjustments for row-unit downforce and related system pressures will be made electronically with the GreenStar display.



    When adjusting the amount of row-unit downforce using the GreenStar display, the operator will select the amount of downforce (kg [lb]) to be applied across the planter. Depending on the soil conditions at hand, the operator might need to adjust the relative amount of row-unit downforce being applied during the planting operation. The integrated pneumatic downforce controls within the GreenStar display will only allow for set-point operation and not automatic control as the planter is operating in different soil conditions. The pneumatic downforce system does not have the capability to automatically adjust downforce.

    Pneumatic downforce provides convenient, simple adjustment of downforce for the whole planter from one location. The amount of downforce applied is infinitely adjustable from 6.8 to 181.4 kg (15 to 400 lb). Pneumatic downforce provides more consistent downforce throughout the range of row-unit travel than mechanical spring downforce systems.

    Features include:

    • 9.5-mm (3/8-in.) air delivery line instead of the 6.4-mm (1/4-in.) line used on model year 2010 and older planters.
    • Air compressor assembly increased duty cycle. With this compressor, it provides a 47 percent increase in maximum air flow delivery compared to the prior air compressor.
    • Pneumatic air bags with 9.5-mm (3/8-in.) air line inlets that have greater durability.
    Pneumatic downforce compressor and gauge
    Pneumatic downforce compressor and gauge

    An improved compressor is used to charge the pneumatic system. This compressor can be located on the planter frame or in the tractor cab if desired. A gauge at the compressor indicates the amount of downforce being applied.

    Integrated pneumatic downforce system

    The functional features of the integrated system are the same as the standard pneumatic system, explained above, with the addition of control through the GreenStar display.

    Heavy-duty adjustable downforce springs
    Heavy-duty adjustable downforce spring
    Heavy-duty adjustable downforce spring

    Planter row-unit downforce is an important factor to ensure consistent and proper depth control. The heavy-duty adjustable downforce feature provides up to 181.4 kg (400 lb) of downforce. There are four settings available to allow the operator to choose the amount of downforce required for the condition: 0 kg (0 lb), 56.7 kg (125 lb), 113.4 kg (250 lb), and 181.4 kg (400 lb).

  • Increase visibility at night with light-emitting diode (LED) lighting package
    LED light on stairs to the CCS™ system platform
    LED light on stairs to the CCS™ system platform

    As planting windows get tighter, many growers are working longer hours to get the seed in the ground. With the planter LED lighting package, John Deere delivers better visibility when planting a night.



    • Four additional LED lights
    • Improves visibility when planting at night
    • Illuminates row-units when servicing at night
    • Turns on when tractor lights are engaged
  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions
    Connected Support technology
    Connected Support technology

    When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

    John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

    With your permission, John Deere Connected Support:

    • Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
    • Saves time by remotely viewing in-cab displays, reducing trips to the machine
    • Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
    • Connects experts with the information needed to respond to downtime faster and prevent it altogether

    With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.

  • Easily carry fluid on the planter with liquid tanks
    Liquid tank mounted on a 24-row 1775NT Planter
    Liquid tank mounted on a 24-row 1775NT Planter

    John Deere factory-installed liquid tanks offer a convenient way to carry fluid on the planter frame. Styling cues match the CCS™ system tanks, and all brackets and mountings are 100 percent factory installed.



    • Factory installed
    • Up to 2271 L (600 gal.) of fluid capacity
    • Clear sight tube to check fluid level
    • Air bleed and overflow protection
    Liquid Tank mounted to a 24-row 1775NT Planter
    Liquid Tank mounted to a 24-row 1775NT Planter
  • Easy fluid transfer with the ExactRate™ fluid transfer system

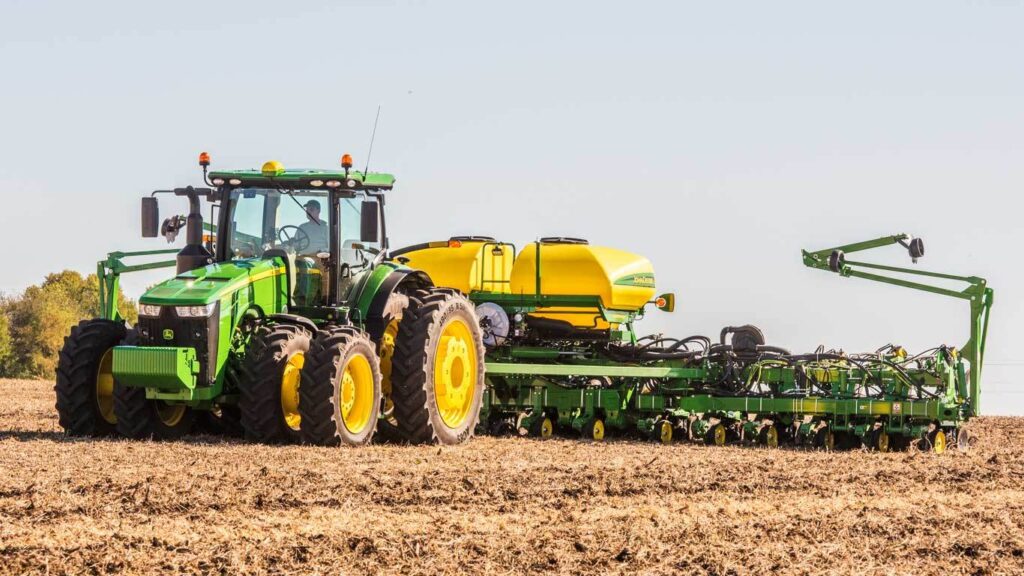

    24-row 1775NT Planter equipped with ExactRate system
    24-row 1775NT Planter equipped with ExactRate system

    The ExactRate fluid transfer system pairs planters seamlessly with the ExactRate tractor tanks. It provides an easy connection point to allow transfer from the ExactRate tractor tanks back to the planter tank. This enables up 6056 L (1600 gal.)* of combined capacity between the tractor and planter tanks.



    • Factory installed
    • Designed and tested by John Deere to ensure the lines won’t pinch when folding
    • Easily attaches to the ExactRate tractor tanks



    ExactRate is available on the following models: 1775NT, 1795, DB44, DB60, and DB66.



    *NOTE: 6056 L (1600 gal.) assumes a 2271-L (600-gal.) tank on a 24-Row 1775NT Planter as well as the 3785-L (1000-gal.) capacity on the 8RX Tractor.

    24-row 1775NT Planter equipped with ExactRate fluid transfer system
    24-row 1775NT Planter equipped with ExactRate fluid transfer system
  • Increase productivity with ExactEmerge™ trench delivery system and BrushBelt™ delivery system

    It is very challenging to get the crop planted during the optimum planting window or as close to the optimum planting day as possible. Rate-of-yield loss accelerates greatly after the optimum window has passed. This is especially true in the northern U.S. and Canada. ExactEmerge maintains accurate speed placement at higher speeds; growers can avoid missing that peak planting time, thereby helping to get the highest crop yields.

    Yield loss after optimum planting day
    Yield loss after optimum planting day

    With the BrushBelt trench delivery system, the spacing in the trench does not change from even to uneven terrain. This can be a problem with a traditional seed tube. Seed bounce and ricochet may occur as slopes increases, ultimately decreasing seed spacing performance.



    The design of the BrushBelt system provides the best solution for the lowest release of seed to the bottom of the trench. The use of a brush provides the meter with an infinite amount of placement opportunities for each seed. This is what gives producers the confidence that every seed will have the desired spacing that a seed tube cannot provide.

    Maintenance-free BrushBelt system
    Maintenance-free BrushBelt system

    When the brush comes around the pulley, it expands and allows the seed to be transferred from the bowl to the brush very easily. The brush then carries the seed down toward the trench, ensuring that there is no movement as it moves down the length of the cartridge.

    Once the brush reaches the lower pulley, the BrushBelt system expands again to loosen the grip on the seed, and the centrifugal force releases the seed. Another advantage with the BrushBelt system and cartridge at all speeds up to 16.1 km/p (10 mph) is the ability to match the seed rearward trajectory to the forward ground speed of the planter. This provides a dead drop of the seed with no bounce and no roll at the bottom of the trench.

    BrushBelt conditioner engages brush bristles
    BrushBelt conditioner engages brush bristles

    John Deere’s ExactEmerge cartridge is self-cleaning. When an operator uses seed treatments or is forced to plant in less than ideal soil conditions, the design of the trench delivery system sheds buildup from the BrushBelt. A brush conditioner is located at the bottom of the cartridge to remove remaining residue and prevent the bristles from sticking together.

    Brush proximity helps clean sensor
    Brush proximity helps clean sensor

    Another advantage over a seed tube is that the BrushBelt system also acts as a cleaner to the seed sensor compared to a seed tube.

    Sensors for trench delivery system
    Sensors for trench delivery system
    Reflective seed sensor
    Reflective seed sensor
    Sensor on trench delivery system
    Sensor on trench delivery system

    On all ExactEmerge row-units, each cartridge is equipped with sensors. As the seeds are being delivered through the BrushBelt delivery system controls, they pass the reflective seed sensor. The delivery system slides every seed past the seed sensor to read and send the signal to the controller. The seed sensor and design can provide sensor performance at higher seeds per second with no population adjustment as needed with seed tube sensors. This seed sensor data is actual row-unit performance data. In comparison, seed tube sensors add 10 percent population in soybean planting to adjust for the seeds missed due to placement within the seed tube. The BrushBelt system holds each seed in place until released in the trench, allowing the seed sensor a more accurate read.

    BrushBelt removed from trench delivery system
    BrushBelt removed from trench delivery system

    The BrushBelt system requires no maintenance and has a wear life designed to match the wear life of the other wear components. Since operations vary, as do soils and field content, it is recommended to replace the BrushBelt after noticeable wear or decreased performance.

    Changing the belt is easy. One latch removes the meter over the trench delivery system. Grab the cartridge by the grip and pull toward the body, releasing it from the electric motor fitting. Lift the trench delivery system up and remove the sensor wiring harness to completely pull the cartridge out of the row-unit.

    There are two plastic covers that snap off to uncover the belt; remove the covers and then twist the circular spring tensioner dial with the yellow arrow on it to release the tension on the springs. Once tension has been removed, pull the belt out. It is also recommended to change the stainless-steel wear strip at this time as well, which also slides right out of place without the use of tools.

    NOTE: It is recommended to use a talc/graphite mixture with ExactEmerge. Best results have been 80 percent talc and 20 percent graphite. For certain regions and territories, talc and talc/graphite mixes are restricted from use; in this case, use a wax-based fluency agent.

Closing System

Rubber tire closing system


Cast iron closing system
