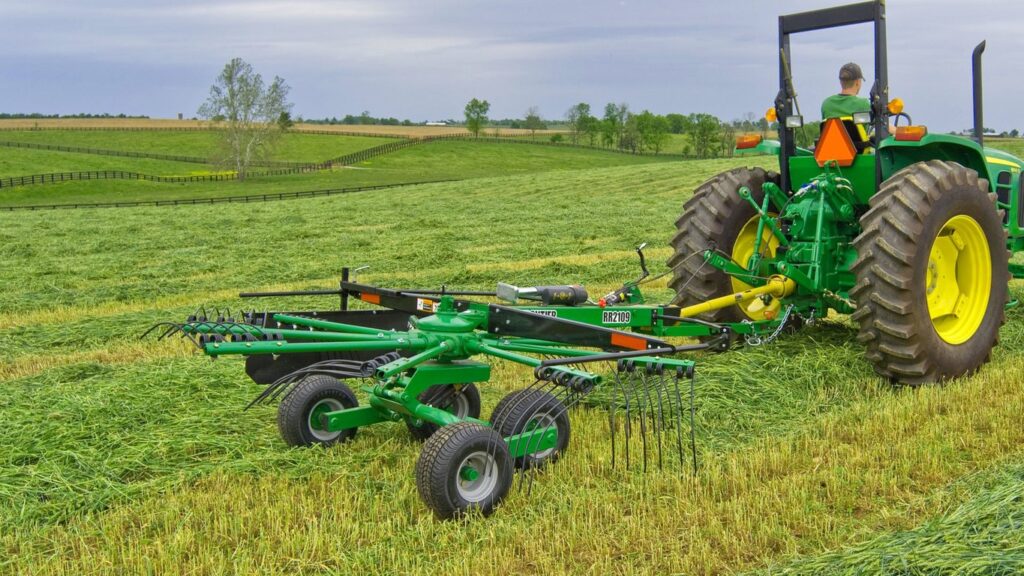

John Deere RR21 Series Rotary Rake

Agriculture

  • Cam-action tine arms
  • Heavy-duty curtain
  • Hydraulic rake adjustments
  • Tandem flotation tires
Dimensions - Overall working width3.4 m
11.17 ft
Hitch - TypeDrawbar
Tine arms - Size4.13 cm
1.625 in.
Dimensions - Transport width2.84 m
9.33 ft
Dimensions - Overall transport length4.32 m
14.17 ft
Wheels - TypeFlotation
Tine arms - QuantityNine
Swath screen - TypeHD vinyl curtain
Dimensions - Raking width2.74 m
9 ft
Tine arms - Quantity of double tines per arm3
Safety and markings - MarkingsReflectors
Tractor compatibility - Number of SCVsOne
Weight - Implement476 kg
1,050 lb
Warranty - Time period1 year for ag and residential use
90 days for commercial use
Tine arms - RemovableNo
Safety and markings - Safety tow chainsStandard
Dimensions - Working width3.25 m
10.67 ft
Tractor compatibility - Hydraulic pressure requirement1,200 psi
Wheels - QuantityFour
Shipping information - QuantityOne
Axle - TypeTandem
Set-up time - Labor hours4
Tractor compatibility - PTO requirement rpm540 rpm
Wheels - Size, diameter46.99 cm
18.5 in.
Tractor compatibility - PTO hp requirements22.4 kW
30 hp
  • Raking Width: 9 ft. (2.7 m)
  • # of Tine Arms: 9
  • PTO HP: 30 hp (22.4 kW)
Flotation tires provide top-quality performance
Flotation tires provide top-quality performance
#

Large tandem flotation tires on the Frontier™ RR2109 Rotary Rake provides maximum durability when operating over rough terrain.

Cam-action tine arms reduce drying time
Cam-action tine arms reduce drying time
#

The cam-action tine arms on the RR2109 Rotary Rake gently deposit the material in the swath, saving valuable leaves.

Furthermore, the cam action forms a higher, fluffier, faster-drying windrow that saves drying time.

Adjustable to accommodate raking needs
Adjustable to accommodate raking needs
#

The Frontier™ RR2109 Rotary Rakes’ heavy-duty vinyl curtain controls the windrow width and can be adjusted in or out to accommodate individual harvesting needs.

When combining multiple windrows, the curtain can either be removed or turned upside down to prevent interfering with the hay.

Hydraulics create ease for the operator
Hydraulics create ease for the operator
#

Hydraulically adjust the Frontier™ RR2109 Rotary Rake height and pitch without leaving the tractor seat.

Both functions are controlled with one simple hydraulic circuit.
