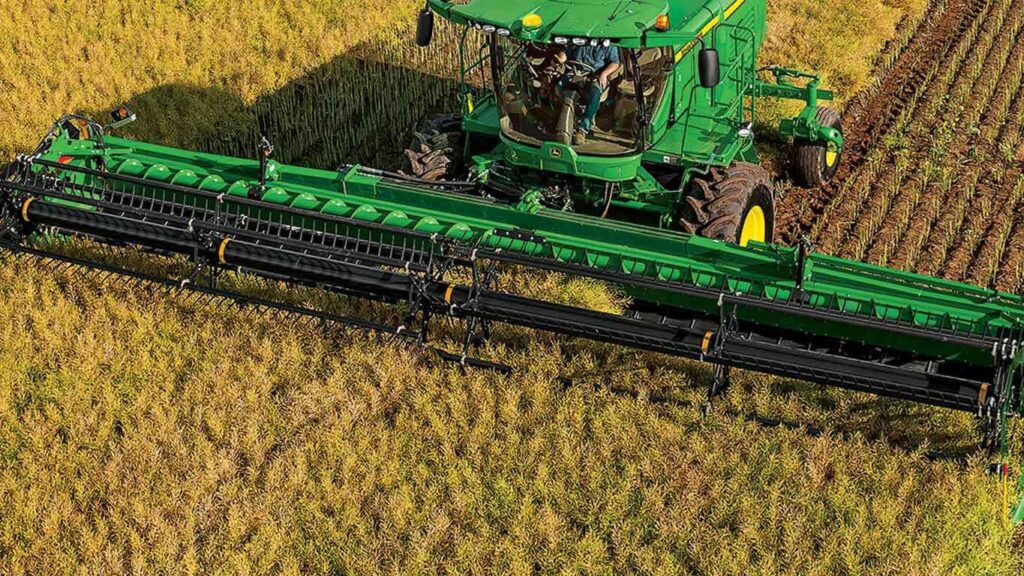

John Deere D630 Draper
Agriculture
- 30 ft. (9.1 m) cut width
- Compatible with W200M, W235M, W235R and W260R
- Hydraulic tilt John Deere cutter bar
- Ground speed matching
- Integrated controls
| Weight - Approximate weight (base platform with reel) | 2280 kg 5026 lb |
|---|---|
| Draper and decks - Belt width | V-guided draper belt: 106.7 cm 42 in. |
| Reel - Speed control | Hydro handle, in cab |
| Reel - Reel lift | Hydraulic, adjustable from cab |
| Draper and decks - Deck tilt | Standard |
| Draper and decks - Operating speed | 0 to 232 m/min 0 to 760 fpm |
| Cutterbar - Type | SCH® Easy Cut with roller guides, spring steep guards, and bolted sections Standard: single knife or dual knife |
| Draper and decks - Deck extensions | Optional, dealer-installed deck extensions: 35.6 cm 14 in. |
| Cutterbar - Knife speed | 1,100 to 1,440 spm |
| Draper and decks - Delivery opening width | Delivery, double swath opening: 137.2 cm 54 in. Delivery, single swath opening: 203.2 cm 80 in. |
| Gauge wheels and transportation - Gauge wheels | Adjustable castoring gauge wheel optional |
| Reel - Number of bats | Six |
| Dimensions - Operating width (field) | 7.6 m 25 ft |
| Draper and decks - Speed control | Adjustable in windrower cab |
| Dimensions - Transport width (reel fully retracted) | 2.6 m 8.5 ft |
| Key Specs - Cut width (length) | 7.6 m 25 ft |
| Draper and decks - Delivery opening height | 205.7 cm 81 in. |
| Draper and decks - Remote canvas speed control | Standard |
| Reel - Diameter | 1118 mm 44 in. |
| Reel - Reel fore and aft | Hydraulic, adjustable from cab |
| Cutterbar - Cut width (length) | 7.6 m 25 ft |
| Key Specs - Cutterbar - Type | SCH® Easy Cut with roller guides, spring steep guards, and bolted sections Standard: single knife or dual knife |
| Dimensions - Transport height | 2.44 m 8 ft |
| Key Specs - Belt width | V-guided draper belt: 106.7 cm 42 in. |
| Cutterbar - Stroke length | 84 mm 3.3 in. |
| Reel - Reel type | Hydraulic |
| Draper and decks - Draper drive | Two hydraulic motors |
| Auxiliary top auger - Type | Optional: factory-installed cross-pea auger |
| Cutterbar - Knife drive | Two hydraulic motors and two knife drives |
| Gauge wheels and transportation - Integrated slow speed transport system | Self-contained transport, including hitch, jack and axle, is conveniently stored on the swather table |
| Key Specs - Reel type | Hydraulic |
| Dimensions - Transport length, hitch extended | 9 m 29.6 ft |
| Reel - Height control | Hydraulic, adjustable from cab |
| Weight - Approximate weight (base platform without reel) | 1036 kg 2869 lb |
| Key Specs - Transport length, hitch extended | 9 m 29.6 ft |
| Reel - Fingers | Plastic |
| Key Specs - Fingers | Plastic |
| Cutterbar - Cutterbar tilt | Hydraulic, adjustable from cab |
Featured Content
D600 Draper and interchangeable rotary platform
D600 Draper has an interchangeable rotary platform:
- Interchangeable on W200M and R Series units in 30 minutes or less
- Growers can use one traction unit for harvesting both small grains and hay
Center-driven belts
D600 Draper on W235 Windrower
- Deliver increased torque
- Enable greater productivity with minimal belt slippage
- Increase performance in heavy crop conditions
Red circles point out the location of the belt drive motors
- Draper belts on the D600 are driven from the center of the platform
- Delivers increased belt performance compared to drapers with end-driven belts
Belt drive motors
Motor driving the left-hand belt
Motor driving the right-hand belt
Due to the motors pulling the belt (instead of pushing in an end drive system), there is less slack in the belt. This delivers an increase in belt torque.
As a result, producers experience minimal belt slippage and increased performance in heavy crop conditions due to the center-driven belt system.
John Deere D625, D630, and D636 Drapers can windrow out of the center, right, or left ends of the draper with the press of a button using the hydraulic shift option (double swath package).
- Larger windrows to match combine or self-propelled forage harvester
- Match narrower-width drapers with higher-capacity harvesting
- Place higher-density windrows in front of harvesters when yields are low
- Discharge two windrows side by side for uniform combine or forage harvester feeding
First pass with right discharge
Second pass with right discharge
Third pass with left discharge
Center discharge
D600 Draper
The D600 Series includes an improved reel that increases durability in heavy crop conditions. The dual drive offers more versatility for operators to match their crop conditions and offers more reel torque for heavy crop conditions. The system can be quickly reconfigured by changing quick couplers to offer a series configuration for a higher reel speed to meet the needs of lighter crop conditions.
The cam reel allows the reel to efficiently lift crop across the cutterbar and release it onto the draper belts.
D600 Draper teeth
- Easy reel tooth replacement is done with a 90-degree turn using a wrench. It allows the reel tooth to be removed and replaced.
- Additional teeth can be added at any location along the extruded tooth bar.
D600 Draper on windrower
The draper hydraulic pump control adjusts knife, belt, and reel speeds to match the ground speed. This provides consistent feeding as you move through the field.
Sales, parts, and service support from a local John Deere dealer offers overnight parts delivery and a well-trained support staff.
