John Deere D625 Draper
Agriculture
- 25 ft. (7.6 m) cut width
- Compatible with W200M, W235M, W235R and W260R
- Hydraulic tilt John Deere cutter bar
- Ground speed matching
- Integrated controls
| Reel - Fingers | HD Plastic |
|---|---|
| Cutterbar - Type | Dual knife |
| Dimensions - Transport width on wheel, less dividers | 2.5 m 8.1 ft |
| Reel - Reel type | Pick up cam four-position adjustable release |
| Key Specs - Fingers | HD Plastic |
| Reel - Reel fore and aft | Hydraulic |
| Draper and decks - Speed control | Hydraulic from cab |
| Key Specs - Transport width, field position | 6.5 m 21.3 ft |
| Dimensions - Platform length | 6.5 m 21.3 ft |
| Key Specs - Cut width (length) | 6.1 m 20 ft |
| Dimensions - Transport width, field position | 6.5 m 21.3 ft |
| Key Specs - Overall operating depth | With crop dividers 2.6 m 21.3 ft |
| Dimensions - Overall operating depth | With crop dividers 2.6 m 8.7 ft |
| Key Specs - Cutterbar - Type | Dual knife |
| Dimensions - Transport length, hitch extended | ---- |
| Draper and decks - Belt width | Wide rubber skim-coated 710-ml (24-oz) drapers: 1,067 mm 41.6 in. |
| Reel - Diameter | 1,650 mm 65 in. |
| Weight - Approximate weight (base platform with reel) | 1,544 kg 3,400 lb |
| Center opening / crop delivery - Center opening width between belts | 1,720-1,950 mm 67.1-76.7 in. |
| Cutterbar - Knife drive | Hydraulic motor to enclosed heavy-duty wobble box |
| Reel - Speed control | Hydraulic with header index |
| Header height sensing - Header height sensing on the ground | Float springs on traction unit |
| Cutterbar - Knife speed | 700-850 cycles/min 1,400-1,700 spm |
| Key Specs - Reel type | Pick up cam four-position adjustable release |
| Cutterbar - Cut width (length) | 6.1 m 20 ft |
| Cutterbar - Cutterbar tilt | Standard hydraulic Optional mechanical (7.5 to 17.0 degree lift) |
| Reel - Height control | Hydraulic |
| Key Specs - Transport width on wheel, less dividers | 2.5 m 8.1 ft |
| Reel - Operating speeds | 0-85 rpm |
| Reel - Reel lift | Hydraulic |
| Draper and decks - Operating speed | 0-225 m/min 0-742 fpm |
| Reel - Number of bats | 6 bats standard 9 bats optional, single span, capped ends |
| Key Specs - Belt width | Wide rubber skim-coated 710-ml (24-oz) drapers: 1,067 mm 41.6 in. |
| Key Specs - Platform length | 6.5 m 21.3 ft |
| Header height sensing - Header height sensing off the ground | Return to cut height standard Gauge wheels optional |
Featured Content
Center-driven belts
D600 Draper on W235 Windrower
- Deliver increased torque
- Enable greater productivity with minimal belt slippage
- Increase performance in heavy crop conditions
Red circles point out the location of the belt drive motors
- Draper belts on the D600 are driven from the center of the platform
- Delivers increased belt performance compared to drapers with end-driven belts
Belt drive motors
Motor driving the left-hand belt
Motor driving the right-hand belt
Due to the motors pulling the belt (instead of pushing in an end drive system), there is less slack in the belt. This delivers an increase in belt torque.
As a result, producers experience minimal belt slippage and increased performance in heavy crop conditions due to the center-driven belt system.
D600 Draper and interchangeable rotary platform
D600 Draper has an interchangeable rotary platform:
- Interchangeable on W200M and R Series units in 30 minutes or less
- Growers can use one traction unit for harvesting both small grains and hay

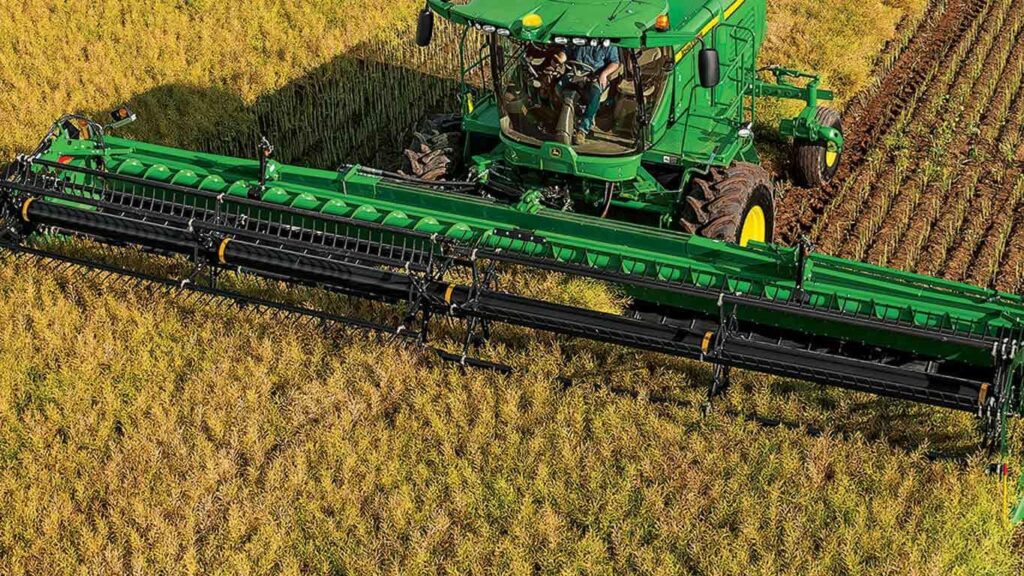

D600 Draper on windrower
The draper hydraulic pump control adjusts knife, belt, and reel speeds to match the ground speed. This provides consistent feeding as you move through the field.
John Deere D625, D630, and D636 Drapers can windrow out of the center, right, or left ends of the draper with the press of a button using the hydraulic shift option (double swath package).
- Larger windrows to match combine or self-propelled forage harvester
- Match narrower-width drapers with higher-capacity harvesting
- Place higher-density windrows in front of harvesters when yields are low
- Discharge two windrows side by side for uniform combine or forage harvester feeding
First pass with right discharge
Second pass with right discharge
Third pass with left discharge
Center discharge
Sales, parts, and service support from a local John Deere dealer offers overnight parts delivery and a well-trained support staff.
D600 Draper
The D600 Series includes an improved reel that increases durability in heavy crop conditions. The dual drive offers more versatility for operators to match their crop conditions and offers more reel torque for heavy crop conditions. The system can be quickly reconfigured by changing quick couplers to offer a series configuration for a higher reel speed to meet the needs of lighter crop conditions.
The cam reel allows the reel to efficiently lift crop across the cutterbar and release it onto the draper belts.
D600 Draper teeth
- Easy reel tooth replacement is done with a 90-degree turn using a wrench. It allows the reel tooth to be removed and replaced.
- Additional teeth can be added at any location along the extruded tooth bar.
