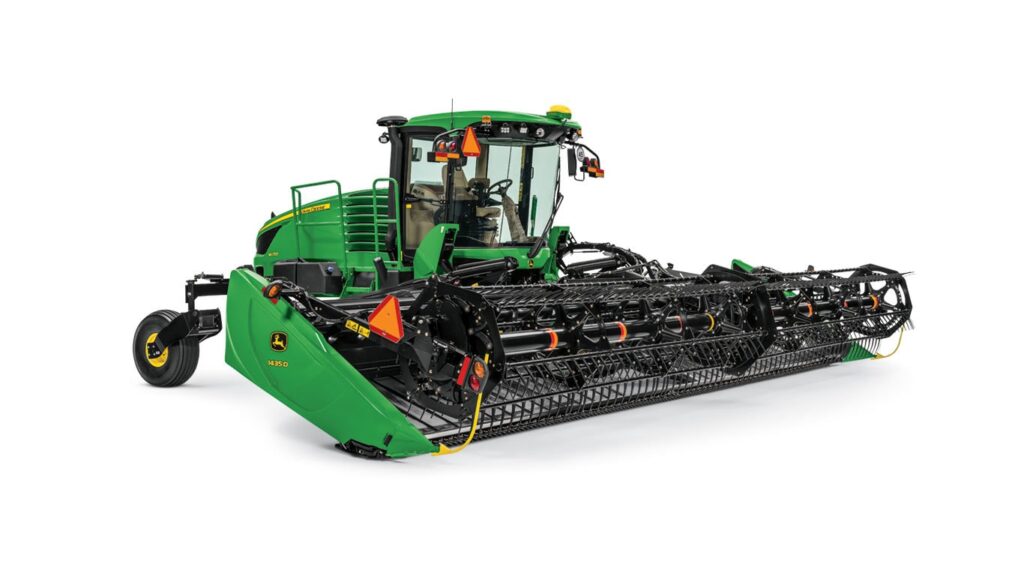

John Deere 1430D Draper Platforms
Agriculture
- Greater capacity to process crop with 8-inch deeper belts
- Uninterrupted crop flow with C-shaped cutterbar
- Handle all crop conditions with strong, positive-feeding reel
- Excellent visibility to cutterbar and belt
| Key Specs - Cut width (length) | 10.7 m 35 ft |
|---|---|
| Center opening / crop delivery - Deck shift / double windrow capability (manual / hydraulic / not available) | Manual standard Hydraulic optional |
| Header height sensing - Header height sensing off the ground | Return to cut height standard Gauge wheels optional |
| Reel - Reel lift | Hydraulic |
| Draper and decks - Operating speed | 0-225 m/min 0-742 fpm |
| Weight - Approximate weight (base platform with reel) | 2,134-2,588 kg 4,700-5,700 lb |
| Reel - Fingers | Heavy-duty plastic |
| Auxiliary top auger - Type | Optional hydraulic drive |
| Dimensions - Transport width, field position | 11.1 m 36.3 ft |
| Key Specs - Transport length, hitch extended | 13.9 m 45.6 ft |
| Reel - Diameter | 1,650 mm 65 in. |
| Cutterbar - Cutterbar tilt | Standard hydraulic Optional mechanical (2.5-12.0 degree tilt) |
| Reel - Speed control | Hydraulic with header index |
| Key Specs - Platform length | 11.1 m 36.3 ft |
| Reel - Reel type | Pick up cam 4 position adjustable release |
| Center opening / crop delivery - Center opening width between belts | 1,720-1,950 mm 67.1-76.7 in. |
| Key Specs - Overall operating depth | With crop dividers 2.6 m 8.7 ft |
| Key Specs - Reel type | Pick up cam 4 position adjustable release |
| Cutterbar - Type | Dual knife base standard Single knife base optional |
| Key Specs - Fingers | Heavy-duty plastic |
| Reel - Height control | Hydraulic |
| Key Specs - Transport width on wheel, less dividers | 2.5 m 8.1 ft |
| Gauge wheels and transportation - Gauge wheels | Optional |
| Draper and decks - Belt width | Wide rubber skim-coated 710-ml (24-oz) drapers: 1,259 mm 49.6 in. |
| Key Specs - Belt width | Wide rubber skim-coated 710-ml (24-oz) drapers: 1,259 mm 49.6 hp/ft |
| Key Specs - Cutterbar - Type | Dual knife base standard Single knife base optional |
| Dimensions - Platform length | 11.1 m 36.3 ft |
| Gauge wheels and transportation - Integrated slow speed transport system | Optional includes dual gauge wheels |
| Key Specs - Transport width, field position | 11.1 m 36.3 ft |
| Cutterbar - Cut width (length) | 10.7 m 35 ft |
| Reel - Reel fore and aft | Hydraulic |
| Dimensions - Transport length, hitch extended | 13.9 m 45.6 ft |
| Draper and decks - Speed control | Hydraulic from cab |
| Dimensions - Transport width on wheel, less dividers | 2.5 m 8.1 ft |
| Header height sensing - Header height sensing on the ground | Float springs on traction unit |
| Reel - Number of bats | 5 bats single span standard 6 bats split span optional, capped ends |
| Reel - Operating speeds | 0-85 rpm |
| Cutterbar - Knife drive | Hydraulic motor to belt to enclosed heavy-duty wobble box |
| Cutterbar - Knife speed | Dual: 600-750 cycles/min 1,200-1,500 spm Single: 550-650 cycles/min 1,100-1,300 spm |
| Dimensions - Overall operating depth | With crop dividers 2.6 m 8.7 ft |
Featured Content
John Deere 1425D, 1430D, and 1435D Drapers can windrow out of the center, right, or left ends of the draper with the press of a button using the hydraulic shift option.
Double windrow using deck shift
Double windrow being combined
Hydraulic deck shift option:
- Larger windrows to match combine or self-propelled forage harvester
- Match narrower-width drapers with higher-capacity harvesting
- Place higher-density windrows in front of harvesters when yields are low
- Discharge two windrows side by side for uniform combine or forage harvester feeding
- Move chain stop to change center belt opening quickly and easily for different crop types and density (see operator’s manual for more information)
- Discharge crop to the outside of the headland to prevent running over the windrow while cutting the rest of the field
- Platform stays balanced with automatic fine-float adjustment when using deck shift
- Optional double draper drive bundle is recommended when using deck shift and harvesting silage or wet, heavy crops
- NOTE: The double draper drive option is not compatible with the 1425D Platform.
First pass – right discharge
Second pass – right discharge
Third pass – left discharge
Swath forming rods
Optional left- and right-end swath deflector rods form a space between the windrow and uncut crop to have adequate clearance for the crop divider on the next pass.
Dual gauge wheel option
1400D Series Draper Platforms offer optional dual gauge wheels with spring suspension:
- 1-cm (15-in.)
- Excellent ground following and flotation in all conditions
- Fine adjust the float on the go from the cab for high-speed harvesting and stable flotation
- Available as part of the integrated slow-speed transport system option
1400D integrated slow-speed transport system behind W170 Windrower
Slow-speed transport system:
- 1400D Drapers are towable only with the W170 Self-Propelled Windrower
- Transport is recommended behind a tractor with seven-pin electrical lighting outlet
- 1430D, 1435D, 1440D, and 1445D Drapers only
- Convert draper from field to transport in minutes with one person and without tools
- Dual front dolly wheel tires and two gauge wheel tires carry the weight of transport
It is a simple four-step process to switch from field to transport:
- Move right gauge wheels from field to transport
- Move left gauge wheels from field to transport
- Attach the tongue.
- Detach from the windrower.
C-shaped cutterbar profile
The C-shaped cutterbar profile provides:
- Smooth crop flow
- Superior draper-to-cutterbar seal
- Reduced amount of material under belts
- Minimized crop loss in shatter-prone crops
1435D split-span reel with plastic fingers
Cam reel tooth action
Reel in full forward position
The cam real design of the 1400D Series Draper Platform features:
- 165-cm (65-in.) diameter
- Heavy-duty plastic or steel fingers
- Tooth position control
- Smoother and quieter operation at higher reel speeds
- Less wear on reel drive components
- Less shattering of the crop
Hourglass-shaped reel
Reel end fingers
The hourglass-shaped reel has:
- End positioned closer to the cutterbar to provide smooth feeding
- Adjustable bolt position to change distance of reel to cutterbar
Adjustable cam positions
Plastic fingers:
- Standard from the factory on all 1400D Series Platforms
- Recommended for all crop conditions
- Lighter weight and easy to replace
Steel fingers:
- Only available through Parts
- Recommended for heavy forage crop
- Longer life
Optional end fingers improve feeding aggressiveness in difficult feeding and cutting conditions with down and tangled crop.
All 10.7-m (35-ft), 12.2-m (40-ft), and 13.7-m (45-ft) platforms come standard with tine tube stiffener kits to handle heavy crop conditions and improve the life of the platform.
Plastic tine split reel with end feed fingers
Single span reel:
- 6-m (15-ft), 6.1-m (20-ft), 7.6-m (25-ft), 9.1-m (30-ft), and 10.6-m (35-ft) sizes
- Less weight
- Better center visibility
- Good option for canola and small grains harvesting
Double span reel:
- 6-m (35-ft), 12.2-m (40-ft), and 13.7-m (45-ft) sizes
- Better feeding in heavy, wet, or down crop
- Better control of the reel height for more consistent feeding
Five-bat reel
Six-bat reel
Nine-bat reel
The reel is available in five-, six- or nine-bat configurations:
- Six- to nine-bat conversion is available with field installation
- Recommended for heavy conditions such as silage or grass seed crops
Cutterbar visibility
Right-side visibility
Left-side visibility
The cutterbar design provides excellent visibility across the full range of tilt:
- Cutterbar and belt can be easily seen from the cab even with the optional top-crop conveying auger installed
- Cutterbar can be tilted from the cab mechanically or hydraulically depending on the windrower option chosen
- Change cutterbar angle with varying crop and field conditions for best cut height and crop flow
