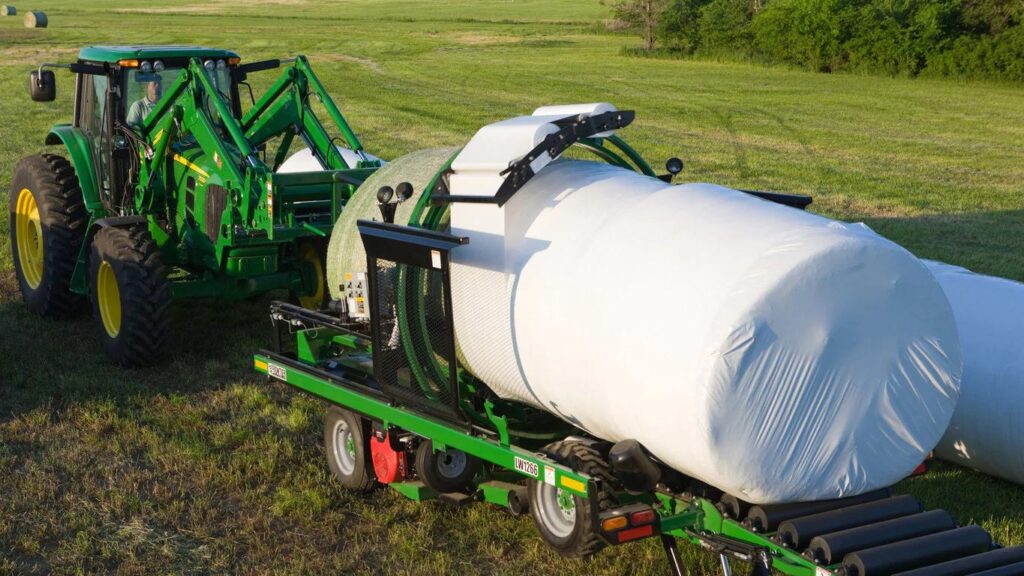

John Deere LW12 Series In-Line Bale Wrapper
Agriculture
- Bale push is integrated into machine
- Wrapping cycle shuts down when out of film
- 120 bales per hour
- Central control box operates all hydraulic functions
Dimensions - Overall machine shipping length | 5 m 16.4 ft |
---|---|
Dimensions - Overall machine width | 2.7 m 9 ft |
Tires - Size (front) | 11L-15 Implement |
Controls - Lift mechanism | Optional hydraulic power jack |
Wrapping - Wrapping capacity | 120 bales per hour |
Set-up time - Labor hours | 1 |
Power - Engine size | 9.7 kW 13 hp |
Hitch - Length | Adjustable |
Hitch - Type | Folding |
Tires - Quantity | Four (two front, two rear) |
Lighting, marking and safety - Safety tow chain | Standard |
Power - Start type | Electric |
Power - Engine type | Honda |
Warranty - Machine | 1 year |
Controls - Steering | Hydraulic with optional remote control |
Final bale push off - Bale pusher | Self-contained scissor linkage |
Bale capacity - Square bale size | 0.9x0.9x.1.7 m 3x3x5.5 ft |
Power - Alternator size, amp | 18 amp |
Final bale push off - Unloading | Manual cross tube |
Wrapping - Bale alignment | Adjustable bale guides |
Wrapping - Cycle time | Adjustable with limit switches |
Tires - Size (rear) | 11L-15 Implement |
Bale capacity - Round bale diameter | 1.7 m 5.5 ft |
Controls - Folding tail gate | Hydraulic |
Weight - Towing unit minimum weight | 1,587.6 kg 3,500 lb |
Weight - Weight | 2,381.4 kg 5,250 lb |
Lighting, marking and safety - Jack | Standard |
Controls - Compacting brakes | Hydraulic adjustable pressure valve |
Wrapping - Bale guide rollers | Optional |
Dimensions - Overall machine length | 7.7 m 25.4 ft |
Lighting, marking and safety - Markings | SMV and reflectors |
Controls - Type | Electric over hydraulic 12 V |
Wrapping - Film tensioners | Two aluminum rollers: 76.2 cm 30 in. with stretch: 55 percent |
Dimensions - Overall machine height | 2.7 m 9 ft |
Controls - Power drive | Optional: hydraulic single or dual wheel |
Lighting, marking and safety - Transport safety lights | Standard |
Wrapping - Hoop speed | Adjustable flow control valve |
Controls - Hydraulic system | Self-contained |
Featured List
- Wrapping Capacity: 120 bales / hr
- Bale Capacity: 5 ft. 6 in. (1.7 m) round; 3 x 3 x 5 ft. 6 in. (.9 x .9 x 1.7 m) square
- Power: 13 hp (9.7 kW)
Featured Content

Adjustable tongue (hitch)

The adjustable tongue (hitch) folds neatly out of the way for wrapping. It is located at the opposite end of where the bales are wrapped.
The adjustable tongue makes moving and repositioning the machine a quick and easy task, saving time and money.
Remote steering and shutdown conversion kits allow the operator to steer and start/stop the wrapper from the operator station of the tractor or from the skid steer that is loading the bales into the wrapper.

Assist in difficult field conditions

Traction implement tires make the in-line wrappers sure-footed on wet and uneven terrain to help get the machine where it needs to be for wrapping bales.
The LW11 Series comes standard with the traction implement tires, and they are available on the LW12 Series only when ordered with single- or dual-power drive.
A conversion kit provides night working lights on LW1166 and LW1266 In-Line Bale Wrappers.

Sensor comprised of silver rod and limit switch

The film wrap sensor automatically shuts down the wrapping cycle when the machine runs out of film or breaks.

Multipurpose control center

The control box and levers are the control center of the in-line bale wrappers.
Some of the uses include turning the unit on and off, and controlling the bale ramp and bale push.
The quick-start power jack conversion kit lifts the bale wrapper to level the roller bed when starting a new bale line on the LW1266 In-Line Bale Wrappers.
14.9-kW (20-hp) Honda® engine
A larger horsepower engine with a high-flow pump provides increased capacity to complete the job faster.
NOTE: LW Series In-Line Bale Wrappers come standard with a 9.7-kW (13-hp) Honda engine.
Single- and dual-power drive

Optional single-power drive
Optional single- or dual-power drives allow the operator to maneuver the unit without attaching it to a tractor. The single-power drive has one rear tire, while the dual-power drive has two rear tires, to provide traction for the unit. These features are great for wet or uneven ground conditions where traction is limited.
Steering remote control

Remotely stops and starts the unit
This remote control allows the operator to steer, start, and stop the machine without using the control panel on the machine.
Twin wrap kit

Twin wrap kit
This kit provides a double layer of wrap, increasing the amount of wrap applied to bales.
Work lights

Lights allow operators to work longer hours
For early morning or late-night work, choose between two optional work lights: light-emitting diode (LED) and halogen.
Guide rollers

Optional guide rollers
Optional guide rollers help keep the bales on the bale ramp in uneven terrain.
Power jack

Power jack
The optional power jack hydraulically raises the bale ramp to a level position to eliminate air pockets between bales when starting a row. The bale ramp is lowered after three bales have been wrapped.
Bale Follower
The bale follower allows the in-line wrapper to automatically follow the line of bales next to it.
Honda is a trademark of Honda Motor Co., Ltd.
This sidehill guide rollers conversion kit prevents bales from sliding off of the rollers when wrapping on hillsides.
