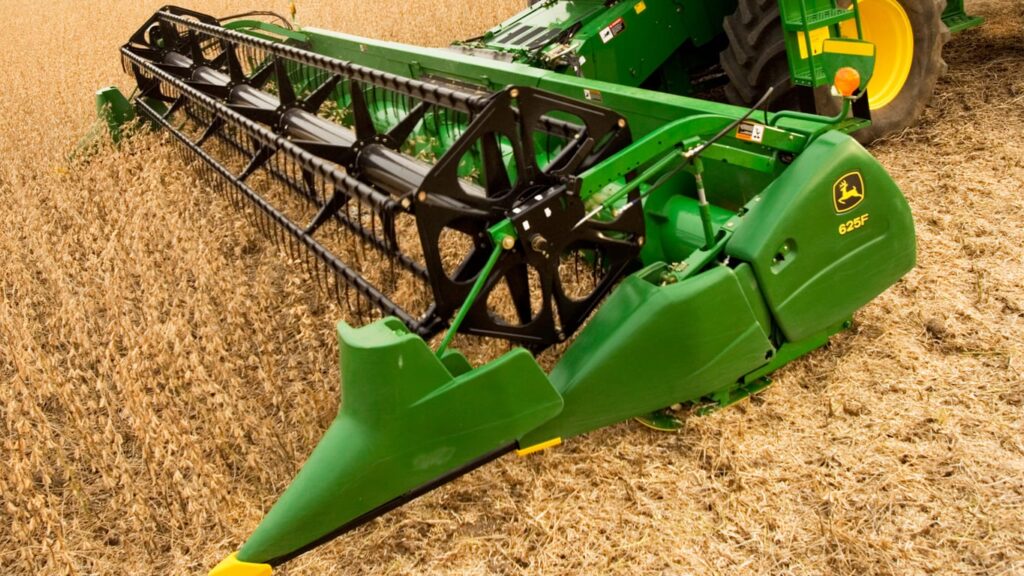

John Deere 625F HydraFlex™Cutting Platform
Agriculture
- Epicyclic knife drive increases drive capacity
- Raised-height skid shoe
- Less reel, mounting, and drive parts
- Easy adjustments reduce downtime
| Cutterbar - Cutterbar angle | 10 degree (angle) |
|---|---|
| Cutterbar - Knife sections | Heavy-duty, over-serrated |
| Cutterbar - Guards | Forged steel, heat-treated |
| Cutterbar - Backshaft speed | 490 rpm |
| Cutterbar - Knife speed | 520 cycles/min |
| Reel controls - Height control | Hydraulic |
| Reel controls - Speed control | Hydraulic |
| Reel controls - Operating speeds | 6-44 rpm |
| Dimensions - Overall width | 8.2 m 26.7 ft |
| Cutterbar - Cutterbar length | 7.6 m 25 ft |
| Dimensions - Gathering width | 7.65 m 25.1 ft |
| Cutterbar - Tilt adjustment | Located on feederhouse: 17 degree (angle) |
| Platform auger - Operating speed | Slow down: 135, 152 rpm Speed up: 170 rpm |
| Reel - Number for slats | Six |
| Key Specs - Tilt adjustment | Located on feederhouse: 17 degree (angle) |
| Key Specs - Cutterbar length | 7.6 m 25 ft |
| Dimensions - Cutting width | 7.6 m 25 ft |
| Hydraulics - Reel fore/aft stroke | 359 mm 14.1 in. |
| Key Specs - Speed control | Hydraulic |
| Platform - Type | Auger |
| Key Specs - Flex cutterbar float range | 152 mm 6 in. |
| Key Specs - Height control | Hydraulic |
| Dimensions - Approximate weight | 2,098 kg 4,625 lb |
| Hydraulics - Reel drive system pressure | 14,000 (+/- 1,000) kPa 2,000 (+/- 150) psi |
| Cutterbar - Type | Knife system with in-line gearbox: 102 mm 4 in. |
| Key Specs - Overall width | 8.2 m 26.7 ft |
| Reel - Diameter | 1.067 m 3.5 ft |
| Cutterbar - Flex cutterbar float range | 152 mm 6 in. |
| Platform auger - Diameter | 66 cm 26 in. |
Featured List
- Width: 25 ft.
Featured Content
The HydraFlex system hydraulically controls the float of the cutterbar by a simple turn of a knob in the cab. This provides exceptional cutterbar flexibility throughout the entire working pressure range. Higher ground speeds can be accomplished with HydraFlex, compared to the conventional float systems.
Feature benefit:
- Float arms, with hydraulic cylinders at every other channel, have replaced the mechanical linkage. These cylinders provide the cutterbar with the ability to float over uneven ground conditions with improved operator control.
- The platform HydraFlex system with an accumulator maintains a constant ground pressure over changing ground conditions. Manual mode is for locking out the cutterbar in the rigid mode.
Float arms
Hydraulic cylinders at every channel
Functionality
In automatic mode, the operator sets a desired cutterbar ground pressure, and the system will maintain this setting. If a different set point is desired, the operator adjusts the encoder on the armrest board, and an updated cutterbar float pressure reading will be shown on the cornerpost display. For increased ground following in uneven terrain, decrease cutterbar pressure to make the cutterbar heavy to the ground. If soil pushing occurs, increase the cutterbar pressure to make the cutterbar lighter to the ground.
The heavy-duty epicyclic knife drive gearbox provides an enhanced knife-drive system that increases drive capacity with less vibration and improved reliability.
Feature benefit:
- Provides high level of reliability and durability
- Minimizes vibration
- Fast, efficient cutting action for higher harvesting speeds
Epicyclic knife-drive gearbox
Functionality:
- 89-mm (3.5-in.) knife stroke adds a more efficient cutting action. The increased stroke improves the cutterbar’s ability to cut even in adverse conditions, such as large-stemmed crops or weeds, without plugging.
- Knife speed is 520 rpm.
- Reliability is improved with an in-line versus wobble-geometry knife head, which oscillates in a straight line and not through a radius like the previous knife drive.
- Knife head and gearbox attachment are improved. Two cap screws can be easily removed if any service to the knife is required.
Enhanced single-point latching system
John Deere’s single-point header latching system provides combine operators a fast and easy method for connecting all front-end equipment. One easy motion of the lever connects the electrical and hydraulic circuits along with header retaining pins.
Feature benefit:
- Reduces the time required to change over headers.
- No tools required to remove headers for transport or storage.
Functionality:
The enhanced single-point latching system, includes a valve assembly mounted to all platform and corn head back sheets. These assemblies include an orifice valve unique to the header type and a pressure override valve. Together, these valves ensure the performance and reliability of header hydraulic functions.
