Rubber element connecting drivelines help absorb the sudden stress of impact loads. Chain couplers are used to maintain the driveline alignment.
Slip-clutch driveline
A non-seize slip clutch used between the primary gearcase and power take-off (PTO) helps protect the driveline. Slip clutches feature a spring-compression adjustment used to ensure clutches are not seized.
Lift-type and semi-mount models feature an ASAE Category 4 driveline for added durability.
Equal-angle driveline
The pull-type model uses an equal-angle driveline for smoother, rattle-free turns.
A lightweight driveline with a lock-slide collar makes it fast and easy to attach.
The driveline provides long lubrication periods; a 50-hour cycle reduces maintenance time, making the cutting operation more efficient.
John Deere rotary cutters lead the way with innovative design, superior performance, and proven durability. Valuable features such as the Double-Decker™ design and Max Flow cutting chamber prevent water and debris from accumulating on the smooth, dome-shaped top deck while the flat bottom deck absorbs the punishment from rocks and stumps.
The top deck stays smooth - no dents, no dings, no holes. The internal supports sandwiched between the top and bottom decks are key to the smooth and structure-free Max Flow cutting chamber, while at the same time provide added strength and durability.
To help promote safe operation, John Deere rotary cutters are equipped with front and rear safety-chain shields. John Deere rotary cutters continue to advance in value with powerful gearboxes, blade holders, and compatibility with a wide range of tractors.
Here are situations when a rotary cutter provides value:
It is the most cost efficient way to cut roadsides, parks, cemeteries, airport fields, hydro, gas, and telephone easements, and all other types of open properties.
Cutting grass waterways encourages root development and helps prevent erosion.
Knocking down stalks such as cotton, corn, or milo speeds up decomposition. This is essential in no-till and minimum-till fields.
Clearing out brush.
Control undergrowth and grass in orchards, vineyards, and groves.
Decide what model to use based on:
The size of the area to mow versus the size of the machine – the bigger the area to mow, the bigger the mower needs to be in order to be efficient during mowing hours. Similarly, the limitation of a small area will guide operators to use a smaller mower.
The amount of time and frequency it will be used – for longer hours and more frequency, choose a heavier duty machine.
Tractor compatibility – if there is a tractor the operator will be using, look for the tractor compatibility sheet to identify appropriate options.
John Deere rotary cutters are available in two duty-level categories:
Mid-duty

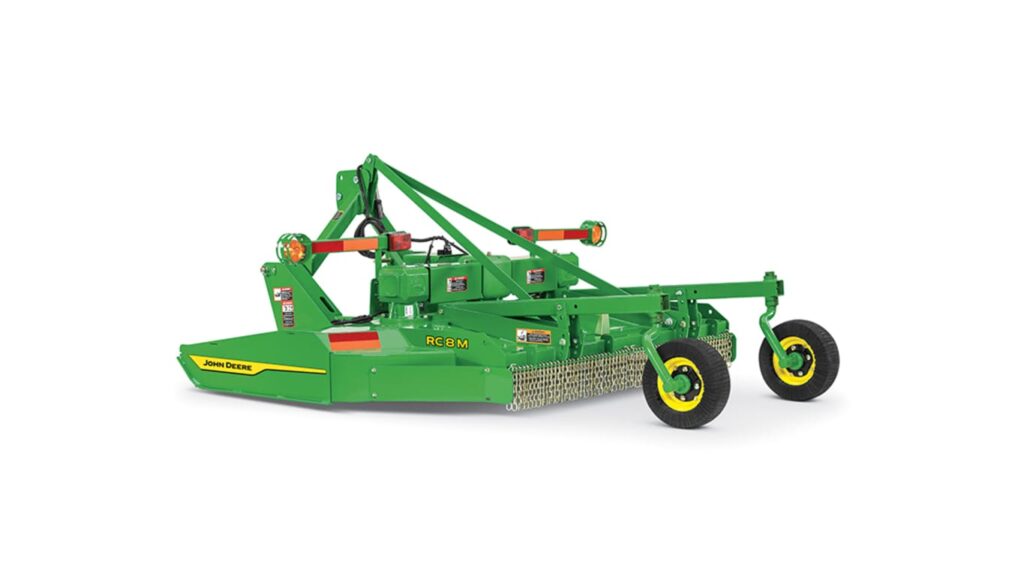

RC M models are available in 1.5-m (5-ft), 1.8-m (6-ft), 2.1-m (7-ft), 2.5-m (8-ft), and 3.2-m (10-ft).
This duty-level category cuts brush up to 50.8 mm (2 in.) in diameter.
Heavy-duty
RC R models are available in 3.2-m (10-ft) and 4.2-m (14-ft).
This duty-level category cuts brush up to 76.2 mm (3 in.) in diameter.
RC6R is available in 1.8-m (6-ft) and the RC7R is available in 2.1-m (7-ft) cut widths; they cut brush up to 101.6 mm (4 in.) in diameter.
NOTE: R Series are heavier built to cut at a 101.6 mm (4 in.) capacity level more frequently and for longer durations.
The Double-Decker design provides strength and superior cutting performance while reducing top deck rust. Two welded decks, each 3-mm (1/8-in.) thick, form the upper and lower surfaces of the rotary cutter frame.
Internal stiffeners are sandwiched between the two decks, providing superior strength and rigidity.
The top deck is domed. Water, grass, and crop debris tend to roll off the deck, reducing water buildup and deck rust. The domed shape and smooth profile of the top deck also make the deck easier to clean when trash does build up in adverse conditions.
Unobstructed horizontal bottom deck
The bottom deck is the main defense against rocks and field debris. Therefore, the top deck is continuously protected from impacts and tends to retain its smooth form.
Because the stiffeners are located between the two decks, the underside of the bottom deck is perfectly smooth; there are no structural frame members to interrupt airflow. This improves both cutting performance and distribution.
Standard material flow deflectors help channel the cut material, further improving material distribution.
Round-pan blade holders (stump jumpers) are provided as standard equipment on most John Deere rotary cutter models. Stump jumpers increase the drivetrain reliability by providing protection against impacts such as stumps, rocks, and other obstacles.
Blades
Overlap
72 mm 2.8 in.
Material flow system
Max flow
Type
Suction
Width
102 mm 4 in.
Blade tip speed
540 RPM 4,797 m/min 15,739 fpm 288 km/h 179 mph
Thickness
13 mm 0.5 in.
Holder
Type Round stump jumper
Capacity
Cutting width
2,450 mm 96 in.
Cutting chamber Depth
216 mm 8.5 in.
Cutting height
25 to 305 mm 1 to 12 in.
Cutting capacity
50 mm 2 in.
Dimensions
Overall width
2,580 mm 102 in.
Transport width
2,580 mm 102 in.
Deck shape
Domed
Approx. weight
759 kg 1,670 lb
Side skirt thickness
4.5 (7) mm 0.177 (7) in.
Deck thickness
Upper 3 (11) mm 0.125 (11) in. Lower 3 (11) mm 0.125 (11) in.
Overall length
2,810 mm 111 in.
Deck type
Double decker
Drivelines
Protection
Main Non-seize, slip-clutch driveline, pull-type has equal-angle Category 4 driveline Connecting Shock absorbing shafts
Size
Main ASAE Category 4
Gearcases
Number
3
HP rating
Transfer Continuous 89 kW 120 hp Peak 97 kW 130 hp Outer Continuous 56 kW 75 hp Peak 75 kW 100 hp
Hitch
Category
2, 3, 3N
Type
Pull-type, lift-type, semi-mount, semi-mount hydraulic offset (Pull-type has standard 10,000 lb; 4536 kg, safety tow chain)
Shielding
Rear
Chain
Front
Chain
Tractor compatibility
Tractor PTO HP range
Minimum PTO pull-type, semi-mount, semi-mount hydraulic offset 30 kW 40 hp Minium PTO lift-type 37 kW 50 hp
Tractor PTO
540 rpm
Wheels
Row width adjustment
Yes, pull-type only
Type
Puncture proof laminated (Pull-type has severe-duty Ag tire option)
