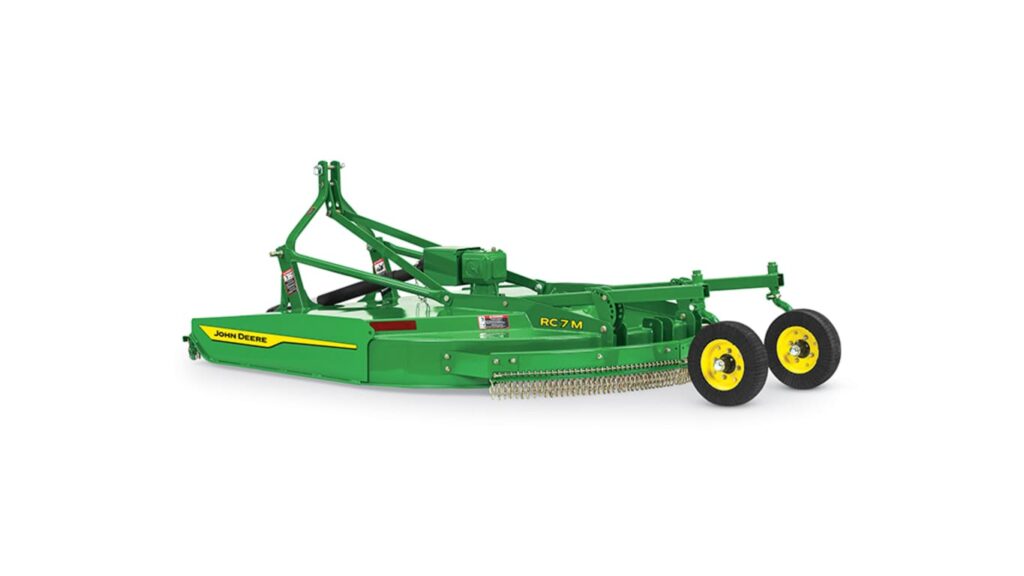

John Deere RC7M Rotary Cutter
Agriculture
- Standard stump jumper blade holder
- Smooth, easy-clean, dome-shaped top deck
- Front and rear safety chain shields are standard
- 5-year limited gearbox warranty
| Dimensions - Side skirt thickness | 6 (3) mm 0.25 (3) in. |
|---|---|
| Gearcases - HP rating | Center Continuous 56 kW 75 hp Peak 75 kW 100 hp |
| Shielding - Front | Chain |
| Blades - Holder | Type Round stump jumper |
| Capacity - Cutting height | 25 to 241 mm 1 to 9.5 in. |
| Drivelines - Size | Main ASAE Category 4 |
| Dimensions - Overall length | 3,210 mm 126 in. |
| Tractor compatibility - Tractor PTO HP range | Minimum 30 kW 40 hp |
| Capacity - Cutting chamber Depth | 216 mm 8.5 in. |
| Blades - Width | 102 mm 4 in. |
| Dimensions - Approx. weight | 605 kg 1,332 lb |
| Tractor compatibility - Tractor PTO | 540 rpm |
| Blades - Blade tip speed | 540 RPM 4,932 m/min 16,182 fpm 296 km/h 184 mph |
| Blades - Type | Suction |
| Dimensions - Transport width | 2,242 mm 88 in. |
| Blades - Thickness | 13 mm 0.5 in. |
| Drivelines - Protection | Main Slip-clutch driveline |
| Wheels - Type | Puncture proof laminated (optional dual tail wheels) |
| Hitch - Type | Lift-type |
| Capacity - Cutting capacity | 50 mm 2 in. |
| Hitch - Category | 2, 3N |
| Blades - Material flow system | Max flow |
| Capacity - Cutting width | 2,130 mm 84 in. |
| Dimensions - Deck thickness | Upper 3.5 (10) mm 0.138 (10) in. Lower 3.5 (10) mm 0.138 (10) in. |
| Dimensions - Overall width | 2,242 mm 88 in. |
| Dimensions - Deck type | Double decker |
| Shielding - Rear | Chain |
| Dimensions - Deck shape | Domed |
| Gearcases - Number | 1 |
Featured List
- PTO HP: 45 – 90 hp (33.6 – 67.1 kW)
- Hitch Category: Cat. 2 or 3N>
- Working Width: 84 in. (213.4 cm)
Featured Content
NOTE: Only for single spindle and multi-spindle.
John Deere rotary cutters lead the way with innovative design, superior performance, and proven durability. Valuable features such as the Double-Decker™ design and Max Flow cutting chamber prevent water and debris from accumulating on the smooth, dome-shaped top deck while the flat bottom deck absorbs the punishment from rocks and stumps.
The top deck stays smooth – no dents, no dings, no holes. The internal supports sandwiched between the top and bottom decks are key to the smooth and structure-free Max Flow cutting chamber, while at the same time provide added strength and durability.
To help promote safe operation, John Deere rotary cutters are equipped with front and rear safety-chain shields. John Deere rotary cutters continue to advance in value with powerful gearboxes, blade holders, and compatibility with a wide range of tractors.
Here are situations when a rotary cutter provides value:
-
Clipping pastures encourages grass growth, optimizing valuable pasture acreage.
-
Cutting grass and stalks helps control insects.
-
Routine cutting keeps weeds from reseeding.
-
It is the most cost efficient way to cut roadsides, parks, cemeteries, airport fields, hydro, gas, and telephone easements, and all other types of open properties.
-
Cutting grass waterways encourages root development and helps prevent erosion.
-
Knocking down stalks such as cotton, corn, or milo speeds up decomposition. This is essential in no-till and minimum-till fields.
-
Clearing out brush.
-
Control undergrowth and grass in orchards, vineyards, and groves.
Decide what model to use based on:
- The size of the area to mow versus the size of the machine – the bigger the area to mow, the bigger the mower needs to be in order to be efficient during mowing hours. Similarly, the limitation of a small area will guide operators to use a smaller mower.
- The amount of time and frequency it will be used – for longer hours and more frequency, choose a heavier duty machine.
- Tractor compatibility – if there is a tractor the operator will be using, look for the tractor compatibility sheet to identify appropriate options.
John Deere rotary cutters are available in two duty-level categories:
-
Mid-duty
-
RC M models are available in 1.5-m (5-ft), 1.8-m (6-ft), 2.1-m (7-ft), 2.5-m (8-ft), and 3.2-m (10-ft).
-
This duty-level category cuts brush up to 50.8 mm (2 in.) in diameter.
-
-
Heavy-duty
-
RC R models are available in 3.2-m (10-ft) and 4.2-m (14-ft).
- This duty-level category cuts brush up to 76.2 mm (3 in.) in diameter.
-
RC6R is available in 1.8-m (6-ft) and the RC7R is available in 2.1-m (7-ft) cut widths; they cut brush up to 101.6 mm (4 in.) in diameter.
-
NOTE: R Series are heavier built to cut at a 101.6 mm (4 in.) capacity level more frequently and for longer durations.
Five-year limited gearbox warranty provided on every John Deere rotary cutter
Five-year warranty on all flex-wing gearboxes
Five-year warranty on all rotary cutter gearboxes
John Deere is so confident in the reliability of the gearbox that rotary cutters come with a 5-year limited gearbox warranty.
There is also 1-year warranty on the complete machine, including drivelines, clutches, and many other components.
Suction blade (standard equipment)
Suction blades provide additional lift action for picking up downed material. The blades are 1.3 cm x 10.2 cm (0.5 in. x 4 in.) in size and heat-treated for long wear life.
The fast blade-tip speed ensures clean cutting and fine shredding of material.
- Up to 88.5 m/sec (17416 fpm)
Front safety chains (RC6M shown)
Rear safety chains (RC6M shown)
Front and rear chain shields are standard equipment:
- Offer protection for the operator yet allow uncut material to pass into the cutting chamber with minimal restriction
