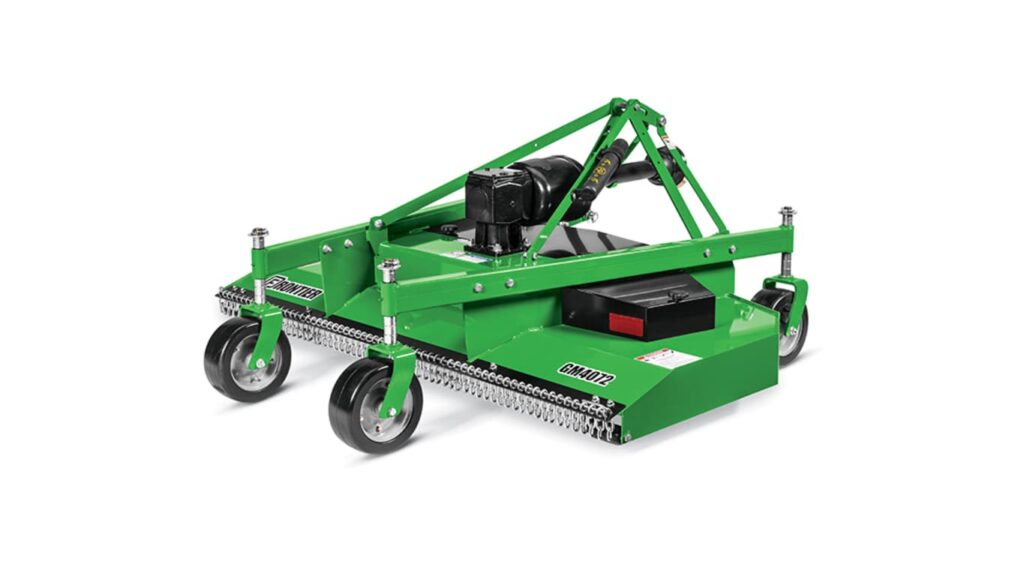

John Deere GM40 Series Grooming Mowers
Agriculture
Maintain a clean and level look with efficient Grooming Mowers. Designed to give a smooth cut on lawns, sporting fields, and golf courses.
- Caster wheels follow ground contours and prevent scalping
- Floating hitch for level cutting
- High blade-tip speed
- Rugged gearbox with cooling fins
- iMatch™ and
Quick Knect™ compatible from the factory
| Warranty - Gearbox | All GM40: 6 year |
|---|---|
| Key Specs - Cutting width | GM40: 152.4 cm 60 in. GM4060: 182.9 cm 72 in. GM4072: 213.3 cm 84 in. |
| Tractor requirements - PTO horsepower | GM40: 11.2-37.2 kW 15-50 hp GM4060: 14.9-37.2 kW 20-50 hp GM4072: 18.6-37.2 kW 25-50 hp |
| Weight - Operational | GM40: 280 kg 617 lb GM4060: 311 kg 686 lb GM4072: 358 kg 790 lb |
| Key Specs - Cutting height | GM40: 3.8-12.7 cm 1.5-5.0 in. |
| Belts - Quantity | All GM40: One |
| Gearbox - Recommended Maximum Tractor PTO power | GM40: 37.3 kW 50 hp |
| Dimensions - Overall machine width | GM40: 155.2 cm 61 in. GM4060: 185.7 cm 73 in. GM4072: 216 cm 85 in. |
| Caster wheels - Solid | Size All GM40: 10.1 x 25.4 cm 4.0 x 10.0 in. All GM40: Yes |
| Blade - Spindles | Quantity All GM40E: Three Composition GM40: Ductile iron GM4060: Ductile iron GM4072: Ductile iron Bearing All GM40: Triple ball bearings GM40: Three |
| Set-up time - Labor hours | All GM40E: 0.5 |
| Dimensions - Cutting height | GM40: 3.8-12.7 cm 1.5-5.0 in. |
| Key Specs - PTO rpm | GM40: 540 rpm |
| Caster wheels - Quantity | All GM40: Four |
| Warranty - Machine | All GM40E: 1 year |
| Key Specs - Overall machine width | GM40: 155.2 cm 61 in. GM4060: 185.7 cm 73 in. GM4072: 216 cm 85 in. |
| Warranty - Spindle | All GM40: 3 year |
| Blade - Tip speed, average fpm | GM40: 5,486.4 m/min 18,000 fpm GM4060: 5,486.4 m/min 18,100 fpm GM4072: 5,516 m/min |
| Belts - Type | GM40: B-section Aramid |
| Belts - Adjustment | All GM40: Spring-loaded w/ bearing pivot GM4060: Spring-loaded w/ bearing pivot GM4072: Spring-loaded w/ bearing pivot |
| Hitch - Category | All GM40: Category 1 and limited category 1 GM4060: Category 1 GM4072: Category 1 |
| Blade - Quantity | GM40: Three |
| Key Specs - Hitch - Category | GM40: Category 1 and limited category 1 GM4060: Category 1 GM4072: Category 1 |
| Dimensions - Cutting width | GM40: 152.4 cm 60 in. GM4060: 182.9 cm 72 in. GM4072: 213.3 cm 84 in. |
| Tractor requirements - PTO rpm | GM40: 540 rpm |
| Key Specs - PTO horsepower | GM40: 11.2-37.2 kW 15-50 hp GM4060: 14.9-37.2 kW 20-50 hp GM4072: 18.6-37.2 kW 25-50 hp |
| Weight - Shipping | GM40: 322 kg 710 lb GM4060: 353 kg 779 lb GM4072: 407 kg 898 lb |
| Deck - Discharge | All GM40E: Rear |
| Deck - Thickness | GM40: 7 gauge |
Featured List
- PTO HP: 15 – 40 hp (11.2 – 29.8 kW)
- Hitch: Cat. 1
- Working Width: 60 in. (152.4 cm)
Featured Content
Gearbox is rated for up to 50 PTO hp for longer life
The GM40 Series Grooming Mower rugged gearbox comes with a 6-year guarantee.
Ductile iron blade spindles with triple ball bearings
The spindles have a three-year warranty.
High speed blade to provide a quality cut
High blade tip speeds allow for better mowing quality at higher operating speeds and precise blade overlap work together to ensure performance and a quality cut.
Easy shield removal
The shield protecting the drive belt are easy to remove without the need of a tool. This provides easy access to the belt sheaves, belt, and spring-loaded idler.
Four caster wheels follow ground contours
By having four height adjustable caster wheels, the GM40 Series Grooming Mower follows ground contours and prevents scalping for even cut quality. Heavy tubular caster wheel arms are bolted to rail supports for long life.
Smooth, level finish
The floating top link on the GM40 Series keeps the deck tracking over ground contours for a level and smooth cut. For increased cut quality, connect your tractor’s 3-point hitch to the mower without an iMatch™ hitch system, taking advantage of the side-to-side floating clevis brackets.
Three blades per deck
To meet specific mowing needs, choose from two blade types:
- Low lift
- High lift (standard)
Deck design increases overall productivity
The deep deck design allows greater cutting volume and a cleaner cut. Offset gauge wheels reduce grass tracks.
An anti-scalping front roller kit can be ordered as attachment for field conversion for GM40 Series Grooming Mowers. The roller is attached to the front of the cutting deck to help reduce scalping in uneven terrain.
Each kit contains one roller.
The GM40 series grooming mower offer a deep high-grade steel deck, premium caster wheels, and heavy-duty construction for a longer durability. The floating lower hitch, high-lift blades, and parallel side frames create an extremely even cut and an even distribution of cut material, when mowing at higher speeds. For ease of attachment, it´s iMatch™ quick-hitch ready from the factory, without additional hardware.
Combine with a 6-year gearbox warranty and a 3-year spindle warranty, operator will have a rugged, high performing, and easy to use grooming mowers.
Prevents debris from flying out from under deck
A rear chain shield kit is available as an attachment for field conversion. It assists in preventing debris from flying out from underneath the deck of the rear-discharge grooming mowers.
