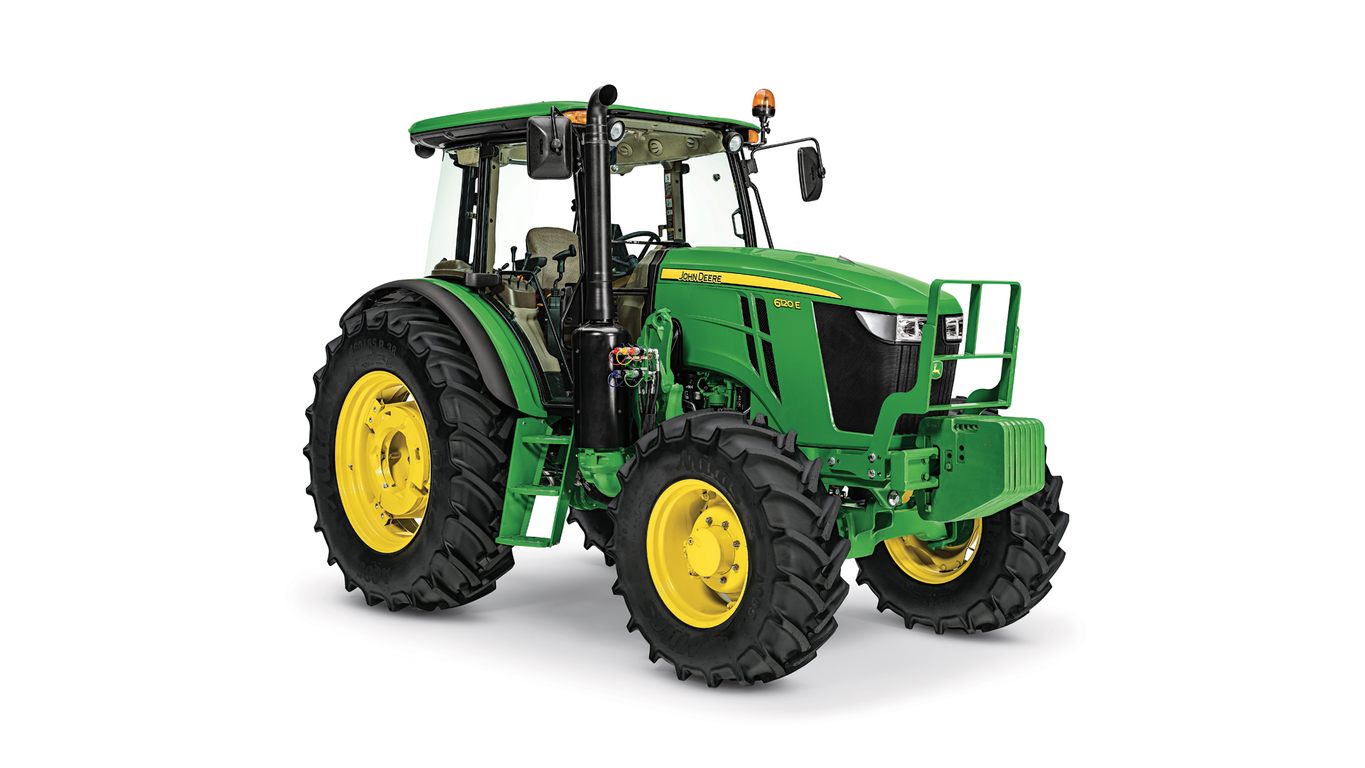

6120E Utility Tractor
- John Deere
- 6 Family Utility Tractors 6E Series Utility Tractors
Find a location to get your local store information and inventory.
Find Location
Key Features & Specs
- FT4 John Deere PowerTech™ engine
- 12/12 or 24/12 hi-lo PowrReverser™ transmission
- Cab, open station, 2WD or MFWD
- 15 degrees of seat swivel with optional air-ride seat
- Engine HP 120 (88)
- PTO HP 102 (76)
- Rated Flow 20 US gpm/75.7 lpm
- Cab or Open Station Both
- 2WD or 4WD Both
- 3 Point Hitch Category 2

- + Expand All
- - Close All
-
Loader-ready packages
Overview:
To further the versatility and efficiency of the 6E Tractors and their hydraulic capabilities, the 6Es can be ordered loader ready. Being able to add a loader to a 6E Tractor makes it an even more capable solution to the various tasks a utility tractor is challenged with.
Mechanical joystick with dual-function mid-mount valve
Joystick installed in cab tractor
Overview:
For the operator wanting to install a loader on a tractor, two-function and three-function hydraulic mid-mount valves with mechanical joystick are available.
Benefits:The operator will be able to operate the loader using a joystick, increasing productivity and maneuverability
Available for both cab and OOS configurations on all 6Es
Quick installation of a loader once the tractor is received
Improved resale value
NOTE: To field install the single-function lever controls (both two and three function) please refer to the Loader Sales Manual and Price Pages.
Details:
Code Description Availability 8910 Loader-ready package, two function mid-mount valve with mechanical joystick
Includes: two-function mechanical joystick, four hydraulic hoses from mid-mount tractor valve to loader mounting frame, individual quick couplers, H-Series Loader mounting frames and hood guard.
NOTE: Loader component of quick couplers are ordered with loader.All 6E Series Tractors 8911 Loader-ready package, three function mid-mount valve with mechanical joystick
Includes: three-function mechanical joystick, six hydraulic hoses from mid-mount tractor valve to loader mounting frame, individual quick couplers, H-series loader mounting frames and hood guard.
NOTE: Loader component of quick couplers are ordered with loader.All 6E Series Tractors -
Tire combinations; two-wheel-drive (2WD), mechanical front-wheel drive (MFWD) and rear axle – radial tires
Overview
Front and rear radial tire offerings are available on all models, except for the front tires on the open-operator station (OOS) configurations.
6E with radial tire offering
Benefits:
- Better ride quality
- Better wear characteristics
- Less compaction
- More efficient converting more power to the ground
Tire combinations by model
Codes 6105E 6120E 6135E Two-wheel drive (2WD) front 6151 10.00-16 in. 8PR F2 bias In base In base N/A 2WD rear 5234 460/85R38 in. 8PR R1W radial In base In base N/A 5212 460/85R34 in. 8PR R1W radial Optional Optional N/A 5221 420/85/R38 in. 8PR R1W radial Optional Optional N/A Mechanical front-wheel drive (MFWD) front 6220 380/85R24 in. 8PR R1W radial In base In base In base 6210 340/85R24 in. 8PR R1W radial Optional Optional Optional MFWD rear 5234 460/85R38 in. 8PR R1W radial In base In base In base 5212 460/85R34 in. 8PR R1W radial Optional Optional Optional 5221 420/85/R38 in. 8PR R1W radial Optional Optional Optional -
12 forward/12 reverse (12F/12R) and 24F/12R, PowrReverser™ transmission
Overview:
The 6E Series PowrReverser transmissions deliver unmatched performance. This transmission is ideal for working in tight areas where forward to reverse shifting is a primary occurrence such as in barns, feedlots and loader applications.
Customers who are operating power take-off (PTO) implements like a rotary cutter or baler will appreciate the additional working speeds with the 24F/12R speeds PowrReverser transmission. High and low buttons are used to make fine adjustments in speed without the need to use the clutch delivering improved productivity.
The PowrReverser transmission is base equipment providing 12F/12R speeds. Six well-spaced ground speeds place the operator in the important haying or rotary cutter range of 8 km/h to 20.9 km/h (5 mph to 13 mph). With this transmission, the operator can reach a top speed of 31.5 km/h (19.6 mph). The optional PowrReverser transmission 24F/12R will deliver 11 well-spaced ground speeds to match the correct speed for a haying or rotary cutter application with a top speed of 40 km/h (25 mph).
A dash-mounted PowrReverser modulation kit (LVB25727) is available to set the aggressiveness of the forward and reverse shuttle modulation that best fits the application or the operator's comfort level.Operator controls
24F/12R high/low buttons
24F/12R high/low buttons
Gear and range levers in cab
Gear lever in open operator station (OOS)
Range lever in OOS
Two levers, one for speed and one for range, with the addition of an electrohydraulic left-hand reverser, provide operators optimum control and maneuverability.
- Range lever (right-hand side [cab], left-hand side [OOS]) selects four ranges (A, B, C, D).
- Gear selection (right-hand side) selects speeds (1, 2, or 3) in the forward or reverse direction.
- Electrohydraulic left-hand reverser allows for quick and convenient shuttle shifting between forward and reverse at any speed.
- High and low buttons are located on the gear shifter for the 24F/12R PowrReverser transmission.
Benefits:
Forward and reverse speeds
All speed gears (1, 2, 3) are fully synchronized for shifting-on-the-go capabilities, putting less wear on the operator and saving time in the field. In the 12F/12R PowrReverser transmission, gears are synchronized for low shifting effort while the operator is doing field or loader work and during transport.
The high and low speeds on the 24F/12R PowrReverser transmission can be shifted without clutching while the tractor is under load. This makes for quick speed changes when operating a rotary cutter or baler.
To further enhance awareness of reverse tractor motion, a backup alarm can be field-installed (BSJ10026).
The ranges (A, B) are not synchronized. This means the tractor must be stopped for the operator to select the range. However, with operator input, the speeds have been well spaced out to minimize the need to change ranges within applications. The ranges (B to C, C to D, and D to C) are synchronized. That allows the operator to shift ranges on the go in transport and high speed applications like operating a mower-conditioner.Wet clutch
John Deere has led the industry in the innovation of wet clutches. In this wet-clutch design, five 17-cm (6.7-in.) diameter clutch disks provide optimum clutch modulation for smooth operation; the disks are oil-cooled for a lifetime of service.
The biggest advantage of a wet clutch is its ease of use as the required force to depress the pedal is minimal. Also, with a wet clutch, the need for frequent adjustment and clutch mechanism changeover is eliminated.
Details:
Ground speed chart 12F/12R and 24F/12RCode Description Information 6105E 6120E 6135E 1382 12F/12R PowrReverser wet-clutch transmission, two-wheel drive (2WD) front axle
In base price for 2WD configurations X X 1383 12F/12R PowrReverser wet-clutch transmission, mechanical front-wheel drive (MFWD) axle In base price X X X 1386 24F/12R PowrReverser wet-clutch transmission, MFWD axle Option X X X -
Engine, 4.5L PowerTech™ power and specifications
Tractor models and horsepower
PowerTech engine
Overview:
All John Deere 6E Series Tractors feature the reliable and proven 4.5L (275-cu in.) engines. These engines deliver constant power over a wide range of rpm with a power bulge above rated power and excellent torque characteristics.
The 6E Series, while being value-featured and competitively priced, are built with John Deere's long-standing reputation for reliability, durability, and maintainability.Model and horsepower outputs
Model Displacement,
liters (cu in.)Rated power take-off (PTO) hp
2100 rpmRated engine hp
97/68/EC standard6105E 4.5 (276) 89 105 6120E 4.5 (276) 102 120 6135E 4.5 (276) 115 135 Rated engine horsepower ratings are included for reference to competitor's gross or engine-only power ratings. There are several ratings systems used by other manufacturers. John Deere uses the horsepower-rating standard 97/68/EC, which is widely used in Europe for various regulations.
How is engine-only rated and maximum power determined?
John Deere engineering uses a precise procedure to measure engine-only power levels. The 97/68/EC standard is required in the European Union (EU) as an emission test, so there is some relation to the power a tractor has as a whole functioning unit; however, the procedure requires only that a production engine and radiator are used on a dynamometer test. Use the 97/68/EC horsepower ratings in the above chart to compare to competitor claims of engine-only power.
Benefits:
PTO power and power bulge
The John Deere exclusive single-injector control, electronic fuel injection system, and other key engine parts, work together to sense engine load and instantly respond as needed to pull through tough spots. This reduces engine rpm fluctuation resulting in the reduced need to downshift the transmission. Fewer shifts result in fewer ground variations, providing more overall tractor productivity.
To match the engine power characteristics and improve economy of operation, the rated engine speed is 2200 rpm.Feature and benefit overview
High-pressure common rail fuel system
- Higher injection pressures, up to 27,500 psi, precise variable injection pressure, variable timing control, multiple injections
Four-valve cylinder head
- Cross-flow head design that provides excellent breathing from a lower-cost four-valve cylinder head
Turbocharged
- In turbocharged engines, the air is pre-compressed. Due to the higher pressure, more air is supplied into the combustion chamber allowing a corresponding increase in fuel injection which results in greater engine output.
Turbochargers
- Precisely matched to the power level and application, the 6Es are equipped with a wastegate (to divert exhaust gases) turbo.
Air-to-air intercooling
- Most efficient method of cooling intake air to help reduce engine emissions while maintaining low speed torque, transient response time and peak torque. Enables the engine to meet emission requirements with better fuel economy and the lowest installed costs.
Compact size
- 4.5 L (276 cu in.) 4-cylinder.
Engine performance
- Power bulge feature
- Increased low-speed torque
- Multiple rated speeds to further reduce noise and improve fuel economy
- Higher peak torque ratings
- Faster torque rise
John Deere electronic engine controls
Monitors critical engine functions providing warning and/or shutdown to prevent costly engine repairs; eliminates need for add-on governing components; all lowering total installed costs.
Snapshot diagnostic data that can be retrieved using commonly available diagnostic service tools
New common wiring interface connector for vehicles or available OEM instrumentation packages; new solid conduit and T-connectors to reduce wiring stress, greater durability and improved appearance
Factory-installed engine-mounted ECU, wiring harness and associated components; industry standard SAE J1939 interface which communicates with other vehicle systems, eliminating redundant sensors and reducing vehicle total installed cost.
Additional features
- Self-adjusting poly-v-fan drive
- Forged-steel connecting rods
- Replaceable wet-type cylinder liners
- 500-hour oil change
Details:
Engine performanceModel 6105E 6120E 6135E EPA tier level FT4 FT4 FT4 Engine model 4045H 4045H 4045H 97/68/EC at rated speed kW (hp) 77 (105) 88 (120) 99 (135) Rated engine speed (rpm) 2200 2200 2200 PTO operating speed (rpm) 2100 2100 2100 Maximum torque engine speed (rpm) 1600 1600 1600 Fast idle speed (rpm) 2275+10 2275+10 2275+10 Low idle speed (rpm) 900+10 900+10 900+10 Torque curves
6135E torque curves graph
6120E torque curves graph
6105E torque curves graph
Service intervals
John Deere engines are designed and manufactured to deliver excellent reliability. The recommended service intervals of the engine should be coordinated with the tractor service intervals.
Engine break-in service 500 hours maximum with factory ship away oil and filter change Engine oil & filter change 250 hours – oil and filter change
500 hours with John Deere Plus-50™ II and John Deere oil filterEngine oil filter change With oil change Engine fuel filter change As required, 500 hours, or yearly Drain water separator Check and drain daily or every 10 hours Engine coolant change 5 years or 5000 hours with John Deere COOL-GARD™ II and annual coolant tests
Engine coolant conditioner As required every 500 hours Diesel particulate filter (DPF) cleaning interval As required DPF and diesel oxidation catalyst (DOC) replacement As required Open crankcase ventilation (OCV)
Filter service1500 hours Diesel exhaust fluid (DEF) filter replacement Every 3 years or 4500 hours Engine specifications
Model 6105E 6120E 6135E Engine PowerTech PWL PowerTech PWL PowerTech PWS Engine model 4045H 4045H 4045H Size 4.5 L (276 cu in.)
4.5 L (276 cu in.) 4.5 L (276 cu in.) No. cylinders 4 4 4 Valves per cylinder 4 4 4 Aspiration Turbo and aftercooled Turbo and aftercooled Turbo and aftercooled Engine management Electronic Electronic Electronic Fuel delivery High-pressure common rail (HPCR) HPCR HPCR Rated engine speed, rpm 2200 2200 2200 PTO operating speed, rpm 2100 2100 2100 Maximum torque operating speed, rpm 1600 1600 1600 Fast idle speed, rpm 2275 2275 2275 Low idle speed, rpm 900 900 900 Rated PTO power 89 PTO horsepower
(66 kW) at 2100 rpm102 PTO horsepower
(76 kW) at 2100 rpm115 PTO horsepower
(86 kW) at 2100 rpmRated engine power 105 hp at 2200 rpm [97/68/EC] 120 hp at 2200 rpm [97/68/EC] 135 hp at 2200 rpm [97/68/EC] Power bulge 3% at 2000 rpm 3% at 2000 rpm 3% at 2000 rpm Peak torque 318 lb-ft (432 N.m.) at 1600 rpm 364 lb-ft (494 N.m.) at 1600 rpm 397 lb-ft (539 N.m.) at 1600 rpm Torque rise 29% at 2200 29% at 2200 25% at 2200 Compression 16.8:1 16.8:1 16.8:1 Bore x stroke 4.7 x 5.0 in. 4.7 x 5.0 in. 4.7 x 5.0 in. -
ISOBUS and tractor-baler automation offer new baling experience
Tractor-Baler Automation simplifies baling experience
A single manual action; system manages the rest
TBA awards
The optional Tractor-Baler Automation (TBA) makes baling easy. This exclusive system manages most of the baling process and gives the customer the following advantages:
- High baling comfort a single action to bale instead of four.
- Error proof baling - even after 10 working hours, the system does not forget any action; a true advantage for an inexperienced driver.
- Constant bale quality - same diameter bale after bale
- Constant productivity - no reduced efficiency due to operators fatigue.
When used with a John Deere ISOBUS tractor, electric selective control valve (E-SCV), and (IVT™) transmission, the system will be able to:
- Stop the tractor when bale size is reached
- Wrap the bale
- Open the gate
- Close the gate when bale is unloaded
The only action remaining is to forward reverser and manage the steering.
If the John Deere tractor is not equipped with IVT but has E-SCV and ISOBUS, opening and closing can be automated.
A single touch on SCV, brakes, or reverser will disengage the automation. In the same way, automated open/close can be momentarily stopped when unloading in hilly conditions.
Tractor-Implement Automation is an exclusive green on green advantage. This advanced technology option has won awards at SIMA and Agritechnica farm equipment show in Europe, a true cost/value guarantee.
NOTE: to run through fully automated mode, a John Deere Isobus tractor with E-SCV and IVT is required. A baler activation key and a tractor activation key (different) have to be ordered.ISOBUS certified balers
Plug in and bale with ISOBUS
ISOBUS certified = compatibility guarantee
The 990 and 960 Balers offer ISOBUS compatibility as base equipment. This standardized communication not only allows the use of John Deere Greenstar2 1800, 2600, or 2630 Displays, but also the use of other ISOBUS conform competitive monitors.
Adapter harnesses for non-ISOBUS tractors are available.User friendly interface
Main page with simple and clear pictograms
Bale or soft core density adjustments
The Baler interface displays information that is needed. The 900 Series monitors provide all required information:
- Bale shape and diameter
- Drop floor and knives position
- Variable core activation
- Tying process status
- Gate position
- Maintenance status
Adjustments can also be managed from the operators station:
- Bale size and density
- Variable core diameter and density
- Net and twine tying parameters
- Knife selection
- Automated lubrication
- Tractor-Baler Automation status
- Bale counter resets
Greenstar™2 1800 has the ideal display for baling application
Greenstar2 1800 Display ordered with the baler
The 900 Series Balers can be teamed with all ISOBUS certified displays. The Greenstar2 1800 monitor can be ordered with the baler to match traditional baling requirements. When not baling this display can be used for other functions such as guidance and spraying applications when connected to an appropriate receiver and implement.
All ISOBUS display will fit the 900 Series
GreenStar3 2630 fits the most demanding user needs
The 960 and 990 Balers can be ordered without a monitor for customers who already have an ISOBUS display, or for those who search more advanced application (field management). Displays other than John Deere Greenstar2 1800 can be purchased through Ag Management Solutions (AMS) pages.
Capacities
Transmission-hydraulic system | 58 L 15.3 U.S. gal. |
Crankcase oil volume | 15 L 4 U.S. gal. |
Cooling system | Open station: 18.6 L 4.7 U.S. gal. Cab: 19.1 L 5 U.S. gal. |
Fuel tank | 168 L 44.4 U.S. gal. |
Dimensions
Approximate shipping wheight, Open;Cab | 2WD Open: 4064 kg 8960 lb MFWD: Open: 4268 kg 9410 lb Cab: 4645 kg 10,240 lb |
Wheelbase | 2WD: 2456 mm 96.7 in. MFWD: 2450 mm 96.5 in. |
Drawbar
Drawbar category | Standard: Category 2 Optional: Category 2 heavy duty |
Maximum vertical load | Standard: Category 2 1000-1250 kg 2205-2756 lb Optional: Category 2 heavy-duty: 1200-1900 kg 2645-4189 lb Maximum vertical load dependent on drawbar position |
Electrical system
Battery options | 12 V |
Total cold cranking amps | 925 CCA |
Alternator size | 90 amp |
Engine performance
Engine peak torque | At 1,600 rpm: 494 Nm 364 lb-ft |
Rated PTO power (hp SAE) | 76 kW 102 PTO hp |
PTO torque rise | 30 percent |
Rated power | 97/68EC: 88 kW 120 engine hp |
Engine specifications
After treatment type | DOC/DPF/SCR |
Displacement | 4.5 L 275 cu in. |
Engine type | Diesel, in-line, 4-cylinder, wet-sleeve cylinder liners with 4 valves-in-head |
Description | John Deere PowerTech™ PWL (B20 Diesel Compatible) |
Emission level | Final Tier 4 |
Rated speed | 2200 rpm |
Engine family | HJDXL04.5315 |
Aspiration | Turbocharge, wastegate turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation |
Front axle
Type | Standard: MFWD Optional: 2WD |
Front axle differential lock | 2WD: None MFWD: limited slip |
Hydraulic system
Pump rated output | 36.5 cc pump: 75.7 L/min 20 gpm |
Number of rear selective control valves (SCVs) | Standard: ISO Couplers: 2 Optional: ISO Couplers 3 |
Type | Open-center Gear Driven |
Available flow at a single rear SCV | 75.7 L/min 20 gpm |
SCV control | Mechanical |
Key Specs
Transmission type | Standard: John Deere 12F/12R PowrReverser™ Transmission: 30 km/h 19 mph Optional: John Deere 24F/12R PowrReverser Transmission: 40 km/h 25 mph |
Hydraulic system type | Open-center Gear Driven |
Engine description | John Deere PowerTech™ PWL (B20 Diesel Compatible) |
Rear hitch category (SAE designation) | Standard: Category 2: 2500 kg (5500 lb) standard lift at 610 mm behind hitchpoint Optional: Category 2: 3318 kg (7300) heavy duty lift at 610 mm behind hitchpoint |
Rated PTO power (hp SAE) | 76 kW 102 PTO hp |
Engine displacement | 4.5 L 275 cu in. |
Hydraulic pump rated output | 36.5 cc pump: 75.7 L/min 20 gpm |
Rated engine power | 97/68EC: 88 kW 120 engine hp |
Miscellaneous
Country of manufacture | Mexico |
Operator station
Instructional seat | Optional |
Seat | Standard: Mechanical suspension cloth seat Optional: Air suspension |
Display | LCD instrument cluster |
Rear axle
Type | Flange |
Final drive type | Inboard planetary |
Rear differential lock | Full-locking mechanical |
Rear hitch
Hitch category (SAE designation) | Standard: Category 2: 2500 kg (5500 lb) standard lift at 610 mm behind hitchpoint Optional: Category 2: 3318 kg (7300) heavy duty lift at 610 mm behind hitchpoint |
Maximum lift capacity behind lift points | Standard: Category 2 with heavy duty lift: 3318 kg 7300 lb |
Sensing type | Optional |
Rear power take-off (PTO)
Engine rpm (at rated PTO speeds) | 2085 engine rpm at 540 rpm PTO 2067 engine rpm at 1000 rpm PTO |
Type | Independent 35 mm (1.375 in.) 540 rpm/1000 rpm reversible shaft |
Serviceability
Interval for hydraulic/transmission oil change | 1,000 hours |
Interval for engine coolant change | 5,000 hours |
Interval for engine oil change | 500 hours |
Standard Tires
Wheel tread range | 2WD: 1533-2043 mm 60.4-80.4 in. MFWD: 1516-2016 mm 59.7-79.4 in. |
Steering
Type | Standard: Hydrostatic power |
Transmission
Type | Standard: John Deere 12F/12R PowrReverser™ Transmission: 30 km/h 19 mph Optional: John Deere 24F/12R PowrReverser Transmission: 40 km/h 25 mph |
Weight
Maximum ballast level | 6464 kg 14,250 lb |
Additional information
Date collected | 9-Feb-17 |
