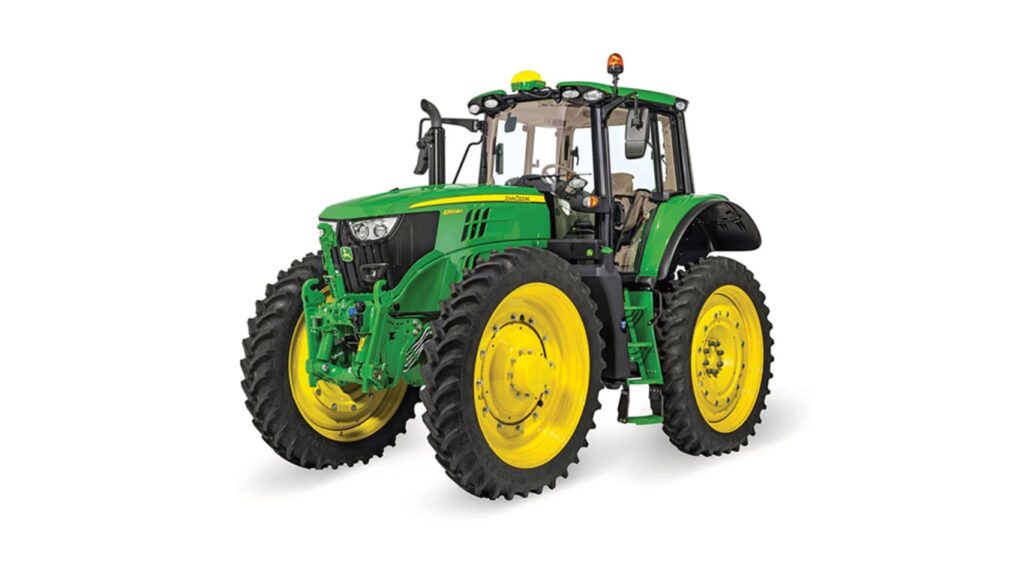

John Deere 6155MH
  • + Expand All
  • - Close All
  • The right transmission to fit your application
    Overview

    Find the right balance between control and efficiency with the 6155MH transmission offerings. Producers have the flexibility to select from five transmission offerings to satisfy their requirements.

    Benefit
    • Delivers the right transmission for the producer’s applications
    • Provides slow speeds with creeper transmission
    Additional details
    • PowrQuad™ PLUS transmissions feature a partial PowerShift™ technology. In addition, the PowrQuad PLUS has a declutch function to shift ranges without using the foot clutch pedal. By pressing the declutch button on the transmission shifting lever, it is possible to change the ranges up or down. For specialty uses like vegetables, orchards, and other operations requiring extremely slow speeds, a creeper transmission is available with the PowrQuad PLUS transmission. The 6155MH offers PowrQuad PLUS transmissions in a standard and creeper configuration featuring 16F/16R 30K.
    • The AutoQuad™ PLUS transmission features all the benefits of a PowrQuad PLUS, with the ability to automatically shift four power shift gears depending on engine rotations per minute (rpm) and load. For specialty uses like vegetables, orchards, and other operations that need extremely slow speeds, creeper speeds are available with the AutoQuad PLUS transmission with a minimum ground speed of 0.27 km/h (0.17 mph). The 6155MH offers AutoQuad PLUS transmissions in a standard and creeper configuration featuring 20F/20R 30K.
    • The CommandQuad™ PLUS maintains the impressive reliability of an AutoQuad transmission while enhancing operator convenience and productivity through increased automatic shifting capabilities. The transmission is equipped with 20F/20R speeds, a left-hand reverser, and four PowerShift gears in five fully synchronized ranges (six-range transmission for the less powerful models). The selected powershift is displayed on the digital display (1 to 4). It features an AutoClutch and two operating modes – AUTO mode and manual mode:
      • Manual mode: the operator can shift through speeds and ranges without clutching by moving the control lever forward, toward the + indicator, or backward, toward the - indicator.
      • AUTO mode: the tractor shifts automatically at present shift point depending on engine load
  • Higher ground clearance with the rear drop axle on the 6155MH Tractor
    Overview

    Exclusive to the 6155MH Tractor, the optional rear drop axle provides additional crop clearance under the axle as well as additional drawbar clearance compared to a standard base axle with high clearance tires.

    Rear drop axle
    Rear drop axle
    Benefit
    • Provides additional crop clearance to minimize damage to crops
    Additional details
    • The 6155MH delivers 680 mm (27-in.)* of drawbar ground clearance, allowing operators to safely pass over bedded and high value crops.
    • The drop axle features a flanged-type axle and can accommodate tread settings from 1524 to 2235 mm (60 to 88 in.).
    • Producers can select from two tire offerings to meet the needs of their operation. The offerings include 18.4R38-in. 141A8 R2 rear and 320/90R46-in. 148A8 R2 radial front wheels and tires or 320/90R50-in. 147A8 R1W rear and 320/90R50-in. 147A8 R1W radial front wheels and tires.



    Loaders are not compatible with this configuration.



    *NOTE: Measured with 320/90R50 tires.

  • Focus more on the job and less on steering with AutoTrac™ guidance on the cornerpost display
    AutoTrac on cornerpost display
    AutoTrac on cornerpost display

    If you are looking for a low-cost integrated guidance system, 6M Tractors come equipped with AutoTrac guidance using the digital cornerpost display. For this straight track only feature, you no longer need an additional display or activation. To utilize AutoTrac on the cornerpost display, simply order your 6M Tractor as AutoTrac Ready (code 1758) and install a StarFire™ 6000 Receiver (code 1881). While AutoTrac makes straight passes, you can focus more on job quality and leave the field less fatigued after a long day of mowing, spraying, or other field work.



    Benefits of AutoTrac on the cornerpost display include:

    • Easy to access, setup, and initiate
    • Eliminate implement overlap and optimize machine efficiency
    • Reduce operator fatigue
    • Less cost than adding an additional display and activation



    If you need more capabilities, like different track types or documentation, John Deere also offers a 4240 and 4640 Universal Display. These displays enable AutoTrac guidance that provides enhanced usability, increased performance, and greater operator choice. Additional benefits include:

    • On-screen mapping
    • Documentation
    • Section Control
    John Deere 4240 Universal Display
    John Deere 4240 Universal Display
  • Easy implement control using rear-mounted selective control valves (SCVs)
    Optional electrical control valves (E-SCVs)
    Optional electrical control valves (E-SCVs)

    All 6M models come with the option to upgrade from mechanical to electronically controlled SCVs. To control a rear implement, up to four electrical SCVs or three electrical SCVs plus power beyond can be ordered. Each SCV features four positions – neutral, raise, lower, and float. The electrical SCVs are fully adjustable with the digital cornerpost display. Additionally, you can choose what SCVs are right for your operation with the following combinations of SCVs:

    With Compact CommandARM console:

    • Up to four electrical SCVs possible or three plus power beyond
    • Loader packages with electrical joystick available
    • Mechanical SCVs are not available

    With right-hand console:

    • Up to three mechanical SCVs possible plus power beyond
    • Up to four electrical SCVs possible or three plus power beyond
    • Combination of two electrical and one or two mechanical SCVs available
    • Loader packages with maximum of three mechanical SCVs available
    • Loader packages with electrical joystick available
  • Increase visibility and productivity with light packages
    6155M with Premium light-emitting diode (LED) light package
    6155M with Premium light-emitting diode (LED) light package

    Lights on the 6M Series Tractors have been positioned and designed to provide maximum visibility to the front, sides, and rear to increase productivity in any operating conditions. The updated cab lighting pattern provides 330 degrees of coverage while the hood lighting provides the remaining 30 degrees. You have two options to upgrade lighting with the Economy and Premium light packages available:

    • Economy light package
      • Two additional work lights in the front, side, and rear
    • Premium light package
      • Two additional work lights in the front, side, and rear
      • All lights are LED lights



    Both packages require the 14-V/150-amp alternator (code 8741) and 12-V/174-amp-hr battery (code 8747).

  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions
    Connected Support technology
    Connected Support technology

    When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

    John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

    With your permission, John Deere Connected Support:

    • Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
    • Saves time by remotely viewing in-cab displays, reducing trips to the machine
    • Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
    • Connects experts with the information needed to respond to downtime faster and prevent it altogether

    With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.

  • Stay connected to all machines from anywhere with JDLink™ system
    John Deere 6120M with StarFire™ 6000 Receiver and tablet with JDLink
    John Deere 6120M with StarFire™ 6000 Receiver and tablet with JDLink

    Operators looking to remotely access critical machine data and manage their fleet in one place can with JDLink. JDLink is the telematics system from John Deere that connects all machines in the field with office and mobile devices. The technology is based on a Modular Telematics Gateway (MTG) controller that collects and transmits data via a cellular network using selective data points in near-real time. With JDLink, operators can:

    • Remotely view information from a computer, phone, or tablet
    • Access machine data like engine hours and fuel level
    • Track machine location and history
    • Set up and manage geofence and curfews
    • Manage maintenance plans and alerts
    John Deere 6155M and 835 Mower Conditioner with StarFire 6000 Receiver and JDLink
    John Deere 6155M and 835 Mower Conditioner with StarFire 6000 Receiver and JDLink
  • Ride in comfort with reimagined cab and premium options
    6120M standard cab with Compact CommandARM™ console
    6120M standard cab with Compact CommandARM™ console

    There’s no denying you spend plenty of time in the cab. Make it quality time with the redesigned 6M Tractor cab. Guided by best-practice ergonomic principles and four different cab packages to customize the way you work, you’ll enjoy a more productive, comfortable, and efficient experience. All 6M Tractors will come standard with a digital cornerpost display, eliminating the previous instrument cluster behind the steering wheel. This easy-to-read digital display gives you access to all critical machine data and settings in one place. Additionally, premium options have been made available to let you customize your 6M to fit any operation including:

    • Mechanical or electrical reconfigurable joystick with PowrReverser™ functionality
      • Quickly and easily change directions with the push of a button while doing loader work
    • Compact CommandARM™ console
      • Swivel in your seat and have all the controls at your fingertips
    • Triple-Link Suspension (TLSTM)
      • Increase both transport and field productivity with superior stability, ride, and comfort with a suspended front axle
    • Mechanical cab suspension
    • Panoramic roof
