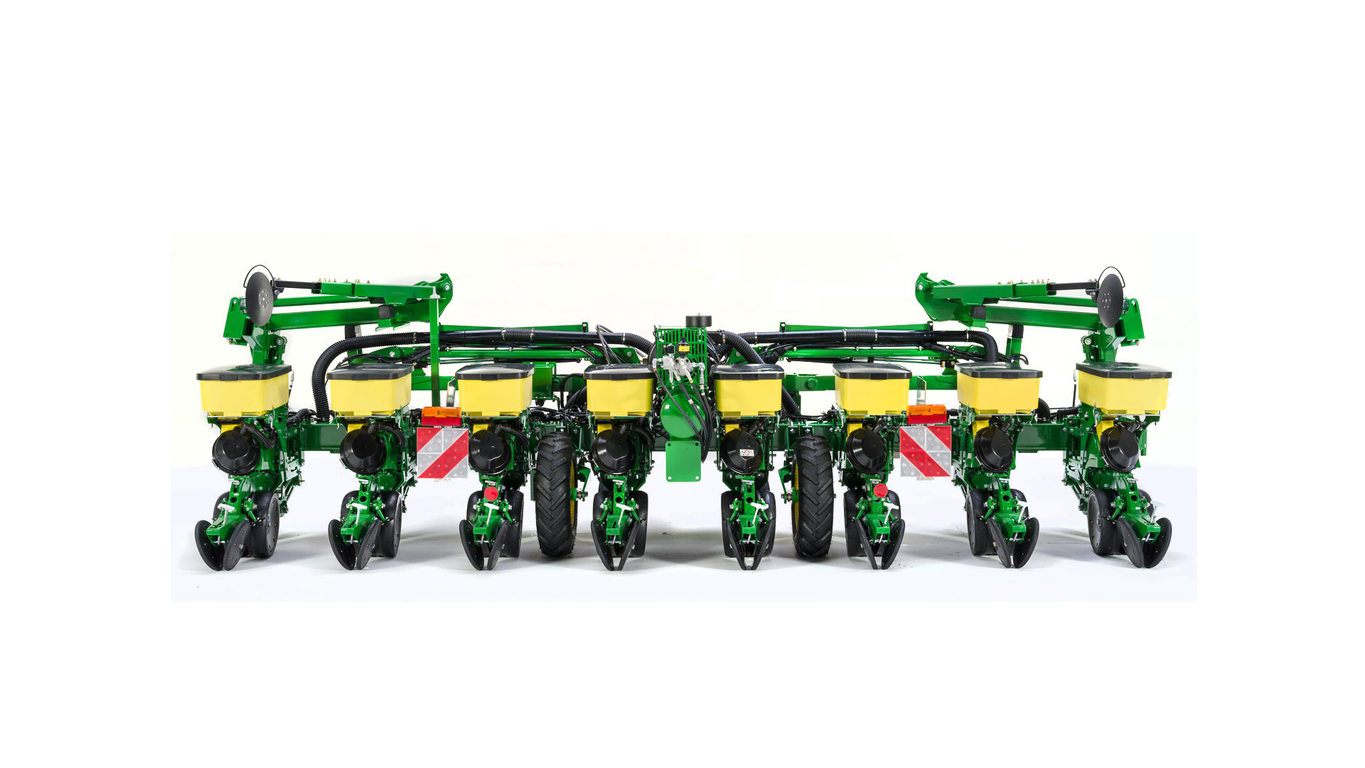

John Deere 1725NT
  • + Expand All
  • - Close All
  • Increase productivity with ExactEmerge™ trench delivery system and BrushBelt™ delivery system

    It is very challenging to get the crop planted during the optimum planting window or as close to the optimum planting day as possible. Rate-of-yield loss accelerates greatly after the optimum window has passed. This is especially true in the northern U.S. and Canada. ExactEmerge maintains accurate speed placement at higher speeds; growers can avoid missing that peak planting time, thereby helping to get the highest crop yields.

    Yield loss after optimum planting dayYield loss after optimum planting day

    With the BrushBelt trench delivery system, the spacing in the trench does not change from even to uneven terrain. This can be a problem with a traditional seed tubes. Seed bounce and ricochet may occur as slopes increases, ultimately decreasing seed spacing performance.


    The design of the BrushBelt provides the best solution for the lowest release of seed to the bottom of the trench. The use of a brush provides the meter with an infinite amount of placement opportunities for each seed. This is what gives producers the confidence that every seed will have the desired spacing that a seed tube cannot provide.

    Maintenance-free BrushBeltMaintenance-free BrushBelt

    When the brush comes around the pulley, it expands allowing the seed to be transferred from the bowl to the brush very easily. The brush then carries the seed down toward the trench, ensuring that there is no movement as it moves down the length of the cartridge.


    Once the brush reaches the lower pulley, the BrushBelt expands again loosening the grip on the seed, and the centrifugal force releases the seed. Another advantage with the BrushBelt and cartridge at all speeds up to 10 mph is the ability to match the seed rearward trajectory to the forward ground speed of the planter. This provides a dead drop of the seed with no bounce and no roll at the bottom of the trench.

    BrushBelt conditioner engages brush bristlesBrushBelt conditioner engages brush bristles

    John Deere’s ExactEmerge cartridge is self-cleaning. When an operator uses seed treatments or is forced to plant in less than ideal soil conditions, the design of the trench delivery system sheds buildup from the BrushBelt. A brush conditioner is located at the bottom of the cartridge to remove remaining residue and prevent the bristles from sticking together.

    Brush proximity helps clean sensorBrush proximity helps clean sensor

    Another advantage over a seed tube is that the BrushBelt also acts as a cleaner to the seed sensor compared to a seed tube.

    BrushBelt removed from trench-delivery systemBrushBelt removed from trench-delivery system

    The BrushBelt requires no maintenance and has a wear life designed to match the wear life of the other wear components. Since operations vary, as do soils and field content, it is recommended to replace the BrushBelt at the same time as the double-disk openers.


    Changing the belt is easy. One latch removes the meter over the trench delivery system. Grab the cartridge by the grip and pull toward the body, releasing it from the electric motor fitting. Lift the trench delivery system up and remove the sensor wiring harness to completely pull the cartridge out of the row-unit.


    There are two plastic covers that snap off to uncover the belt; remove the covers and then twist the circular spring-tensioner dial with the yellow arrow on it to release the tension on the springs. Once tension has been removed, pull the belt out. It is also recommended to change the stainless-steel wear strip at this time as well, which also slides right out of place without the use of tools.


    NOTE: It is recommended to use a talc/graphite mixture with ExactEmerge. Best results have been 80 percent talc and 20 percent graphite. For certain regions and territories talc and talc/graphite mixes are restricted from use, in this case use wax-based fluency agent.

  • Monitor planter performance in the cab
    Connect Mobile showing a singulation map and monitoring planter performanceConnect Mobile showing a singulation map and monitoring planter performance
    Connect Mobile overview

    John Deere Connect Mobile is a solution that utilizes an Apple® iPad® in the cab that provides the operator a better understanding of the planter’s performance. Connect Mobile documents and displays the row-by-row performance of the planter, helping the operator monitor and more easily detect problems that can occur while planting.  Connect Mobile also has a common user interface that makes it easy to use between different pieces of John Deere equipment. Once the job is done, the iPad with the planting data can be utilized to perform basic crop scouting activities in the field.

    Planting attributes

    Monitor and document key performance indicators in high-definition map layers and dashboard tiles such as:

    • Actual population
    • Target population
    • Singulation
    • Seed-spacing CV
    • Applied down force
    • Gauge wheel margin
    • Ride quality
    • Ground speed
    • Variety
    In base equipment

    Connect Mobile hardware is factory installed on all model year 2015 and newer planters factory installed with ExactEmerge™ row-units and all model year 2017 and newer planters factory installed with MaxEmerge™ 5e row-units, making it easy to get started with Connect Mobile.


    Learn more about Connect Mobile in the Field and Crop Solutions section within the Precision Ag Technology product line and how it can improve the quality of a planting job.


    iPad and Apple are trademarks of Apple Inc.

  • Unit-mounted row cleaner with convenient screw adjustment
    Screw-adjust unit-mounted row cleanerScrew-adjust unit-mounted row cleaner

    Row cleaners are a valuable tool in reduced tillage planting conditions. The row cleaner helps to clear residue from the path of the opener, ensuring good row-unit operation. The row cleaner utilizes two angled wheels which engage the soil surface and residue, sweeping them aside.


    Row cleaners provide many agronomic benefits, including quicker soil warmup and germination, and reduced hair pinning of residue into the seed furrow. Row cleaners can also provide a smoother ride for the gauge wheels, resulting in less row-unit bounce and a more uniform seeding depth.


    The screw-adjust unit-mounted row cleaner is mounted directly to the face plate of the row-unit, placing the ground-engaging components just in front of the row-unit opener blades and depth gauge wheels. This close proximity allows the gauge wheels to control the depth of the row cleaner as well as the row-unit.


    This compact design also allows greater compatibility with fertilizer openers and other planter attachments.

    SharkTooth® wheels
    SharkTooth wheelSharkTooth wheel

    The unit-mounted row cleaner features the SharkTooth wheel. The beveled, sharpened edge of the teeth on the SharkTooth aggressively cut tough residue that lies in the path of the row-unit. The curved tooth design sweeps a clear path for the openers and resists residue buildup.

    The wheels are arranged in a staggered fashion with one wheel leading the other, ensuring complete clearing of the row-unit path. The wheels can also be run side-by-side if desired, by simply relocating the wheels to existing holes on the row cleaner bracket.

    The bearing on the SharkTooth wheel is sealed and requires no regular maintenance. Bearing shields are used between the wheel and the mount bracket to prevent residue wrapping and buildup around the bearing housing.

    Row cleaner adjustment knobRow cleaner adjustment knob

    The unit-mounted row cleaner offers a convenient screw adjustment feature for changing the depth setting. The acme screw is enclosed within the structure of the mounting bracket, providing protection from the elements.

    The adjustment knob for the screw adjustment is accessible from the top of the parallel arms. The knob can be adjusted by hand, or by using a socket.

    The adjustment is detented in 1.5-mm (0.06-in.) increments, allowing for quick, easily repeatable adjustments across all rows of the planter.

    An indicator rod and scale on the front of the row cleaner bracket indicate the current setting. If a condition is encountered where use of the row cleaner is not desired, it can be set so that the wheels do not engage the soil surface.

    Operational notes and compatibility

    Use of row cleaners is not recommended when surface application pre-plant herbicide is used prior to planting. When using pre-plant incorporated herbicide, the row cleaner should be adjusted to minimize soil disturbance so as not to reduce the effectiveness of the incorporated herbicide.


    Drive chain shields are recommended for use with row cleaner attachments.


    Two different models of screw-adjust, unit-mounted row cleaners are available; the standard row cleaner for 762-mm (30-in.) row spacing and the narrow row cleaner for 508-mm (20-in.) or 558.8-mm (22-in.) row spacing.



    1. Screw adjust, unit-mounted row cleaners are fully factory installed when ordered with the planter
    2. Not compatible with use of frame-mounted coulter
    3. Row spacing less than 762 mm (30 in.) requires the narrow row cleaner option.
    4. For 1795 12/23, 12/24, 16/31, and 16/32 row machines, unit-mounted row cleaners are provided on the front rank of rows only.
    5. For DB60 47R15 machines, unit-mounted row cleaners are provided on the row-units with short parallel arms only. They provide the 24 rows set on 762-mm (30-in.) spacing row cleaners.
    6. Not compatible with the use combination of long parallel arms and MaxEmerge 5e row-units.

    SharkTooth is a trademark of Yetter Manufacturing Incorporated.

  • SeedStar™ 4HP monitoring system

    SeedStar 4HP is designed to optimize the in-cab monitoring experience exclusively on the Gen 4 4600 CommandCenter™ display or 4640 Universal Display for growers with ExactEmerge™ planters and MaxEmerge™ 5e planters model year 2018 and newer. With SeedStar 4HP, operators will easily see key planter information with customizable run pages, zoom functionality, and simultaneous graph and performance measurements. SeedStar 4HP is included in base on all model year 2018 ExactEmerge and MaxEmerge 5e planters.

    Features overview:

    • View multiple planters’ at-a-glance bar charts simultaneously
    • Three default planter run pages show key planter functions in easy-to-view layouts
    • Highly configurable run pages allow SeedStar modules to be customizable
    • Zoom feature allows quick row-by-row detailed information
    • View dual bar graphs to see multiple planter details at one time
    • SeedStar application to make adjustments to planter functions
    • Simplified setup through the work set-up page
    • Custom rates allow up to six different rates across 48 rows
    • The SeedStar 4HP monitoring system requires the Gen 4 4600 CommandCenter or 4640 Universal Display. These displays allow the operator to benefit from the updated interface, enhanced processing speeds, and easy setup (learn more here).


    Default planter run pages
    Planter summary default run pagePlanter summary default run page
    Planter overview default run pagePlanter overview default run page
    Planter details default run pagePlanter details default run page

    Three default run pages show key planter functions in different views to give fast and easy access to important planter information.

    Custom run pages
    Customizable run pagesCustomizable run pages

    There are customizable run pages that allow the operator to build pages that fit their operation with different modules, like the example shown above.

    Zoom functionality
    Zoom feature showing a group of rowsZoom feature showing a group of rows
    Zoom feature showing a single rowZoom feature showing a single row

    The zoom feature allows the operator to touch a section or row of the planter and get detailed information quickly.

    Custom rates in SeedStar 4HP
    Variety set-up pageVariety set-up page
    Rate set-up pageRate set-up page
    Group rate set-up pageGroup rate set-up page

    Custom rates allow for individual row population control and row-by-row documentation where up to six different rates can be assigned across an up to 48-row planter. This allows growers interested in planting seed corn with ExactEmerge or MaxEmerge 5e the capability to assign specific populations to male and female rows for planting. This feature can also be used to create tram lines or other applications where custom rates by row are needed.

    NOTE: Individual rates are tied to varieties, so each induvial rate needs a unique variety name.

    Dual bar graphs
    Dual bar graph showing singulation and population simultaneouslyDual bar graph showing singulation and population simultaneously

    Dual bar graphs allow operators to view multiple planter details at one time.

    SeedStar application page
    SeedStar application run pageSeedStar application run page

    In the SeedStar application, many adjustments can be made, including manually activating section control. SeedStar 4HP allows up to 48 individual row sections. There are several setup features such as crop, seed disk, number of rows being planted, population alarms, and limits. Seed rates can be modified, electric power generation (EPG) can be turned on or off, vacuum can be adjusted, and the fill and purge functions can be used from the SeedStar application. Frame control, as well as diagnostics and calibrations, can be accessed at the bottom of the screen.

    Settings Manager in SeedStar 4HP
    Settings Manager screensSettings Manager screens

    Reduce set up time between changing crops or field conditions by recalling saved settings used previously with Settings Manager, included with every SeedStar 4HP system. This feature allows saving and recalling planter and tractor settings for optimum performance in different conditions.

    Settings Manager can be used to save all of the adjustment and inputs associated to a particular crop or condition. An example would be to store all population rates, downforce pressure, row cleaner adjustments, and closing wheel settings for planting corn and storing a separate unique set of adjustments for soybeans. In addition, Settings Manager stores tractor settings such as selective control valve (SCV) flow and detents, infinitely variable transmission (IVT™) settings, eco modes, and more.

    SeedStar 4HP compatibility
    PlantersAll models ordered with ExactEmerge or MaxEmerge 5e row-units
    DisplayGen 4 4600 CommandCenter or 4640 Universal Display
    Additional information

    For additional information on feature functionality on the Gen 4 Display, visit the links below:

  • Vacuum automation
    Vacuum automation screenVacuum automation screen

    Vacuum control has been defined. Before vacuum automation, an operator set the vacuum level by adjusting the hydraulic flow through each selective control valve (SCV). Many variables altered the vacuum level while the hydraulic flow stayed constant. This could have resulted in under or over populating, which may have impacted singulation. With vacuum automation, all that needs to be done is set the desired vacuum level and let the monitor do the work of adjusting the hydraulic flow. Should vacuum changes occur, the software in the monitor will fluctuate the SCV flow to achieve the desired vacuum level.

    Vacuum automation requires SeedStar™ 4HP monitoring, which enables a sensor to measure hydraulic flow on the vacuum hydraulic lines. The tractor must be a John Deere with Tractor Electronic Control Unit (TECU) 3 controller area network (CAN) system for this feature to be compatible. The vacuum automation feature will control all vacuum fans if they are on their own SCVs.  More vacuum fans make the planter more valuable and easier to operate.

    Vacuum automation is not compatible with Interim Tier Four (iT4) 6R Series Tractors.

  • 1725NT Frame

    The 1725NT utilizes an integral, stack-fold frame that allows for a transport width of approximately 10 ft (3 m) and a height of just over 13 ft (4 m). Customers with narrow roadways or small fields will find the narrow transport frame, without lift assist wheels, to be especially useful in situations where maneuverability is limited.

    This design also allows for vacuum to be integrated into the frame without adding clutter to the bar. This means a cleaner look with better visibility from the operator station.

    1725NT also includes 16-in. notched disk markers in base machine, with an option for less markers. These markers act independent of the frame position and are controlled by a SCV. The notched disk design allows for a more aggressive marking capability, especially in minimum or no-till conditions.

  • MaxEmerge™ 5e overview

    The MaxEmerge 5e is designed to improve population accuracy, spacing, and avoid wasting inputs for maximizing yield. The ‘e’ in MaxEmerge 5e stands for electric drive. It is driven by one electric motor per meter with a small controller. This does away with the shafts and drivelines of a typical mechanical drive. That means more reliability, less maintenance, and easier access to row-unit components. For producers who want uniform seed spacing, the MaxEmerge 5e is a great option.

    One of the biggest advantages of the MaxEmerge 5e is how it improves population accuracy by compensating for curves on the outer rows of the planter. The MaxEmerge 5e Row Unit eliminates shafts and drivelines from the planter, allowing better access to row-unit components and decreased planter maintenance. Additionally, the MaxEmerge 5e allows corn and soybean growers to achieve up to a 20 percent improvement in population accuracy on the outer rows of a 24-row planter while planting on curves utilizing curve compensation.

    While the MaxEmerge 5e uses a seed tube, it offers some of the same important advantages as ExactEmerge row units. The MaxEmerge 5e also improves reaction to population changes in the field when conditions dictate a higher or lower population. Enabling producers to more accurately plant to the variable-rate prescription that maximizes profit potential. High-performance vacuum automation, automatically maintains target vacuum setting throughout the day – with less time monitoring and making adjustments. It uses SeedStar™ 4HP system and is compatible with Connect Mobile monitoring – for near real-time, row-by-row planting performance. The MaxEmerge 5e offers plenty of options. Easy-adjust row cleaners, individual-row hydraulic downforce, pneumatic closing wheels, fertilizer attachments (frame dependent) are all available options, while active pneumatic downforce is standard equipment.

    The MaxEmerge 5e delivery system options include mini hoppers with Central Commodity System (CCS™) , 56.4-L (1.6-bu) hoppers, and 105.7-L (3-bu) hoppers.


    NOTE: MaxEmerge 5e Row-Unit requires tractor power generation on a 30 Series or newer tractor with power take-off (PTO). MaxEmerge 5e Row-Units are compatible with the following models: 1725NT, 1725C, 1775NT, 1795, DB44, DB60, DB66, DB80, DB88, and DB90 (not available on 54R 50.8 cm [20 in.]).


  • SeedStar™ 3 HP monitoring system
    SeedStar 3 HP overview
    SeedStar 3 HP shown on the GreenStar™ 3 (GS3) 2630 DisplaySeedStar 3 HP shown on the GreenStar™ 3 (GS3) 2630 Display

    Building upon the foundation of previous SeedStar monitoring, the SeedStar 3 HP monitoring system takes planter monitoring to the next level. When paired with the GS3 2630 Display, the SeedStar 3 HP monitoring system provides critical information about the planting process to the operator within the tractor cab. SeedStar 3 HP is compatible with the GS3 2630, the Gen 4 4600 CommandCenter™ and 4640 Universal display.


    Detailed planter performance information allows the operator to make adjustments needed for planter optimization. After all, with rising costs, it is imperative to make sure that every seed is planted accurately and precisely within the seed furrow for maximum yield potential.


    The SeedStar 3 HP planting functions are fully integrated with the full spectrum of AMS applications such as John Deere Section Control for Planters, GreenStar (GS)AutoTrac™ assisted steering system, John Deere Operations Center, JDLink™ telematics system, and others. Integrated planting technologies, for better asset utilization and ease of use, is just part of what SeedStar 3 HP provides.

    SeedStar 3 HP main run page
    SeedStar 3 HP main run pageSeedStar 3 HP main run page

    SeedStar 3 HP has an updated main run page layout. With the use of tabs toward the top of the screen it is much easier to navigate through readings such as population, singulation, spacing, downforce, and ride quality. If for some reason an issue arises with a row-unit, the tab will turn red indicating there is an issue. The tab can be pushed and lead to what is causing the issue. Inside each tab, there will be a bar graph detailing information specific to that tab. The picture shows what a population bar graph looks like. This layout improves functionality and overall ease of use while planting.

    SeedStar 3 HP seed singulation monitoring
    SeedStar 3 HP seed singulation planter run pageSeedStar 3 HP seed singulation planter run page

    Understanding meter singulation performance on the planter is critical to minimizing the amount of seed multiples and skips. As a result, the SeedStar 3 HP monitoring system provides real-time information, from the redesigned seed sensors placed in each belt cartridge, about the overall seed singulation performance.
    As seen in the screen shot image to the left, overall singulation performance is seen in the tab at the top of the screen. Seed skip and multiple sources of information are displayed below the bar graph of the run page. This provides the operator a better understanding of relative seed multiple and skip data on a row-unit basis within one easy glance at this run page.
    Also, within the seed singulation planter run page, information about row units with the highest percentage of seed multiples and skips is provided in order to make necessary adjustments for better planter optimization.


    Depending on the planter size, different configurations of sensor nodes and downforce sensors are installed in support of the SeedStar 3 HP monitoring system.


    SeedStar 3 HP is only available with the MaxEmerge 5e and ExactEmerge™ row-unit compatible planters built prior to model year 2018.

    Components and operation
    Planter main controllerPlanter main controller
    Row-unit controller (RUC) with two electric motorsRow-unit controller (RUC) with two electric motors

    The SeedStar 3 HP monitoring system contains the following components in order to support the planting data transfer to the GS Displays:

    • Planter main controller
    • Sensor node(s)
    • Downforce sensor assembly
    • Electric power gen controller
    • Electric power gen (EPG)
    • Row-unit controller (RUC)

    The row-unit controller processes the row-unit data from the sensor node assemblies located on the row-unit head casting. The processed information is then sent to the planter main controller to be integrated into the displayed information being sent to the GS Display.


    Downforce sensor assemblies are found on row units with sensor nodes installed. The downforce sensor assembly is put together with the gauge wheel depth-adjustment handle and provides gauge wheel pressure information to the respective sensor node for data processing.

    SeedStar 3 HP row-unit down force planter run page
    SeedStar 3 HP downforce planter run pageSeedStar 3 HP downforce planter run page

    With changing field conditions, it is important to monitor down force to ensure consistent seed placement. Seeds placed too shallow or too deep can impact emergence and affect yield.


    With the SeedStar 3 HP monitoring system, row-unit downforce information is measured by the down force sensor and sensor nodes and transmitted to the GS Display in the tractor cab. The row-unit down force information is displayed on the top portion of this run page with more row-unit down force information on the lower portion.


    Active pneumatic down force takes SeedStar 3 HP even further by removing constant down force adjustments from the operator and actively controlling the downforce system to maintain a desired target margin. Just set the row-unit target margin value and the active pneumatic downforce system works automatically to make sure the planter maintains this value-achieving precise soil penetration, and consistent planting depth, without sidewall soil compaction. This frees the operator from constantly making manual downforce adjustments as conditions change.

    SeedStar 3 HP ride quality and ground contact run page
    SeedStar 3 HP ride quality and ground contact run pageSeedStar 3 HP ride quality and ground contact run page

    The fifth tab from the left in SeedStar 3 HP is a shared tab between ground contact and ride quality. Operators may change between the two criteria based on their planter setups or personal preferences. Ground contact displays the percentage of time the row-units are engaging the ground, the load is measured via a sensor through the gauge wheels. Ground contact is recommended when using ExactEmerge row units to ensure the row-unit is maintaining proper depth at higher planting speeds.

    SeedStar 3 HP seed spacing monitoring
    SeedStar 3 HP seed spacing planter run pageSeedStar 3 HP seed spacing planter run page

    Throughout the planting process, obtaining good seed spacing is critical towards achieving plant growing conditions for maximum yield potential.


    Today, many items are adjusted on the planter prior to planting to optimize overall seed spacing performance. But after such adjustments are made, information about the actual seed spacing performance during planting was missing within the planter monitoring system. Now with SeedStar 3 HP, seed spacing information is transmitted live via the GS Display to show the operator exactly what is happening with the planter behind them.


    The SeedStar 3 HP transmits seed spacing information onto the bar graph (shown to the left) for easy understanding of planter seed spacing performance. Also, information about seed skips and multiples are provided to help understand actual planter meter performance and other related system functions in order to make necessary adjustments if needed.

    SeedStar 3 HP meter runoff page
    SeedStar 3 HP runoff pageSeedStar 3 HP runoff page

    On SeedStar 3 HP, the meter runoff page allows growers to test meters before going to the field. Growers can now test the meters without removing them and have confidence in your planter’s performance before going to the field. Many parameters are able to be viewed during this test such as: singulation, seed count, skips, multiples, coefficient of variation (cv), etc. This test assures that the meter is in healthy condition and ready to plant when conditions are appropriate.

    Other SeedStar 3 HP monitoring features include:
    • Capable of monitoring individual row-unit and overall planter performance in terms of seed spacing, singulation, and row-unit downforce
    • On-screen indication of sensor node/down force sensor assemblies once configured within the monitor settings application
    • Full-color display icons for easy recognition and overall aesthetics
    • Pneumatic downforce system controls with the GS Display application
    • The run page allows operator to view relative population levels of all rows on one screen
    • Mapping of actual and target seed rates can be mapped in Apex
    • Reprogrammable utilizing controller area network (CAN) via Service ADVISOR™ diagnostics system or Service ADVISOR Remote with JDLink™ subscription
    • User-configurable high fertilizer pressure alarm. Allows the operator to be warned when fertilizer pressure reaches a specific level
    • Automatic Fast Start for SeedStar 3 HP. This ensures that seeds will be place accurately when starting from a stop
    • Automatic tractor speed source selection. When equipped with an 8000/9000 Series Tractor, the system selects the radar speed or allows for manual speed input selection
  • Curve compensation

    Terraces or waterways are two of many field obstacles that make planting on a curve challenging. When planters utilize drive shafts, they are not able to control each individual row-unit; as a result, planting on a curve presents an issue of maintaining 100 percent population. Since the inside rows are moving slower than the outside rows, the inside rows will be over populating while the outside rows are under populating.


    With ExactEmerge™ Planters and equipped MaxEmerge™ 5e Planters, the curve compensation feature allows each row to receive an individual signal based on the speed the row-unit is moving, maintaining the correct population across the width of the planter. Without curve compensation, there could be as much as a 24 percent drop in population accuracy, which is equivalent to 8,600 seeds per acre when planting at 36,000 seeds per acre. Curve compensation measures acceleration within the main planter controller and utilizes speed inputs to ensure each row has desired population accuracy.

  • Sensors for trench delivery system on ExactEmerge™ planters
    Sensors for trench delivery systemSensors for trench delivery system
    Reflective seed sensorReflective seed sensor
    Sensor on trench-delivery systemSensor on trench-delivery system

    On all ExactEmerge row-units, each cartridge will be equipped with sensors. As the seeds are being delivered through the BrushBelt™ controls, they pass the reflective seed sensor. The delivery system slides every seed past the seed sensor to read and send the signal to the controller. The seed sensor and design is able to provide sensor performance at higher seeds per second with no population adjustment as needed with seed tube sensors. This seed sensor data is actual row-unit performance data. In comparison seed tube sensors add 10 percent population in soybean planting to adjust for the seeds missed due to placement within the seed tube The BrushBelt holds each seed in place until released in the trench, allowing the seed sensor a more accurate read.

  • Dual 56-V electric motors for ExactEmerge™ row-units
    Two 56-V brushless electric motorsTwo 56-V brushless electric motors
    Improve productivity with two 56-V brushless electric motorsImprove productivity with two 56-V brushless electric motors

    Two 56-V brushless electric motors provide ExactEmerge the upper hand over any other row-unit on the market. One motor controls the high-performance meter and the other powers the BrushBelt™. Both feature a closed loop system ensuring they operate at the correct rpm.


    The motor is controlled at a rate of 200 times per second and a decision is made every 5 milliseconds. The controller also keeps each motor operating at independent speeds of each other. The meter speed is determined by a combination of ground speed and desired population rate while the BrushBelt speed stays consistent with the forward ground speed of the planter in order to place the seed at the bottom of trench.

    Brushless motors are maintenance freeBrushless motors are maintenance free

    Industry-proven 56-V brushless motors give confidence to the operator that the row-unit will perform in any condition. The advantage of 56-V over 24-Velectric motors is a lower amperage draw.


    Brushless motors are maintenance free and give the producer the most optimal solution to achieve the highest performance and the lowest amount of work to the planter.

    Built-in RowCommand™ systemBuilt-in RowCommand™ system

    Manage seed output, reduce yield drag, and improve harvest capabilities are features built in to every ExactEmerge row-unit with electric motor shutoffs.


    The electric drive version of RowCommand row-unit has the potential to get 2 to 8 percent reduction in seed usage from being able to control the meter and BrushBelt rather than a clutch disengaging and some seeds still falling down the seed tube.

  • Commodity storage
    56-L (1.6 bu) hoppers available in base equipment

    The 1725NT utilizes a unique 56-L (1.6 bu) hopper that can be tilted and braced upwards to gain easy access to the meter for adjustments or cleanout.


    This design also has a shutoff door to allow for meter access when seed is still in the hopper.
