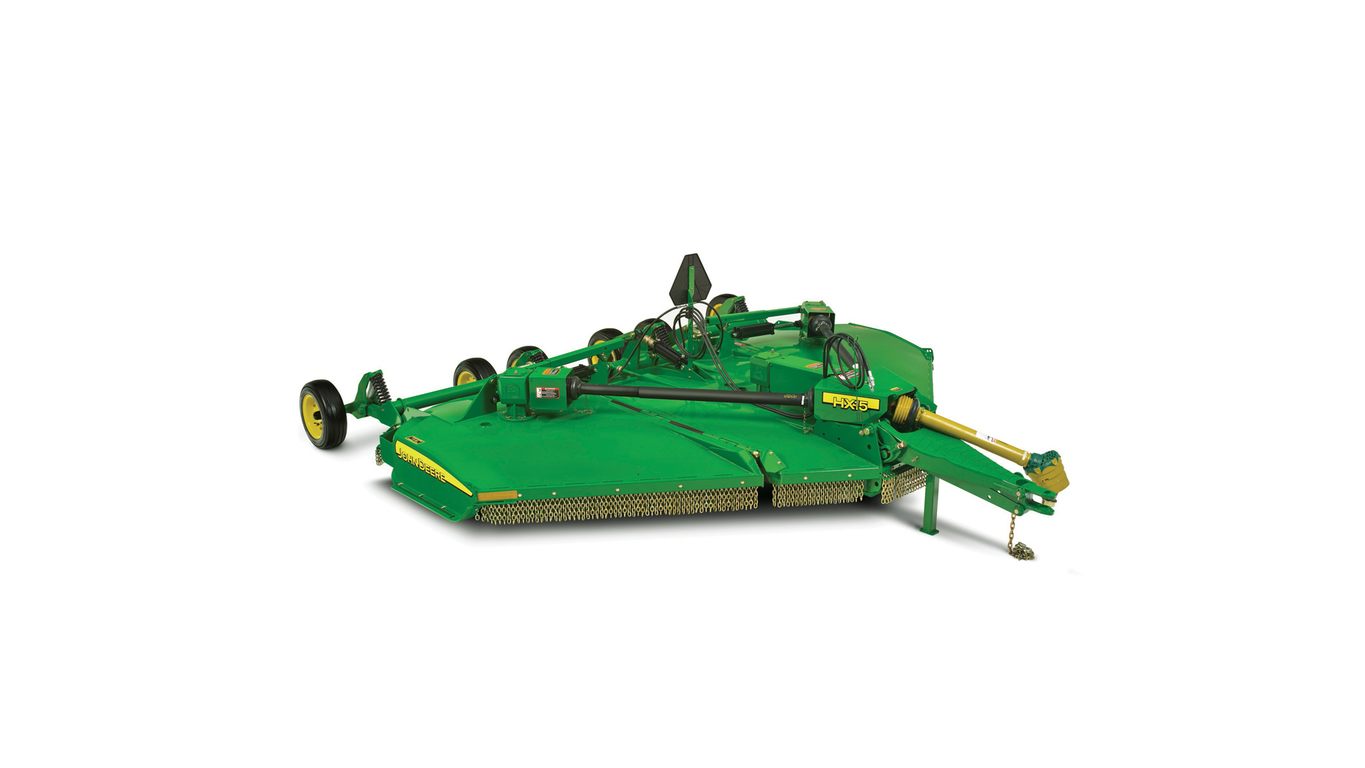

John Deere HX15
  • + Expand All
  • - Close All
  • Flex-wing constant-velocity (CV) driveline is easy to attach
    CV driveline CV driveline
    #

    Benefits of the CV driveline:

    1. Lock-slide collar, included on all John Deere’s drivelines, helps the attachment to the tractor using your hands on the driveline and not on the collar.
    2. Professional seals on the cross kits allow for a lubrication interval up to 50 hours.
    3. Grease zerks in the cap cross kits provide easy access for field lubrication.
    4. Large, dimpled floating disks reduce wear and improve the grease retention.
    5. Precision spherical ball-and-socket bearings distribute loading evenly and provide a long life and high performance.

    A lightweight driveline with a lock-slide collar makes it fast and easy to attach.

  • Which rotary cutter is right?

    John Deere rotary cutters lead the way with innovative design, superior performance, and proven durability. Valuable features are included such as the Double-Decker™ design and Max Flow cutting chamber, which prevent water and debris from accumulating on the smooth, dome-shaped top deck while the flat bottom deck absorbs the punishment from rocks and stumps.



    The top deck stays smooth - no dents, no dings, no holes. The internal supports sandwiched between the top and bottom decks are key to the smooth and structure-free Max Flow cutting chamber, while at the same time provide added strength and durability.



    To help promote safe operation, John Deere rotary cutters are equipped with front and rear safety-chain shields. John Deere rotary cutters continue to advance in value with larger, more powerful gearboxes, redesigned blade holders, and updated constant-velocity (CV) drivelines (special to the flex-wing models).



    Here are situations when a rotary cutter is needed:

    • Clipping pastures encourages grass growth, optimizing on valuable pasture acreage.
    • Cutting grass and stalks helps control insects.
    • Routine cutting keeps weeds from reseeding.
    • It is the most cost efficient way to cut roadsides, parks, cemeteries, airport fields, hydro, gas, and telephone easements, and all other types of open properties.
    • Cutting grass waterways encourages root development and helps prevent erosion.
    • Knocking down stalks is essential in no-till and minimum-till fields.
    • Shredding stalks such as cotton, corn, and milo speeds up decomposition.
    • Clearing out brush is easy.
    • Use a rotary cutter to control undergrowth and grass in orchards, vineyards, and groves.

    John Deere rotary cutters are available in three duty-level categories, three different spindle configurations, four hitch types, and three flex-wing sizes.

    • Mid-duty
      • MX models are available in 1.5-m (5-ft), 1.8-m (6-ft), 2.1-m (7-ft), 2.5-m (8-ft), 3.2-m (10-ft), and 4.6-m (15-ft) cut widths.
      • This duty-level category cuts brush up to 50.8 mm (2 in.) in diameter.
    • Heavy-duty
      • HX models are available in 3.2-m (10-ft), 4.2-m (14-ft), 4.6-m (15-ft), and 6.1-m (20-ft) cut widths.
      • HX6 is available in 1.8-m (6-ft) and the HX7 is available in 2.1-m (7-ft) cut widths; they cut brush up to 101.6 mm (4 in.) in diameter.
    • Commercial-duty
      • CX models are available in 3.2-m (10-ft), 4.6-m (15-ft), and 6.1-m (20 ft) cut widths; they cut brush 101.6 mm (4 in.) in diameter.



    NOTE: CX models are heavier built to cut at a 101.6mm (4 in.) capacity level more frequently and for longer durations.

  • Serviceability
    Gearcase with oil-level dipstick Gearcase with oil-level dipstick
    #

    Gearcases are provided with oil-level dipsticks.



    Spring-loaded check-valve vents are provided to release any air pressure that might build up within the gearcase and to keep the rotary cutter deck free of oil that would otherwise spew out of permanently open vents.



    All pivoting points that would benefit from greasing are provided with grease zerks. Wing hinges in particular are provided with individual grease zerks. It is important to note that these points require greasing infrequently; lubrication is for protection against seizing, not wear.

  • Tight turns can be performed
    Tight turning radius (CX15 shown) Tight turning radius (CX15 shown)
    #

    Hitches have a narrow profile and are 57.2 cm (22.5 in.) wide to allow a very tight turning radius, even when the tractor is equipped with dual wheels.

  • Five-year limited gearbox warranty provided on every John Deere rotary cutter
    Five-year warranty on all flex-wing gearboxes Five-year warranty on all flex-wing gearboxes
    Five-year warranty on all rotary cutter gearboxes Five-year warranty on all rotary cutter gearboxes

    John Deere is so confident in the reliability of the gearbox, the warranty has been extended. John Deere rotary cutters come with a 5-year limited gearbox warranty.

  • Transport lock offers a safe wing-up position
    Transport lock ensures wings stay secured Transport lock ensures wings stay secured
    #

    A transport lock flips over the lift cylinder for backup to the hydraulics when transporting or servicing the cutter.



    A wing lock is provided for additional safety during transporting or servicing. Additionally, the wing locks are spring-loaded so they can unfold against gravity on slopes up to five degrees.

  • Heavy-duty axle with spring suspension
    Spring suspension on all four-wheel assemblies Spring suspension on all four-wheel assemblies
    #

    The HX Series Cutters feature a heavy-duty axle with six wheels and spring suspension on the four-wheel standards. Optional dual-wing wheels are available. A lower-priced four-wheel rigid axle version is also available.

  • Hydraulic height leveling system makes cutter leveling easy and safe
    A manual-implement jack is in base equipment A manual-implement jack is in base equipment
    #

    The HX15, CX15, HX20, and CX20 come standard with an industry-exclusive hydraulically-operated height leveling system with a swing-away parking stand that makes raising and lowering the cutter easy and safe. In addition, a manual-implement jack is in base equipment, so hitch leveling can also be adjusted without hydraulics. With this addition, the cutter will remain in the same position for long periods of time.

  • Gearcases and blade holders provide better performance
    Gearcase and blade holder shown Gearcase and blade holder shown

    The John Deere gearboxes:

    1. Large seals
    2. Large housing
    3. Large output shaft
    4. Precision forged bevel gears
    5. Large bearings
    6. Stump jumper

    Re-engineered gearcases and blade holders provide the following:

    • More horsepower
    • Faster blade-tip speed
    • Better performance
    • Quieter operation
    • Increased durability
  • Four larger, more durable gearcases
    Cross-section of gearcase Cross-section of gearcase
    #

    The HX15 and CX15 Flex-Wing Rotary Cutters utilize a four-gearcase design (with the exception of the 3.1-m [10-ft] CX15 weight-box model). This is far superior to a three-gearcase design because the wing drivelines are able to operate at a range of angles, from 22 degrees down and up to 45 degrees. The wings fold up to 90 degrees for transport-lock purposes.



    Additionally, the transfer of power from the tractor is dedicated to the transfer gearcase while the cutting is handled by three separate and properly-sized individual gearcases. This results in superior drivetrain reliability and durability.

    • HX15 uses a 250 continuous hp and 300 peak hp splitter gearcase, and 150 continuous hp and 205 peak hp center and outer gearcases.
    • CX15 uses a 250 continuous hp and 300 peak hp splitter gearcase, and 150 continuous hp and 216 peak hp center and outer gearcases.

    Large, tapered roller bearings and forged gears enable a long and trouble-free operating life. Horizontal shafts in all gearcases are 4.5 cm (1.75 in.) in diameter to resist torque spikes. Output shafts have a tapered spline for a tight connection with bladeholders.



    Gearcases are backed up by a five-year warranty.

Blades

Type Single suction, dual suction
Blade rotation CW, CCW, CCW
Material flow system Smooth, obstruction-free Max Flow cutting chamber for a clean cut and no windrows
Blade tip speed 540 RPM
Wing 4,751 (285 km/h) m/min
15,586 (177 mph) fpm
Center 4,794 (288 km/h) m/min
15,728 (179 mph) fpm
1000 RPM
Wing 4,827 (290 km/hr) m/min
15,837 (180 mph) fpm
Center 4,650 (278 km/h) m/min
15,256 (173 mph) fpm
Blade holder
Type
Bar-type (Dual suction) or round stump jumper (Single suction) for protection of blades and carrier against obstruction damage
Thickness Single suction 13 mm
0.5 in.
Dual suction-upper 13 mm
Dual suction-lower 13 mm
Overlap 152 mm
6 in.
Width Single suction 102 mm
4 in.
Dual suction-upper 76.2 mm
3 in.
Dual suction lower 102 mm
