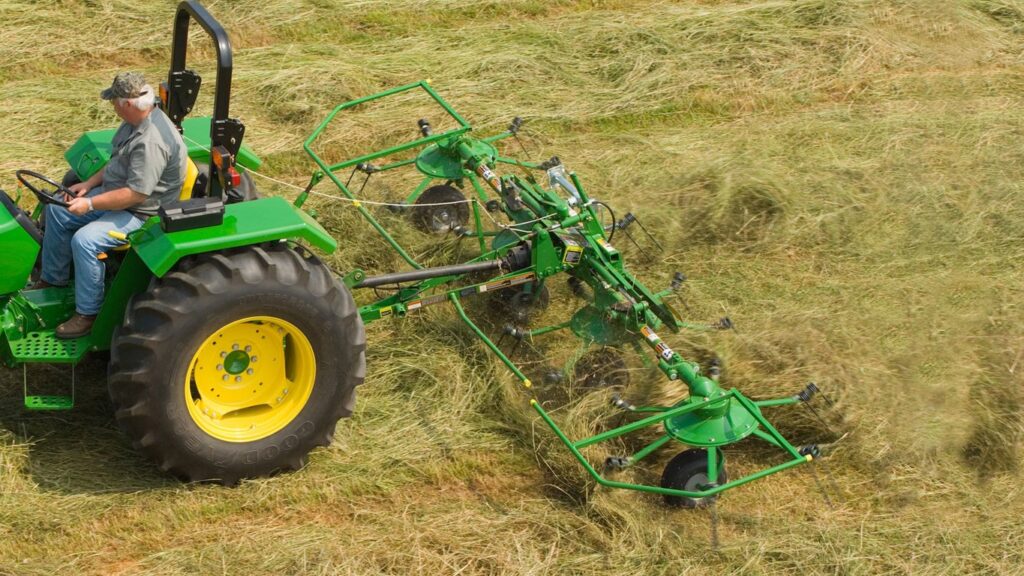

John Deere TD13 Series Hay Tedder

Agriculture

  • DigidriveTM drive system ensures maximum life
  • Hydraulic working angle adjustment
  • Durable Steel tines
  • Balloon tires operates smoothly on bumpy ground
Hitch - TypeDrawbar
PTO - TypeTorque Limiter
Tires - Working size6 ply: 38x15 cm
15x6 in.
Tires - Working typeBalloon
Lighting and safety - SMVStandard
Lighting and safety - Safety guardsStandard
Rotor - QuantityFour
Tine arms - Quantity per rotorSix
Tine - Height adjustmentHydraulic tilt
Tine arms - TypeRound tubular
Dimensions - Transport height2.7 m
8.7 ft
Working position for other crop flow - Straight, right-hand, left-hand anglesStandard
Dimensions - Transport length2.3 m
7.6 ft
Transport position - Hydraulic vertical fold with hydraulic tiltStandard
Dimensions - Width in working position5.4 m
17.7 ft
PTO - rpm540 rpm
Dimensions - Tedding width5.0 m
16.4 ft
Set-up time - Labor hours6
Weight - Shipping456 kg
1,005 lb
Lighting and safety - Safety chainStandard
Tractor requirements - Minimum hp (kw)14.9 L
20 hp
Tractor requirements - Hydraulic valves (SCVs) requiredOne
Dimensions - Transport width2.8 m
9.2 ft
Warranty - Time period1 year
  • PTO HP: 20 hp (14.9 kW) 
  • Tedding Width: 16 ft. 5 in. (5.0 m) 
  • # of Rotors: 4 
Balloon-technology tires on Frontier™ TD13 Series
Balloon-technology tires on Frontier™ TD13 Series

The TD13 Series Hay Tedder has large balloon tires that allow smoother operation over irregular ground.

Flexible steel for durability and dependability
Flexible steel for durability and dependability

The TD13 Series Hay Tedder has flexible, steel tines that are heat treated for durability and highly resistant to fatigue.

Reduction gearbox conversion kit is great for heavy windrows or night windrow applications when using the TD1316 Hay Tedder.

An aftermarket, field-installed wide deflector belt kit is available for feed bunk applications on the BP1166 Bale Processor.

An aftermarket, field-installed anti-wrap deflector kit helps to prevent hay from wrapping on the tine arms and rotor housings of the TD1316 Hay Tedder during use.

An aftermarket, field-installed wheel deflector kit helps prevent hay from being trapped by the tine arms of the TD1316 Hay Tedder during operation in light and/or fluffy hay applications.

Digidrive system
Digidrive system
#

The exclusive Digidrive rotor drive fingers on the TD13 Series Hay Tedder are made from forged, case-hardened, heat-treated steel for maximum life and smooth power transmission.

Digidrive is a trademark of Kuhn, S.A. Joint Stock Company.

Hydraulic angle adjustment for easy transport
Hydraulic angle adjustment for easy transport
#

The Frontier™ TD13 Series Hay Tedder comes standard with hydraulic angle adjustment, perfect for transporting the tedder to multiple fields.

It allows the operator to set the working angle of the tedder one time, and then quickly and easily go from the transport to the working position using the tractor hydraulics from the comfort of the seat.
