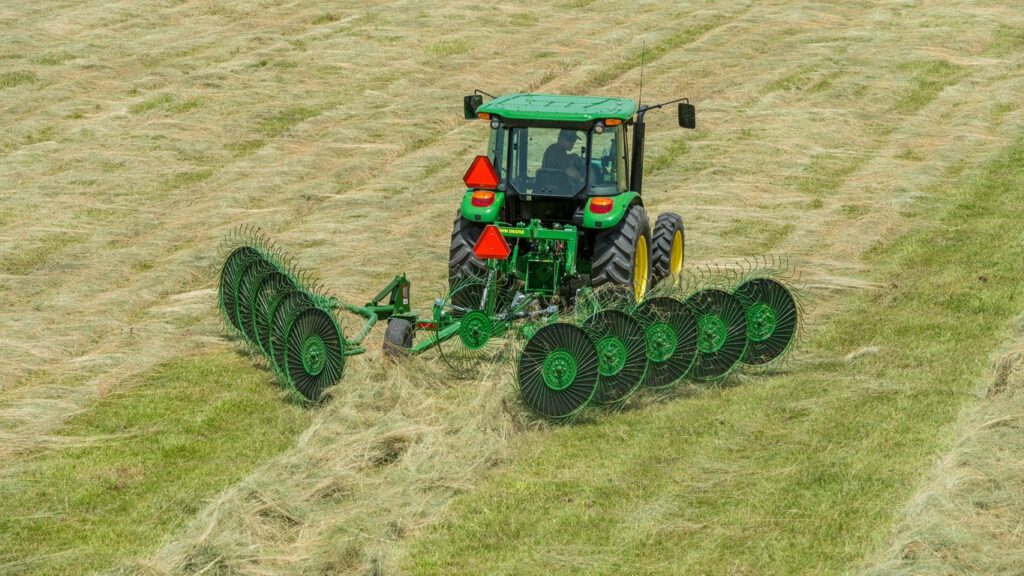

John Deere WR00 Series Carted Wheel Rakes

Agriculture

  • Easy adjustments
  • Two-arm, left, and right side only raking
  • 8, 10, and 12 wheel models
  • Optional center kick wheel
Safety - Hitch jackStandard
Weight - Implement669 kg
1475 lb
Rake wheel - HubsTapered bearing
Safety - LightsNone
Rake wheel - QuantityTen
Weight - Shipping725 kg
1599 lb
Rake wheel - Teeth diameter7 mm
0.27 in.
Rake wheel - Diameter140 cm
55 in.
Warranty - Time periodOne year
Wing - Flex up19.7 cm
50 in.
Dimensions - Transport height2.75 m
9.0 ft
NOTE: Transport heights can vary based on unit setup. Dimensions are for reference only.
Tractor compatibility - Horsepower requirements22 kW
31 hp
Safety - Safety chainStandard
Wing - Flex down3.9 cm
10 in.
Dimensions - Transport width2.5 m
8.2 ft
Rake wheel - Teeth per wheel40
Dimensions - Transport length5.3 m
17.5 ft
Dimensions - Frame clearance50.8 cm
20 in.
Safety - MarkingSMV
Set-up time - Labor hoursEight hours
Dimensions - Raking width
Maximum
6.4 m
21 ft
Wheels - TransportSize
205/70-15
Quantity
Two
Dimensions - Windrow widthMinimum
61 cm
24 in.
Maximum
129.5 cm
51 in.
Tractor compatibility - SCVType
1 SCV
Quantity
One
Wheels - Gauge
  • Windrow Width: 24 - 51 in. (61 - 130 cm)
  • # of Wheels: 8 Wheels
  • Raking Width: 17 ft. 8 in. (5.4 m) maximum
Wheel rake arms in transport position


Wheel rake arms in transport position

The raking arms and wheels fold on the cart for a minimum transport width of 2.5 m (8.2 ft). This compact design allows an operator to easily transport and store the equipment.

Hydraulic lock out valves and wing transport chains keep the wings safely folded up during transport.

Simple hitch adjustments for different heights


Simple hitch adjustments for different heights

The adjustable hitch allows for added versatility for the WR00 Series Wheel Rake. The wide array of tractor tire sizes, drawbar heights, and hitch adjustments add more convenience for hay operations.

One grease zerk per wheel


One grease zerk per wheel

The wheels have 7-mm (0.28-in.) diameter tines for increased wear life. The larger-sized tines will stand up to more crop and ground movement during use.

Grease zerks also help increase the wear life of each wheel. There is one grease zerk for each wheel and two grease zerks located on the frame to keep moving parts lubricated and operative.

Greater ground contact with wide wheel base


Greater ground contact with wide wheel base

Sturdy frame and high ground clearance


Sturdy frame and high ground clearance

The 1.8-m (6-ft) wheel width helps keep the raking wheels in contact with the ground over rough terrain, increasing productivity. The wheel rake has 50.8 cm (20 in.) of ground clearance which helps keep the hay away from the cart frame.

Easy-to-set windrow and raking widths


Easy-to-set windrow and raking widths

Three settings for dual-spring rake arm suspension


Three settings for dual-spring rake arm suspension

The WR00 Series Carted Wheel Rake has two easy adjustment points to fine-tune windrows and gather more hay in each bale.

  1. Utilize the two-point-position pin and hole adjustment to set both windrow and raking widths.
  2. Set the adjustable dual-spring rake arm suspension to three different settings to match terrain and crop conditions.
