John Deere HD35R Hinged Frame, Rigid Cutterbar Draper
Agriculture
- Capture more crop in rolling and uneven terrain with a wing range of over 30″
- Achieve desired stubble height with Position Control Gauge Wheels
- Reduce cutterbar loss with Grain Saver Draper Belts
- Improve harvest logistics with a factory-installed Integrated Transport system
| Platform - Type | Hinged frame rigid cutterbar |
|---|---|
| Key Specs - Knife drive | Double-cut, dual-drive, shaft-driven cutterbar: 10.2 cm 4 in. |
| Feed drum - Finger reach | 152 mm 6 in. |
| Feed drum - Feed drum fingers | Heavy-duty and round with breakaway notch and retainer Diameter: 16 mm 0.625 in. |
| Feed drum - Diameter | 40.6 cm 16 in. |
| Header height sensing - Header height sensing on the ground | Base |
| Feed drum - Center cleanout door | Base |
| Cutterbar - Length | 10.7 m 35 ft |
| Pickup reel - Speed control | Hydraulic |
| Feed drum - Number of fingers | 18 |
| Pickup reel - Number of slats | Base: six bat poly Optional: steel tine |
| Pickup reel - Operating speeds | 8-70 rpm |
| Top auger - Fingered augers | Optional |
| Draper belts - Width | Side belts: 4.4 m 14.3 ft Center belts: 200 cm 79 in. |
| Cutterbar - Type | Straight-line knife drive system |
| Draper belts - Speed control | Hydraulic from cab (side belts only) |
| Cutterbar - Base skid shoe height | 3.8 cm 1.5 in. |
| Pickup reel - Height control | Hydraulic |
| Pickup reel - Reel reverse | Base |
| Pickup reel - Diameter | 106.7 cm 42 in. |
| Pickup reel - Reel lift | Off the cutterbar: 100.6 cm 39.6 in. |
| Feed drum - Drum/auger reverse | Base |
| Dimensions - Platform length | 11.5 m 37.8 ft |
| Additional information - Date collected | 24 Mar 2021 |
| Feed drum - Auger finger platform | Triple chevron, retracting |
| Cutterbar - Knife drive | Double-cut, dual-drive, shaft-driven cutterbar: 10.2 cm 4 in. |
| Key Specs - Draper belts speed control | Hydraulic from cab (side belts only) |
| Pickup reel - Reel fore and aft | Fore of the cutterbar: 26.4 cm 10.4 in. |
| Dimensions - Overall operating depth | With dividers: 3.2 m 10.6 ft |
| Top auger - Size | Diameter: 43.2 cm 17 in. |
| Top auger - Type | Optional: hydraulic drive 250-350 rpm |
| Pickup reel - Fingers | Base: nylon Optional: steel |
| Cutterbar - Knife speed | X Series Combine: 520 cycles/min S-Series Combine: 490 cycles/min |
| Key Specs - Cutterbar length | 10.7 m 35 ft |
| Draper belts - Center belt reverse | Base |
| Feed drum - Operating speed | Low speed: 200 rpm High speed: 240 rpm |
| Draper belts - Belt depth | 100 cm 39.8 in. |
| Header height sensing - Header height sensing off the ground | Base |
| Key Specs - Pickup reel operating speeds | 8-70 rpm |
| Key Specs - Knife speed | X Series Combine: 520 cycles/min S-Series Combine: 490 cycles/min |
| Pickup reel - Reel resume | Base |
| Header height sensing - Type | Electrohydraulic |
| Draper belts - Cleat height | Cross belt cleat height: 19 mm 0.75 in. |
Featured List
- Width: 35 ft.
Featured Content

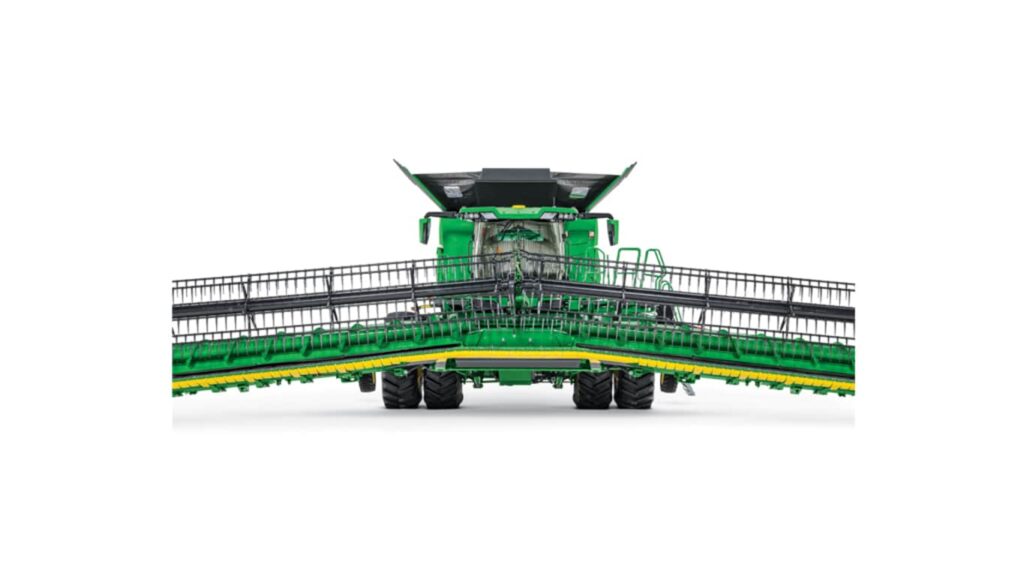

X Series Combine with 50-ft (15.2-m) Hinged Draper
John Deere HDR and HDF Drapers follow the ground by pivoting, gliding, and flexing over uneven fields to provide the best cut possible.
- Achieve the best of both worlds by adding a flexible cutterbar to a hinged draper, which already provides double the wing range of the MacDon® FD1 Draper – Hinged Drapers are available with a rigid knife on an HDR and a flexible knife on an HDF. The HDF Hinged Draper reduces missed crop when cutting on the ground in soybeans or lentils by 6 percent compared to MacDon and 2 percent compared to the HDR and RDF.*
- *NOTE: Theoretical internal John Deere study between a 13.7-ft (45-m) MacDon FD75, 640FD, HD50R, and HD50F based on static machines by measuring the area between the knife and ground based on the average lowest pod.
- Capture more crop by adjusting to the ground – Industry-exclusive hydraulic suspension separates the header from the combine, allowing it to float over the field for a more consistent cut. As the header approaches extreme field terrain, Active Feeder house Position Control automatically adjusts the feeder house height to position , enabling more float range in challenging fields
- Harvest in difficult crop conditions – Capture downed crop with the push of a button on the CommandARM™ console to automatically raise the gauge wheels and extend your reel out and down. Harvest the most challenging lodged crop confidently with a 24 percent increase in reel torque (compared to the 700FD).
- Keep a clean cutterbar no matter the field or crop – A more consistent distance between the reel fingers and cutterbar (compared to the MacDon FD145) ensures the crop is cleanly swept across the cutterbar and evenly fed into the combine throughout the full wing range.
- Improve the consistency of stubble height by 25 percent compared to the MacDon FD1 – Achieve consistent stubble height behind the combine – an advantage for better seeding performance in no-till applications. Compared to the competition, operators no longer must leave the cab to set the cut height with John Deere height control gauge wheels. The draper automatically maintains the desired cut height while floating over the land.
MacDon is a trademark of MacDon Industries Ltd.
X Series Combine with 50-ft (15.2-m) draper
The goals for harvest are simple – harvest on time and put more grain in the tank. The John Deere HDR and HDF Drapers not only harvest more bushels per hour and acres per day but capture more crops along the way.
- Reduce cutterbar loss by 25 percent – John Deere Grain Saver Draper Belts help trap grain before it can roll past the cutterbar onto the ground (compared to standard draper belts) with a unique crosshair (+) design.
- Cut header loss by up to 25 percent – Decrease header loss in high-volume canola with large fingered top augers (compared to non-fingered augers) that grab fluffy crops and pull them against the draper belts. Fingered top augers let you easily straight-cut canola.
- Reduce center section losses by up to 45 percent – Capture more crop with the center section seal kit.
- In-cab settings help you spend more time harvesting – In-cab header downforce adjustment saves time during the day compared to out-of-cab, by-hand adjustments on MacDon® models.
MacDon is a trademark of MacDon Industries Ltd.
Field test validation with PAMI against CLAAS® and MacDon
Field test validation with PAMI against CLAAS and MacDon
John Deere hinged drapers were engineered, designed, and built for reducing canola grain loss when paired with an X9 or S700 Combine. John Deere contracted with the Prairie Agricultural Machinery Institute (PAMI) to independently test, validate, and quantify full header loss advantage against CLAAS and MacDon, and the hinged drapers proved a $3.00 CAD ($2.40 USD)* per acre grain loss advantage over the MacDon FD145. Based on an internal survey of producers who used the HDR Draper head in last year’s demo season, 97 percent had a positive experience around total canola grain loss.
For complete PAMI testing results, reference their website.
*NOTE: Per acre advantage based on the following inputs:
- Yield – 72 bu/acre
- $10.60 CAD ($8.43 USD) per canola bushel
- 0.4 percent of a bushel savings per acre
MacDon is a trademark of MacDon Industries Ltd. CLAAS is a trademark of CLAAS KGaA mbH.
