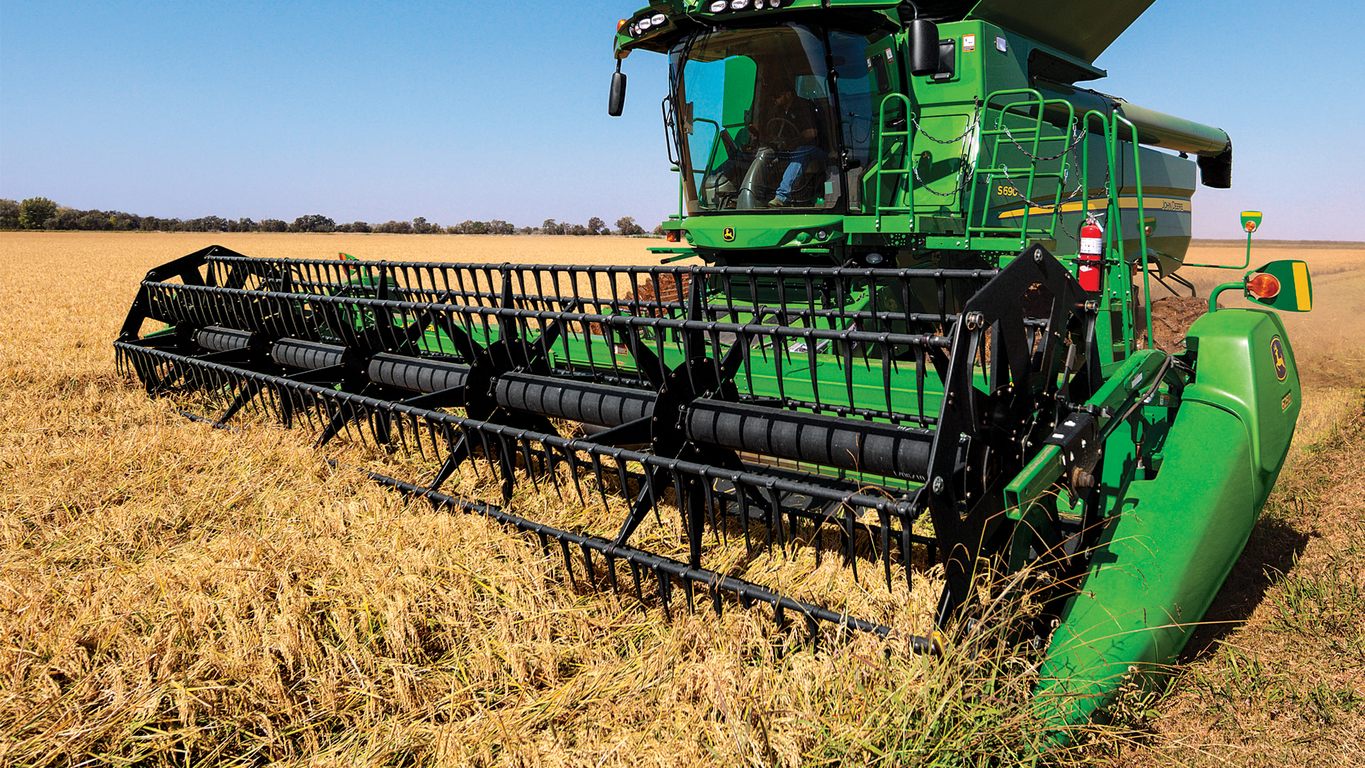

625D Draper
- John Deere
- Draper Platforms
Find a location to get your local store information and inventory.
Find Location
- Windrowing capability with 600D Drapers
- Double-cut knife system produces a cleaner cut
- Dual-knife drive system is timed
- Cutterbar is closer to the ground
- + Expand All
- - Close All
-
Quickly transport 625 Draper from field to field
Transport system
Although an integrated transport is not available for the 625D Draper, there is still a solution to move the 625D from field to field quickly. This solution is the HT12 Header Transport from Frontier™ products.
Key features of this equipment are as follows:
- Rear axle brakes
- Rear torsion flex axle
- Adjustable sliding brackets
-
Dual-knife drive system is timed
Cutterbar epicyclical gearcase
Knife drive shaftThe unique dual-knife-drive system is timed, creating the smoothest-possible reciprocating knife-drive system currently in the industry. The positive, reliable shaft-driven dual epicyclical in-line knife drives with built-in driveline protection provide operators with the strongest knife-drive system.
-
Double-cut knife system produces a cleaner cut
All John Deere 600D Drapers include a double-cut knife which features a hydraulic tilt that is controlled from inside the cab. All 10.6-m (35-ft) and 12.1-m (40-ft) draper cutterbars also have knifeback reinforcement straps to strengthen the knifeback.
Customer Value:
- Longer stroke of knife section provides a faster, cleaner, and smoother cut which allows operators to harvest at faster ground speeds maximizing productivity
- Reinforced knifeback strengthens cutterbar for tough harvesting conditions maximizing performance
- Hardened sickle sections and unique boron treatment extends wear life
- Hydraulic tilt optimizes the cutterbar angle for varying conditions, extending the harvest day and providing the lowest-possible cut height
Double-cut cutterbar system
Double-cut rock guardTheory of Operation:
The 100-mm (4-in.) cutting action produces a cleaner cut versus the tearing effect of shorter-stroke cutting systems. Knife hold-downs are easily adjusted to help maintain harvesting performance.
Tilt cylinder
The cutterbar hydraulic tilt adjusts a full 8 degrees while maintaining excellent visibility to the cutterbar throughout the tilt range. For improved ease of use the optional advanced hydro handle can be configured to control the platform tilt.
-
Reel resume and reverse are features on the 600D Drapers
Reel resume and reverse are features on the 600D Drapers. The combine operator can store two different reel positions with one setting for normal conditions and another for down, tangled, short, leaning crops.
Customer Value:
- Added time savings and convenience with saved reel positions, lowering operator fatigue
- Reel-reverse feature reverses the reel in conjunction with the center feed drum and belt to back out plugs and increase harvest efficiency
Draper drum
Draper reel
Auxiliary top auger
| Type | Optional hydraulic drive |
Cutterbar
| Type | Straight line knife drive system |
| Length | 7.8 m 25.5 ft |
| Knife drive | Base single, optional dual knife (combine use only) Base dual knife (SPW only or SPW/combine combination use) |
| Knife speed | 490 cycles/min 1,040 spm |
| Cutterbar tilt | Base Hydraulic, 9 degrees tilt maximum |
Dimensions
| Platform length | 8.5 m 27.9 ft |
| Overall operating depth | 2.4 m 7.9 ft |
| Transport width, field position | 8.1 m 26.5 ft |
Draper belts
| Width | 0.7 L 24 oz rubber coated polyester with V-Guide tracking Side belts 1,016 mm 40 in. Center belts 1,397 mm 55 in. Center belt not included with SPW configuration |
| Clean height | 25.4 mm 1 in. |
| Operating speed | Side belts: variable up to 223 m/min 735 fpm Center belts: 212 m/min 695 fpm Center belt not included with SPW configuration |
| Speed control | Hydraulic from cab |
| Center belt reverse | Base; Center belt not included with SPW configuration |
Feed drum
| Diameter | 406 mm 16 in. Feed drum not included with SPW configuration |
| Feed drum fingers | Steel heavy-duty round 16 mm (0.625 in) diameter with breakaway notch and retainer |
| Number of fingers | 18 |
| Auger finger platform | Dual chevron, retracting |
| Finger reach | 152 mm 6 in. |
| Drum/auger reverse | Base |
| Operating speed | 195 rpm |
| Center clean out door | Base |
Header height sensing
| Type | Electro-hydraulic base |
| Header height sensing on the ground | Base |
Pickup reel
| Number of slats | 6 bat poly base 8 bat steel optional (for forage conditions) |
| Fingers | Nylon (steel optional, typically used in rice or forage conditions) |
| Diameter | 1,067 mm 42 in. For rice or forage conditions 1,371 mm 54 in. |
| Height control | Hydraulic |
| Speed control | Hydraulic |
| Reel lift | Cylinder stroke 330 mm 13 in. Total range 391.5 mm 15.4 in. |
| Reel fore and aft | Cylinder stroke 359 mm 14.1 in. Total range 620 mm 24.4 in. |
| Reel resume | Base |
| Reel reverse | Base |
| Operating speeds | 6-54 rpm |
| Operating speeds (54-in. reel) | 5-44 rpm |
Weight
| Approximate weight (pickup reel) | Combine only 2,884 kg 6,359 lb SPW only 2,284 kg 5,036 lb |
| Approximate weight (optional 54-in. reel) | Combine only 2,974 kg 6,556 lb SPW only 2,374 kg 5,234 lb |
