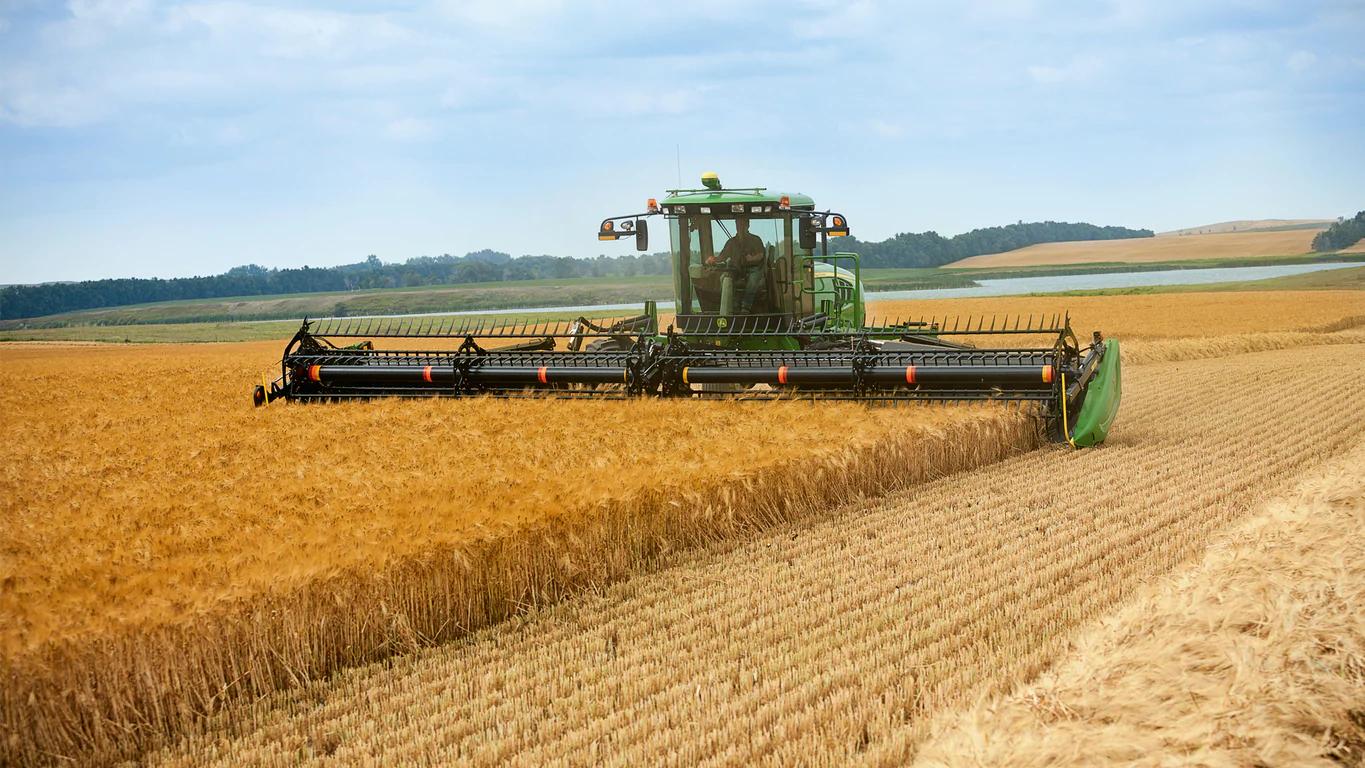

John Deere 425D
  • + Expand All
  • - Close All
  • Strong, positive-feeding reel handles all crop conditions
    435D split-span reel with plastic fingers 435D split-span reel with plastic fingers
    Cam reel tooth action Cam reel tooth action
    Reel in full forward position Reel in full forward position

    The cam reel design of the 400D Series Draper Platform features:

    • 165-cm (65-in) diameter
    • Heavy-duty plastic or steel fingers
    • Tooth position control
    • Smoother and quieter operation at higher reel speeds
    • Less wear on reel drive components
    • Less shattering of the crop
    Hourglass-shaped reel Hourglass-shaped reel
    Reel endfingers Reel endfingers

    The hourglass-shaped reel has:

    • End positioned closer to the cutterbar to provide smooth feeding
    • Adjustable bolt position to change distance of reel to cutterbar
    Adjustable cam positions Adjustable cam positions
    #

    The cam position and reel position are adjustable, enabling the machine settings to be matched with the crop conditions for a trouble-free harvest. The finger release position is easily adjustable to one of four cam positions.



    The reel is hydraulically positioned up, down, and fore-aft to allow perfect positioning for gentle yet positive feeding action.



    Plastic fingers:

    • Standard from the factory on all 400D Series Platforms
    • Recommended for all crop conditions
    • Lighter weight and easy to replace

    Steel fingers:

    • Only available through Parts
    • Recommended for heavy forage crop
    • Longer life



    Optional end fingers improve feeding aggressiveness in difficult feeding and cutting conditions with down and tangled crop.

    Plastic tine split reel with end feed fingers Plastic tine split reel with end feed fingers
    #

    Single span reel:

    • Available on 415D, 420D, 425D, 430D and 435D Drapers
    • Less weight
    • Better center visibility
    • Good option for canola and small grains harvesting

    Double span reel:

    • Available on 430D, 435D and 440D Drapers
    • Better feeding in heavy, wet, or down crop
    • Better control of the reel height for more consistent feeding
    Five-bat reel Five-bat reel
    Six-bat reel Six-bat reel
    Nine-bat reel Nine-bat reel

    The reel is available in five-six- or nine-bat configurations:

    • Six- to nine-bat conversion is available with field installation
      • Recommended for heavy conditions such as silage or grass seed crops
  • Gauge wheels provide ground following for uniform cut
    Dual gauge wheel option Dual gauge wheel option
    #

    400D Series Draper Platforms offer optional dual gauge wheels with spring suspension:

    • 1-cm (15-in.)
    • Excellent ground following and flotation in all conditions
    • Fine adjust the float on the go from the cab for high-speed harvesting and stable flotation
    • Available as part of the integrated slow-speed transport system option
  • Hydraulic deck shift gives larger windrows for more efficient harvesting

    John Deere 425D, 430D, 435D, and 440D Drapers can windrow out of the center, right, or left ends of the draper with effortless change using the hydraulic deck-shift option.

    Double windrow using deck shift Double windrow using deck shift
    Double windrow being combined Double windrow being combined

    Hydraulic deck shift option:

    • Larger windrows to match combine or self-propelled forage harvester
    • Match narrower-width drapers with higher-capacity harvesting
    • Place higher-density windrows in front of harvesters when yields are low
    • Discharge two windrows side by side for uniform combine or forage harvester feeding
    • Move chain stop to change center belt opening quickly and easily for different crop types and density (see operator’s manual for more information)
    • Discharge crop to the outside of the headland to prevent running over the windrow while cutting the rest of the field
    • Platform stays balanced with automatic fine-float adjustment when using deck shift
    • Optional double draper drive bundle is recommended when using deck shift and harvesting silage or wet, heavy crops
      • NOTE: The double draper drive option is not compatible with the 425D Platform.
    First pass - right discharge First pass - right discharge
    Second pass - right discharge Second pass - right discharge
    Third pass - left discharge Third pass - left discharge
    #
    Swath forming rods Swath forming rods
    #

    Optional left- and right-end swath deflector rods form a space between the windrow and uncut crop to have adequate clearance for the crop divider on the next pass.

  • John Deere parts and service support provide uptime for a timely harvest
    Sales and service delivered Sales and service delivered
    #

    Sales, parts, and service support from a local John Deere dealer offers overnight parts delivery and a well-trained support staff.

  • Optional reverser clears plugs effortlessly for higher productivity during tough harvest conditions
    Platform reverser controls on W155 Platform reverser controls on W155
    #

    Platform reverser controls are available for the W155 Self-Propelled Windrower only:

    • Easily activated from operator's station to clear platform of plugs
    • Reverser slowly reverses the knife drive and optional hay conditioner, if equipped, to clear plugs
    • Highly recommended when using optional hay conditioner with 400D Platforms
    • Operators can run machines closer to their maximum capacity and it will take less time to unplug
    Reverser valve block Reverser valve block
    #

    The reverser consists of a valve block and valves, shown in the image above. It is the gold-colored valve block on the right side. It is shown plumbed for a 100A Auger Platform.

  • Cutterbar and frame profile gives uninterrupted crop flow
    C-shaped cutterbar profile C-shaped cutterbar profile
    #

    The C-shaped cutterbar profile provides:

    • Smooth crop flow
    • Superior draper-to-cutterbar seal
    • Reduced amount of material under belts
    • Minimized crop loss in shatter-prone crops
  • Excellent visibility to cutterbar and belt
    Cutterbar visibility Cutterbar visibility
    Center visibility Center visibility
    Left-side visibility Left-side visibility
    Right-side visibility Right-side visibility

    The cutterbar design provides excellent visibility across the full range of tilt:

    • Cutterbar and belt can be easily seen from cab even with optional top-crop conveying auger installed
    • Cutterbar can be tilted from cab mechanically or hydraulically depending on windrower option chosen
    • Change cutterbar angle with varying crop and field conditions for best cut height and crop flow
  • Transport easily with integrated transport system
    400D integral slow-speed transport system (W155 shown) 400D integral slow-speed transport system (W155 shown)
    #

    Slow-speed transport system:

    • 400D Drapers are towable only with W155 and W170 Self-Propelled Windrowers
    • Transport is recommended behind a tractor with seven-pin electrical lighting outlet
    • 430D, 435D and 440D Drapers only
    • Convert draper from field to transport in minutes with one person and without tools
    • Dual front dolly wheel tires and two, gauge wheel tires carry weight of transport



    It is a simple four-step process to switch from field to transport:

    1. Move right gauge wheels from field to transport
    2. Move left gauge wheels from field to transport
    3. Attach the tongue.
    4. Detach from the windrower.

Auxiliary top auger

Type Optional hydraulic drive
