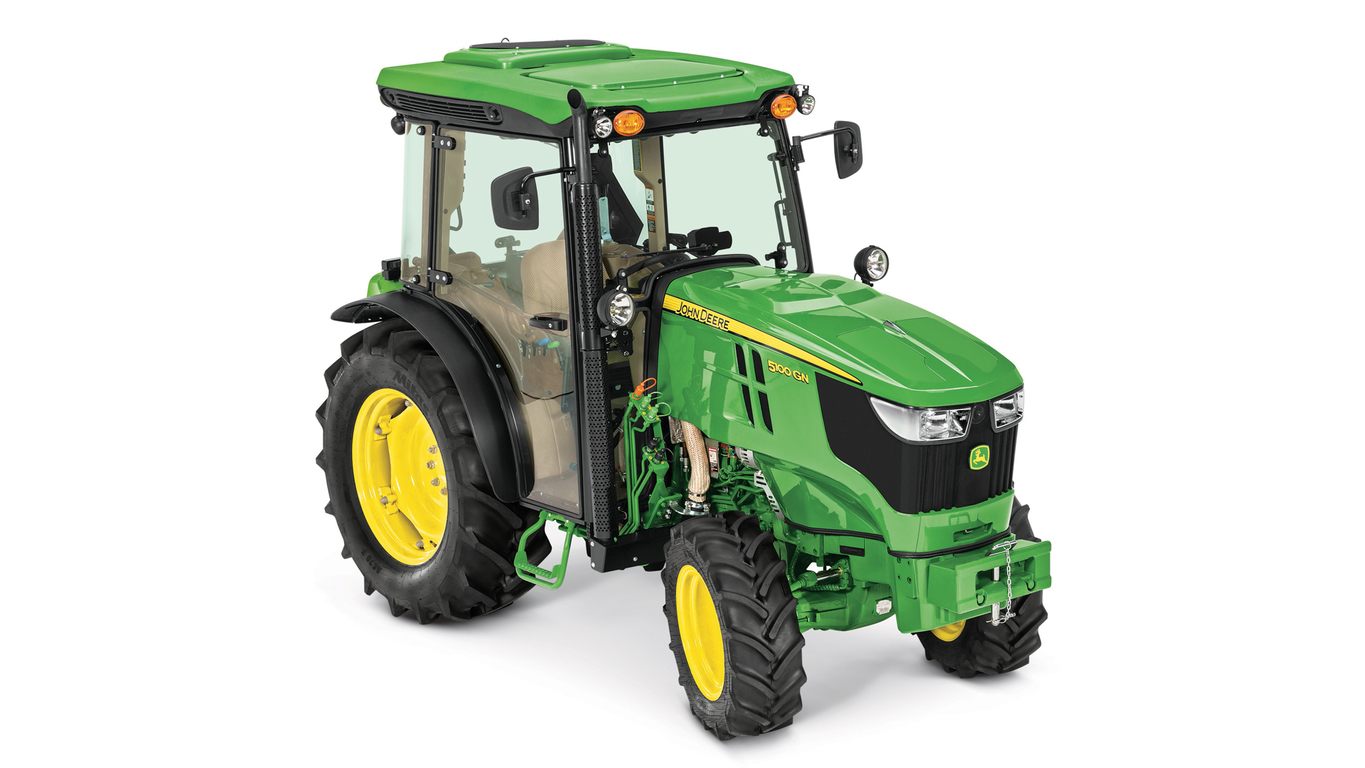

5100GN Tractor
- John Deere
- Specialty Tractors Narrow Series Tractors
Find a location to get your local store information and inventory.
Find Location
Key Features & Specs
- FT4 100 hp engine/86 hp PTO
- Improved turning radius
- Two transmissions available: 12F/12R and 24F/12R
- Cab or open station
- Engine HP 100
-
Standard Transmission
12F/12R SyncReverser
-
Optional Transmission
24F/12R PowerReverser
- Cab Yes
- Open Station Yes

- + Expand All
- - Close All
-
Tailored to fit: John Deere specialty solutions
The 5G Final Tier 4 (FT4) Specialty Series now brings a narrow and ultra-narrow width to specialty applications.
The 5GV Series is built to operate in vineyards with a minimum working width of 108.8 cm (42.8 in.) from rear tire to rear tire. The 5GV Series cab, with an overall width of 108.1 cm (42.6 in.), is designed to pass between narrow vineyard rows. The 5GN features an extra-wide cab of 127.5 cm (50.2 in.).
The two-door cab on both 5G models offers the operator yet another convenience of entering and exiting from either side. With a distance of 560 mm (22.1 in.) between the right- and left-hand side consoles and a play of 285 mm (11.2 in.) between seat and steering wheel, the 5G Series provides one of the roomiest cabs in the specialty tractor market.Overview minimum working widths:
Overview minimum working widths
5G Specialty Series basic feature overview:
Feature overview 5GN 5GV 100 hp (74 kW), 4-cylinder / 3.4 L (0.9 gal.) 5100GN N/A 90 hp (63 kW), 4-cylinder / 3.4 L (0.9 gal.) 5090GN 5090GV 75 hp (55 kW), 4-cylinder / 3.4 L (0.9 gal.) 5075GN 5075GV Two-wheel drive (2WD) / four-wheel drive (4WD) Available Available Cab / open operator station (OOS) Available Available John Deere value
Performance: tailored to fit – matching narrow widths to customer narrow specialty applications.
-
Multiple transmission options
The 5G Series brings additional choices for transmission options. In addition to a 24 forward / 12 reverse (24F/12R) PowrReverser™ transmission option, the 5G Series offers the 12F/12R SynchReverser™ transmission for operators looking for a mechanical reverser.
The 24F/12R transmission provides 24 forward speeds and 12 reverse speeds for transport speeds of up to 40 km/h (24.9 mph). The transmission provides convenient high/low and declutch push-button controls. The high/low feature benefits operators who frequently transport their tractors from field to field or find themselves in bog-down situations during rear power take-off (PTO) work.
Users can push the rabbit button (high) without having to depress the clutch to get an increase in speed. They can also push the turtle button (low) to get a decrease in speed, similar to downshifting or engine braking without having to grab another gear. The PowrReverser transmission has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor. A neutral start switch requires the PowrReverser lever to be in the neutral position to start the engine.Gear-shift lever with high/low selectors
On the 12F/12R, 12 forward and 12 reverse speeds are achieved by using two platform-mounted levers for shift operation. The transmission offers three-range transmission with four speeds in each range. Operators can easily switch directions without having to completely stop the tractor with synchronized, in-line, shuttle-shift capability between forward and reverse gears on the gear shift lever in all three ranges (A, B, and C ranges). A neutral start switch requires the gear-shift lever be in the neutral or park positions to start the engine.
12F/12R 24F/12R PowrReverser Speed (km/h) 1.4 to 30 km/h (0.6 to 18.6 mph) (1.4 to 30 km/h) 0.5 to 40 km/h (0.3 to 24.9 mph) Creeper range --- Yes Configuration 2WD or 4WD 4WD Clutch type Dry clutch Multi-disc wet clutch Clutching required to shift Yes No Reverser Synchronized reverser PowrReverser Hi-Lo --- Electrohydraulic Mechanical front-wheel drive (MFWD) engagement Electrohydraulic, if MFWD option installed PTO engagement Mechanical Electrohydraulic Differential lock engagement Electrohydraulic -
Outstanding hydraulic performance
The John Deere 5G Series provides an outstanding total hydraulic system flow of 126.7 L per minute (33.2 gal. per minute) with an optional third hydraulic pump.
This hydraulic system ensures excellent hydraulic performance and capacity:- Precise steering without diverting oil flow from the SCVs and rockshaft is ideal when maneuvering and operating an implement at the same time as turning at the headland
- Ensures easy power steering with heavy loads on the front of the tractor
- Supplies plenty of power to run hydraulic motors
- Fast cycle times even during the simultaneous usage of various hydraulic driven implements
Hydraulic performance
[75 hp, 90 hp, and 100 hp at 2300 rpm]5075GV 5090GV 5075GN 5090GN 5100GN Steering and transmission 7.9 gal./min (29.9 L/min) Second pump - SCV and hitch 17.6 gal./min (66.6 L/min) Third pump - rockshaft 7.9 gal./min (29.9 L/min) Total hydraulic flow 33.4 gal./min (126.4 L/min) -
Excellent serviceability reduces operational costs and improves productivity
Regular service and maintenance are essential to the performance, productivity, and longevity of the tractor.
- Easy access to regular service points minimizes service time.
- Tractors are equipped with onboard self-diagnostic capabilities and are fully compatible with the John Deere-exclusive Service ADVISOR™ system.
- Daily service requirements are minimal and simple to accomplish. Most service interval requirements can be performed with a basic understanding of procedures and common tools.
All items in the daily service schedule can be performed without the use of tools:
- Convenient access to engine oil, hydraulic oil, coolant level, and water separator
- Easy access to periodic engine maintenance checks by simply raising the hood
- Single-point latch mechanism and self-contained leash ensure easy hood opening and closure
NOTE: Always refer to the operator’s manual for complete maintenance and service recommendations.
-
Auxiliary fuel tank (5GN)
The 5GN models have an optional auxiliary fuel tank available, which increases the fuel tank capacity by up to 38% on the 5075GN and up to 33% on the 5090GN and 5100GN.
The increased capacity allows for more productive time in the field with fewer stops for refueling.Machine Code Fuel tank capacity Code Auxiliary tank capacity 5075GN Base 86 L (22.7 gal.) 8313 28.4 L (7.5 gal.) 5090GN Base 73 L (19.3 gal.) 8313 28.4 L (7.5 gal.) 5100GN Base 73 L (19.3 gal.) 8313 28.4 L (7.5 gal.) Auxiliary fuel tank
-
Heavy-duty weight
The 5G Series Tractors are heavy-duty utility tractors in two narrow chassis widths. Heavier gross vehicle weight means more down force to keep implements in the ground. Heavier equipment also leads to improved traction and performance in the field. The 5G Series Tractors have the weight to power through tough jobs.
Machine Two-wheel drive (2WD)
rollover protective structure (ROPS)4WD ROPS 2WD cab Four-wheel drive (4WD) cab 5075GV 2440 kg (5379 lb) 2530 kg (5577 lb) 2655 kg (5853 lb) 2745 kg (6051 lb) 5090GV 2440 kg (5379 lb) 2530 kg (5577 lb) 2655 kg (5853 lb) 2745 kg (6051 lb) 5075GN 2525 kg (5566 lb) 2660 kg (5864 lb) 2845 kg (6272 lb) 2975 kg (6558 lb) 5090GN 2525 kg (5566 lb) 2660 kg (5864 lb) 2845 kg (6272 lb) 2975 kg (6558 lb) 5100GN 2525 kg (5566 lb) 2660 kg (5864 lb) 2845 kg (6272 lb) 2975 kg (6558 lb) -
Powerful Final Tier 4 (FT4) engines
The 5G Specialty Series Tractors are equipped with powerful FT4, diesel-only engines.
All GN and GV models are equipped with a robust FPT Industrial 4-cylinder, 3.4 L (0.9 gal.) displacement engine that offers real versatility and performance for all kinds of specialty operations.Engine overview 5GN 5GV 100 hp (74 kW), 4-cylinder / 3.4 L (0.9 gal.) 5100GN Not available 90 hp (67 kW), 4-cylinder / 3.4 L (0.9 gal.) 5090GN 5090GV 75 hp (55 kW), 4-cylinder / 3.4 L (0.9 gal.) 5075GN 5075GV Supporting the narrow dimensions of the 5GV Series
The narrow width of the 5GV Series requires a compact engine solution. The compact 3.4 L (0.9 gal.) engine supports the envelope of the 5GV Series entering super narrow vineyards as well as the turning radius at the end of a row.
Performance - made to measure
The engine ensures high productivity under tough working conditions. With a torque of 295.7 lb-ft for the 100 hp model, the engine ensures the optimal performance for versatile operations.
John Deere value:
Performance: the powerful FT 4 engines support the narrow machine envelope of the 5G Specialty Series and offer a high torque at rated rpm, which provides a high performance. -
Versatile rear hitch
The heavy-duty 3-point hitch design on the 5G Series provides a standard maximum lift of 2590 kg (5,710 lb) at the ball ends. An optional additional lift cylinder is available for the 5GN Series, which increases the maximum lift capacity by 510 kg (1,124 lb) to 3100 kg (6,834 lb) (3100 kg) at the ball ends.
Hooking up implements is quick and simple with the standard Category 2 3-point hitch on the 5GN. Hooking up implements that require Category 1 or Category 1N is also possible and requires very little time with the 5GV.Optional extra lift capacity shown on the 5GN photo
Code Description Information Availability 8490 Additional lift cylinder Includes additional lift cylinder (maximum lift capacity at ball ends: 3100 kg [6,834 lb]) 5GN 4130 Fixed ball ends 3-point hitch with fixed ball ends for draft links 5GN, 5GV 4131 Adjustable ball ends 3-point hitch with adjustable ball ends for draft links 5GN, 5GV 4132 Adjustable quick couplers 3-point hitch with adjustable quick couplers for draft links 5GN, 5GV 4151 Hydraulic lift rod Hydraulically adjust lift arm to tilt or level implement 5GN, 5GV 4152 Mechanical lift rod Mechanically adjust lift arm to tilt or level implement 5GN, 5GV Lift rods
John Deere value
Performance: higher lift capacity for a wider variety of implements and strong performance means real versatility.
