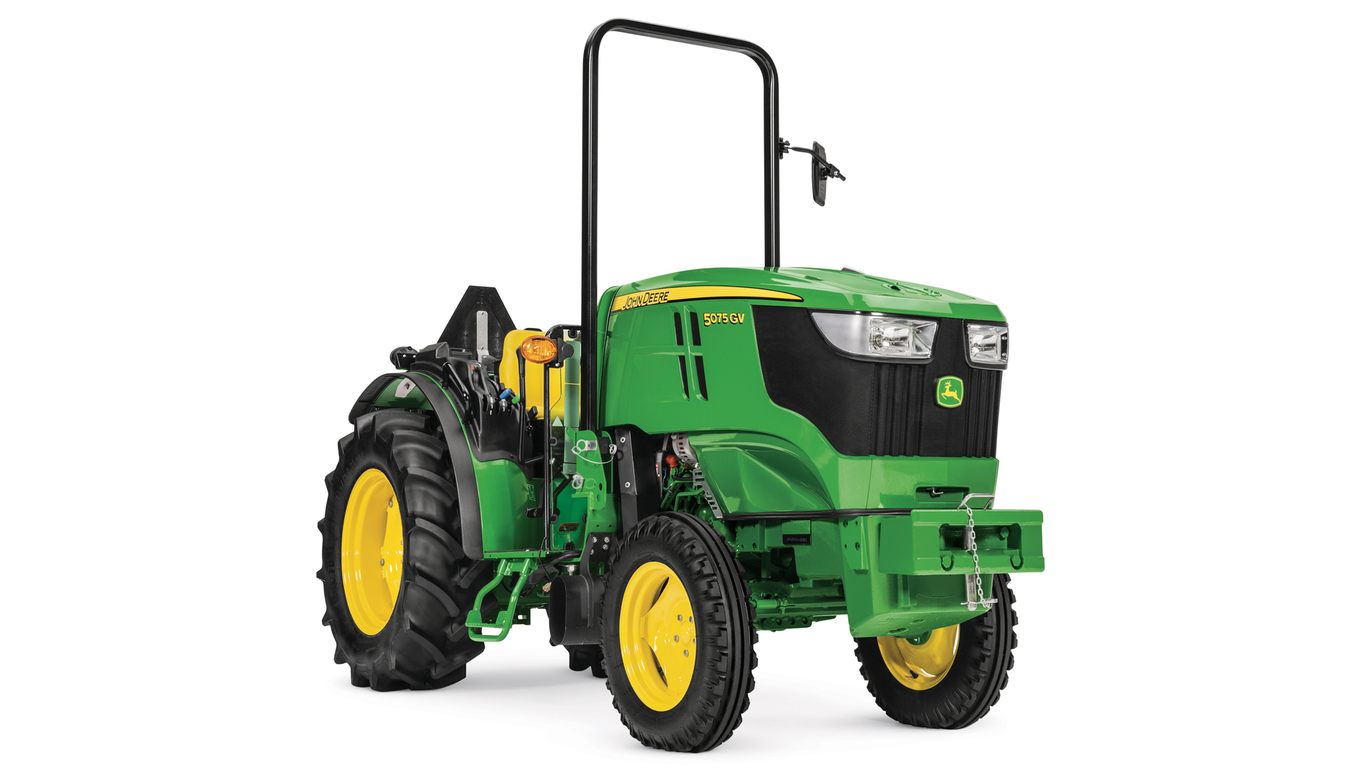

John Deere 5075GV-5075GN
  • + Expand All
  • - Close All
  • Excellent serviceability reduces operational costs and improves productivity

    Regular service and maintenance are essential to the performance, productivity, and longevity of the tractor.

    • Easy access to regular service points minimizes service time.
    • Tractors are equipped with onboard self-diagnostic capabilities and are fully compatible with the John Deere-exclusive Service ADVISOR™ system.
    • Daily service requirements are minimal and simple to accomplish. Most service interval requirements can be performed with a basic understanding of procedures and common tools.

    All items in the daily service schedule can be performed without the use of tools:

    • Convenient access to engine oil, hydraulic oil, coolant level, and water separator
    • Easy access to periodic engine maintenance checks by simply raising the hood
    • Single-point latch mechanism and self-contained leash ensure easy hood opening and closure

    NOTE: Always refer to the operator’s manual for complete maintenance and service recommendations.

  • Tailored to fit: John Deere specialty solutions

    The 5G Final Tier 4 (FT4) Specialty Series now brings a narrow, ultra-narrow, and low profile option to specialty applications.

    The 5GV Series is built to operate in vineyards with a minimum working width of 108.8 cm (42.8 in.) from rear tire to rear tire. The 5GV Series cab, with an overall width of 108.1 cm (42.6 in.), is designed to pass between narrow vineyard rows. The 5GN features an extra- wide cab of 127.5 cm (50.2 in.). The 5GL series is manufactured with orchardists in mind. This low-profile tractor has an approximate height of 135.89cm (53.5 in.) and width of 152.4cm (60 in.) (depending on tire configuration), which makes it ideal for operating in orchards that are laden with heavy fruit.

    The two-door cab on the 5GN and 5GV models offers the operator yet another convenience of entering and exiting from either side. With a distance of 560 mm (22.1 in.) between the right- and left-hand side consoles and a play of 285 mm (11.2 in.) between seat and steering wheel, the 5G Series provides one of the roomiest cabs in the specialty tractor market.

    Overview minimum working widths:
    Overview minimum working widthsOverview minimum working widths

    5G Specialty Series basic feature overview:

    Feature overview5GN5GV5GL
    100 hp (74 kW), 4-cylinder / 3.4 L (0.9 gal.)5100GNN/AN/A
    90 hp (63 kW), 4-cylinder / 3.4 L (0.9 gal.)5090GN5090GVN/A
    75 hp (55 kW), 4-cylinder / 3.4 L (0.9 gal.)5075GN5075GV5075GL
    Two-wheel drive (2WD) / four-wheel drive (4WD)Only 4WDOnly 4WDOnly 4WD
    Cab / open operator station (OOS)AvailableAvailableOnly OOS



    John Deere value

    Performance: tailored to fit – matching narrow widths and low heights to producers’ high value crop applications.

  • Transmission

    The 5G Series comes standard with a 24 forward/12 reverse (24F/12R) PowrReverser™ transmission. The 24F/12R transmission provides 24 forward speeds and 12 reverse speeds for transport speeds of up to 40 km/h (24.9 mph). The transmission provides convenient Hi-Lo and declutch push-button controls. The Hi-Lo feature benefits operators who frequently transport their tractors from field to field or find themselves in bog-down situations during rear power take-off (PTO) work.

    Users can push the rabbit button (high) without having to depress the clutch to get an increase in speed. They can also push the turtle button (low) to get a decrease in speed, similar to downshifting or engine braking without having to grab another gear. The PowrReverser transmission has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor. A neutral start switch requires the PowrReverser lever to be in the neutral position to start the engine.

    Gear-shift lever with Hi-Lo selectorsGear-shift lever with Hi-Lo selectors
     24F/12R PowrReverser
    Speed (km/h)0.5 to 40 km/h (0.3 to 24.9 mph)
    Creeper rangeYes
    ConfigurationFour-wheel drive (4WD)
    Clutch typeMulti-disc wet clutch
    Clutching required to shiftNo
    ReverserPowrReverser
    Hi-LoElectrohydraulic
    Mechanical front-wheel drive (MFWD) engagementElectrohydraulic, if MFWD option installed
    PTO engagementElectrohydraulic
    Differential lock engagementElectrohydraulic
  • Versatile rear hitch

    The heavy-duty 3-point hitch design on the 5G Series provides a standard maximum lift of 2590 kg (5,710 lb) at the ball ends. An optional additional lift cylinder is available for the 5GN Series, which increases the maximum lift capacity by 510 kg (1,124 lb) to 3100 kg (6,834 lb) at the ball ends.

    Hooking up implements is quick and simple with the standard Category 2 3-point hitch on the 5GN. Hooking up implements that require Category 1 or Category 1N is also possible and requires very little time with the 5GV and 5GL.

    Optional extra lift capacity shown on the 5GN photoOptional extra lift capacity shown on the 5GN photo
    CodeDescriptionInformationAvailability
    8490Additional lift cylinderIncludes additional lift cylinder (maximum lift capacity at ball ends: 3100 kg [6,834 lb])5GN
    4130Fixed ball ends3-point hitch with fixed ball ends for draft links5GN, 5GV
    4131Adjustable ball ends3-point hitch with adjustable ball ends for draft links5GN, 5GV
    4132Adjustable quick couplers3-point hitch with adjustable quick couplers for draft links5GN, 5GV, 5GL
    4151Hydraulic lift rodHydraulically adjust lift arm to tilt or level implement5GN, 5GV, 5GL
    4152Mechanical lift rodMechanically adjust lift arm to tilt or level implement5GN, 5GV, 5GL



    Lift rodsLift rods

    John Deere value

    Performance: higher lift capacity for a wider variety of implements and strong performance means real versatility.

  • Auxiliary fuel tank (5GN)

    The 5GN models have an optional auxiliary fuel tank available, which increases the fuel tank capacity by up to 38 percent on the 5075GN and up to 33 percent on the 5090GN and 5100GN.

    The increased capacity allows for more productive time in the field with fewer stops for refueling.

    MachineCodeFuel tank capacityCodeAuxiliary tank capacity
    5075GNBase86 L (22.7 gal.)831328.4 L (7.5 gal.)
    5090GNBase73 L (19.3 gal.)831328.4 L (7.5 gal.)
    5100GNBase73 L (19.3 gal.)831328.4 L (7.5 gal.)
    Auxiliary fuel tankAuxiliary fuel tank
  • Heavy-duty weight

    The 5G Series Tractors are heavy-duty utility tractors in two narrow chassis widths. Heavier gross vehicle weight means more down force to keep implements in the ground. Heavier equipment also leads to improved traction and performance in the field. The 5G Series Tractors have the weight to power through tough jobs.

    MachineFour-wheel drive (4WD) rollover protective structure (ROPS)4WD cab
    5075GV2530 kg (5577 lb)2745 kg (6051 lb)
    5090GV2530 kg (5577 lb)2745 kg (6051 lb)
    5075GN2660 kg (5864 lb)2975 kg (6558 lb)
    5090GN2660 kg (5864 lb)2975 kg (6558 lb)
    5100GN2660 kg (5864 lb)2975 kg (6558 lb)
    5075GL2670 kg (5886 lb)No cab option
  • Powerful Final Tier 4 (FT4) engines

    The 5G Specialty Series Tractors are equipped with powerful FT4, diesel engines.

    All GN, GV, and GL models are equipped with a robust FPT Industrial 4-cylinder, 3.4-L (207.5-cu in.) displacement engine that offers real versatility and performance for all kinds of specialty operations.

    Engine overview5GN5GV5GL
    74.6 kW (100 hp), 4-cylinder / 3.4 L (207.5 cu in.)5100GNNot availableNot available
    67.1 kW (90 hp), 4-cylinder / 3.4 L (207.5 cu in.)5090GN5090GVNot available
    55.9 kW (75 hp), 4-cylinder / 3.4 L (207.5 cu in.)5075GN5075GV5075GL



    Supporting the narrow dimensions of the 5GV Series

    The narrow width of the 5GV Series requires a compact engine solution. The compact 3.4-L (207.5-cu in.) engine supports the envelope of the 5GV Series entering super narrow vineyards as well as the turning radius at the end of a row.


    Performance - made to measure

    The engine ensures high productivity under tough working conditions. With a torque of 401 Nm (295.7 lb-ft) for the 74.6-kW (100-hp) model, the engine ensures the optimal performance for versatile operations.


    John Deere value:

    Performance: the powerful FT4 engines support the narrow machine envelope of the 5G Specialty Series and offer a high torque at rated rpm, which provides a high performance.

  • Outstanding hydraulic performance

    The John Deere 5G Series provides an outstanding total hydraulic system flow of 126.4 L/min (33.4 gpm) with an optional third hydraulic pump.

    This hydraulic system ensures excellent hydraulic performance and capacity:

    • Precise steering without diverting oil flow from the selective control valves (SCVs) and rockshaft is ideal when maneuvering and operating an implement at the same time as turning at the headland
    • Ensures easy power steering with heavy loads on the front of the tractor
    • Supplies plenty of power to run hydraulic motors
    • Fast cycle times even during the simultaneous usage of various hydraulic driven implements



    Hydraulic performance
    55.9 kW (75 hp), 67.1 kW (90 hp), and 74.6 kW (100 hp) at 2300 rpm

    5075GV5090GV5075GN5090GN5100GN5075GL
    Steering and transmission29.9 L/min (7.9 gpm)
    Second pump - SCV and hitch66.6 L/min (17.6 gpm)
    Third pump - rockshaft29.9 L/min (7.9 gpm)
    Total hydraulic flow126.4 L/min (33.4 gpm)



Capacities

Fuel tank Standard: 85.9 L<br/>22.7 U.S. gal.
