3-point hitch

Lift capacity, 24-in. behind link arms 309 kg
681 lb
Type Limited Category 1


Compliance NA
Visibility NA
Air conditioning, temperature differential NA
Doors NA
Noise rating NA
Seat equipment NA


Wheelbase 145 cm
57.1 in.
Front axle clearance 195 mm
7.7 in.
Turning radius without brakes 2.25 m
7.4 ft
Limited slip differential No
Approximate shipping weight (open-station; cab) 610 kg
1345 lb


Battery size 500 CCA
Alternator (12-V) 40 amp
Starter size 1.2 kW
1.6 hp


Family EYDXL0.99NS2
Manufacturer Yanmar
Engine model 3TNM74F-NCJT
Engine power (gross) 16.5 kW
22.4 hp
Power take-off (PTO) power 10.8 kW
14.5 hp
Rated engine speed 3200 rpm
Type Diesel
Injection pump type Indirect Injection
Aspiration Natural
Emissions compliance Final Tier 4
Cylinders/displacement 3 / 0.993 L
3 / 60.6 cu in.
Number of cylinders Three
Cylinder liners Cast-In-Block
Bore and stroke 74x77 mm
2.91 x 3.03 in.
Compression ratio 23.5:1
Lubrication Pressurized
Cooling system Water pump
Air cleaner Dual element
Engine torque at rated speed 49.2 Nm
36.3 lb-ft
Fuel tank capacity 21.2 L
5.6 U.S. gal.

Final drive

Type Bull Gear
Differential lock Yes

Fluid capacities

Crankcase with filter 2.7 L
2.9 qt
Transmission and hydraulic system 14 L
3.7 qt

Fuel system

Type Indirect Injection
Fuel consumption <br/>5.3 L/hr<br/>1.4 U.S. gal./hr


Type Open Center
Pump type Gear
Maximum operating pressure 2150 psi
Draft control sensing Select Control
Remote control valves available Two
Pump rated output Steering<br/>10.8 L/min<br/>2.8 gpm<br/>Implement<br/>13.2 L/min<br/>3.5 gpm<br/>24 L/min<br/>6.3 gpm

Key Specs

Implement hydraulics 13.2 L/min<br/>3.5 gpm
Power take-off (PTO) power 10.8 kW<br/>14.5 hp
Hitch type Limited Category 1
Engine power (gross) 16.5 kW<br/>22.4 hp
Approximate shipping weight (open-station; cab) 610 kg<br/>1345 lb
Standard transmission; forward/reverse Hydrostatic - 2 range
Wheelbase 145 cm<br/>57.1 in.
Lift capacity, 24-in. behind link arms 309 kg<br/>681 lb
Steering hydraulics 10.8 L/min<br/>2.8 gpm
Cruise control No


Toolbox Yes

Operator station

Rollover protective structure Type
Platform - flat/straddle One-piece semi flat
Gear shift location - console/floor Left Hand Side

Power take-off (PTO)

Standard Rear - 540 rpm
Mid - 2100
Control Independent
Clutch Wet disc
Brake (for mid and rear PTO) Wet disc


Front R4 - 18x8.5-10
Rear R4 - 26x12-12
Front tread range 91.8 cm
36.1 in.
Rear tread spacing 89.5 cm


Standard transmission; forward/reverse Hydrostatic - 2 range
Left-hand reverser No
Final drive Bull Gear
Brakes Wet disc (left-hand pedal)
Steering Power
Clutch, wet/dry N/A
Creeper No
Cruise control No
Differential lock Yes
Axle capacity Front<br/>612 kg<br/>1349 lb<br/>Rear<br/>715 kg<br/>1576 lb<br/>

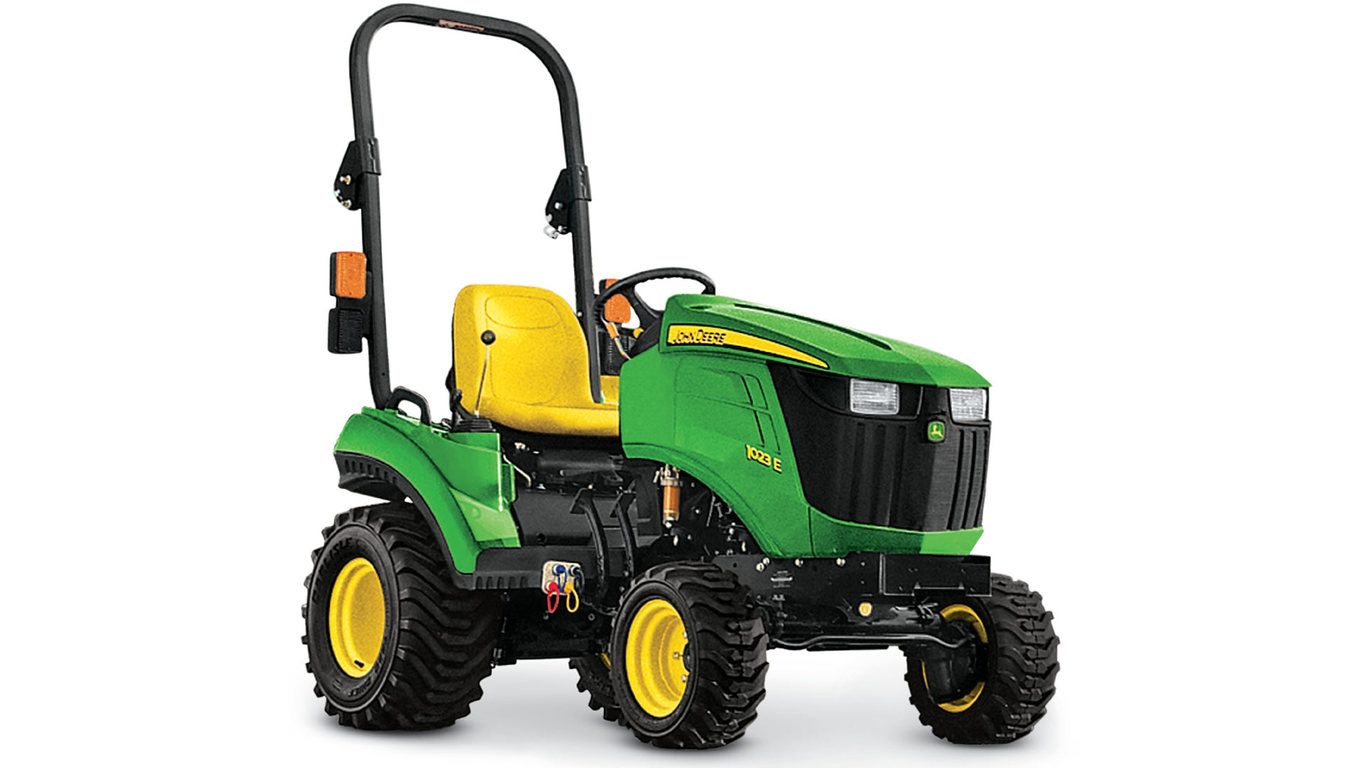

John Deere 1023E Image Gallery
