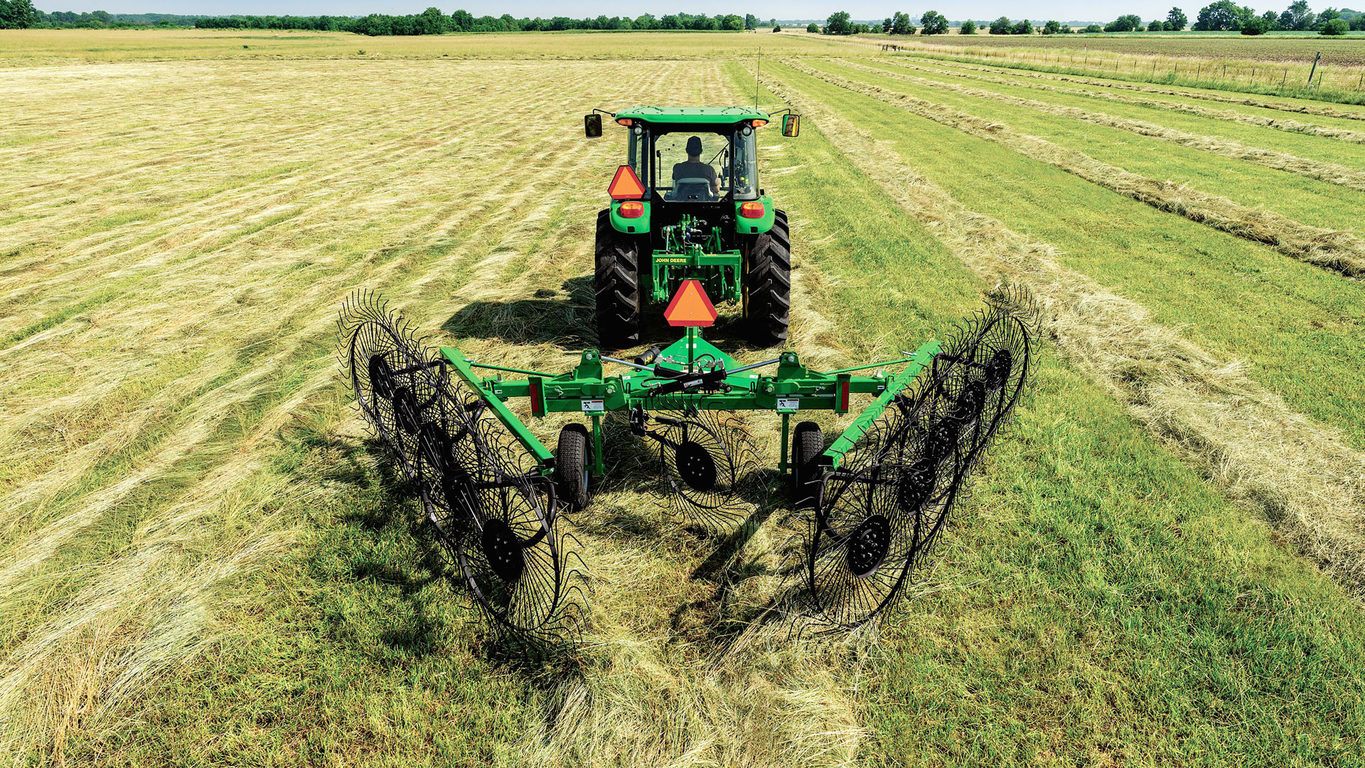

John Deere WR31 Series
  • + Expand All
  • - Close All
  • High-capacity design
    High frame clearance increases productivityHigh frame clearance increases productivity

    The WR31 Series High-Capacity Carted Wheel Rake has a high frame clearance and an increased distance between the transport wheels and raking wheels, measured at 81.3 cm (32 in.) and 45.7 cm (18 in.) respectively. This clearance allows for a high volume of crop to flow through the rake, reducing crop plugging while increasing productivity.

  • Single tractor selective control valve (SCV) with double-acting valve
    Double features increase pressure and cycle timeDouble features increase pressure and cycle time

    The double-acting valve allows hydraulic pressure to flow both in and out, providing a 25 percent faster hydraulic cycle time.

  • Adjustable hitch to match wide array of tractor bar heights
    Convenient and quick hitch adjustmentsConvenient and quick hitch adjustments

    The adjustable hitch allows for added versatility with the WR31 Series High-Capacity Carted Wheel Rake. With the wide array of tractor tire sizes and drawbar heights, hitch adjustments add more convenience for large hay operations.

  • Large raking wheels for added productivity
    High-quality hay with larger raking wheelsHigh-quality hay with larger raking wheels

    The 152.4-cm (60-in.) diameter raking wheels of the WR31 Series have fewer revolutions per hour than a smaller raking wheel traveling at the same ground speed. This reduction in revolutions minimizes crop leaf loss, leading operators to produce higher quality hay. A larger diameter wheel will have a longer wear life, increasing the life of the raking tines.

  • Quick field adjustments

    The WR31 Series High-Capacity Carted Wheel Rake has three easy adjustment points to fine-tune windrows and gather more hay in each bale.

    Adjustable down-pressure springAdjustable down-pressure spring

    1. Simply change down pressure by adjusting a spring to the desired setting for accuracy on uneven terrain.

    Increase crop volume by adjusting simple adjustmentIncrease crop volume by adjusting simple adjustment

    2. Adjust wheel rake width to gather higher volumes of crop by adjusting a single pin and clip.

    Windrow jack for quick and easy adjustmentsWindrow jack for quick and easy adjustments
    Adjusting windrow widthAdjusting windrow width

    3. Fine-tune the windrow width by utilizing the jack to adjust the pitch of the wheel rake beams to get the right size windrow for the baler.

  • Kwik Pik wheel system
    Rake arms in position with Kwik Pik systemRake arms in position with Kwik Pik system
    Kwik Pik system mechanismKwik Pik system mechanism

    The Kwik Pik system lifts both rake arms at the same time. This system allows for immediate clearance of the rake wheels from the crop, which in turn does not affect the windrow form during headland turns. Headland turns can be made faster, increasing productivity and uptime for the operator. The windrows will maintain a rectangular shape for easy pickup with a baler.

  • Individual wheel hub grease zerks
    Easy maintenance with accessible grease zerksEasy maintenance with accessible grease zerks

    The ability to properly lubricate moving parts, such as the wheel, extends the life of these parts, leading to increased uptime.

Dimensions

Transport width 3.05 m<br/>10.0 ft
Raking width Minimum<br/>4.57 m<br/>15.0 ftMaximum<br/>5.79 m<br/>19 ft
Transport height 2.18 m<br/>7.15 ft<br/>NOTE: Transport heights can vary based on unit setup. Dimensions are for reference only.
Frame clearance 83.57 cm<br/>32.9 in.
Transport length 5.18 m<br/>17 ft
Windrow width Minimum<br/>91.44 cm<br/>36 in.Maximum<br/>152.4 cm<br/>60 in.
