John Deere WR30 Series

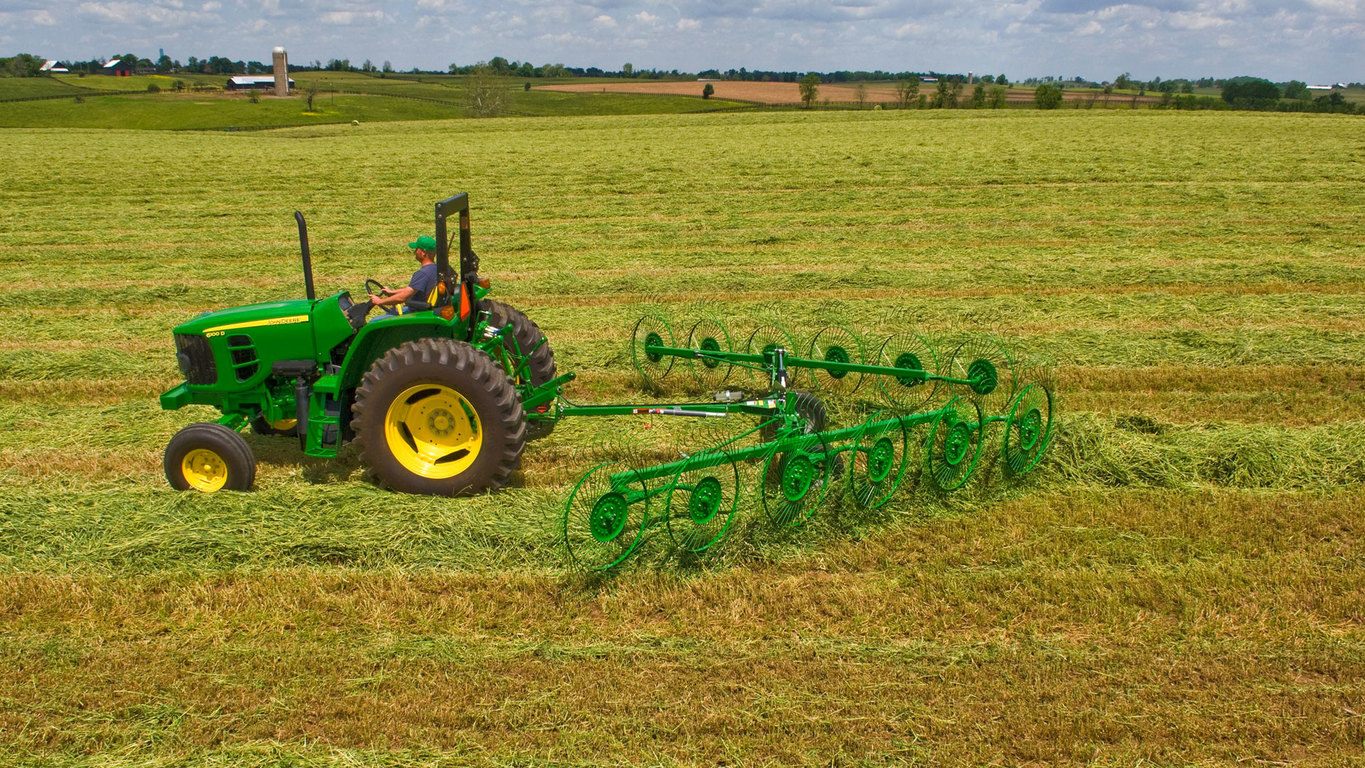

WR30 Series Carted Wheel Rakes

  • John Deere
  • Hay & Forage

Find a location to get your local store information and inventory.

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs
  • 3-position rake width adjustment
  • Down pressure spring adjustment
  • Single-acting hydraulic cylinder to raise and lower rake wings
  • Optional center kicker wheel
  • Raking Width 15 - 19 ft. (4.6 - 5.8 m)
  • # of Wheels 8 Wheels
  • Windrow Width 36 - 60 in. (91.4 - 152.4 cm)
  • + Expand All
  • - Close All
  • Down pressure spring adjustment
    Fine-tuning spring allows for top-quality rakingFine-tuning spring allows for top-quality raking

    Adjusting the fine-tune spring on the WR30 Series allows proper wheel down pressure.

  • Easy raising and lowering of rake wings
    Single cylinder allows for easy adjustmentsSingle cylinder allows for easy adjustments

    A single cylinder with a linkage system allows easy raising and lowering of the rake wings.

  • Rake width adjustment
    Easily adjust the rake to the desired position Easily adjust the rake to the desired position
    #

    The raking width on the Frontier™ WR30 Series Carted Rakes can be adjusted to three different positions with the pin and fine-tuned with the turnbuckle screw.

Dimensions

Transport length 5.48 m
18 ft
Windrow width Minimum
121.92 cm
48 in.Maximum
182.88 cm
72 in.
Raking width Minimum
6.1 m
20 ftMaximum
7.31 m
24 ft
Transport width 2.89 m
9.5 ft
Frame clearance 60.96 cm
24 in.
