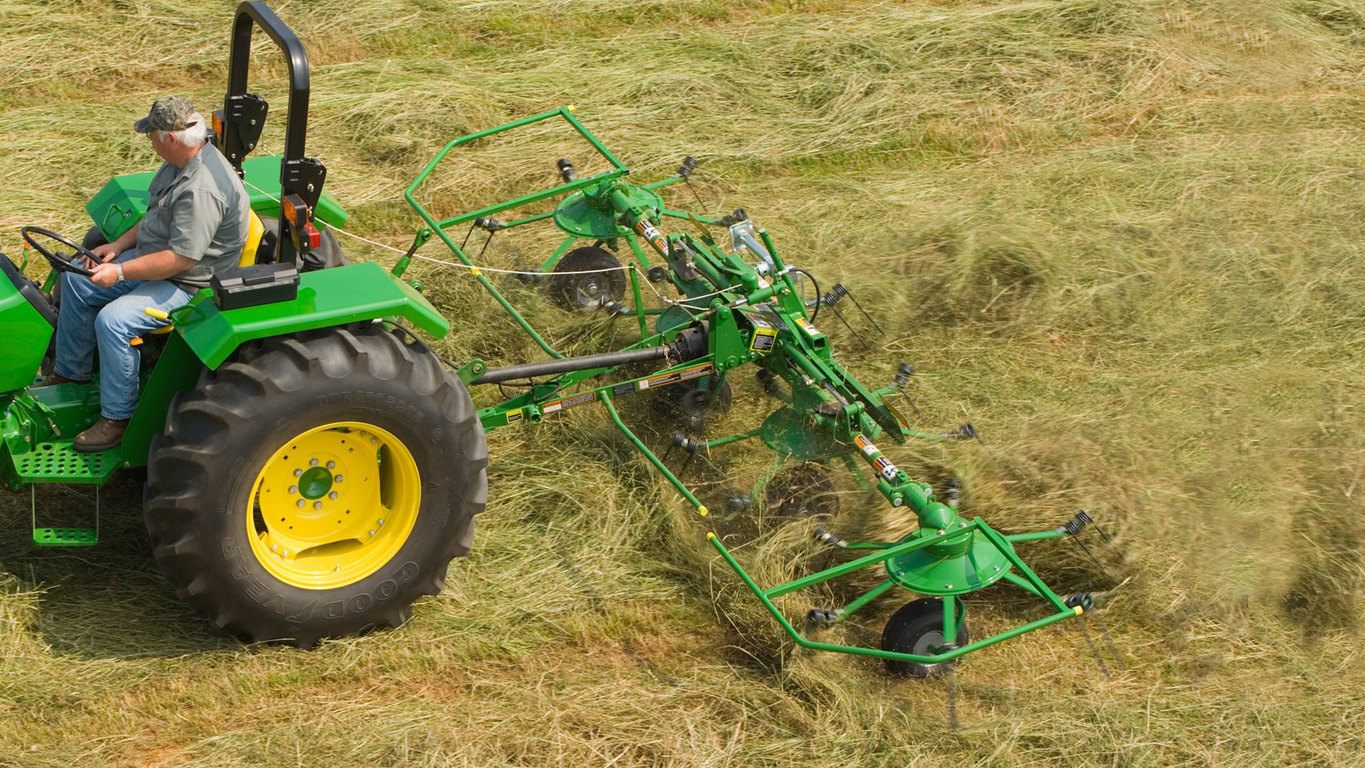

TD13 Series Hay Tedder
- John Deere
- Hay & Forage
Find a location to get your local store information and inventory.
Find Location
Key Features & Specs
- DigidriveTM drive system ensures maximum life
- Hydraulic working angle adjustment
- Durable Steel tines
- Balloon tires operates smoothly on bumpy ground
- Tedding Width 16 ft. 5 in. (5.0 m)
- # of Rotors 4
- PTO HP 20 hp (14.9 kW)

- + Expand All
- - Close All
-
Durable steel tines resist fatigue
Flexible steel for durability and dependability
The TD13 Series Hay Tedder has flexible, steel tines that are heat treated for durability and highly resistant to fatigue.
-
Rotor adjustment
Hydraulic angle adjustment for easy transport
The Frontier™ TD13 Series Hay Tedder comes standard with hydraulic angle adjustment, perfect for transporting the tedder to multiple fields.
It allows the operator to set the working angle of the tedder one time and then quickly and easily go from the transport to the working position, using the tractor hydraulics from the comfort of the seat.
-
Balloon tires operate smoothly, even over bumpy ground
Balloon-technology tires on Frontier&tm; TD13 Series
The TD13 Series Hay Tedder's large balloon tires allow smoother operation over irregular ground.
-
Digidrive® drive system ensures maximum life
Digidrive system
The exclusive Digidrive rotor drive fingers on the TD13 Series Hay Tedder are made from forged, case-hardened, heat-treated steel for maximum life and smooth power transmission.
Digidrive is a U.S.- registered trademark of Kuhn S.A. Joint Stock Company, France
Dimensions
Transport height | 2.7 m 8.7 ft |
Transport length | 2.3 m 7.6 ft |
Width in working position | 5.4 m 17.7 ft |
Tedding width | 5.0 m 16.4 ft |
Transport width | 2.8 m 9.2 ft |
Hitch
Type | Drawbar |
Lighting and safety
SMV | Standard |
Safety guards | Standard |
Safety chain | Standard |
PTO
Type | Torque Limiter |
rpm | 540 rpm |
Rotor
Quantity | Four |
Set-up time
Labor hours | 6 |
Tine
Height adjustment | Hydraulic tilt |
Tine arms
Quantity per rotor | Six |
Type | Round tubular |
Tires
Working size | 6 ply: 38x15 cm 15x6 in. |
Working type | Balloon |
Tractor requirements
Minimum hp (kw) | 14.9 L 20 hp |
Hydraulic valves (SCVs) required | One |
Transport position
Hydraulic vertical fold with hydraulic tilt | Standard |
Warranty
Time period | 1 year |
Weight
Shipping | 456 kg 1,005 lb |
Working position for other crop flow
Straight, right-hand, left-hand angles | Standard |
