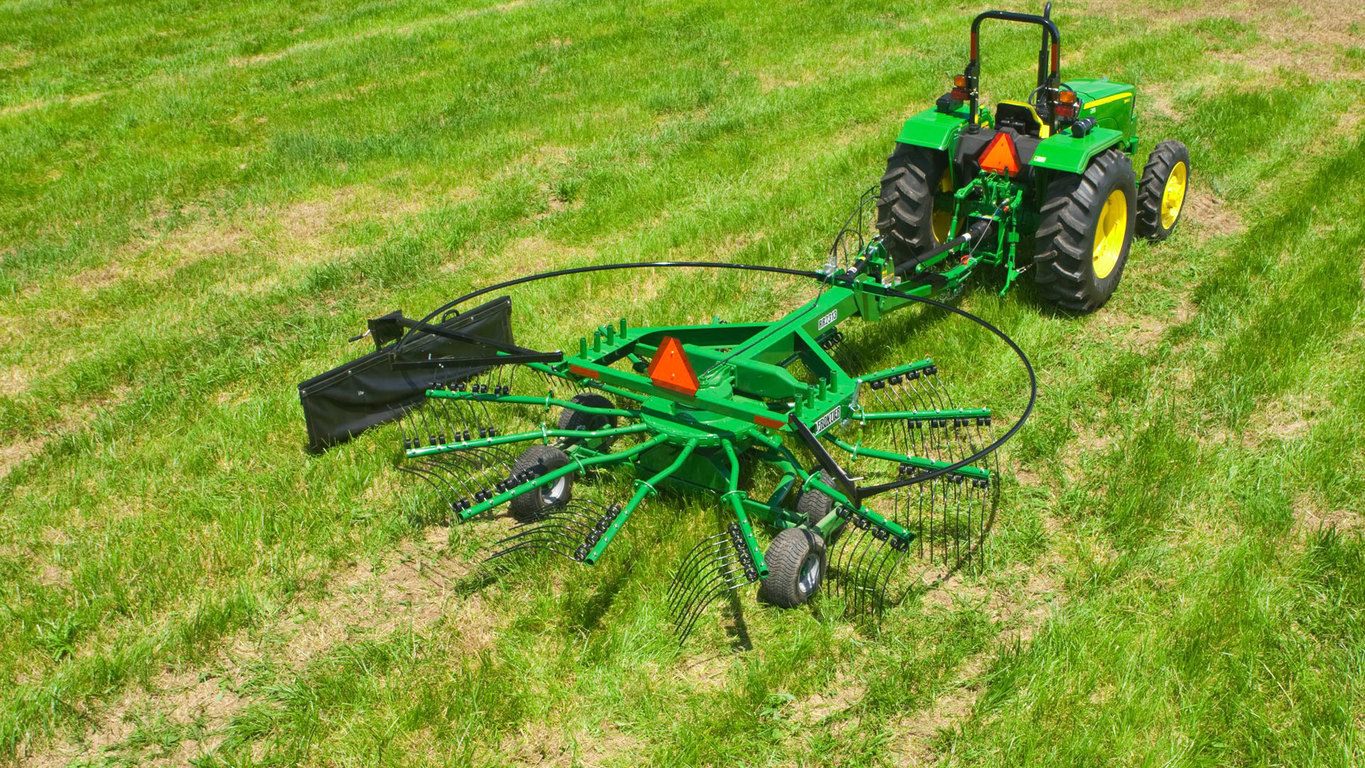

John Deere RR23 Series
  • + Expand All
  • - Close All
  • Tandem flotation tires, dual gauge wheels, and tandem walking beam axle
    Flotation tires provide top-quality performanceFlotation tires provide top-quality performance
    Dual gauge wheels standard on RR2324Dual gauge wheels standard on RR2324

    Four large tandem flotation tires on the RR2313 Rotary Rake and eight large tandem flotation tires on the RR2324 Rotary Rake provide maximum durability when operating over rough terrain.



    Tandem walking beam axles on both RR23 Series Rotary Rakes provide a smooth ride over rough terrain and follow ground contours, allowing for proper crop pickup.



    Additional flotation tires (two per rotor) are available on the RR2324 for even greater ground contour following.



    Dual gauge wheels located on the front of the rear basket of the RR2324 are standard. The dual gauge wheels maintain a constant height of the tines, helping follow ground contours on rolling terrain.

  • Cam-action tine arms
    Cam-action tine arms for efficient drying timeCam-action tine arms for efficient drying time
    #

    The cam-action tine arms on the RR23 Series Rotary Rakes gently deposit the material in the windrow, saving valuable leaves.



    Furthermore, the cam action forms a higher, fluffier, faster-drying windrow that saves drying time.



    The tine arms are removable to allow for narrow transport widths and more compact storage.

  • Rugged 13-arm rotor with adjustable cam
    Adjustments are easyAdjustments are easy
    #

    The RR23 Series Rotary Rakes have rugged 13-arm rotors featuring an adjustable cam.



    This allows the operator to change the aggressiveness of the tines to the crop conditions – more aggressive for wet crops and less aggressive for delicate crops like alfalfa.

  • Two rotors rake one large or two smaller windrows in a single pass
    Single windrowSingle windrow
    Dual windrowDual windrow

    The RR2324 Rotary Rake is more versatile because it has two rotors, allowing it to rake one large windrow or two smaller windrows in a single pass.

  • Hydraulically adjustable swath curtain for rear rotor
    Quickly and easily adjust rear swath curtainQuickly and easily adjust rear swath curtain
    #

    The hydraulically adjustable swath curtain is standard on the rear rotor of the RR2324 Rotary Rake.



    It easily adjusts for proper windrow formation in varying crop conditions.

  • Adjustable swath curtain
    Swath curtain controls windrow formationSwath curtain controls windrow formation
    Adjustable to accommodate raking needsAdjustable to accommodate raking needs

    The Frontier™ RR23 Series Rotary Rake swath curtain controls the windrow formation in varying crops. It can be adjusted in or out to accommodate individual harvesting needs.



    When combining multiple windrows with the RR2324, the curtain can either be removed or turned upside down to prevent interfering with the hay.

  • Rake adjustments are easy
    Hydraulics allow adjustments from tractor seatHydraulics allow adjustments from tractor seat
    Adjust pitch of rake tines with hand crankAdjust pitch of rake tines with hand crank

    Hydraulically raise and lower the RR23 Series Rotary Rake without leaving the tractor seat.



    Easily adjust the pitch of the rake tines with the hand crank.

Axle

Type Tandem walking beams
