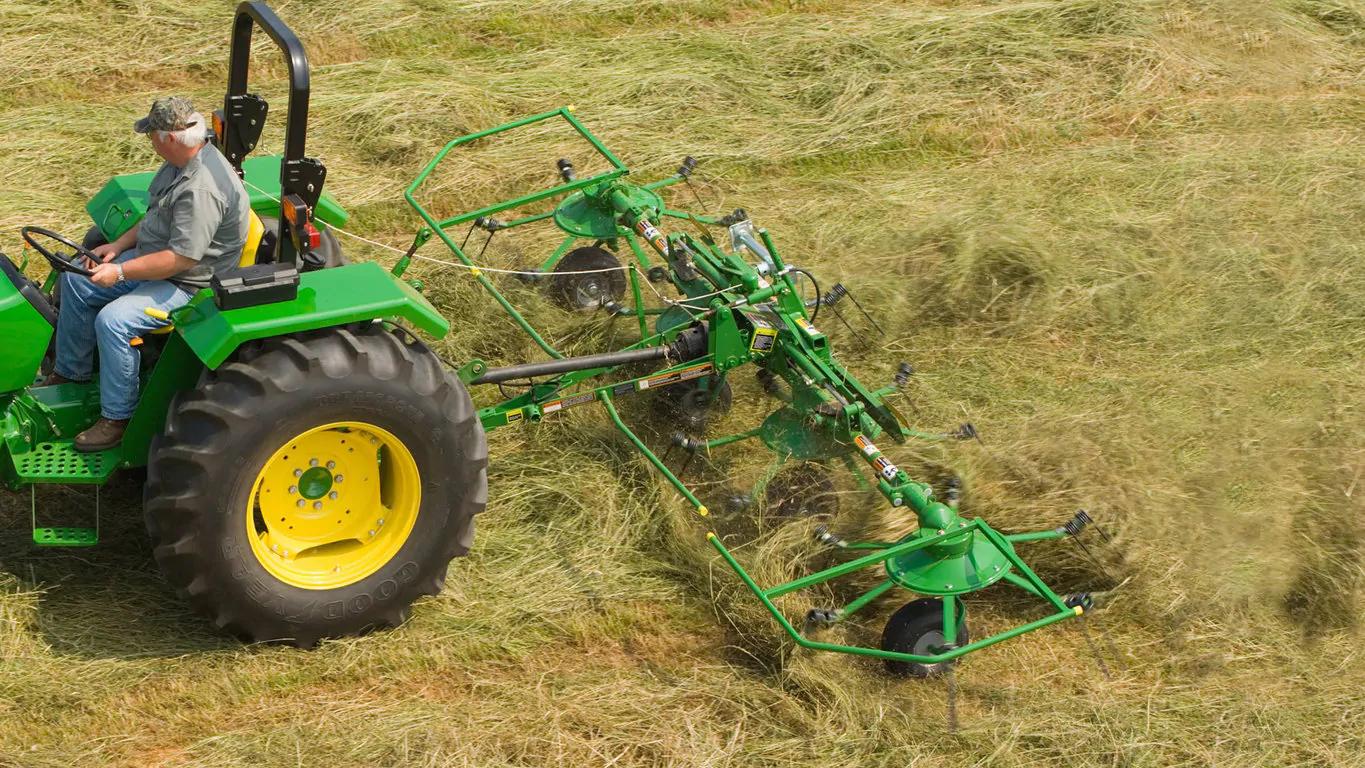

John Deere TD13 Series
  • + Expand All
  • - Close All
  • Durable steel tines resist fatigue
    Flexible steel for durability and dependability Flexible steel for durability and dependability

    The TD13 Series Hay Tedder has flexible, steel tines that are heat treated for durability and highly resistant to fatigue.

  • Rotor adjustment
    Hydraulic angle adjustment for easy transport Hydraulic angle adjustment for easy transport
    #

    The Frontier™ TD13 Series Hay Tedder comes standard with hydraulic angle adjustment, perfect for transporting the tedder to multiple fields.



    It allows the operator to set the working angle of the tedder one time, and then quickly and easily go from the transport to the working position using the tractor hydraulics from the comfort of the seat.

  • Balloon tires operate smoothly, even over bumpy ground
    Balloon-technology tires on Frontier™ TD13 Series Balloon-technology tires on Frontier™ TD13 Series

    The TD13 Series Hay Tedder has large balloon tires that allow smoother operation over irregular ground.

  • Deflector aftermarket kits for BP1166 Bale Processors and TD1316 Hay Tedders

    An aftermarket, field-installed wide deflector belt kit is available for feed bunk applications on the BP1166 Bale Processor.



    An aftermarket, field-installed anti-wrap deflector kit helps to prevent hay from wrapping on the tine arms and rotor housings of the TD1316 Hay Tedder during use.



    An aftermarket, field-installed wheel deflector kit helps prevent hay from being trapped by the tine arms of the TD1316 Hay Tedder during operation in light and/or fluffy hay applications.

  • Reduction gearbox for TD1316 Hay Tedders

    Reduction gearbox conversion kit is great for heavy windrows or night windrow applications when using the TD1316 Hay Tedder.

  • Digidrive® drive system ensures maximum life
    Digidrive system Digidrive system
    #

    The exclusive Digidrive rotor drive fingers on the TD13 Series Hay Tedder are made from forged, case-hardened, heat-treated steel for maximum life and smooth power transmission.



    Digidrive is a trademark of Kuhn, S.A. Joint Stock Company.

Dimensions

Transport height 2.7 m
8.7 ft
Transport length 2.3 m
7.6 ft
Width in working position 5.4 m
17.7 ft
Tedding width 5.0 m
16.4 ft
Transport width 2.8 m
9.2 ft
