John Deere R200

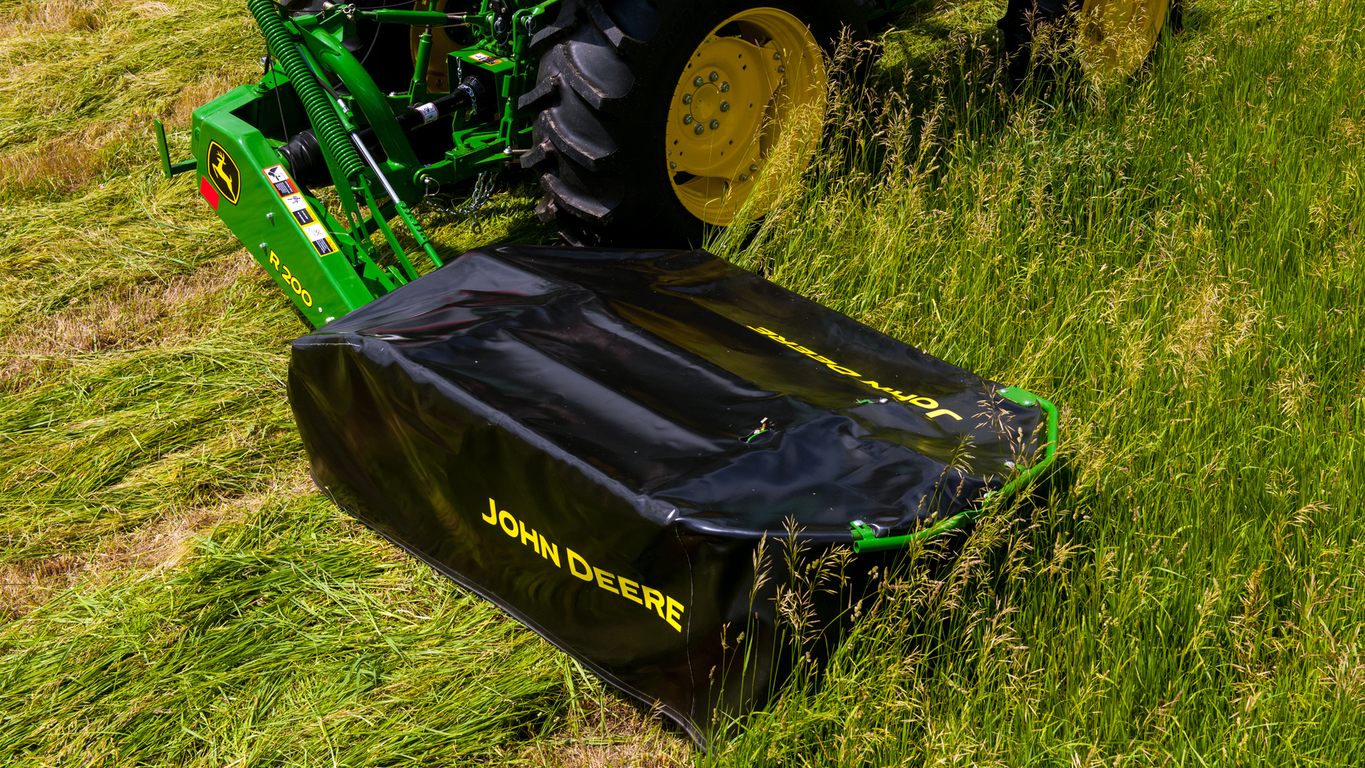

R200 Disc Mower

  • John Deere
  • Disc Mowers

Find a location to get your local store information and inventory.

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Easy-to-attach 3-point hitch tractor hookup

High-clearance frame and suspension

Disc quill easy to remove for serviceability

  • Models 35hp (25kW)
  • Tractor Requirement 6ft. 7in. (2.0m)
  • Cutting Width 5
  • Number of discs 540rpm
  • PTO Speed 2,986rpm
  • Disc Speed 940lb. (427kg)
  • + Expand All
  • - Close All
  • Lift and suspension system
    Heavy floatation springHeavy floatation spring

    The disc mowers use the hydraulic cylinder to lift the cutterbar from cutting to the transport position, where the cutterbar automatically locks into place.



    The R160 and R200 have a cutting arc of +35 degrees to -22 degrees.



    A heavy spring establishes even flotation along the full length of the cutterbar in a variety of different field conditions and topography.

    Performance

    Cutting arc provides a wide range of cutting angles

  • Easy-to-attach 3-point hitch tractor hookup
    Easy-to-attach 3-point hitch Easy-to-attach 3-point hitch

    The R160 and R200 Mowers attach to tractors with a Category 1 and 2, 3-point hitch. The R160 and R200 are not quick-hitch compatible.



    The R160 and R200 models rely on the parking stand to hold up 3-point hitch arms to ensure easy hook up to the tractor.

    Adjustable lower hitch pins Adjustable lower hitch pins
    #

    Lower hitch pins can be adjusted left or right to match the mower offset for tractors with wider tire spacing. The R160 and R200 models have an offset range of 172 mm (7 in.).

    Uptime

     Cutting arc provides a wide range of cutting angles

  • Heavy-duty cutterbar for the toughest cutting conditions
    Rotary disk cutterbar Rotary disk cutterbar
    #

    A multi-V-belt drive system transfers power from the gearbox to each rotary disc.

    Power is transmitted to the rotary discs through fully enclosed gears, running in oil, for quiet, smooth, reliable operation.



    All models have a spring-loaded belt tensioner for easier belt adjustment. The belt tension automatically compensates for initial belt stretch, increasing belt life.

    High-speed rotary disksHigh-speed rotary disks
    #

    Rotating at 2986 rpm, the high-speed discs cut in the toughest conditions.

    The low-profile cutterbar allows a close cut while maintaining a level cutterbar. The cutting height is controlled by adjusting the tilt of the cutterbar.

    Each disc has two free-swinging knives:

    • Easy to remove and replace
    • Two cutting edges, doubling the use life
  • Easy-to-remove disc quill
    Removable quill Removable quill
    #

    The cutterbar is protected from severe impact should an object be struck.

    • Disc drive-shaft shears
    • Reduces chance of internal damage to cutterbar
    • Improves cutterbar reliability

    Disc quills are easily removed from the top of the cutterbar for improved serviceability.



    Each disc has two free-swing knives:

    • Easy to remove and replace
    • Two cutting edges, doubling the use life
    • Swings away to reduce possible damage if a solid object is struck

Mower

Number of disks Five
Number of knives 10
Width of cut 2.0 m
6.58 ft
Weight 465 kg
1025 lb
Disk speed 2986 rpm
Cutting arc +35 to -22 degree (angle)
Lift system Hydraulic
Tractor horsepower requirement 26 kW
35 hp
PTO speed 540 rpm
