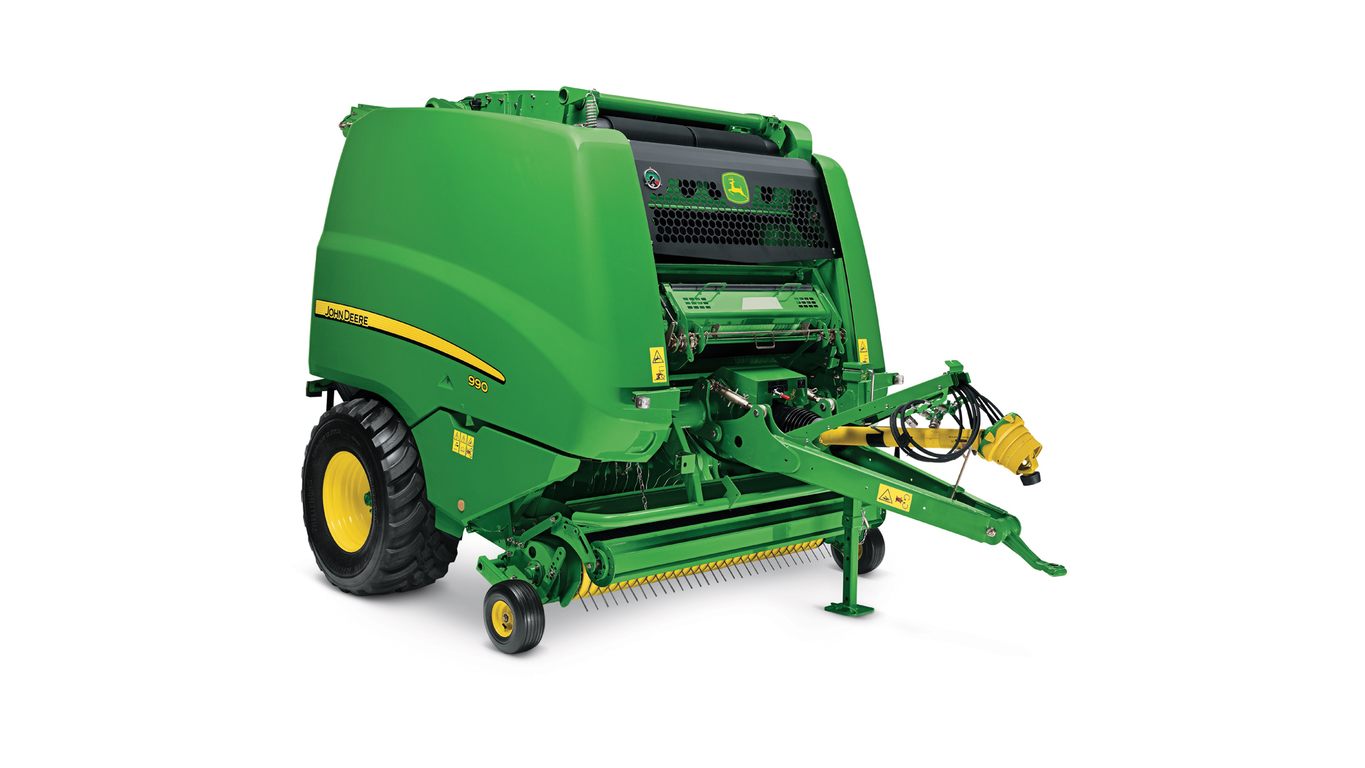

John Deere 990
  • + Expand All
  • - Close All
  • Full-frame design gives increased durability
    Steel full frame  an industry firstSteel full frame an industry first

    The 900 Series Balers are the first to use a dedicated full frame to hang all the components resulting in greater durability. All load, shocks and stress that are encountered are carried by the frame, not any individual component.

    Dedicated frame decreases baler stress
    All components are cradled into the full frameAll components are cradled into the full frame

    Due to the exclusive design on the 900 Series, much of the stress is directly transmitted to the full frame giving greater reliability. On a traditional baler, there is no dedicated frame and the baler receives stress from:

    • Belt tensioning system
    • Bale pressure on sides
    • Total baler weight
    • Potential plugs
    • Road transport
    • Shocks due to uneven ground

    On the 900 Series the bale chamber is isolated from all those constraints giving it a longer life.

  • Simple design allows easy maintenance and setup
    Simple driveline gives reliability and reduces maintenance
    Crossbeam designCrossbeam design
    Few sprockets and chains for easy maintenanceFew sprockets and chains for easy maintenance

    Less maintenance means more time available for baling. That is exactly what contractors and large farms need. The 900 Series Balers benefit from a simple design to reduce downtime. For example, the gearcase is no longer linked to the driveline by yokes. The gearcase is integrated to the frame (crossbeam design) with lubrication free bearings.

    Also, fewer sprockets and fewer chains limit wear and potential downtime. Six chains drive all moving parts.

    The 900 Series chains are heavy duty, giving up to 40 percent more durability.

    Automatic chain lubrication gives simple daily maintenance
    High-capacity oil tank reduces refillsHigh-capacity oil tank reduces refills

    Chains are critical components and need a regular and efficient lubrication. The 960 and 990 Balers offer an automatic chain lubrication pump as base equipment. This accurate system allows independent chain lubrication settings. All chains are continuously oiled for better durability, not just during gate opening like some competitors.


    For best results, use environment friendly John Deere Bio Multiluber oil.

    Automatic greasing offers error proof maintenance
    Automatic greasing device is easily refilledAutomatic greasing device is easily refilled
    Greasing parameters are set from the displayGreasing parameters are set from the display

    Hurrying during daily maintenance can cause grease fittings oversight and potential damage. The 960 and 990 Balers offer an optional automatic greasing device. This system provides grease to bearings that require daily greasing.

    With ISOBUS technology, greasing parameters are easily and accurately adjusted from the display. Regular greasing gives longer parts durability resulting in better reliability. Grease tank capacity requires refill only once during harvesting season.

    If optional automatic greasing device is not chosen, maintenance is facilitated by grease banks grouping the grease fittings.

  • Put more crop in a bale with the MaxD bale chamber
    The widest belts in the marketThe widest belts in the market

    MaxD bale chamber features wide endless belts to maximize bale density and reduce crops losses.

    • The two 571.5 mm (22.5 in.) wide belts increase bale coverage by around 4 percent, thereby reducing possible crop losses between each belt. Wide belts enable an excellent bale shape and grab the crop firmly.
    • The endless belts have increased durability at high pressure compared to spliced belts. High tension can be applied for a long time without the risk of breaking a belt, reducing the need for maintenance.
    Three powered rolls for easy bale starting and excellent bale shape
    Two starter rolls plus one bale chamber rollTwo starter rolls plus one bale chamber roll

    MaxDensity (MaxD) bale chamber features three powered rolls to improve versatility and bale quality:

    • The three powered rolls facilitate bale starting, especially in wet conditions such as silage. Forage is immediately turned into the chamber and there is no slipping risk even with the heaviest bales.
    • Rolls are positioned to give the bale a good round shape, regardless of the bale diameter, the core is ideally centered.
    • As belts push crops against rigid steel rolls, high pressureis easily applied, providing high-density bales.
    Offset tensioning arms transmit high density.
    Offset density arm gives tension to the beltsOffset density arm gives tension to the belts

    The 900 Series offers a new tension system that transmits high density to the bales. The heavy-duty offset arm gives tension to the arm and is not involved in belt length compensation. One hundred percent of hydraulic power is involved in belt tensioning.

    Movable side sheets: push bale density to max without sticking risk
    Movable side sheets = no contactMovable side sheets = no contact

    Baling silage provides tough baling conditions which can cause bales to stick in the chamber. With conventional balers, density may need to be reduced so bales do not stick. The 900 Series Balers have the new MaxD bale chamber that avoids contact between bale sides and baler side sheets when unloading, an industry first. Full density can be set for different crop types. No need to decrease bale density,as the bale unloads within five seconds.

    Wider chamber to put more crop in a bale
    1.21 m (4 ft) width bales = more volume1.21 m (4 ft) width bales = more volume

    MaxD bale chamber produces 1.21 m (4 ft) wide bales, which means the 900 Series provides 3.5 percent more volume than the 800 Series. More volume and more density will no doubt reduce harvest handling and shipping costs. In addition, the maximum bale diameter is increased by 50.8 mm (2 in.), which increases bale volume up to 10 percent compared to the 800 Series Balers. More volume and more density reduce harvest handling and shipping costs.

  • Advanced net system gives excellent bale wrapping
    Duckbill design feeds the net into the chamber
    Net is directly fed between the rollsNet is directly fed between the rolls

    The 900 Series Balers feature a patented high-efficiency net tying system. The new design does not have traditional rubber feeding rollers that can sometime cause net plugs. A duckbill pinches the net that is directly fed between the two front rolls of the bale chamber. The net is caught by the bale and covers the bale. An exclusive knife and counter knife system ensures an accurate net cut and avoids irregular net tears.

    User friendly net system
    Easy net loadingEasy net loading

    The net system is very efficient and easy to use. A tray is conveniently located on the front of the machine which allows for easy net loading.The front location also makes it easy to visually check the net applying process from the cab. The John Deere system does not require a special tool to feed the duck bill. Two hands and 10 seconds is all it takes to change a net roll.

    As with other John Deere variable chamber balers, all parameters (twine/net, number of turns) are quickly set from the display.

    In order to optimize productivity, daily maintenance for the 900 Series net tying system is not necessary. It is nearly maintenance free.


    CoverEdge™ compatibility gives the best bale protection.
    Bales wrapped with CoverEdge netBales wrapped with CoverEdge net

    CoverEdge net offers the best bale coverage for the 900 Series Balers. This exclusive John Deere net wrap covers the bale well, overlapping the edges 51-102 mm (2-4 in.) to better protect the bale against weather conditions.

    The John Deere CoverEdge net is recommended for the 900 Series Baler. However, the net tying system is compatible with most net types and brands on the market.

    Efficient two arms twine tying system
    Two arms with twine cut at the center of the baleTwo arms with twine cut at the center of the bale

    For more versatility, a new patented twine tying system has been specially designed for 900 Series Balers. Two arms efficiently feed the twine between the two front rolls in bale chamber. Tying process ends at the center of the bale where twine is cut for a great bale finish.

    High volume storage limits pit stop
    Enough twine and net for a long dayEnough twine and net for a long day

    To maximize productivity and reduce downtime, an optional storage box is available for each side of the baler. The optional storage boxes hold four net wrap rolls (two in each box). If baler is equipped with the twine tying system, the optional storage boxes hold 10 twine balls (five in each box).

  • Less than 5 seconds to unload baler with the fast release system (FRS) boosts productivity
    No gate, no wait
    FRS - no gate systemFRS - no gate system
    A light structure for fast openingA light structure for fast opening

    Unloading is unproductive time. With the FRS, the 990 and 960 Balers offer less than 5 seconds unloading time, thereby, reducing bale ejection cycle time, allowing more bales per day. Some competitors require up to 10 more seconds to unload. That means the 900 Series Balers can finish a field one hour earlier than a competitive model based on a 10-hour day.

    FRS provides a light structure that opens the chamber quickly and removes belts from the bale. FRS does not require a heavy structure. The FRS gate applies no friction to the side of the bale, allowing the bale to drop quickly unlike competitive machines. There is little stress transmitted to FRS, which can be more than two times lighter than traditional heavy gates. Opening and closing cycles are significantly faster without risk of breakage and with low power requirements.


    Moving side sheets release the bale faster
    Side of the chamber moves Side of the chamber moves

    Moving sidesheets help avoid the bale from getting stuck in the chamber. When the light structure opens, each side of the chamber automatically moves two inches. Thus, there is no more contact between the bale and the chamber; the bale is released and quickly falls by its own weight. Even in the worst wet conditions, the unloading process is as efficient as in dry straw.

    FRS improves stability in slopes
    990 center of gravity (red) vs. 864 (blue)990 center of gravity (red) vs. 864 (blue)

    Opening the gate on steep hills with a traditional bale may cause instability. The 900 Series offers safe unloading conditions even in hilly fields.

    Without a heavy gate to lift during bale release, the center of gravity hardly moves during the opening process. The global height of the baler stays low and allows ample distance from electrical wires.

    Rear canvas protection gives security.
    Rear canvas avoids direct contact to beltsRear canvas avoids direct contact to belts

    To prevent direct contact between operator and belts when machine is operating, a rear canvas is lowered during the baling process. The protective rear canvas automatically rises during bale unloading.

    Unloading ramp gives productivity
    Unloading ramp gives smooth/fast bale ejectionUnloading ramp gives smooth/fast bale ejection

    Optional unloading ramp gives a smooth and fast bale release without reversing tractor-baler combination. By avoiding this additional reverse move, global baler productivity is increased. With ramp extensions, there is no risk of hitting bales when closing the FRS.

    The 900 Series unloading ramp links to the frame by a shock absorber, allowing the bale to be smoothly discharged on the ground. With the additional spring, the ramp can quickly return and be firmly hanged in upper position during baling process and road transport, even on uneven ground.

  • High capacity feeding system grabs the toughest swaths
    New pickup design improves capacity and durability
    2.2-m (7.2-ft) pickup width to fit the widest windrows2.2-m (7.2-ft) pickup width to fit the widest windrows
    Large diameter stripper and five tine barsLarge diameter stripper and five tine bars

    The 900 Series Balers offer a new pickup design with increased capacity. All balers are equipped with an 2184-mm (86-in.) wide pickup to match the swaths.

    The large-diameter strippers have five tine bars in the pickup instead of four.This increases the capacity by more than 10 percent while reducing rotating speed 12 percent, increasing reliability. Heavy-duty tine bars also provide extended durability to the pickup.

    High capacity (HC) rotor for higher productivity
    Converging augers are now integrated onto the rotorConverging augers are now integrated onto the rotor

    The 900 Series Balers offer huge feeding capacity due to the HC rotor design. Converging augers are now integrated with the rotor limiting free space between pickup teeth and rotor. Plugging risk is reduced and crop feeding is highly improved. This new design along with a large diameter rotor is particularly efficient in the toughest crops or in difficult conditions, such as crossing windrows.

    The simple HC rotor design also reduces the number of moving parts. Loads are distributed all along the rotor increasing overall reliability.

    The 990 and 960 Balers are available only with a precutter, offering space between knives as short as 40 mm (1.6 in.).



    MaxiCut HC 13

    MaxiCut HC 25

    Number of knives



    Knife spacing

    No cutting / 80 mm (3.1 in.)

    No cutting / 80 mm (3.1 in.)  /
    40 mm (1.6 in.)

    Best use

    Silage, hay, straw

    Silage, hay, straw


    Knives set selection from the monitorKnives set selection from the monitor

    Crop cutting width can easily be adjusted from the cab. A single touch on the screen allows one to engage or disengage all the knives. When equipped with MaxiCut HC 25, half of the knives can also be engaged.


    This system offers the use of two different sets of knives for the same cutting width. For example, a set of 12 knives can be used in the morning and a second set of 13 knives can be used in the afternoon. By using two sets of knives, you will always bale with sharp knives, helping to increase productivity and fuel efficiency. This knife selection option allows for longer intervals between sharpening knives.

    New advanced drop floor removes the worst plugs
    Drop floor covers rotor full widthDrop floor covers rotor full width
    Parallel kinematics avoids narrowingParallel kinematics avoids narrowing

    Drop floor makes removing plugs easy, even the ones under converging augers. The new design covers all the rotor width, so wherever a plug occurs, the unplugging device allows a 40-mm (1.6-in.) free space. This space is enough to decompress the crops and feed the plug into the baler.

    New parallel kinematics provide a consistent 40-mm (1.6-in.) space on the entire drop floor eliminating narrow pinch points like the front-hinged drop floors have.

  • ISOBUS and tractor-baler automation offer new baling experience
    Tractor-Baler Automation simplifies baling experience
    A single manual action; system manages the restA single manual action; system manages the rest
    TBA awardsTBA awards

    The optional Tractor-Baler Automation (TBA) makes baling easy. This exclusive system manages most of the baling process and gives the customer the following advantages:

    • High baling comfort a single action to bale instead of four.
    • Error proof baling - even after 10 working hours, the system does not forget any action; a true advantage for an inexperienced driver.
    • Constant bale quality - same diameter bale after bale
    • Constant productivity - no reduced efficiency due to operators fatigue.

    When used with a John Deere ISOBUS tractor, electric selective control valve (E-SCV), and (IVT™) transmission, the system will be able to:

    • Stop the tractor when bale size is reached
    • Wrap the bale
    • Open the gate
    • Close the gate when bale is unloaded

    The only action remaining is to forward reverser and manage the steering.

    If the John Deere tractor is not equipped with IVT but has E-SCV and ISOBUS, opening and closing can be automated.

    A single touch on SCV, brakes, or reverser will disengage the automation. In the same way, automated open/close can be momentarily stopped when unloading in hilly conditions.

    Tractor-Implement Automation is an exclusive green on green advantage. This advanced technology option has won awards at SIMA and Agritechnica farm equipment show in Europe, a true cost/value guarantee.

    NOTE: to run through fully automated mode, a John Deere Isobus tractor with E-SCV and IVT is required. A baler activation key and a tractor activation key (different) have to be ordered.

    ISOBUS certified balers
    Plug in and bale with ISOBUSPlug in and bale with ISOBUS
    ISOBUS certified = compatibility guaranteeISOBUS certified = compatibility guarantee

    The 990 and 960 Balers offer ISOBUS compatibility as base equipment. This standardized communication not only allows the use of John Deere Greenstar2 1800, 2600, or 2630 Displays, but also the use of other ISOBUS conform competitive monitors.

    Adapter harnesses for non-ISOBUS tractors are available.

    User friendly interface
    Main page with simple and clear pictogramsMain page with simple and clear pictograms
    Bale or soft core density adjustmentsBale or soft core density adjustments

    The Baler interface displays information that is needed. The 900 Series monitors provide all required information:

    • Bale shape and diameter
    • Drop floor and knives position
    • Variable core activation
    • Tying process status
    • Gate position
    • Maintenance status

    Adjustments can also be managed from the operators station:

    • Bale size and density
    • Variable core diameter and density
    • Net and twine tying parameters
    • Knife selection
    • Automated lubrication
    • Tractor-Baler Automation status
    • Bale counter resets
    Greenstar™2 1800 has the ideal display for baling application
    Greenstar2 1800 Display ordered with the balerGreenstar2 1800 Display ordered with the baler

    The 900 Series Balers can be teamed with all ISOBUS certified displays. The Greenstar2 1800 monitor can be ordered with the baler to match traditional baling requirements. When not baling this display can be used for other functions such as guidance and spraying applications when connected to an appropriate receiver and implement.

    All ISOBUS display will fit the 900 Series
    GreenStar3 2630 fits the most demanding user needsGreenStar3 2630 fits the most demanding user needs

    The 960 and 990 Balers can be ordered without a monitor for customers who already have an ISOBUS display, or for those who search more advanced application (field management). Displays other than John Deere Greenstar2 1800 can be purchased through Ag Management Solutions (AMS) pages.
