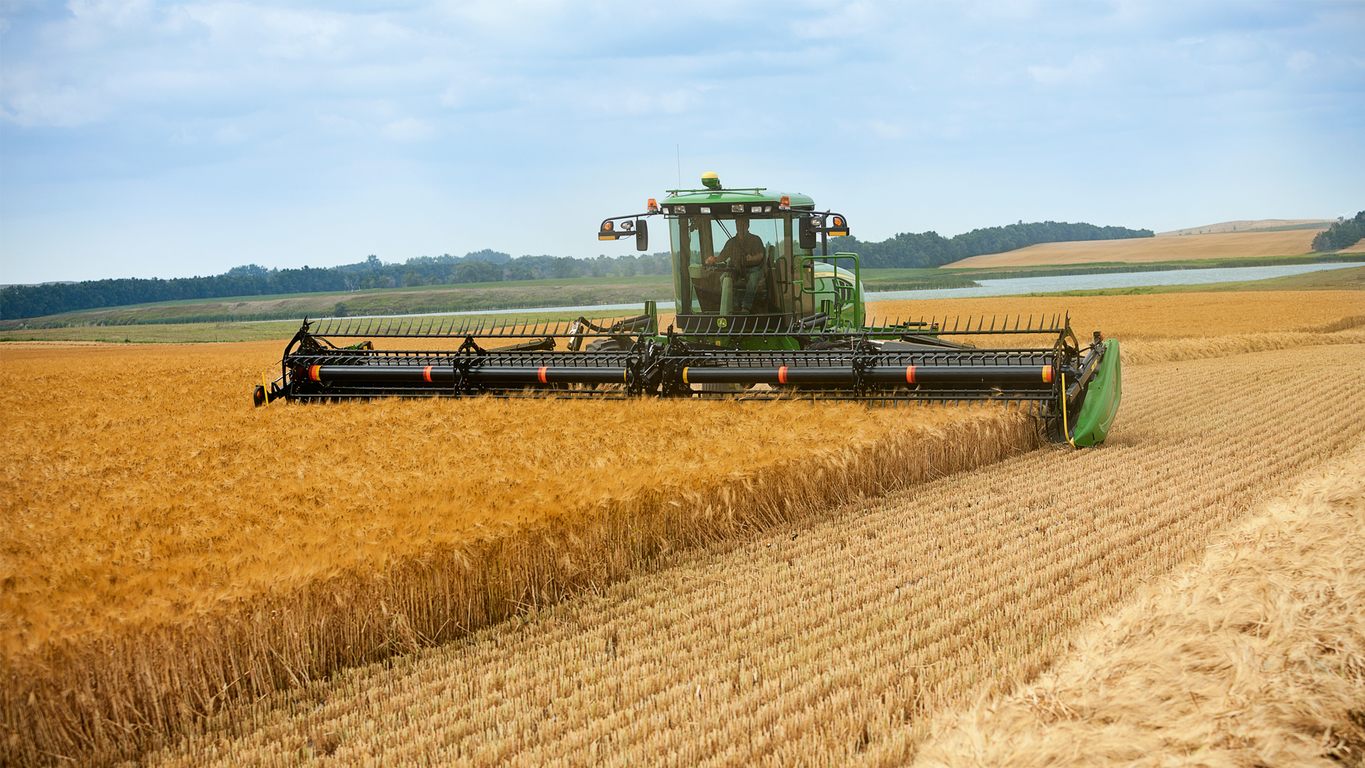

420D Draper
- John Deere
- Draper Platforms
Find a location to get your local store information and inventory.
Find Location
- Cutterbar and frame profile gives uninterrupted crop flow
- Strong, positive-feeding reel handles all crop conditions
- Hydraulic deck shift gives larger windrows for more efficient harvesting

- + Expand All
- - Close All
-
John Deere parts and service support provide uptime for a timely harvest
Sales and service delivered
Sales, parts, and service support from your local John Deere dealer offer overnight parts delivery and a well-trained support staff.
-
Transport easily with integrated transport system
400D integral slow-speed transport system (W150 shown)
The 430D, 435D, and 440D Draper models can be equipped with an integral, slow-speed transport system. One person can convert the draper from field to transport in minutes without the use of tools.
The W150 Self-Propelled Windrower is the only model approved to tow a 400D Draper Platform. Transport is also recommended behind a tractor with a seven-pin electrical lighting outlet.
Dual front-dolly wheel tires and two gauge-wheel tires carry the complete weight of the draper when in transport.It is a simple four-step process to switch from field to transport:
- Move right gauge wheels from field to transport position.
- Move left gauge wheels from field to transport position.
- Attach tongue.
- Detach from windrower.
-
Cutterbar and frame profile gives uninterrupted crop flow
C-shape cutterbar profile
The unique C-shape cutterbar allows for easy crop flow onto the draper while providing a superior draper-to-cutterbar seal. The seal between the top of the C-shape cutterbar and the draper belt is important to limit the amount of material that gets under the belts. The open design at the bottom of the C-shape cutterbar allows any material that does get past the seal to fall back out. This reduces the amount of material that gets inside the draper belts. This cutterbar shape promotes smooth crop flow across the cutterbar, minimizing hesitation and crop loss in shatter-prone crops.
-
Gauge wheels provide ground following for uniform cut
Dual-gauge wheel option
400D Series Draper Platforms offer optional 15-in. dual-gauge wheels with spring suspension. This combined with the windrower float system provides flotation and excellent ground following in all conditions.
The operator can fine adjust the float on the go from the cab, allowing high-speed harvesting and stable flotation with the assistance of the adjustable spring-loaded gauge wheels.
The gauge wheels are also available as part of the integrated slow-speed transport system option. -
Excellent visibility to cutterbar and belt
Cutterbar visibility
Center visibility
Left-side visibility
Right-side visibility
The cutterbar and frame designs give excellent visibility across the full range of tilt.
The cutterbar and belt can be easily seen from the cab even with the optional top-crop conveying auger installed.
The cutterbar can be tilted from the cab mechanically or hydraulically depending on the windrower option chosen.
This allows operators to optimize the cutterbar angle for varying crop and field conditions, thus extending the harvest day and providing the best possible cut height and crop flow.
-
Strong, positive-feeding reel handles all crop conditions
635D split-span reel with plastic fingers
Cam reel tooth action
Reel in full forward position
The 400D Draper Platform features a cam design reel that feeds well in all crop conditions.
The cam pickup reel features a 165-cm (65-in.) effective diameter and utilizes heavy-duty plastic or steel fingers and heavy tine tubes. The reel features a cam to control tooth position. The smooth cam action and heavy tine tube design allows the reel to operate at higher speeds with a smoother, quieter operation. This gives better feeding with less wear on the reel drive components and, more importantly, less shatter of the crop harvested.
Hourglass-shaped reel
Reel endfingers
The reel is designed and assembled to have an hourglass shape. This allows the ends to be positioned closer to the cutterbar for positive feeding while keeping the fingers at the center of the reel span from coming into contact with the cutterbar. Feeding is most important at the ends. Other reel designs do not have the capability of such tight adjustment. The hourglass shape is designed with an adjustable bolt position on the reel tine tube brackets to the discs.
Optional end fingers improve feeding aggressiveness in difficult feeding and cutting conditions with down and tangled crop.
Adjustable cam positions
The cam position and reel position are adjustable, enabling the machine settings to be matched with the crop conditions for a trouble-free harvest. The finger release position is easily adjustable to one of four cam positions.
The reel is hydraulically positioned up, down, and fore-aft to allow perfect positioning for gentle yet positive feeding action.
Plastic fingers come standard from the factory on all platforms. Steel finger options are available through Parts and are recommended for heavy forage crop conditions due to the longer life. The plastic fingers are recommended for all crop conditions. The plastic fingers weigh less and work well in all crops. The plastic fingers are easier to replace individually without having to disassemble the other fingers on the reel tube section.
All 11-m (35-ft) split-reel platforms (North America and export) and the 12-m (40-ft) split reel platforms (North America only) come standard with tine tube stiffener kits to handle heavy crop conditions and improve the life of the platform.
Plastic tine-split reel with end feed fingers
The reel is available in a single span only from 4.1-m (15-ft), 6.1-m (20-ft), and 7.6-m (25-ft) sizes. Single-span or split-reel spans are available in 9.1-m (30-ft) to 11-m (35-ft) sizes. Split reel only is available in 12 m (40 ft) size. There are optional end feed fingers (three per end are available as field installed) for tough feeding conditions.
The single-span reel offers less weight and better center visibility. It is a good option for producers who harvest canola and small grains for oil and seed.
The split-reel span gives better feeding in adverse crop conditions such as heavy, wet, and down crop. The split span gives better control of the reel height on wider platforms for more consistent feeding.Five-bat reel
Six-bat reel
Nine-bat reel
The reel is available in five-, six-, or nine-bat configurations. The nine-bat configuration gives more interaction for more positive and smooth crop flow in heavy down crop conditions. Additional bats can be field installed to convert from six bats to nine bats. Additional bat configurations are recommended for heavy crop conditions such as silage and grass seed crops.
-
Optional reverser clears plugs effortlessly for higher productivity during tough harvest conditions
Platform reverser controls on W150
An optional reverser is available for the W150 only. It is easily activated from the operator's station to clear the platform of plugs that may occur.
On the 400D Platforms, the reverser slowly reverses the knife drive and optional hay conditioner if equipped to clear plugs. The reverser is highly recommended when using the optional hay conditioner with the 400D Draper Platform.
On the 100A Auger Platform the reverser slowly reverses the conditioning rolls, auger, and reel. This makes a difficult job easier, so the operator can be more productive.
Operators can run the machines nearer to their maximum capacity and it will take less time to unplug, adding to the machine productivity.
The reverser consists of a valve block and valves shown in photo above. It is the gold colored valve block to the right of the photo. It is shown plumbed for a 100A Auger Platform.Reverser valve block
Center opening / crop delivery
Center opening width between belts | 1,720-1,950 mm 67.1-76.7 in. |
Cutterbar
Type | Dual knife |
Cut width (length) | 6.1 m 20 ft |
Knife drive | Hydraulic motor to enclosed heavy-duty wobble box |
Knife speed | 700-850 cycles/min 1,400-1,700 spm |
Cutterbar tilt | Standard hydraulic Optional mechanical (7.5 to 17.0 degree lift) |
Dimensions
Platform length | 6.5 m 21.3 ft |
Overall operating depth | With crop dividers 2.6 m 8.7 ft |
Transport width, field position | 6.5 m 21.3 ft |
Transport width on wheel, less dividers | 2.5 m 8.1 ft |
Transport length, hitch extended | ---- |
Draper belts
Width | Wide rubber skim-coated 710-ml (24-oz) drapers: 1,067 mm 41.6 in. |
Operating speed | 0-225 m/min 0-742 fpm |
Speed control | Hydraulic from cab |
Header height sensing
Header height sensing on the ground | Float springs on traction unit |
Header height sensing off the ground | Return to cut height standard Gauge wheels optional |
Reel
Reel type | Pick up cam 4 postition adjustable release |
Number of bats | 6 bats standard 9 bats optional, single span, capped ends |
Fingers | HD Plastic |
Diameter | 1,650 mm 65 in. |
Height control | Hydraulic |
Speed control | Hydraulic with header index |
Reel lift | Hydraulic |
Reel fore and aft | Hydraulic |
Operating speeds | 0-85 rpm |
Weight
Approximate weight (pickup reel) | 1,544 kg 3,400 lb |
