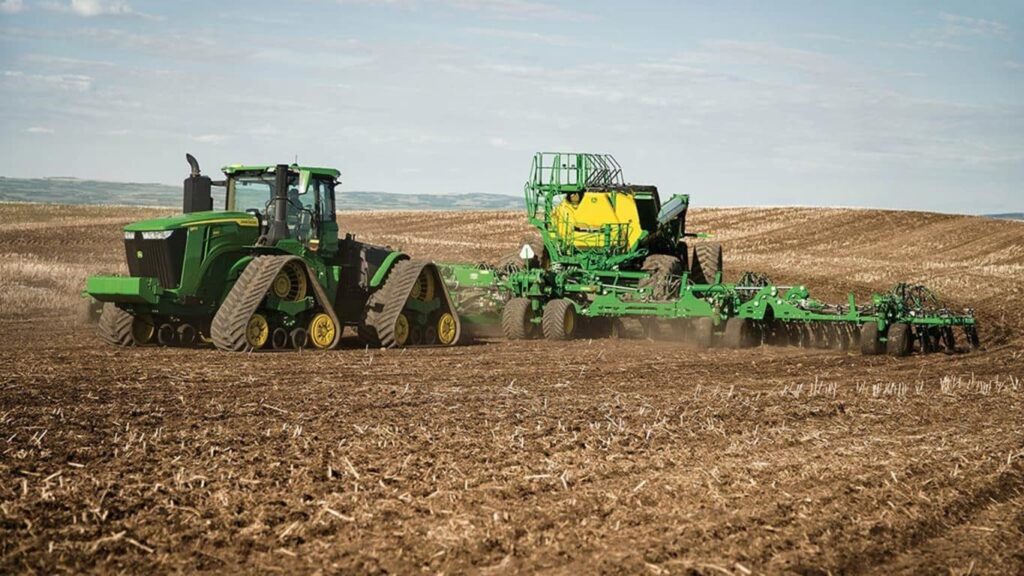

9RX 640 Tractor
- John Deere
- 9RX Tractors
Find Your Nearest Location
Key Features & Specs
- Engine HP1: 691 Max/ 640 hp Rated
- Fully integrated precision ag technology
- e18™ PowerShift transmission
- 120-inch track spacing option
- JD14X (13.6L) Engine
1Engine power PS (hp ISO) at max engine power speed (ECE-R120). John Deere Standard RES10080, SAE Standards J1995.
- PTO HP Rated: 335 hp (249 kW)
-
Engine HP¹
Max: 691 hp (508 kW)
Rated: 640 hp (471 kW) -
Hydraulics
55 or 110 gpm
SCV 4-8 factory installed - Transmission e18™ PowerShift with Efficiency Manager
- Ride Comfort Cab Suspension
-
Track width and Tread Spacing
Tracks: 30 in. or 36 in.
Spacing: 87 in. or 120 in.
- + Expand All
- - Close All
-
In the field or on the road: adjust steering ratio on-the-go with ActiveCommand Steering (ACS™)
You don’t have to compromise between pinpoint turns in the field and smooth, easy steering during transport – you can have it all with ActiveCommand Steering (ACS), available on all 9R and 9RX Tractors.
ACS lets you choose your steering ratio based on the task at hand. For precise headland maneuvers in the field, choose a tight 3.5 turns lock-to-lock. When you’re done in the field, ACS gives you a full five turns for smoother line-holding during road transport. Variable-effort resistance automatically changes with ground speed; you’ll notice a lighter touch during low-speed, in-field turns, and increased feedback at transport speeds for more comfortable, confident steering over the road. Plus, ACS works seamlessly with AutoTrac™ guidance systems and is compatible with wide and narrow section width tires as well as wide and narrow belts on 9RX models.
The end result? Reduced overall steering effort and fatigue, no drift and no backlash through the hand-wheel, all with the “connected” feel of a traditional steering column system -
Tackle any terrain with a variety of undercarriage configurations
9RX Tractor undercarriage configurations Model Narrow undercarriage Wide undercarriage Track spacing:
203.2 cm (80 in.), 223.5 cm (88 in.), or 304.8 cm (120 in.)Track spacing:
223.5 cm (88 in.) or 304.8 cm (120 in.)45.7-cm (18-in.) tracks 61-cm (24-in.) tracks 76.2-cm (30-in.) tracks 91.4-cm (36-in.) tracks 9RX 490 • • • • 9RX 540 • • • • 9RX 590 --- --- • • 9RX 640 --- --- • • • Available
--- Not availableJohn Deere offers a variety of track widths and track spacings to fit the needs of your operation. The narrow undercarriage is great for row crop applications and can be ordered with track spacings of 203.2 cm (80 in.), 223.5 cm (88 in.), or 304.8 cm (120 in.). The wide undercarriage is ideal for tillage and seeding applications and is available with 223.5-cm (88-in.) or 304.8-cm (120-in.) track spacing.
Application Narrow undercarriage Wide undercarriage Primary tillage Good Best Secondary tillage Better Best Transport Good Better Grain cart Best Best Nutrient application Best Good Row-crop planting Best Better Specialty crops in bedded rows Best Good Air seeding Better Best 9RX Tractors equipped with 76.2-cm (30-in.) and 91.4-cm (36-in.) tracks can be equipped with industry-exclusive, factory-installed track spacing set at 304.8-cm (120-in).
9RX Tractors equipped with 304.8-cm (120-in.) track spacing provide increased stability, allow producers to operate on 304.8-cm (120-in.) centers for controlled traffic farming, and provide improved track-to-frame clearance for better access to the undercarriage for serviceability and material cleanout. John Deere is the first and only tractor manufacturer to offer a 304.8-cm (120-in.) track spacing option on four-track tractors with 76.2-cm (30-in.) and 91.4-cm (36-in.) tracks up to 462.3 kW (620 hp).
9RX Tractors with 304.8-cm (120-in.) track spacing increase space between the undercarriage and chassis to provide more space for performing daily and routine maintenance tasks.
-
A range of hydraulic options give you the power and flexibility to take on your toughest applications
Of course, the 9 Series has the hydraulic muscle you need to push, pull, lift, and power your most demanding implements. But thanks to a range of enhancements to the hydraulic system, these tractors can provide that power at lower engine speeds, saving you fuel while still giving your implements the capacity they need. Regardless of model or configuration, the new 9 Series hydraulic system gives you:
- An increase of almost 40 percent in charge pump capacity, from 54-cc to 75-cc, to help maintain a higher flow at lower engine speeds
- A new swash plate angle sensor to monitor hydraulic flow and pressure and adjust engine speed to meet demand
- An integrated hydraulic pump, filter, and priority valve for fewer and shorter lines, reduced pressure loss, fewer flow restrictions, and an extra level of reliability
And if you depend on implements that need continuous hydraulic power, the 9 Series Tractors are available with Intelligent Power Management (IPM). Using dual pumps and advanced sensor and control technology, IPM provides additional engine and hydraulic power for high-demand applications like air seeding up and over hills or through thick, tough soil.
Add in single and dual pump options and a flexible number rear SCVs, and you can configure a powerful, fuel-efficient hydraulic system to meet the demands of your specific operation without paying for capacity you don’t need. -
John Deere integrated solutions: a world of connected technology, right from the factory
John Deere makes it easy for you to access an entire suite of connected applications, all designed to help you make the most of every seed, every hour, every gallon, and every bit of machine-related information.
Each 9 Series Tractor comes standard with the John Deere StarFire™ 6000 Integrated Receiver and Generation 4 CommandCenter™ display; there’s no need for setup, installation, or initial global positioning system (GPS) calibration. Integrated AutoTrac™ assisted steering gives you accurate, scalable guidance for low-stress operation in nearly any conditions and can improve field efficiency by 10 percent or more. The 9 Series Tractors also feature standard JDLink™ telematics and users can turn on connectivity in the John Deere Operations Center for anytime, anywhere access to critical machine and field information. And every tractor comes from the factory with John Deere Connected Support™, so you and your dealer can anticipate and address critical system needs.
From here? The sky’s the limit. Choose any of our operation-specific applications to help maximize efficiency and productivity during planting, tillage, or other field activities.*NOTE: Ordering is temporarily unavailable for the StarFire 6000 Integrated Receiver. John Deere is diligently working to resolve this issue. Please watch the Price Pages and the announcements in the Sales Manual for updates. We apologize for any inconvenience.
StarFire 6000 Integrated Receiver AutoTrac JDLink Base equipment:
- Generation 4 CommandCenter display
- StarFire 6000 Integrated Receiver
Optional equipment:
- Generation 4 CommandCenter display plus extended monitor
Base equipment:
- AutoTrac activation
- SF3 accuracy (+/- 3 cm [1.2 in.])
- Data Sync
Optional equipment:
- AutoTrac RowSense™ system*
- AutoTrac Turn Automation**
- AutoPath™ system**
- AutoTrac Implement Guidance*
- Gen 4 Machine Sync
Base equipment:
- JDLink telematics system
- Wireless Data Transfer
- John Deere Connected Support service
- Expert Alerts
- Remote Display Access
- Service ADVISOR™ Remote service tool
*Available with Premium Activation 3.0
**Available with Automation Activation 4.0 -
The new 9 Series: Easy to run, easy to maintain
When you’re trying to get a field planted before weather moves in, there’s no time to hit a scheduled maintenance interval or get smacked with an unexpected repair. That’s why we designed the 9 Series for maximum reliability and less in-season maintenance.
To start, we simplified as many systems as possible, using components common to other tractor lines and minimizing potential downtime due to parts availability. Then we eliminated as many potential pain points as possible through changes in the cooling, aftertreatment, and diagnostic systems, including:- Replacing the fan drive system with a maintenance-free hydraulic fan drive
- Streamlining aftertreatment with a single-canister inline system that’s simpler and features fewer parts
- Improving uptime by adding better descriptions to diagnostic codes and offering predictive diagnostics through John Deere Expert Alerts
- A front-left service panel for easier access to engine oil check and fill points;
- Offering a 500-hour oil change interval on the John Deere JD14 (13.6L/827-cu in.) Final Tier 4 (FT4) engine when using approved John Deere oil and filter.
-
Work at your best with 9 Series Comfort and Convenience packages
When you’re spending dozens of hours per week in the cab, a comfortable operating environment isn’t just an option – the right features, in the right places, let you and your operators work at your best, dawn to dusk and beyond.
The 7, 8, and 9 Series Tractors offer three Comfort and Convenience packages to fit your needs: Select, Premium, and Ultimate. But regardless of which package you choose, you’ll still get the John Deere CommandARM™ console that puts critical controls within easy reach. You’ll get all the storage space you need for drinks, meals, and other stowable items. And you’ll have plenty of outlets to keep your electronics powered.Comfort and Convenience packages Select Premium Ultimate Seat - Cloth
- Mechanical controls
- Mechanical lumbar
- 8-degree left-hand and 40-degree right-hand swivel
- Cloth
- Electronic controls
- Pneumatic lumbar
- 25-degrees left-hand and 40-degree right-hand swivel
- Leather
- Electronic controls
- Pneumatic lumbar
- 25-degree left-hand and 40-degree right-hand swivel
- Heated/ventilated
- Massage
- Adjustable bolsters
Infotainment - AM/FM
- Auxiliary and Bluetooth® wireless inputs
- Four speakers
- 16.5-cm (6.5-in.) touchscreen radio, XM® ready
- Six speakers with subwoofer
- 16.5-cm (6.5-in.) touchscreen radio, XM ready
- Six speakers with subwoofer
Business band ready X X X Four USB and one 12-V outlet X X X Dual tilt column X X X Footrests --- X X Refrigerator --- X X 120-V/300-W three-prong outlet --- X X Carpeted floor mat --- --- X Leather-wrapped steering wheel --- --- X Bluetooth is a trademark of Bluetooth SIG, Inc. XM is a trademark of Sirius XM Radio Inc.
-
9 Series Visibility packages let you run with confidence, dawn until dusk
Visibility is more than just lighting. It’s mirrors where you need them, shades for the blinding late-fall and early-spring sun, wipers to help keep all the glass clear, and integrated camera capability. The new 9 Series Tractors let you choose the visibility package that best suits your needs – Select, Premium, or Ultimate with 360-degree light-emitting diode (LED) lighting –so you and your operators can run with all-conditions confidence.
Select Premium Ultimate Lighting 18 halogen worklights 18 LED worklights 24 LED worklights and eight LED convenience lights* Mirrors Mechanical Electric and heated Electric, heated, and telescoping Sunshades Front Front, right-hand side, and rear Front, right-hand side, and rear Wipers Front and rear Front, right-hand side, and rear Front, right-hand side, and rear Cameras Camera ready Camera ready Camera ready** *Convenience lights illuminate the corners of the cab for easier entry and exit.
** Starting with model year 2022, the Ultimate Visibility package is camera ready.
Capacities
Crankcase oil volume | 64 L 16.9 U.S. gal. |
Transmission-hydraulic system | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. |
Fuel tank | 1514 L 400 U.S. gal. |
Diesel exhaust fluid (DEF) tank | 120 L 31.7 U.S. gal. |
Cooling system | 56.5 L 14.9 U.S. gal. |
Dimensions
Approximate shipping weight, Open;Cab | 25,546 kg 56,320 lb |
Drawbar clearance | 311 mm 12.2 in. |
Overall length | Excluding hitch: 8309 mm 327.1 in. Including hitch and coupler: 8545 mm 336.4 in. |
Wheelbase | 4125 mm 162.4 in. |
Drawbar
Maximum vertical load | 5440 kg 12,000 lb |
Drawbar category | Category 5 |
Electrical system
Total cold cranking amps | 3 x 925 CCA Total: 2775 CCA |
Working lights | Standard: 18 halogen Optional: 18 or 24 LED plus 8 LED convenience lights |
Alternator size | Standard: 250 amp Optional: 330 amp |
Type of bulb in headlight (Halogen, Zenon, LED) | Standard: halogen, 65 W Optional: LED |
Battery options | 12 V |
Engine performance
PTO torque rise | 38 percent |
Maximum engine power | 508 kW 691 hp |
Rated PTO power (hp SAE) | 249 kW 335 hp |
Rated power | 471 kW 640 hp |
Power boost | 8 percent |
Engine peak torque | At 1550 rpm: 2954 Nm 2179 lb-ft |
Engine specifications
Emission level | Final Tier 4 (FT4) |
After treatment type | Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR) |
Displacement | 13.6 L 827 cu in. |
Rated speed | 2100 rpm |
Engine family | MJDXL13.5334 |
Engine type | In-line six, four valve |
Aspiration | Dual series turbocharger with fixed geometry first stage and wastegated second stage; air-to-air aftercooling and cooled exhaust gas recirculation (EGR) |
Cylinders liners | Wet-sleeve |
Description | JD14 (B20 diesel compatible) |
Front axle
Front axle differential lock | Full-locking electrohydraulic |
Hydraulic system
Pump rated output | Standard: 208 L/min 58 gpm Optional: 416 L/min 110 gpm |
Available flow at a single rear SCV | 1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 159 L/min 42 gpm |
Number of rear selective control valves (SCVs) | Four to eight factory or field installed Base: four 1.3-cm (1/2-in.) couplers Optional: five to six 1.3-cm (1/2-in.) couplers factory installed Optional: three 1.9-cm (3/4-in.) couplers plus five 1.3-cm (1/2-in.) couplers factory installed |
Type | Closed-center, pressure-and-flow compensated |
SCV control | Electronic |
Key Specs
Engine displacement | 13.6 L 827 cu in. |
Base machine weight | 25,846 kg 56,981 lb |
Rear hitch category (SAE designation) | Category 4N/4: 6804 kg 15,000 lb Category 4N/4: 9072 kg 20,000 lb |
Rated engine power | 471 kW 640 hp |
Hydraulic pump rated output | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm |
Engine description | JD14 (B20 diesel compatible) |
Maximum engine power | 508 kW 691 hp |
Transmission type | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h 25 mph |
Rated PTO power (hp SAE) | 249 kW 335 hp |
Miscellaneous
Country of manufacture | USA |
Operator station
Instructional seat | Standard |
Display | Standard: Generation 4 4600 CommandCenter™: 25.4 cm 10 in. Optional: Extended monitor |
Cab glass area | 6.64 m2 71.47 sq ft |
Inner cab volume | 3.27 m3 115 cu ft |
Seat | Degree of seat swivel, left hand 25 degree (angle) Degree of seat swivel, right hand 40 degree (angle) |
Radio | Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna Optional: Touchscreen radio |
Cab suspension | Standard |
Precision AG
Remote diagnostics | Available with activated JDLink hardware and activations |
Telematic | Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination) |
Guidance | Integrated AutoTrac™ |
Rear axle
Final drive type | Bull gear and double idler with floating pinion |
Rear differential lock | Full-locking electrohydraulic |
Rear hitch
Hitch category (SAE designation) | Category 4N/4: 6804 kg 15,000 lb Category 4N/4: 9072 kg 20,000 lb |
Maximum lift capacity behind lift points | Category 4N/4: 9072 kg 20,000 lb |
Sensing type | Electrohydraulic with draft sensing |
Rear power take-off (PTO)
Type | Independent 44 mm (1.75 in.) 20-spline, 1000 rpm |
PTO actuation | Electrohydraulic |
Serviceability
Interval for engine coolant change | 6000 hours |
Interval for engine oil change | 500 hours |
Interval for hydraulic/transmission oil change | 1500 hours |
Steering
Type | Standard: Hydraulic power steering Optional: ActiveCommand Steering (ACS™) |
Tires
Turning radius with brakes | With 76.2 cm (30 in.) track and 221 cm (87 in.) spacing: 6.42 m 21.1 ft |
Tracks
Mid-rollers | Two |
Track width | Standard: 762 mm 30 in. Optional: 914 mm 36 in. |
Tread spacing | Wide undercarriage: 2218 mm 87 in. 3048 mm 120 in. |
Drive type | Camso™ 3500 and 6500 Ag Series - reinforced drive lug technology |
Transmission
Type | John Deere e18 18-speed PowerShift with Efficiency Manager: 40 km/h 25 mph |
Weight
Maximum ballast level | 30,391 kg 67,000 lb |
Base machine weight | 25,846 kg 56,981 lb |
Additional information
Date collected | 22 January 2022 |
